Marantz LINK 10n

Name: Marantz LINK 10n
Brand: Marantz
Price: 19972.0 CAD
Availability: OutOfStock

$19,972.00 CAD

Sale Sold out

Shipping calculated at checkout.

Color Marantz Black Marantz Champagne

Deliveries over $700 - Signature Required!

View full details

Marantz / Streaming Preamplifiers

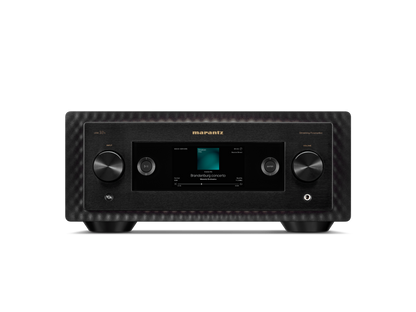

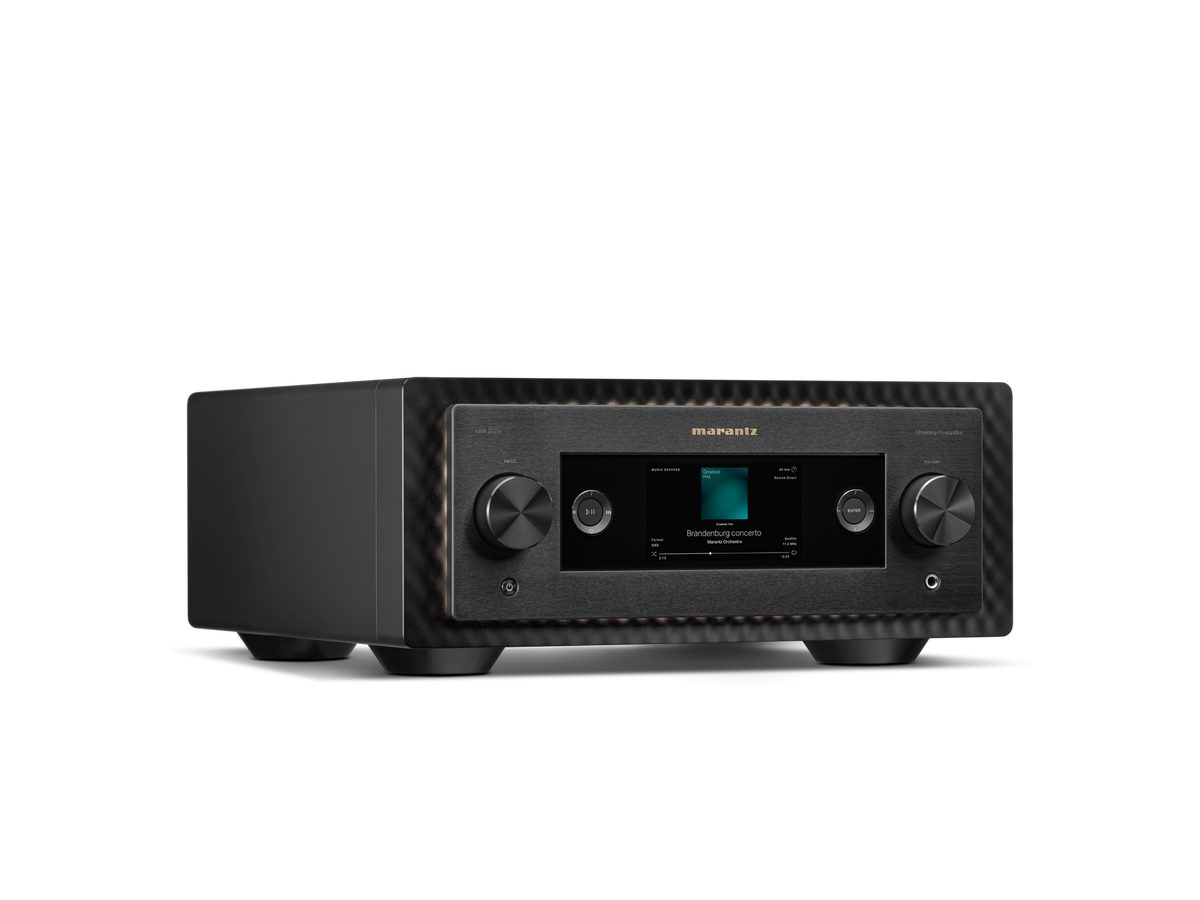

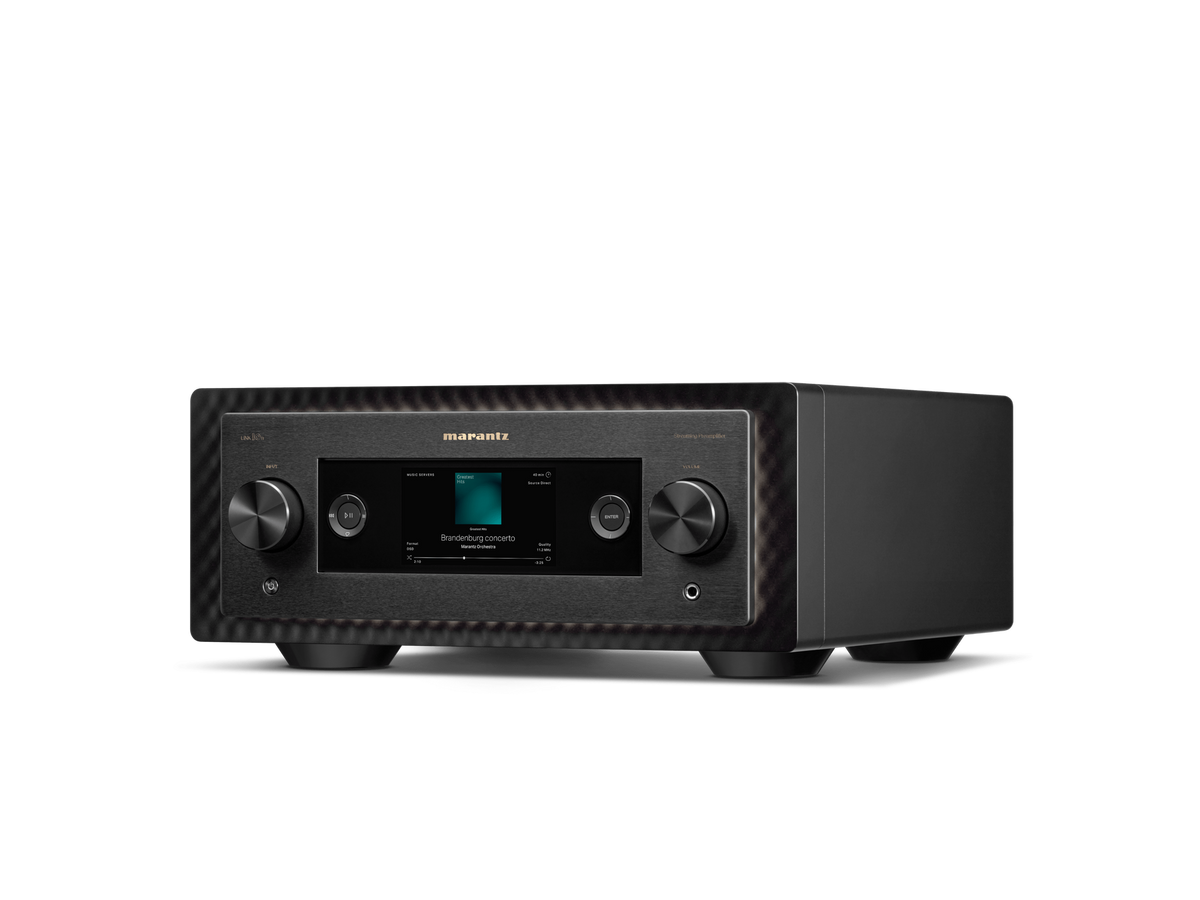

LINK 10n

LINK 10n combines a HEOS network player with a fully featured stereo preamplifier. Balanced and single-ended analog connections, digital inputs, MM/MC phono and a color display make it the control center of a separate-amplifier system.

HEOS® Built-in

HDMI ARC with CEC support

2.1 channel subwoofer output

Design & engineering

Inside the LINK 10n.

Reference construction

Copper plating, multilayer circuit boards, HDAM circuitry and separate internal enclosures follow the 10 Series approach.

Source information in color

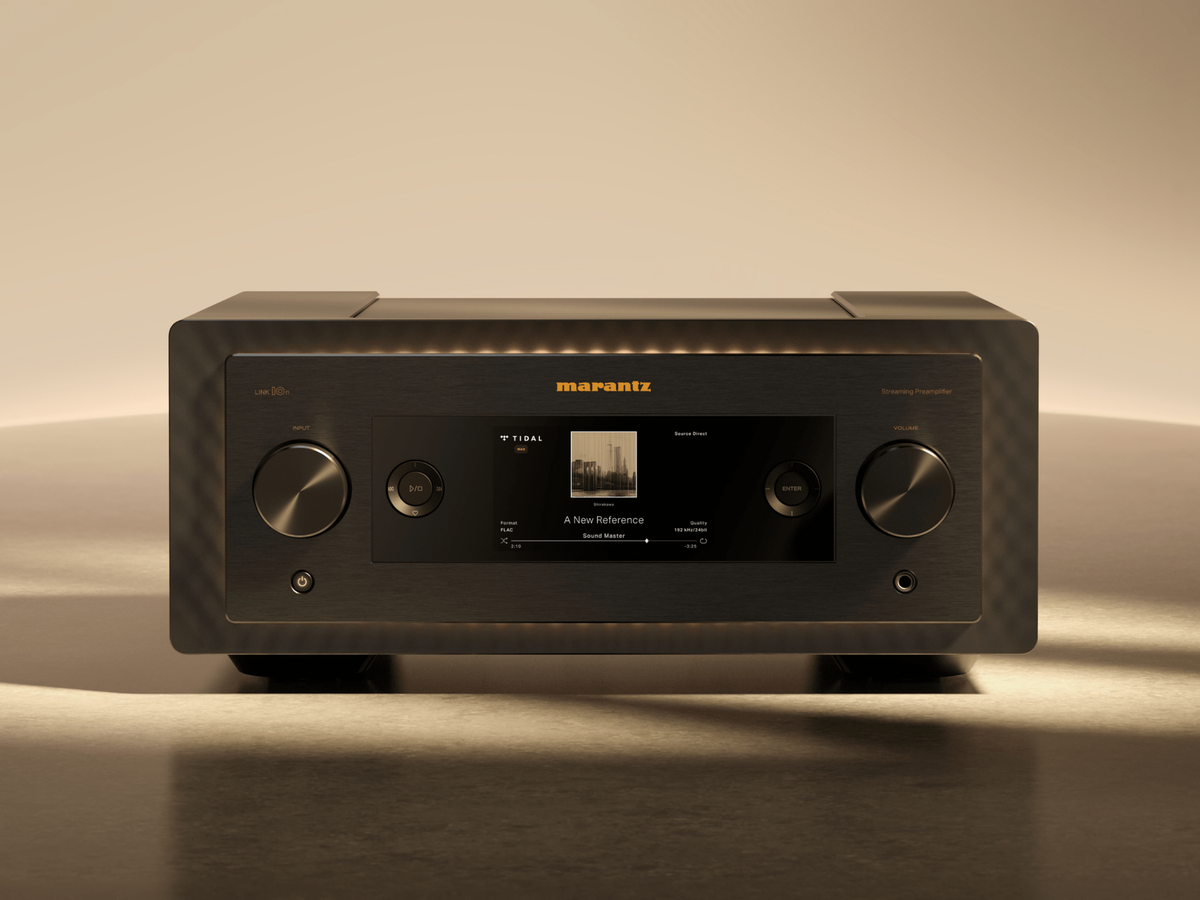

The high-resolution display shows input, track and playback information; arrow controls support navigation and setup.

A complete preamplifier

Analog line, digital and MM/MC phono sources can share one front end. A suitable external power amplifier drives the speakers.

10 Series materials

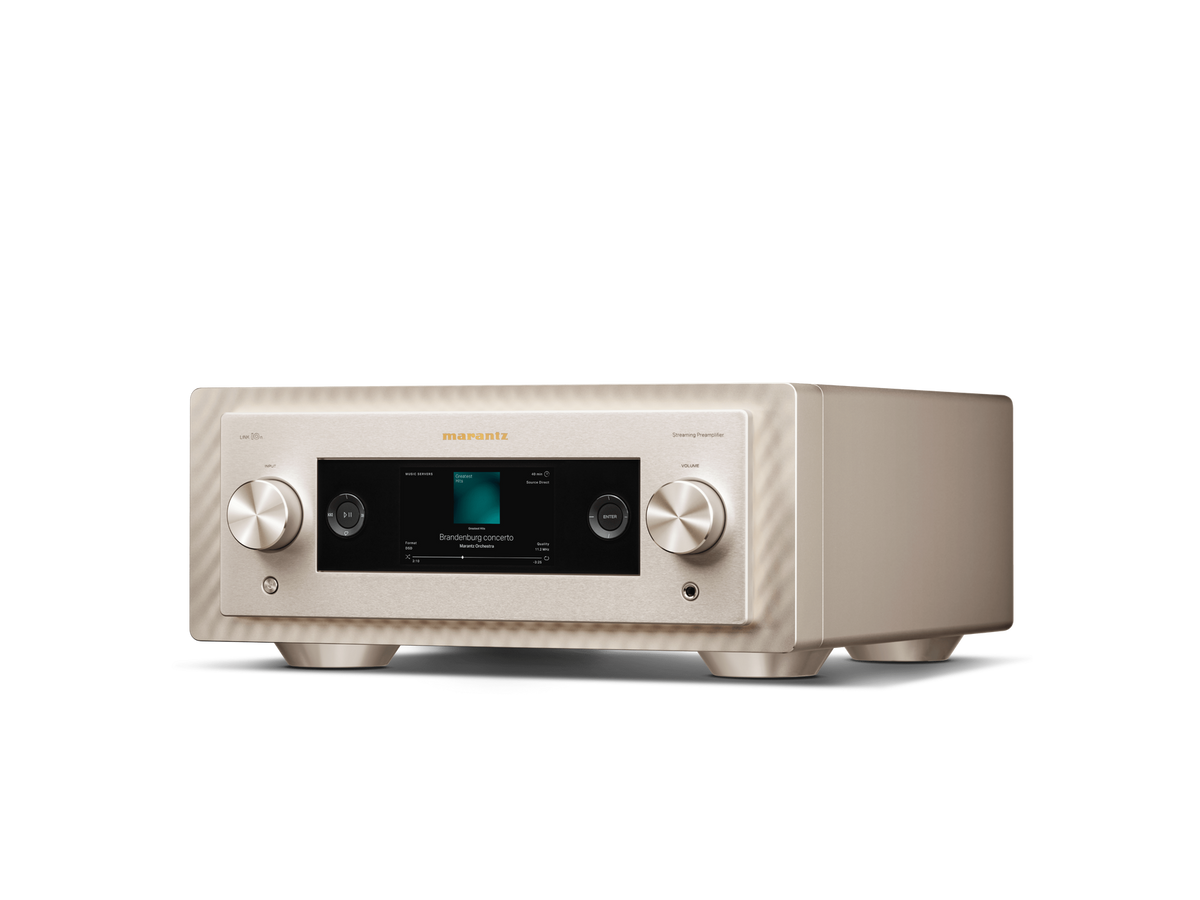

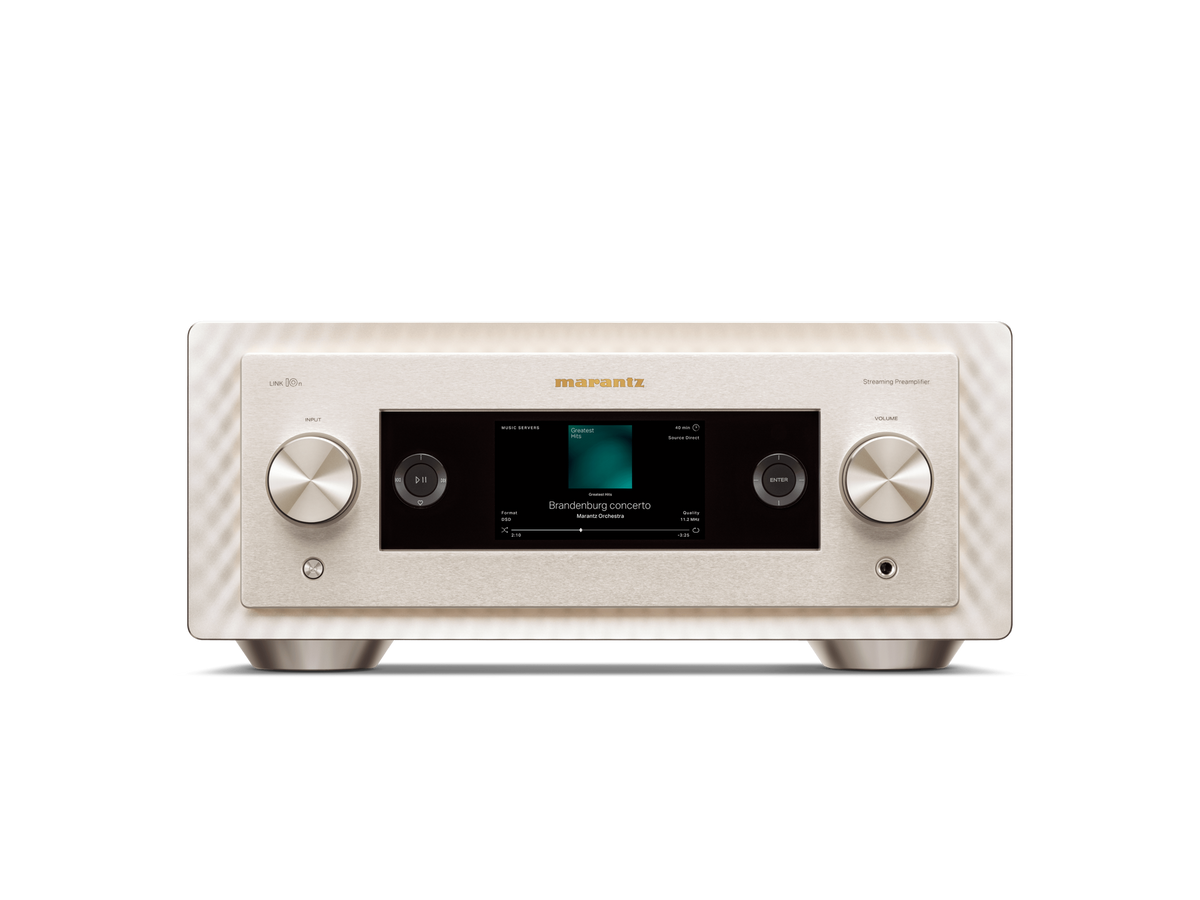

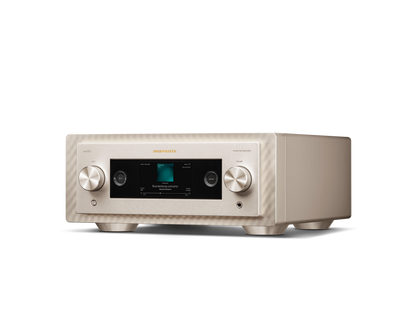

Machined aluminum, sculpted casework and matching controls visually coordinate with MODEL 10 and SACD 10.

Find your music.
Connect your rooms.

Use the HEOS app for supported music services and compatible network music. Group compatible HEOS devices for multiroom playback, or choose a different source in each room where the system supports it.

Service availability depends on region and account. Subscriptions, compatible devices and current firmware may be required. The specifications below identify this model’s supported formats and connections.

From Marantz

Product film

Technical reference

Details & specifications

Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.

General

Unit (W × H × D mm): 440 × 192 × 472 (with antenna)
Cabinet Size: 440 × 192 × 422
Net weight: 33.3kg
Packaging Dimensions (W × H × D mm): 600 × 379 × 540
Packaging gross weight: 38.7g
Carton Color: 1 Color (Material color: Brown Printing: Black)
Panel Color: Marantz Black / Marantz Champagne
Front (Center) Pane: Aluminum
Back-shell: Aluminum
Front panel illumination: Yes (All sides, Dimmer)
Side cover: Aluminum (Thickness: Max 15.8mm)
Top cover (Centor) ventilation hole material: No
Interior ilumination: No
Rear Panel: Triple layer Copper-plated
Chassis Material: Copper-plated
Bottom Layer / Bottom plate: Copper-plated
Volume Knob: Solid aluminum (Bearing construction)
Input Selector: Solid aluminum (Bearing construction)
Foot: Solid aluminum with Copper

Audio

Frequency Response: PCM 2Hz–50kHz (-3dB)
Digital line-output THD+N (1 kHz, audible range): PCM: 0.0015%; DSD: 0.0004% (US owner’s manual)
Digital line-output signal-to-noise (audible range): PCM: 113 dB; DSD: 116 dB (US owner’s manual)
Dynamic range: PCM 0.0004%
Line Output Leve: UNBALANCED : 2.0Vrms BALANCED : 4.0Vrms
Headphone Output Level: 130mW / 32 ohms
Frequency Response (analog input): 5 Hz–100 kHz (+0dB/-3 dB)
Harmonic distortion (analog input): 0.001% (20Hz–20kHz)
S/N: PHONO (MC) : 76dB HONO (MM) : 88dB BALANCED : 122dB LINE : 122dB
Phono input sensitivity / impedance: MM: 3.6 mV / 39 kohm; MC: 400 μV with 32 / 100 / 390 ohm settings (US owner’s manual)
Phono Input impedance: MC Low : 32 ohmsMC Mid : 100 ohms MC High : 390 ohms MM : 39 kohms
Power Consumption: 7W Less than 0.3W (at Standby)Less than 2W (at Network Control On: Bluetooth, Ethernet, Wi-Fi, USB)

Audio Feature

Output Circuit: New HDAM
Power Transformer: Toroidal
Pre Amplifier Circuit: New HDAM High Grade Full balance
Volume: Electric (MUSES 72323) Variable gain
Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
Type of Tone Control: Electric
Headphone Circuit: Discrete
H/P Amp Gain Setting: Yes (Low / Mid / High)
H/P On.Off Setting: H/P Off automatically, when in use
DAC Circuit: New MMM-Conversion
Dither: MMM-Stream (Dither 1, 2, Off)
Noise Shaper: MMM-Stream Balanced, Natural, Dynamic Music, Dymanic Voice)
Digital Filter: MMM-Stream Filter 1, 2 Selectable
Jitter Reducer: Yes
DAC Master Clock Design (USB-DAC): Yes
Asynchronous mode (for USB-B input): Yes
Isolator (for USB-B input): Yes (Complete Isolation System Duo)

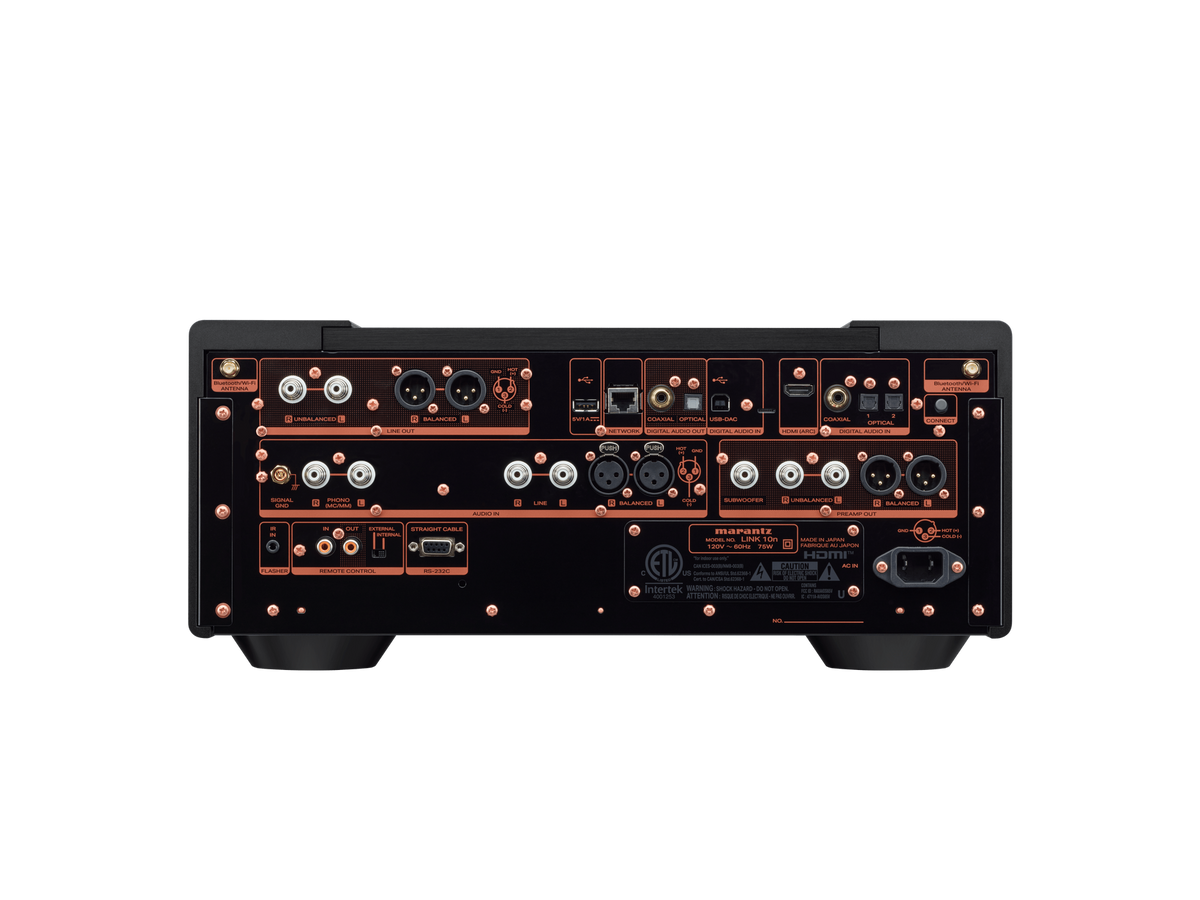

Fixed Analog Output (RCA): Cinch × 1 Thick nickel plated independent terminals
Pre / Variable Audio Output (RCA): Cinch × 1 Thick nickel plated independent terminals
Fixed Balanced XLR Output: Yes (1 Pair)
Pre/ Variable Balanced XLR Output: Yes (1 Pair)
RCA Input: Cinch × 1 Thick nickel plated independent terminals
Balanced XLR Input: Yes (1 Pair)
Phono input: Yes (MM / MC) Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position) Thick nickel plated independent terminals
Optical input / output (Maximum Support): 2 / 1 (on/off switchable)44.1 kHz - 192 kHz
Coaxial input / output (Maximum Support): 1 / 1 (on/off switchable) 44.1 kHz - 192 kHz
HDMI input / output: No / Yes (ARC)
Headphone Output: Yes (Φ6.3 ×1)
Subwoofer: Yes with LP filter adjustable

Easy to Use

App: HEOS app
Remote Controller: 10 series universal Remote control
Front Panel Display: New HD TFT Color Display
Display Language: N: (English/ German/ French/ Italian/ Dutch/ Spanish/ Swedish/ Polish/ Russian) U: (English/ French/ Spanish)K: ( Simplified Chinese/English) F: (Japanese/ English)
Dimmer for Front Display: 20 steps
Level meter: No
Volume Display: 0 –100 / 0.5 step (defalut)-infinity/-99.5dB - 0dB / 0.5 step switchable
Voice Assistant: Apple Siri Google Assistant
Control with App via Network Player (Use Remote Control Bus): No
External Amp Control with App (Use Remote Control Bus): Yes
Synchronously turn on amplifier and switch the input (Use Remote Control Bus): Yes
HDMI CEC: Yes
Remote Controller: RC004PMND
Battery: Yes (AAA ×2)
Power Cord: Yes (ALL region : Audio Grade : OFC)
Other: Stereo RCA Cable ×1 Remote connector cable ×1 CoA card
