Four zones of amplification
Eight 100W channels serve four stereo zones. Bridge mode can provide up to four 200W channels under the applicable conditions.
Marantz
Marantz MODEL M4
Marantz MODEL M4
Regular price
$4,993.00 CAD
Regular price
Sale price
$4,993.00 CAD
Shipping calculated at checkout.
Quantity
Deliveries over $700 - Signature Required!
Couldn't load pickup availability
Marantz / Streaming Amplifiers

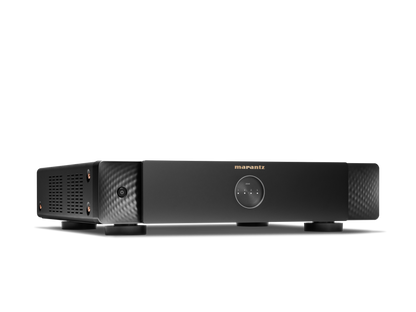

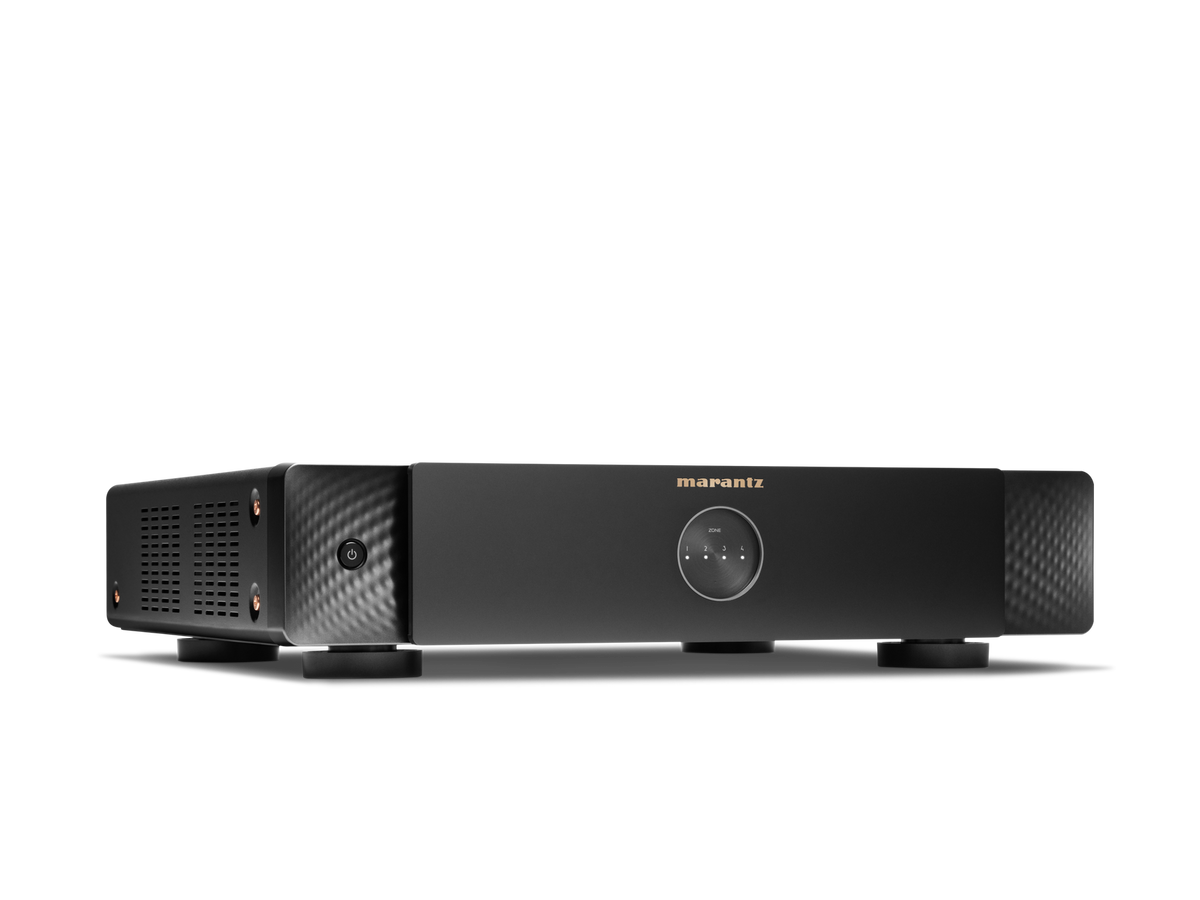

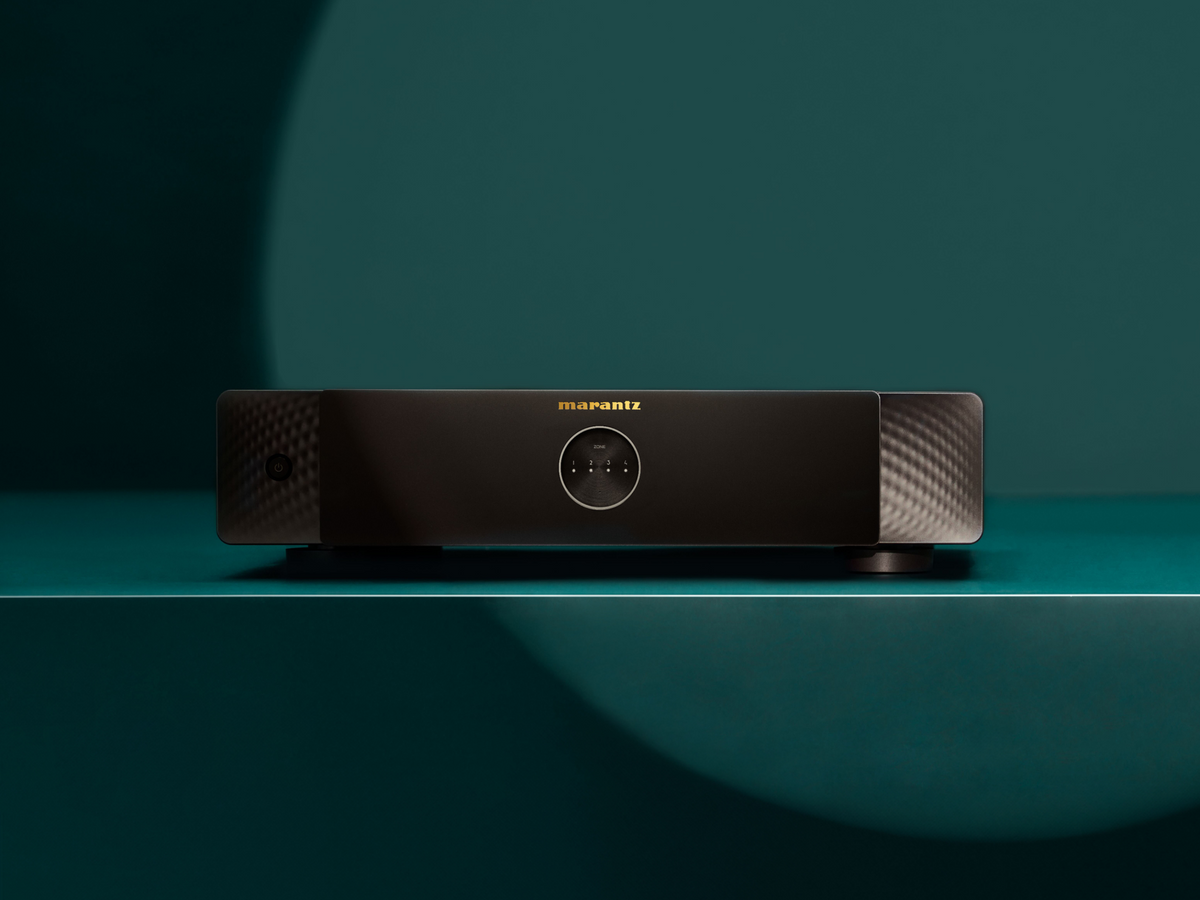

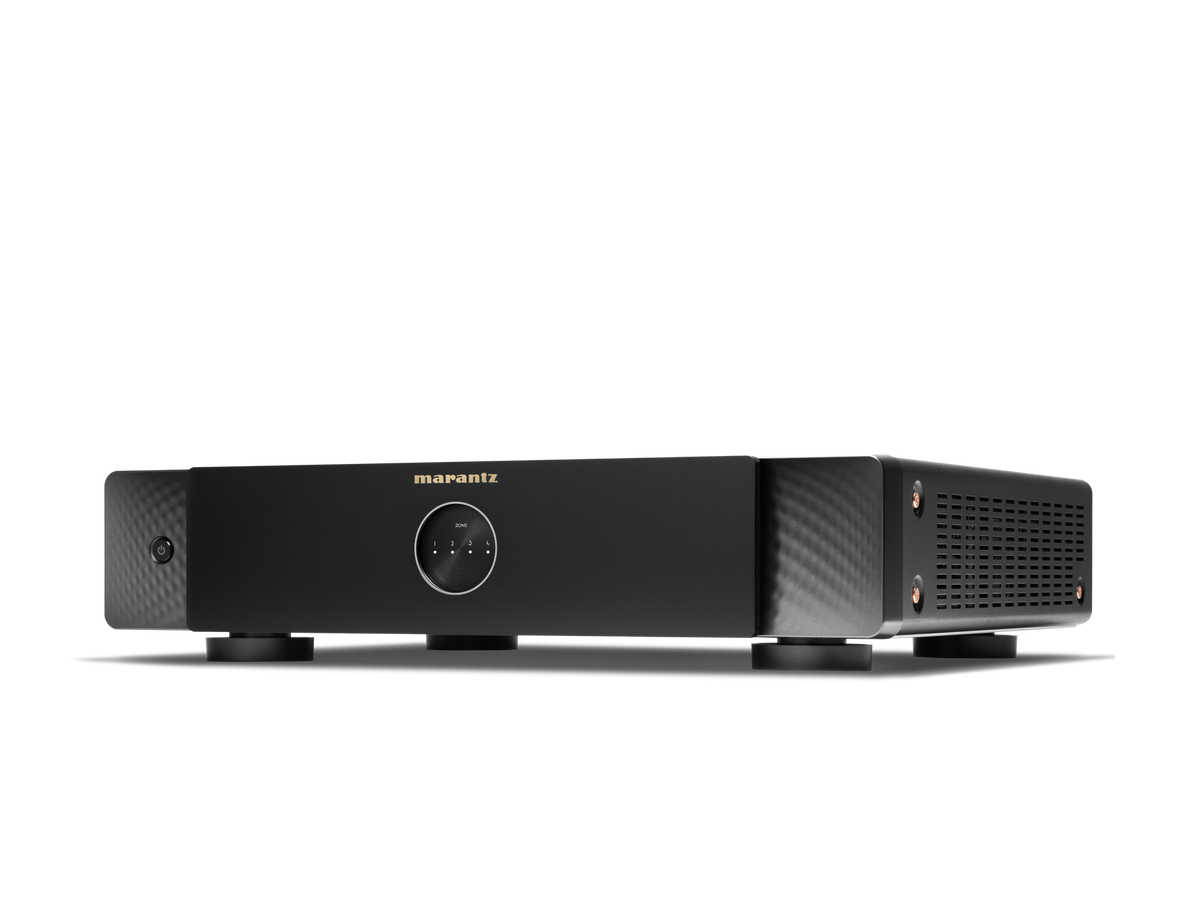

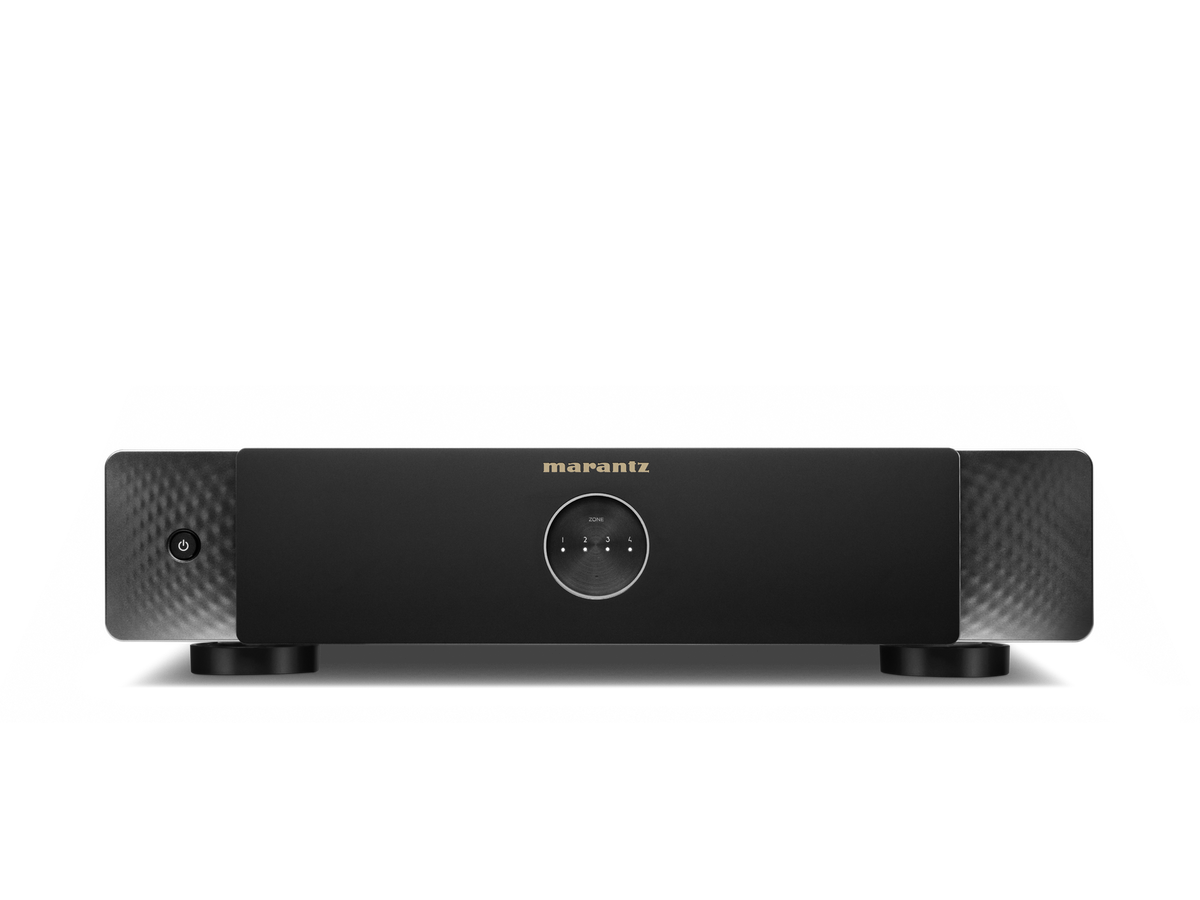

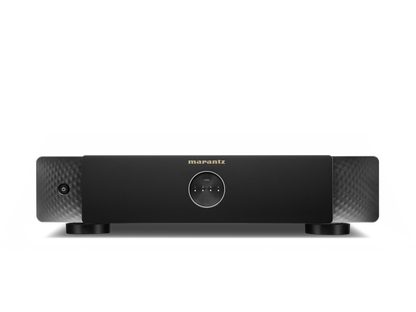

MODEL M4
MODEL M4 is a rack-mountable distribution amplifier with four HEOS zones and eight amplifier channels. It routes streamed music and local sources around a home, including TV audio through its optical inputs.
8 Channels
100 Watts per Channel
Four Zones
HEOS Built-in
Design & engineering
Inside the MODEL M4.
Independent HEOS zones
Four onboard HEOS modules support separate listening in different rooms or grouped playback.
Installation flexibility
Network, local-source and control connections are designed around installed multiroom systems.
Digital music processing
High-resolution source support and Marantz Musical Digital Filtering form part of the playback platform.
Powered by HEOS
Find your music.
Connect your rooms.
Use the HEOS app for supported music services and compatible network music. Group compatible HEOS devices for multiroom playback, or choose a different source in each room where the system supports it.
Service availability depends on region and account. Subscriptions, compatible devices and current firmware may be required. The specifications below identify this model’s supported formats and connections.
From Marantz
Product film
Technical reference
Details & specifications
Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.
Amplifier
- Power Amplifier Rated output & THD (8 ohm)
- 8 X 100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
- Power Amplifier Rated output & THD (4ohm)
- 8 X 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1%
- Frequency Response
- 20 Hz to 20 kHz : ±1 dB
- Connected loudspeaker Impedance
- 4 – 16 Ω/ohms

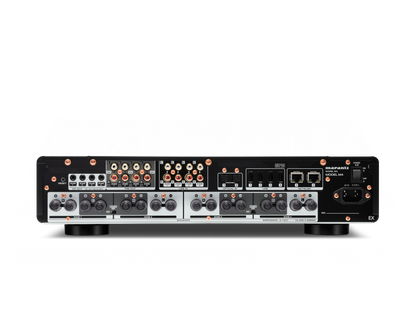

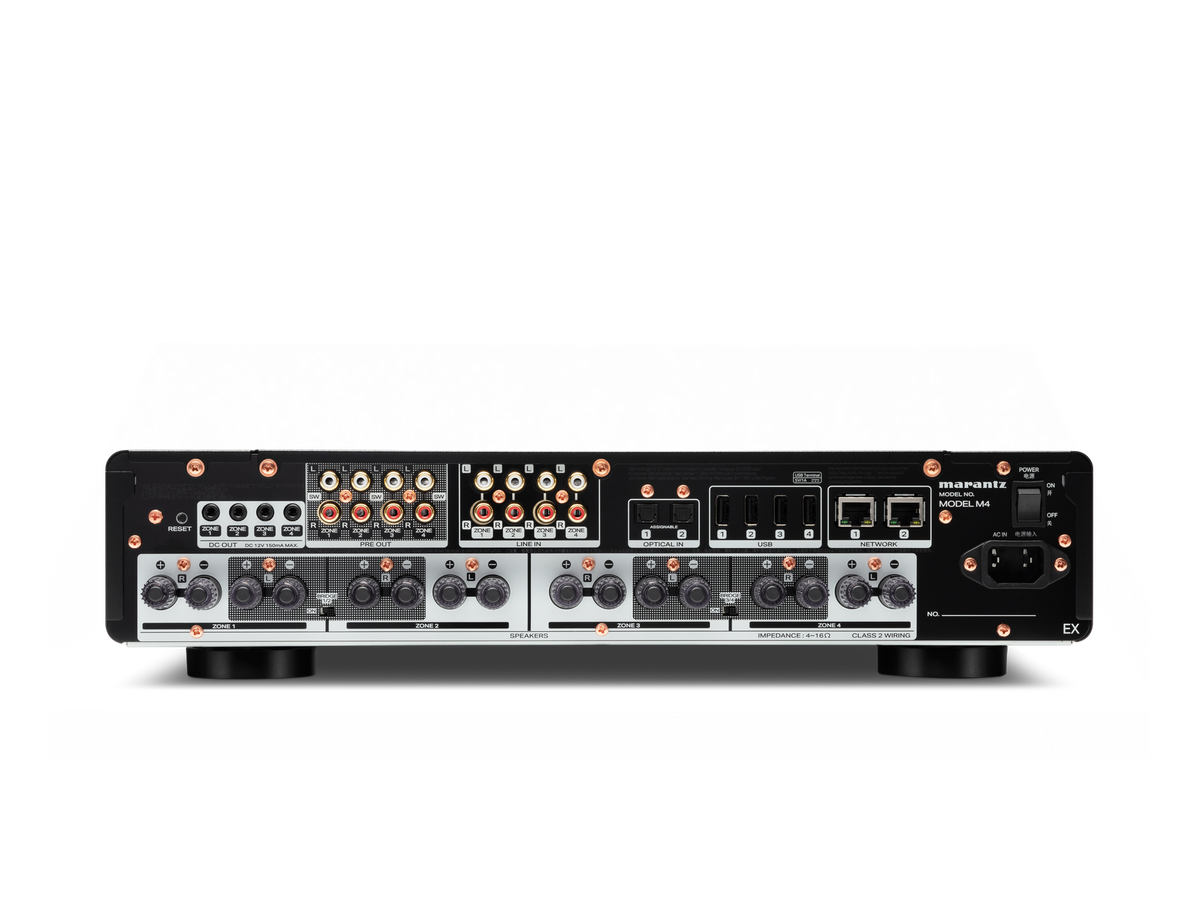

Audio Inputs / Outputs
- Loudspeaker Binding Posts
- 4-way binding posts
- Digital Inputs
- TOSLINK (2)
- Analog Inputs
- RCA L/R (4)
- Preouts
- RCA L/R (4)
- Subwoofer Out
- RCA Mono (4) (selectable)
Inputs Audio Options
- Channel Assignments
- Stereo (Default), Dual Mono
- Volume Limit
- 80-100%
- Balance
- -15dB to +15dB
- Adjustable High Pass / Low Pass Filters
- 40-250 Hz / 40-120 Hz
- EQ
- Bass, Treble -5dB to +5dB
- Sound Modes
- Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
- TV Sound Grouping
- Yes
Audio Format Support
- Decoding
- Dolby Digital, LPCM, DSD
- Stereo PCM / Multi-channel PCM
- Yes / Yes
- Stereo File Formats (HEOS network share or USB)
- WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
- Bluetooth Receive
- N/A
- Bluetooth Trasmit
- N/A
- AirPlay
- AirPlay 2
- Spotify
- Spotify Connect
Music Services and Sources
- Music Services Supported ((HEOS®, subject to change and local availability)
- Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
- Music stored on mobile device
- Yes (iOS, Android or Kindle Fire)
- NAS (Network Attached Storage)
- Network share
- USB Storage Device Playback
- Yes (4) (FAT32, NTFS formatted drives)
Networking & Control
- Wired Connectivity
- Ethernet (2)
- Wireless Connectivity
- N/A
- IR Input
- N/A
- IR Learning
- N/A
- Control System Compatibility via TCP/IP
- Creston, Control4, AMX
- HEOS® App
- iOS, Android, Kindle Fire
- Trigger Output DC 12V
- Yes (4)
General
- Product Color
- Black
- User Interface
- Reset button, Front power button, Rear power switch
- Dimensions (W x D x H) Inches
- 17.4 x 16.34 x 4.17
- Dimensions (W x D x H) mm
- 442 x 415 x 106
- Weight (lbs)
- 18
- Weight (kg)
- 8
