Mechanical and electrical separation
Triple-layer construction, copper shielding and isolated sub-enclosures support the transport and audio circuitry.
Marantz

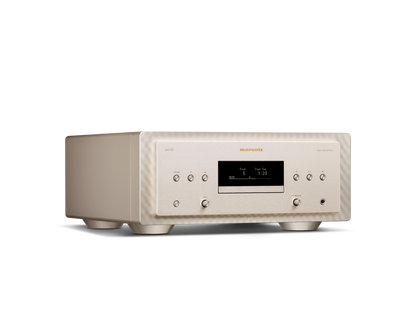

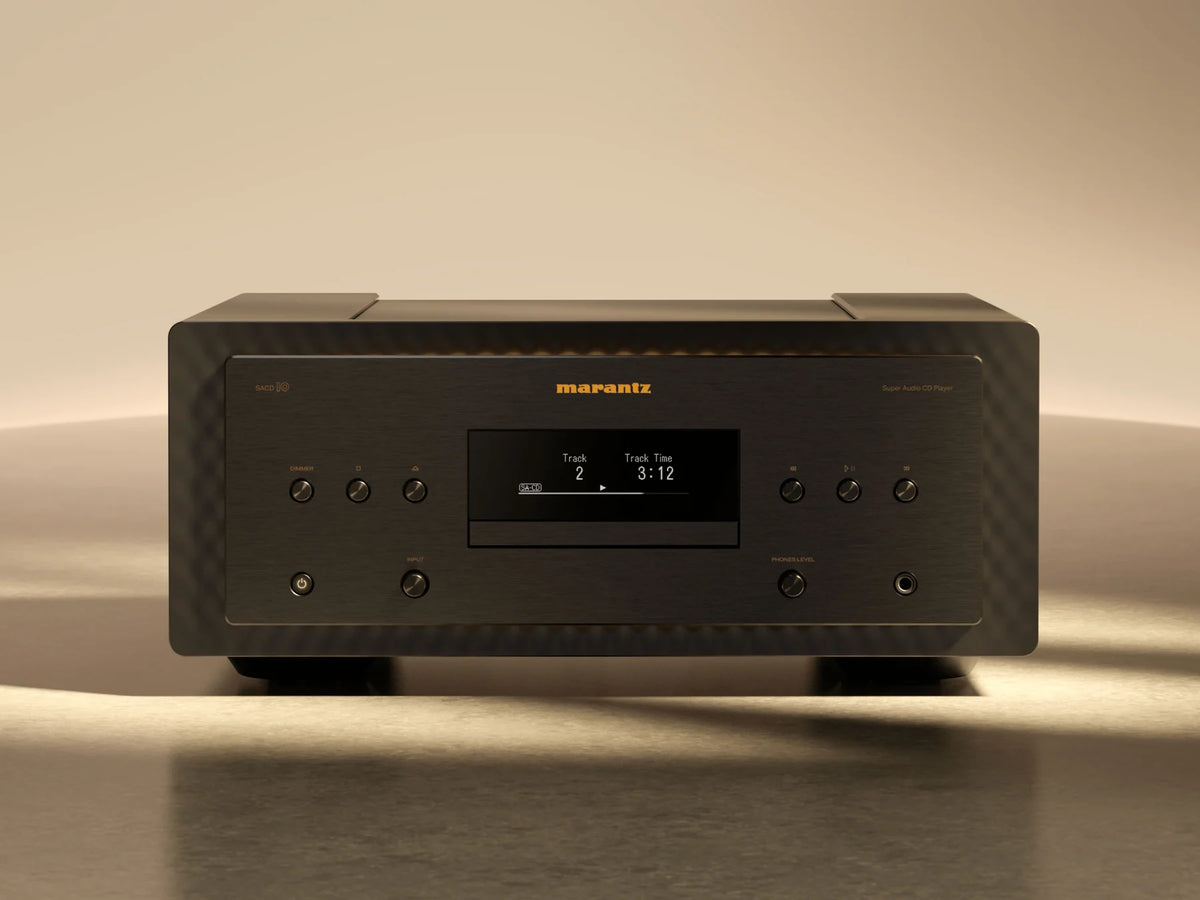

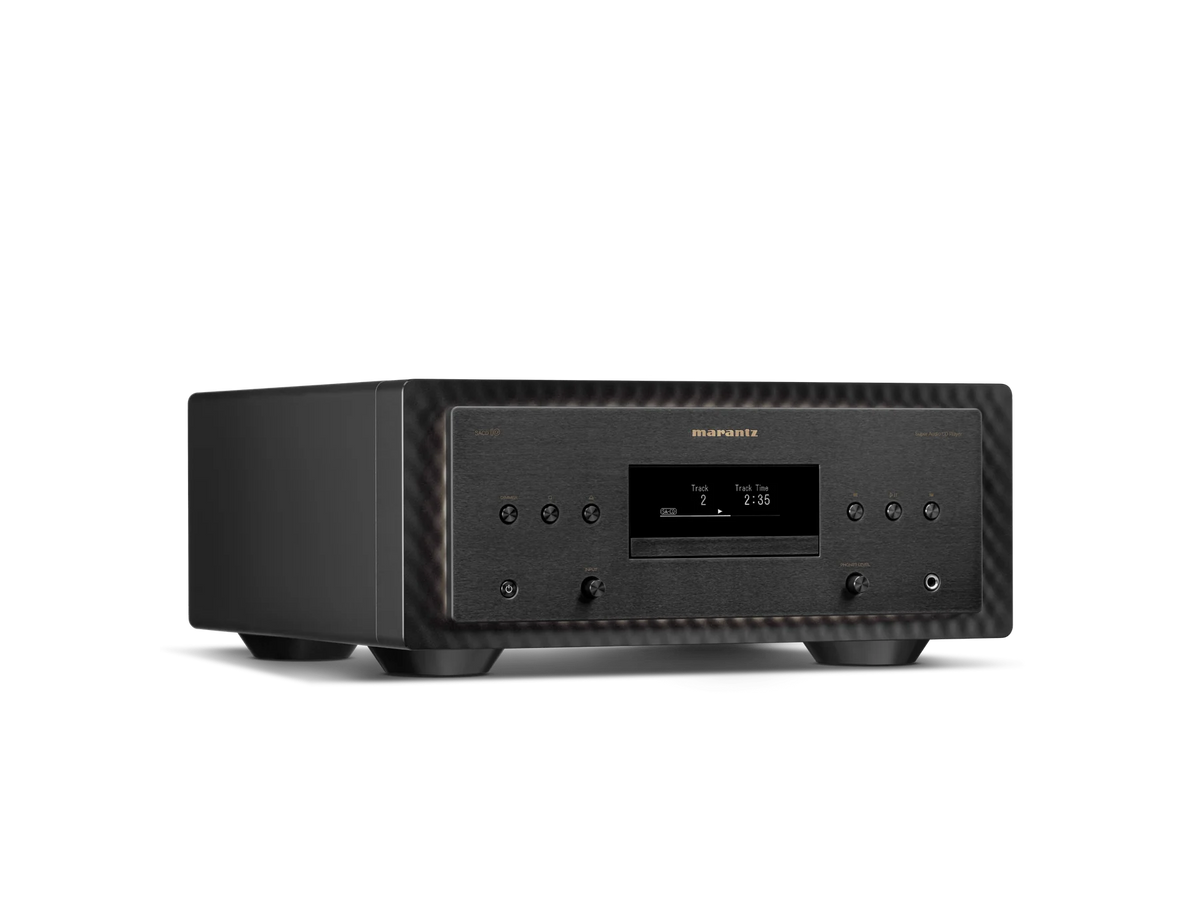

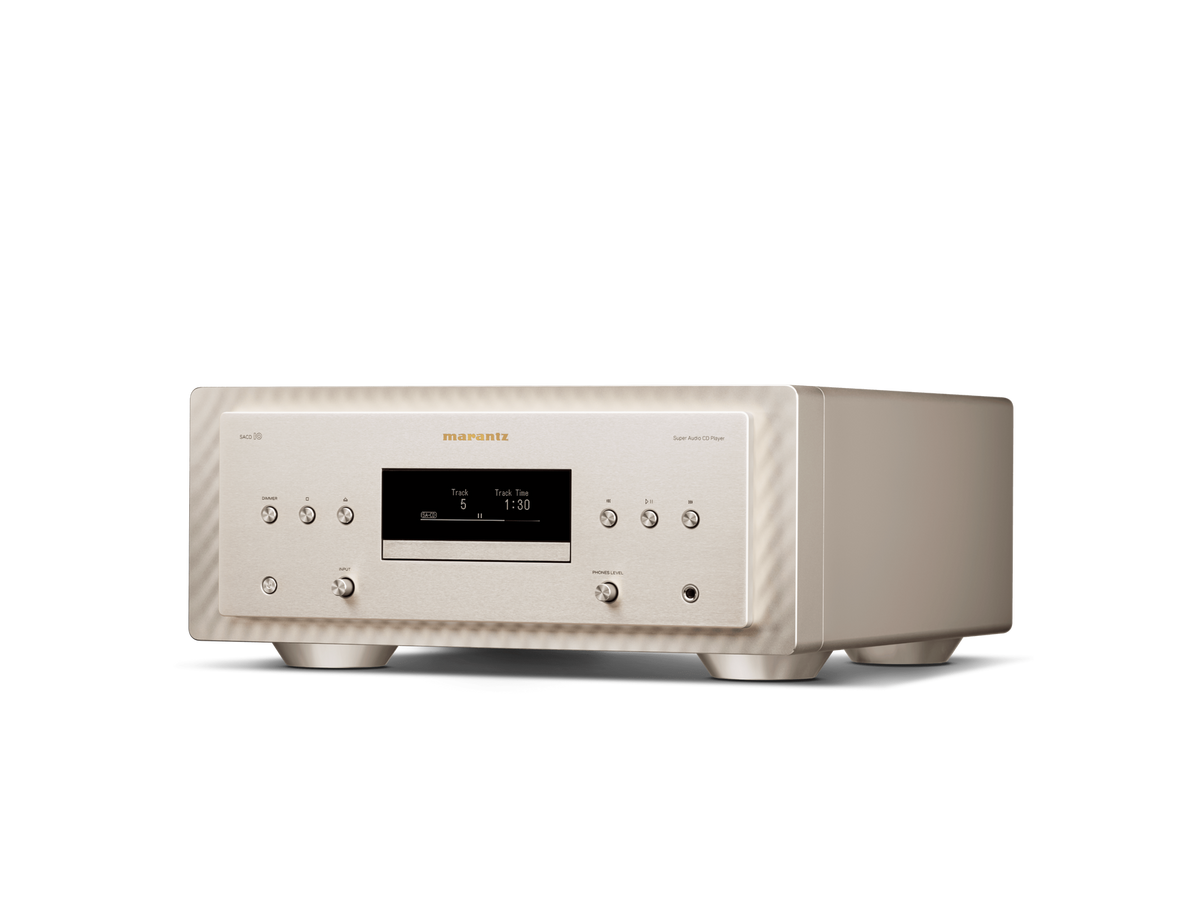

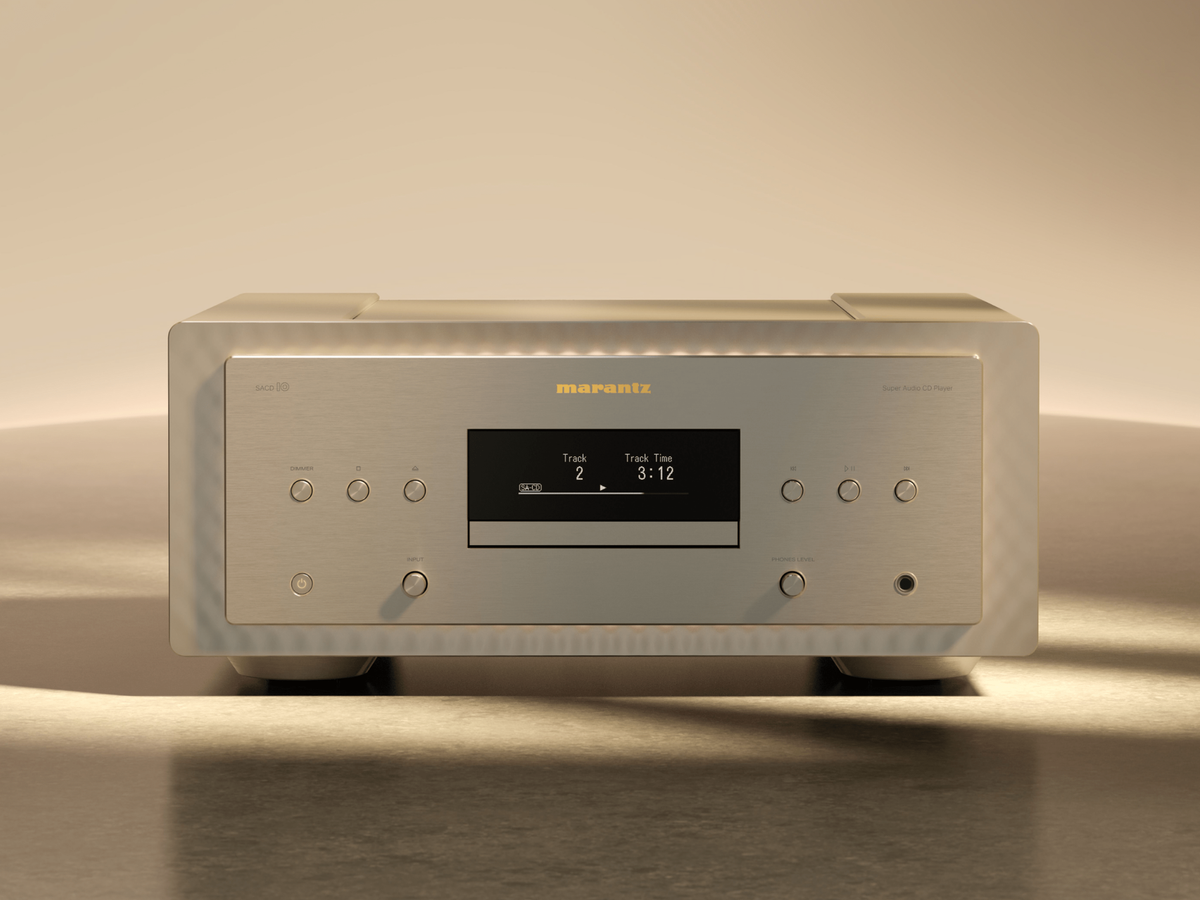

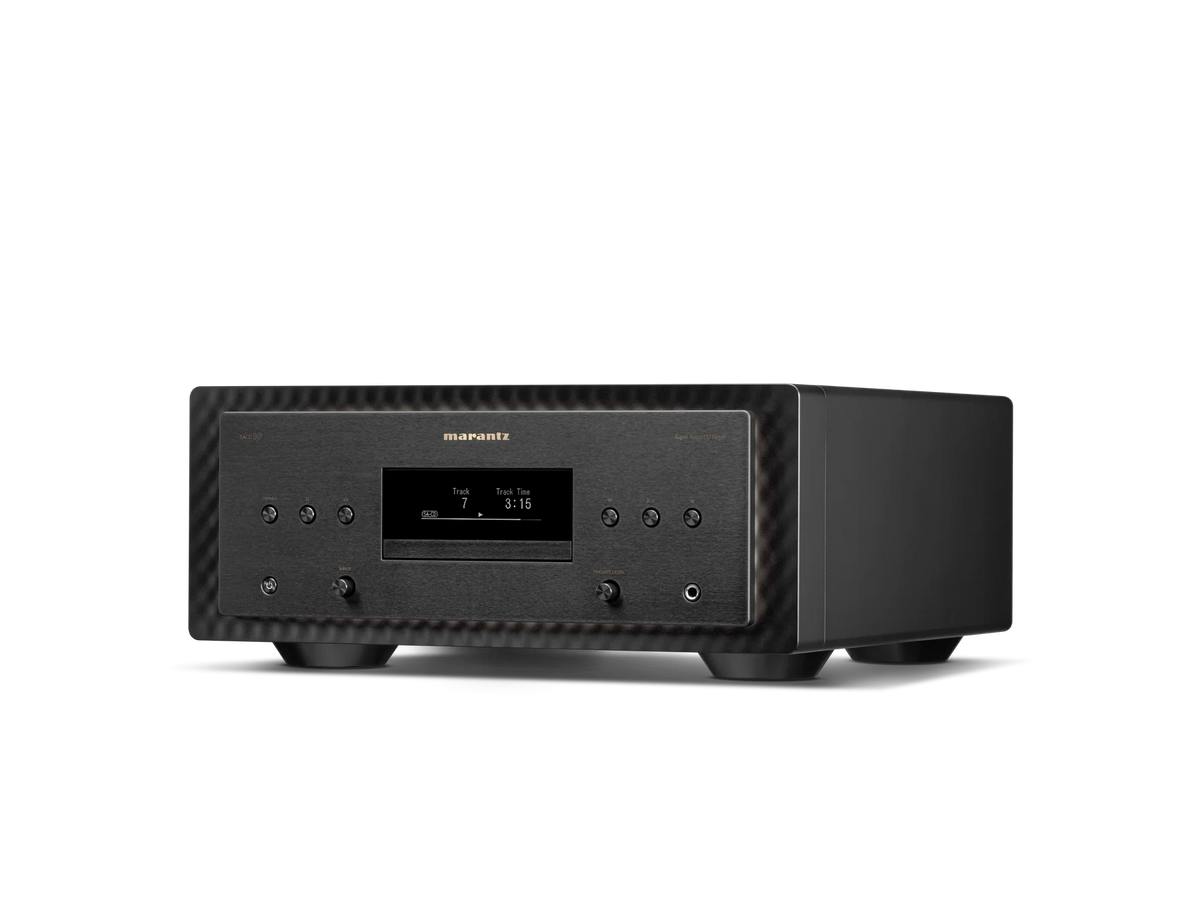

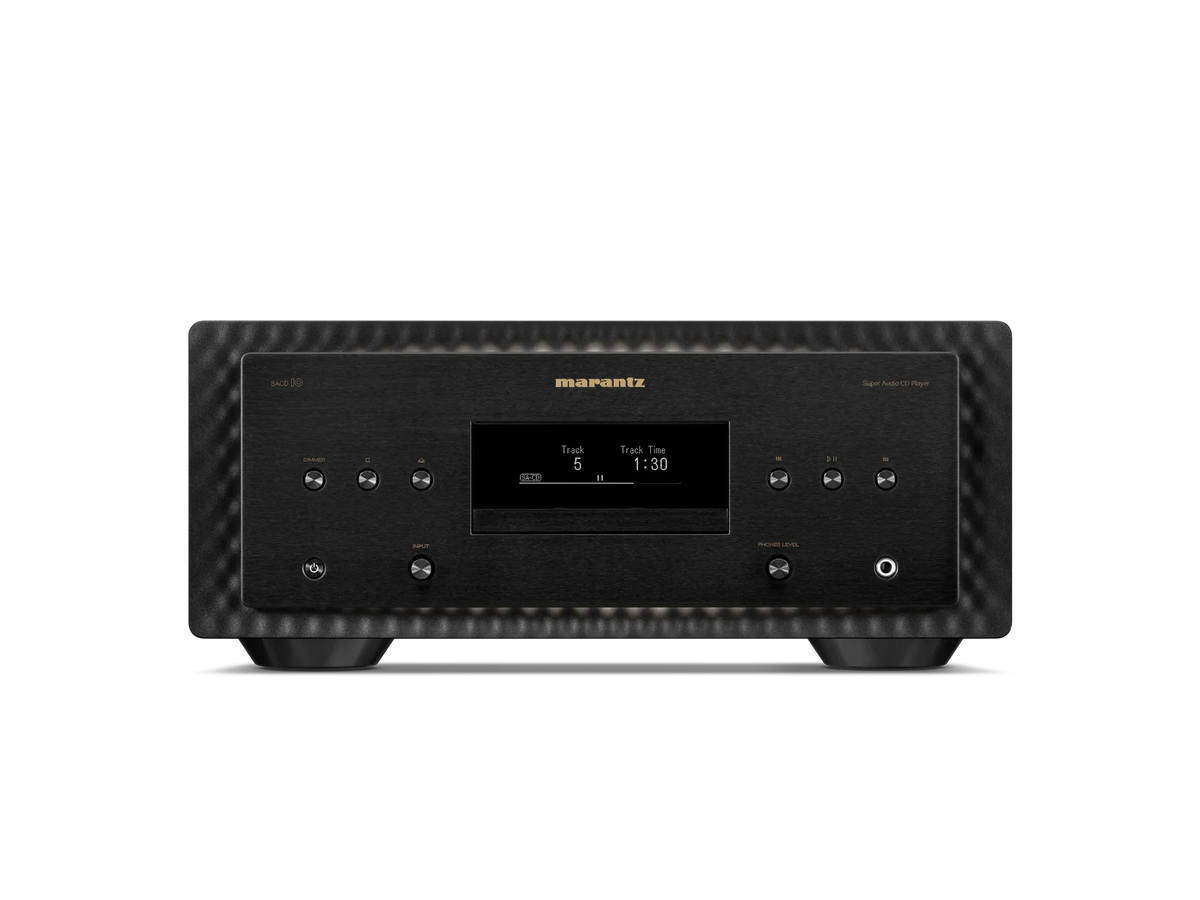

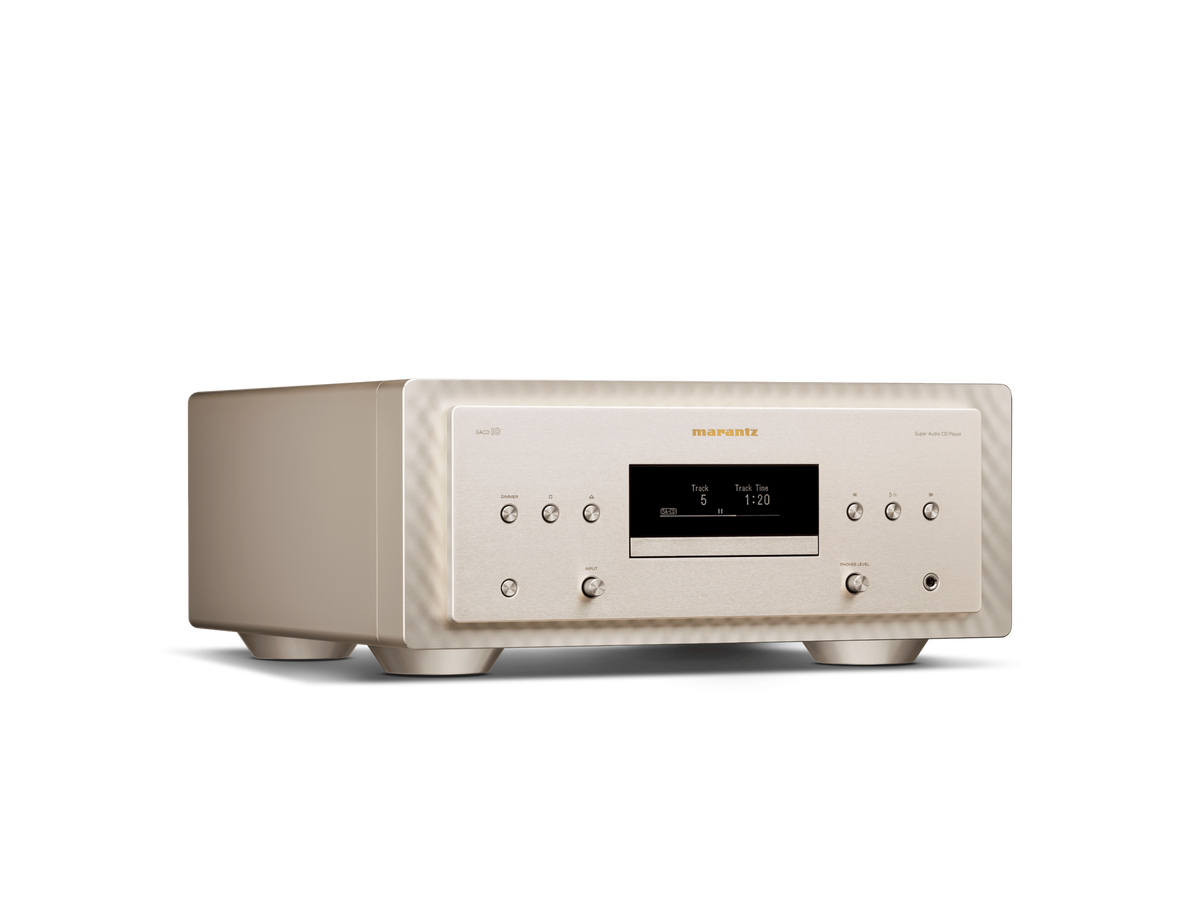

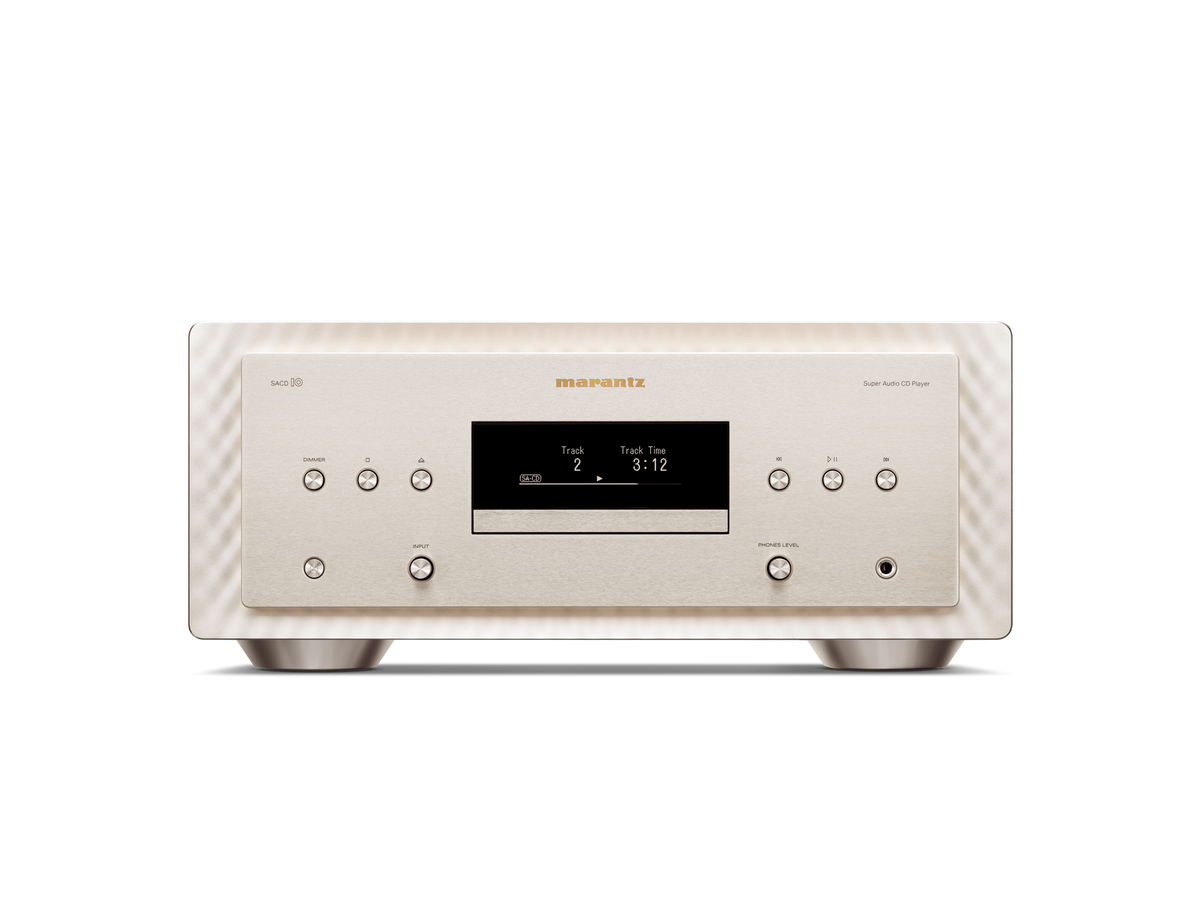

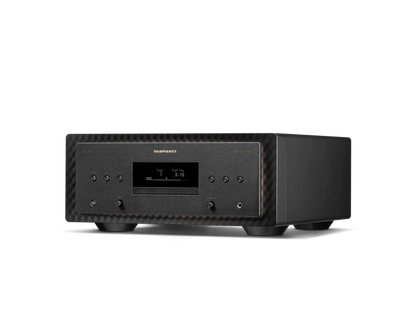

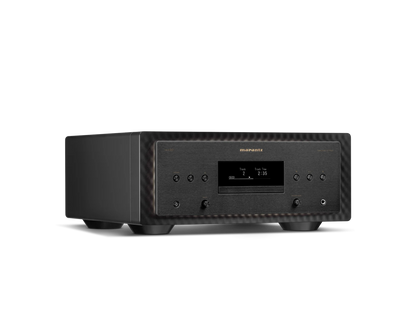

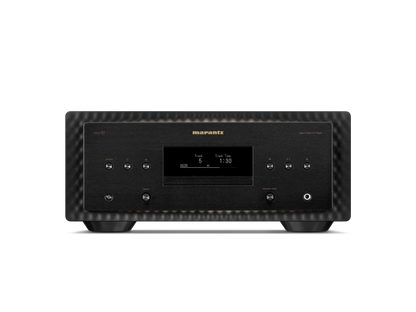

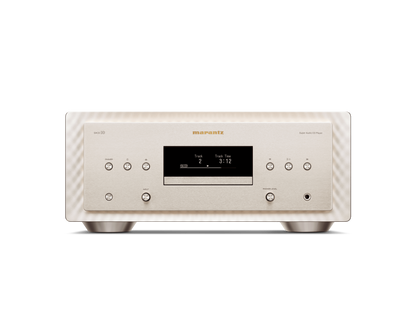

Marantz SACD 10
Marantz SACD 10
Regular price
$19,972.00 CAD
Regular price
Sale price
$19,972.00 CAD
Shipping calculated at checkout.
Quantity
Deliveries over $700 - Signature Required!
Couldn't load pickup availability
Marantz / CD & SACD Players
SACD 10
SACD 10 is a reference CD/SACD player and DAC built around Marantz Musical Mastering. Its SACDM-3 transport, HDAM circuitry and fixed XLR/RCA analog outputs support a dedicated high-resolution stereo source.
Marantz SACDM-3 transport mechanism
Design & engineering
Inside the SACD 10.
Marantz Musical Mastering
Updated MMM processing works with the next-generation HDAM module in the audio path.
High-resolution inputs
USB-A and USB-B DAC functions support formats up to PCM 384kHz/32-bit and DSD256, subject to the input-specific limits below.
Fixed analog outputs

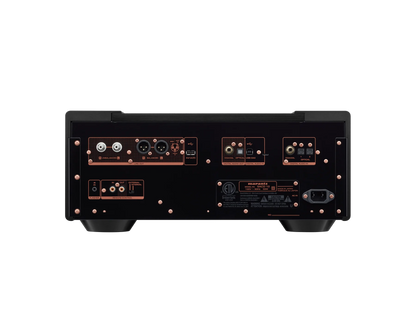

Balanced XLR and unbalanced RCA outputs connect to an integrated amplifier or preamplifier. Optical and coaxial digital connections add flexibility.
From Marantz
Product film
Technical reference
Details & specifications
Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.
General
- Unit (W × H × D mm)
- 440 × 192 × 442
- Cabinet Size
- 440 × 192 × 422
- Net weight
- 33.0kg
- Packaging Dimensions (W × H × D mm)
- 600 × 379 × 540
- Packaging gross weight
- 38.4kg
- Carton Color
- 1 Color (Material color: Brown Printing: Black)
- Panel Color
- Marantz Black / Marantz Champagne
- Front (Center) Pane
- Aluminum
- Back-shell
- Aluminum
- Front panel illumination
- Yes (All sides, Dimmer)
- Side cover
- Aluminum (Thickness: Max 15.8mm)
- Top cover
- Aluminum (Thickness: 12mm)
- Bottom Layer / Bottom plate
- Triple layer copper-plated
- Foot
- Solid aluminum with Copper
Audio
- Frequency Response
- SACD: 2Hz–50kHz (-3dB) CD: 2Hz–20kHz (±1.0dB)
- Harmonic distortion
- SACD: 0.0004% CD: 0.0015%
- S/N
- SACD: 118dB CD: 116dB
- Dynamic range
- SACD: 112dB CD: 98dB
- Line Output Leve
- UNBALANCED : 2.0Vrms BALANCED : 4.0Vrms
- Headphone Output Level
- 130mW / 32 ohms
- Power Consumption
- 55W Less than 0.3W (at Standby)
Audio Feature
- Output Circuit
- New HDAM
- Power Transformer
- Toroidal
- Headphone Circuit
- Discrete
- H/P Amp Gain Setting
- Yes (Low / Mid / High)
- H/P On.Off Setting
- H/P Off automatically, when in use
- DAC Circuit
- New MMM-Conversion
- Dither
- MMM-Stream (Dither 1, 2, Off)
- Noise Shaper
- MMM-Stream (Balanced, Natural, Dynamic Music, Dymanic Voice)
- Digital Filter
- MMM-Stream Filter 1, 2 Selectable
- Jitter Reducer
- Yes
- DAC Master Clock Design (SACD, USB-A, USB-DAC)
- Yes
- Asynchronous mode (for USB-B input)
- Yes
- Isolator (for USB-B input)
- Yes (Complete Isolation System Duo)

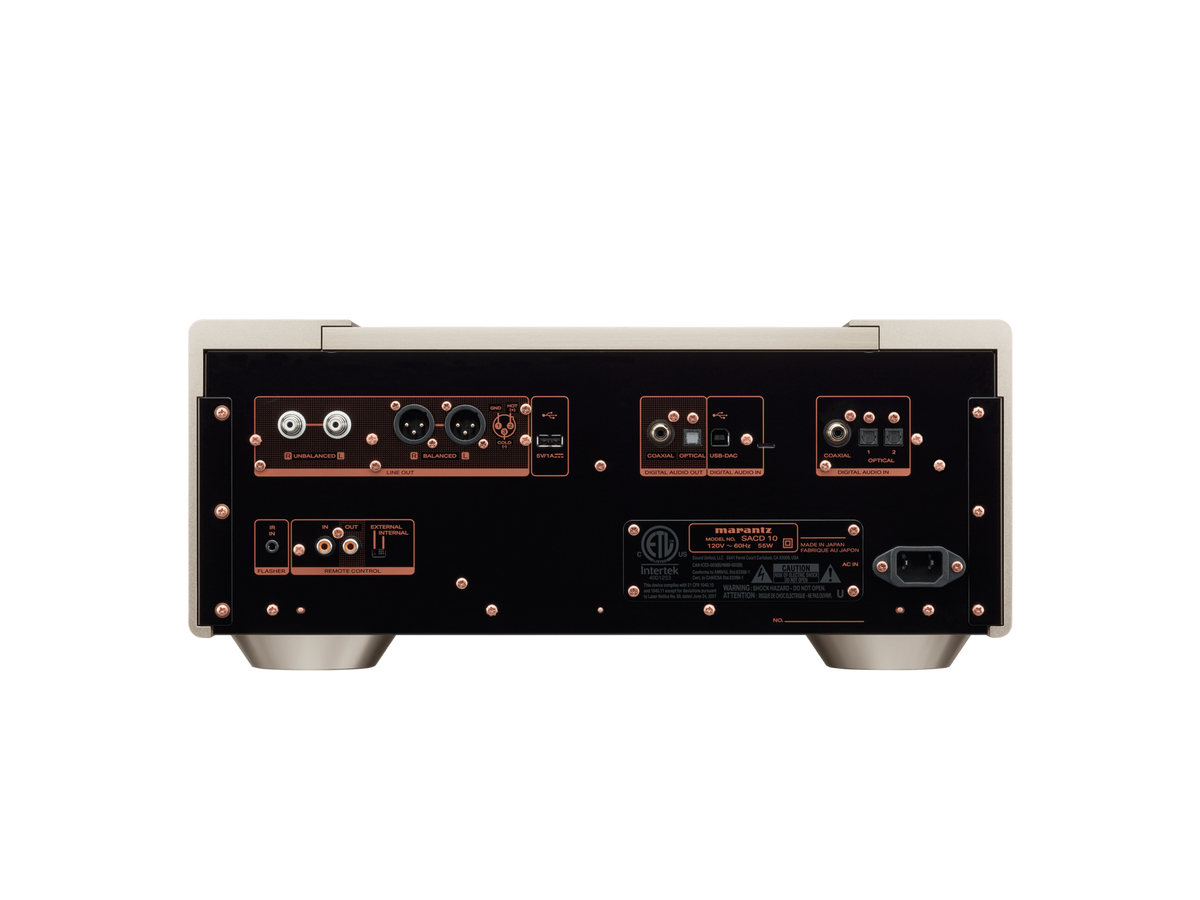

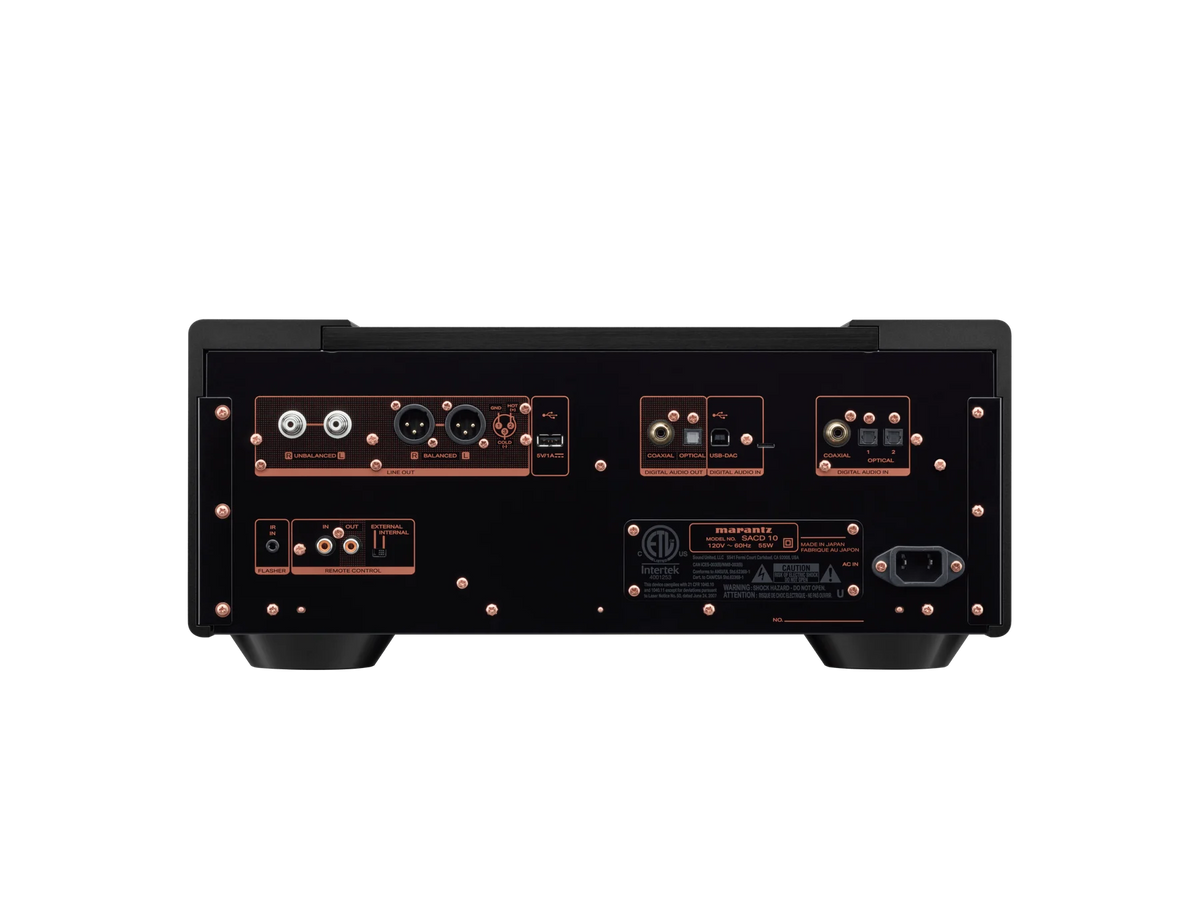

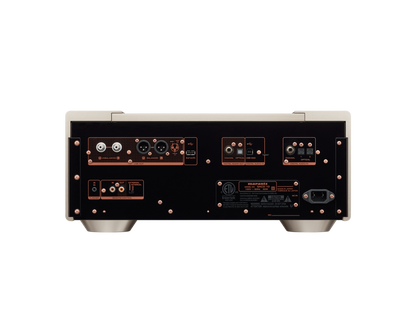

Connectivity
- Fixed Analog Output (RCA)
- Cinch × 1 Thick nickel plated Maching copper L/R independent terminals
- Fixed Balanced XLR Output
- 1
- Optical input / output (Maximum Support)
- 2/1 4.1 kHz - 192 kHz
- Coaxial input / output (Maximum Support)
- 2/1 4.1 kHz - 192 kHz
- Headphone Output
- Yes (φ6.3 x 1)
- Remote Control Bus Termina
- Yes
- Remote Internal / External Switch
- Yes
- AC Inlet
- Yes
- Accessory Box
- Yes
- Remote Controller
- RC004PMND
- Battery
- Yes (AAA ×2)
- Power Cord
- Yes (ALL region : Audio Grade : OFC)
- Other
- Stereo RCA Cable ×1 emote connector cable ×1 oA card
