Focal

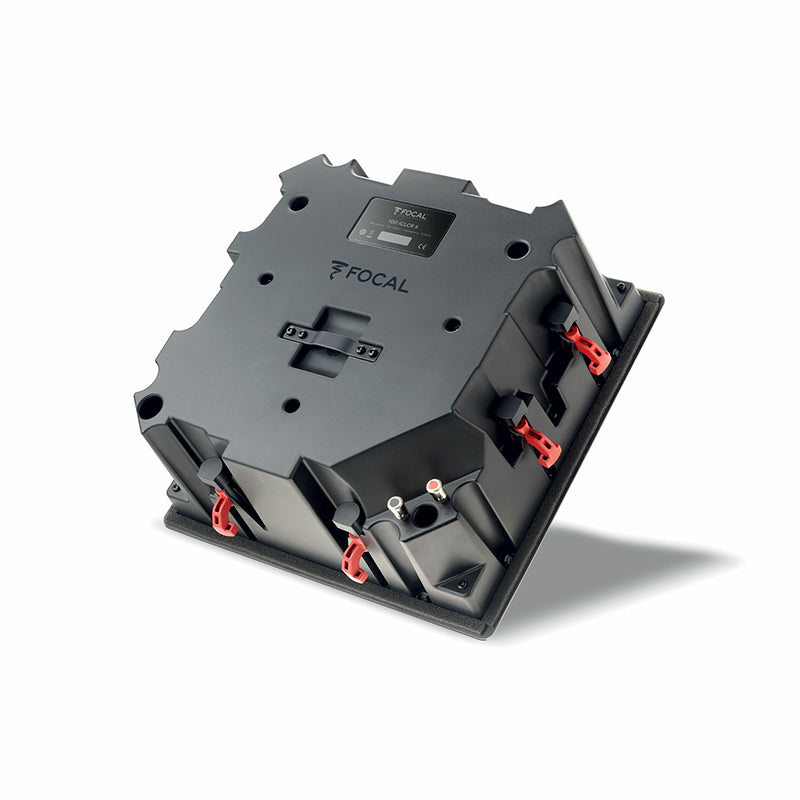

Focal 100 ICLCR5

Regular price $579.00 USD
Regular price Sale price $579.00 USD
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

100 ICLCR5

2-way ceiling speaker

100 ICLCR5 is a compact, high-performance in-ceiling speaker. Combined with conventional or wall-mounted speakers, it is the perfect complement to a home theater installation (dedicated room, living room...). It is also ideal for large rooms with no rear wall to the listening point.









CUSTOM INSTALLATION

To complete your hi-fi or Home Cinema installation, the loudspeaker has five possible in-ceiling applications: front left, center or right channels - rear left and right channels.






SOUND BALANCE

Thanks to its adjustable tweeter (20°) and two 13 cm Polyglass cone drivers, the loudspeaker delivers smooth, precise treble and defined midrange. A left, center and right selector ensures the same sound regardless of the listening position.















A NEW MUSICALITY IN YOUR HOME



SOUND ADJUSTMENT

Treble levels can be adjusted in three positions (-3 dB, 0 dB and +3 dB), allowing you to optimize the loudspeaker's performance according to the room's acoustics. In addition, three-position correctors (left, center or right) adapt the loudspeaker's directionality curve to deliver the same sound everywhere.




TECHNOLOGIES

INVERTED DOME TWEETER

Optimum space dispersion

The inverted dome tweeter has been a Focal signature since 1981, offering the property of being a true micro-speaker. The curvature of the dome is much less pronounced than that of positive domes. This results in better space dispersion and very low directionality, unlike ribbon tweeters. The inverted dome tweeter therefore generates unrivalled dynamics, enabling sound engineers to precisely control the dosage of compression. The precision of the image (height, width and depth) is remarkable, making it easy to position each instrument. What's more, a waveguide has been developed to perfect spatialization and further enhance the inverted dome's very low directionality. In the horizontal plane, the frequency response is within +/- 0.5 dB. This performance guarantees an incredibly stable soundstage.








POLYGLASS MEMBRANE

Well-defined mids

The diaphragm, the key component of a loudspeaker, is at the heart of our acoustic engineers' research. Polyglass technology, exclusive to Focal, consists of applying fine glass microbeads to a cellulose pulp cone. This process reconciles the excellent damping of paper with the rigidity of glass. The stiffness index is almost 10 times that of polypropylene. Adjusting the mass-rigidity-damping ratio results in a remarkably linear frequency response curve, right from the membrane design stage. This innovation also significantly increases definition in the midrange register.









SPECIFICATIONS

 Sound - Acoustics


Product type 2 -way ceiling
Membrane Polyglass
Medium 2x5" (13cm) Polyglass Midbass
Response at - 6dB (Low frequency point) 55 Hz
Frequency response (+/- 3dB) 65 Hz - 23 kHz
Minimum impedance 4.6 Ω
Nominal Impedance 8 Ω
Recommened amplifier power 25 - 120 W
Sensivity 92 dB

Design


Allowable ceiling thickness (min) 8 mm / 0.3125 in
Allowable ceiling thickness (max) 60 mm / 2.37 in
Depth behind surface (Mounting depth) 6 in / 6 in
Mounting height 328 mm / 12.4 in
Mounting width 328 mm / 12.94 in
Depth 150 mm / 5.83 in
Height 354 mm / 13.94 in
Width 354 mm / 13.94 in

Accessories


Black and white felt Black and white felt ready to stick
Cut Out template Yes
Grids Supplied with a magnetic grille and ready to paint to ensure perfect integration
