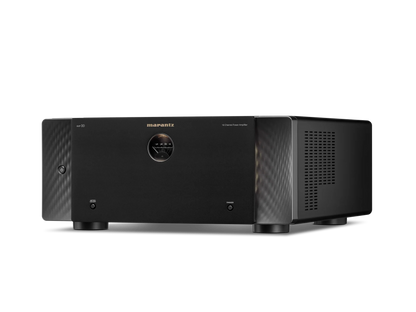

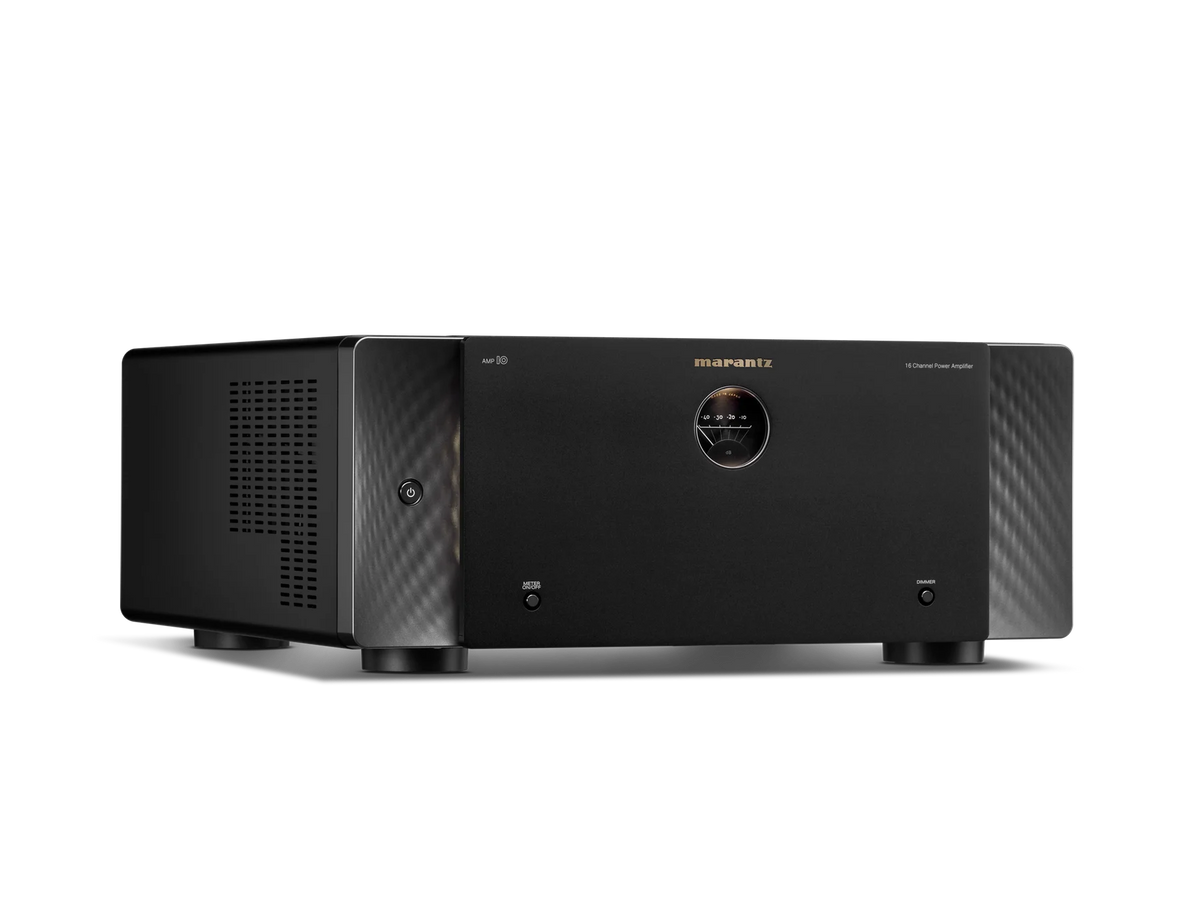

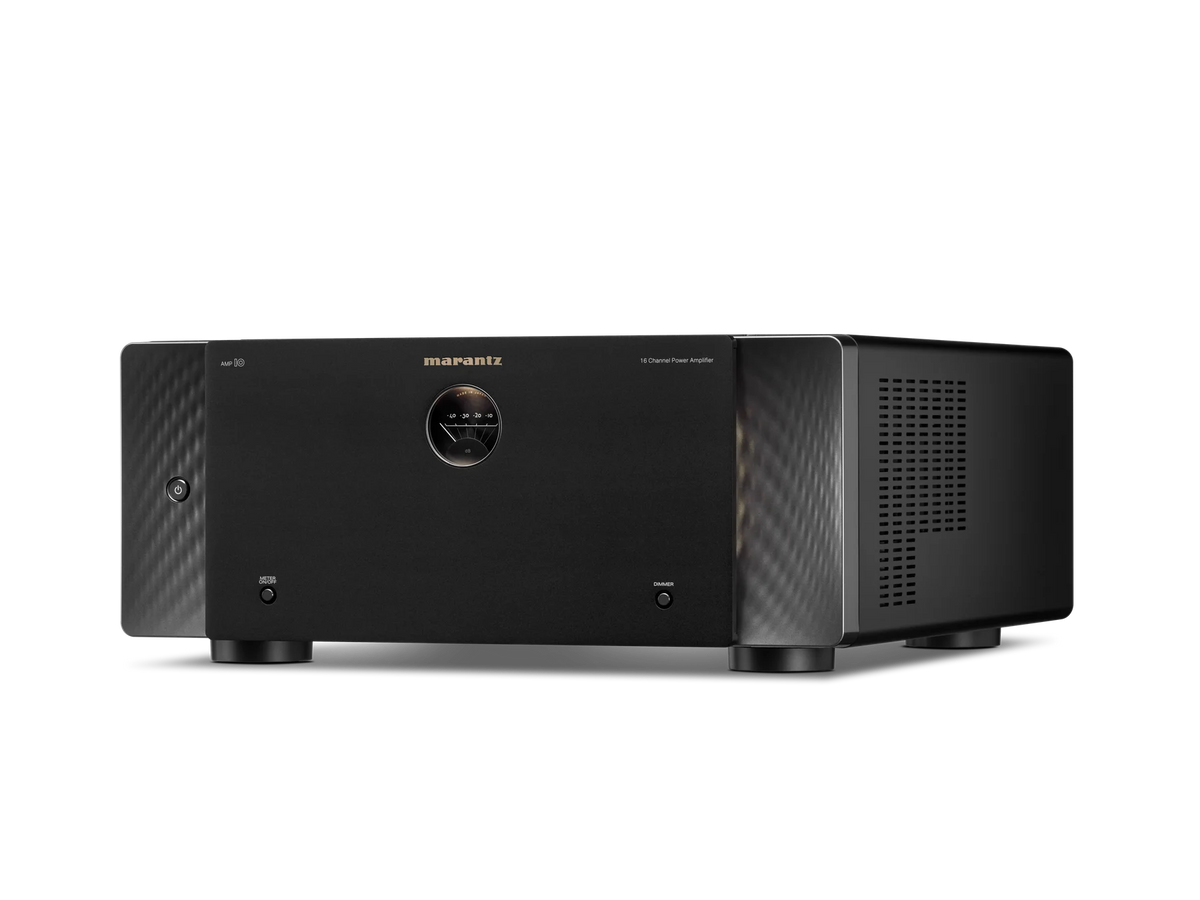

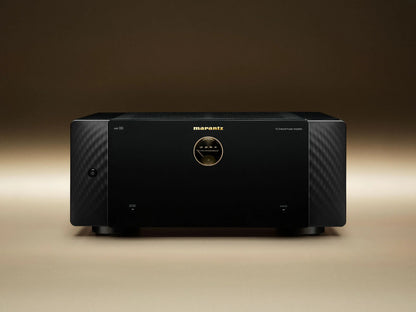

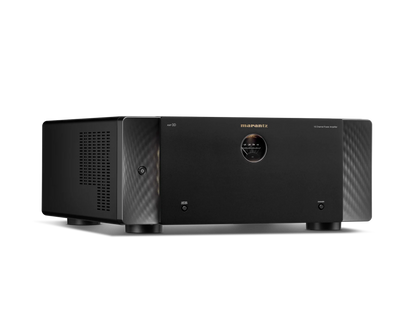

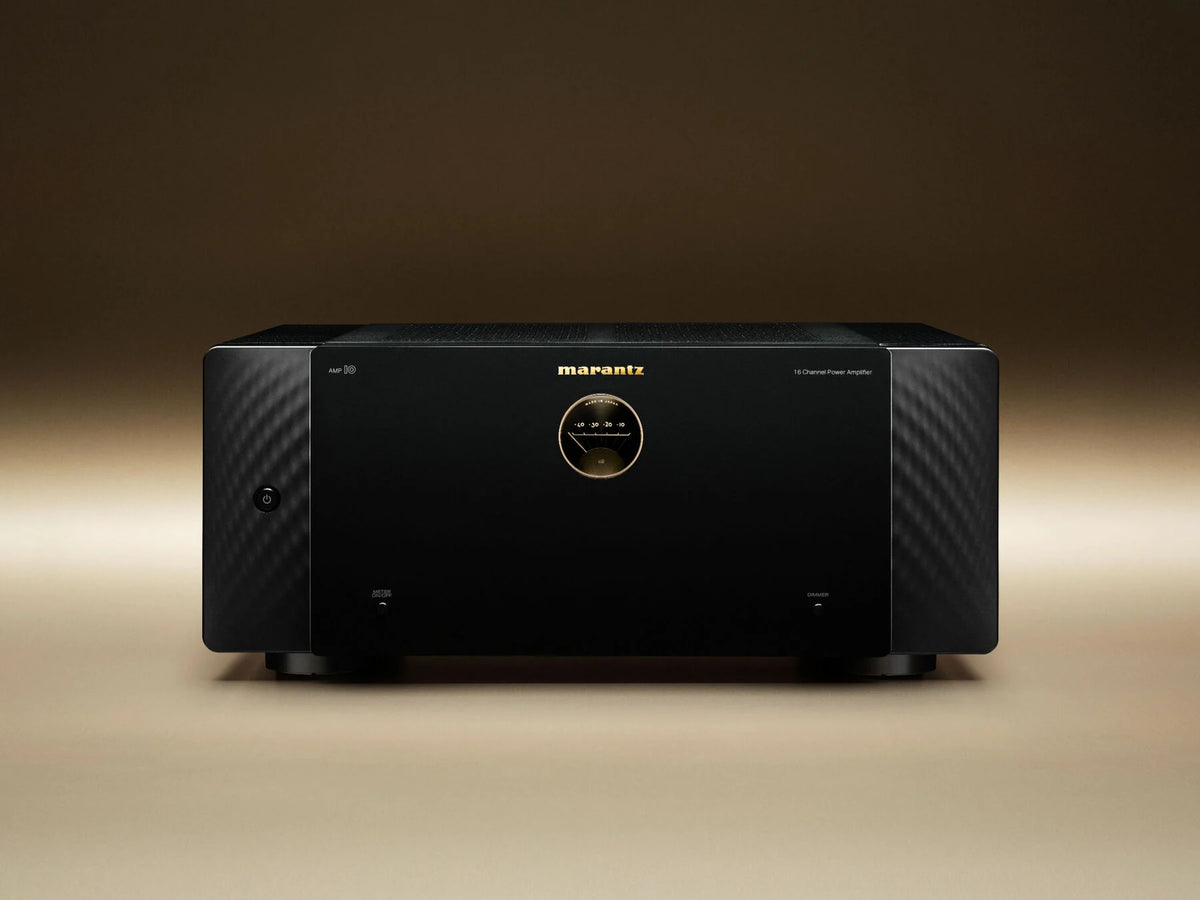

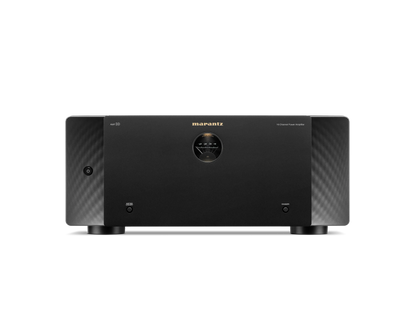

Marantz AMP 10

Name: Marantz AMP 10
Brand: Marantz
Price: 11413.0 CAD
Availability: OutOfStock

$11,413.00 CAD

Sale Sold out

Shipping calculated at checkout.

Color Black

Deliveries over $700 - Signature Required!

View full details

Marantz / Power Amplifiers

AMP 10

AMP 10 is a sixteen-channel power amplifier for a theater built around separate processing. Marantz’s HDAM-SA2 circuitry and Class D output stages support a large immersive speaker layout.

16 Channels

200 Watts per Channel

Design & engineering

Inside the AMP 10.

Sixteen amplifier channels

The 200W-per-channel design places extensive multichannel power in one enclosure. Read the complete rating conditions below.

Two complementary circuit approaches

Discrete HDAM-SA2 circuitry is paired with custom Class D amplification.

Marantz listening evaluation

The Sound Master’s final tuning complements the engineering work and component selection.

Designed beside AV 10

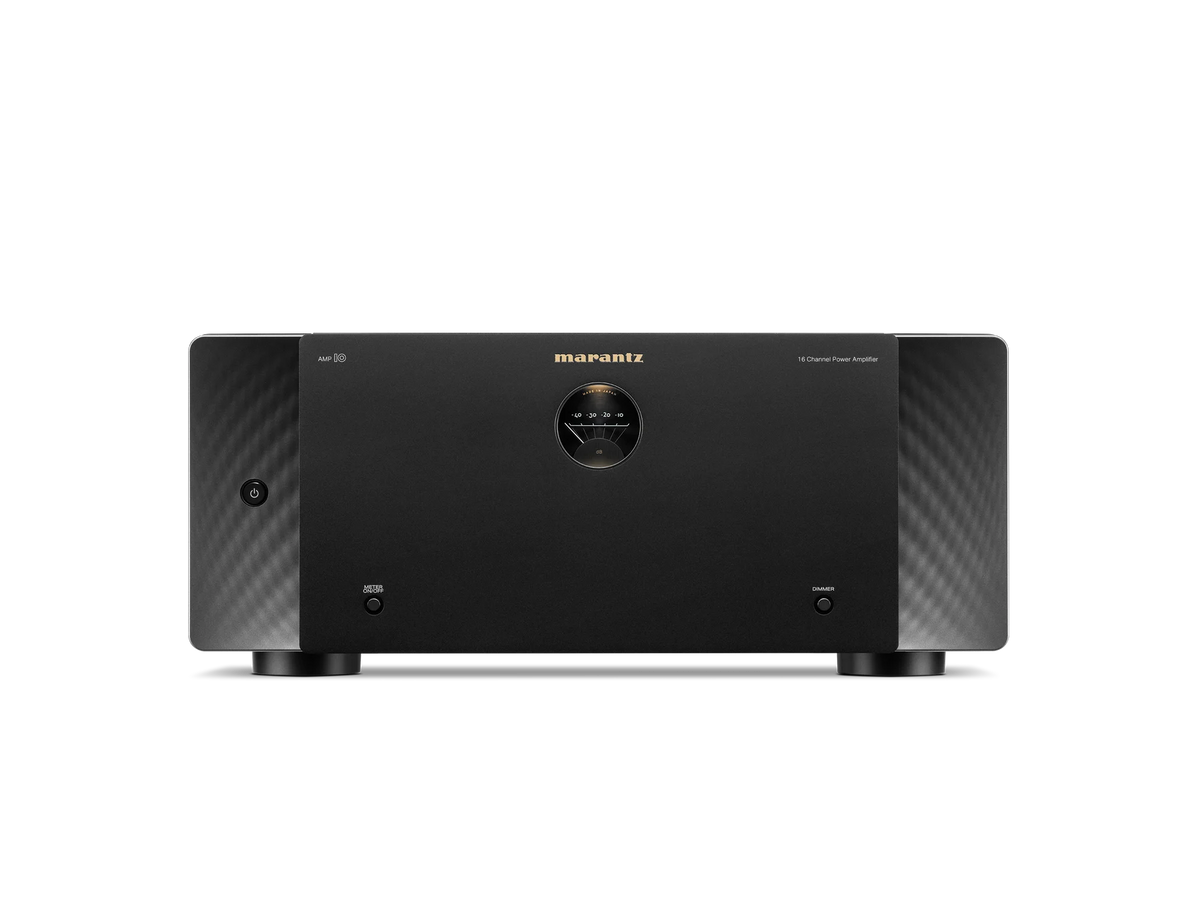

The front level meter, sidelights and materials visually align with AV 10. A separate processor is required for surround decoding.

System connections

Plan the rest of your system.

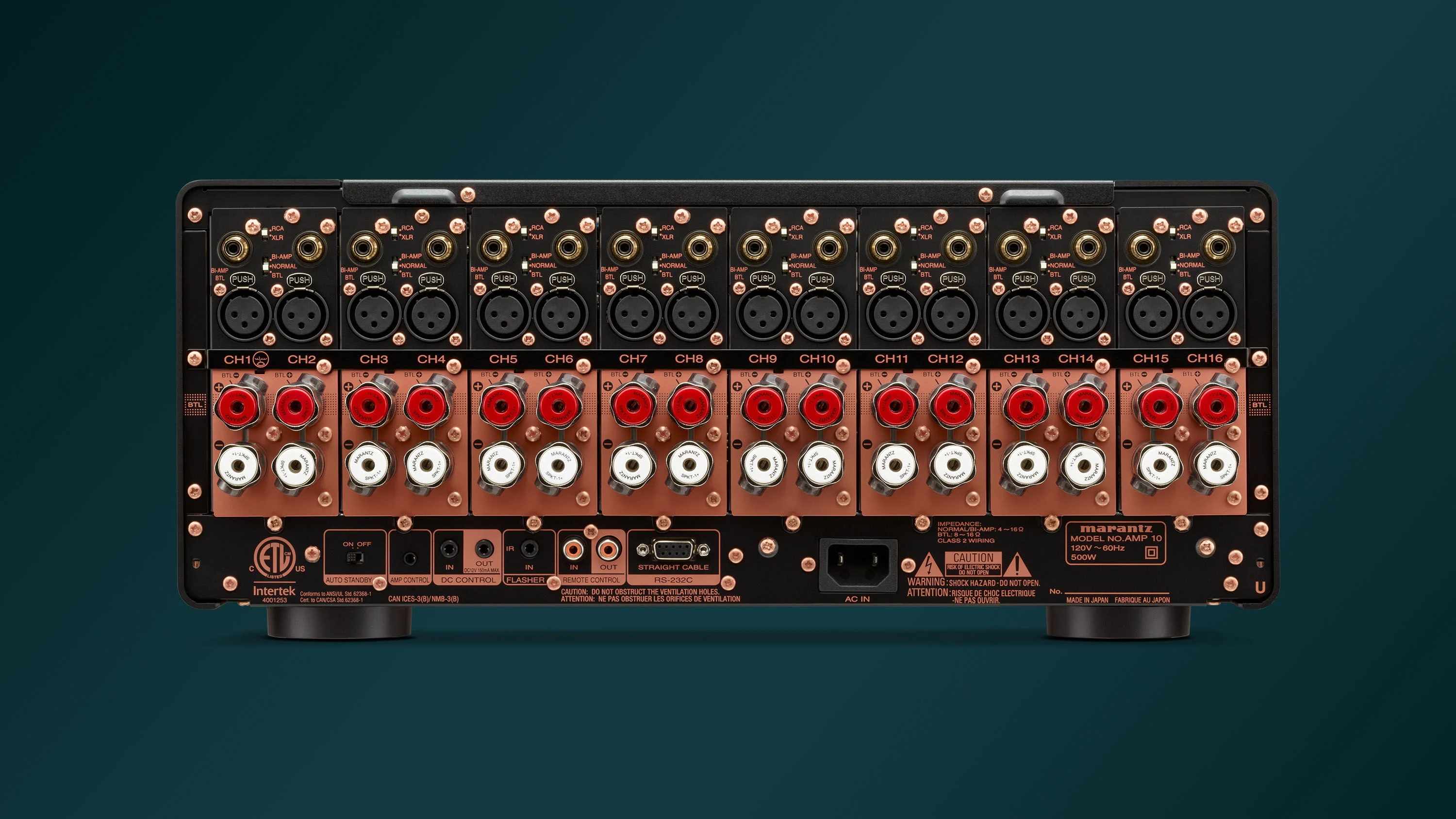

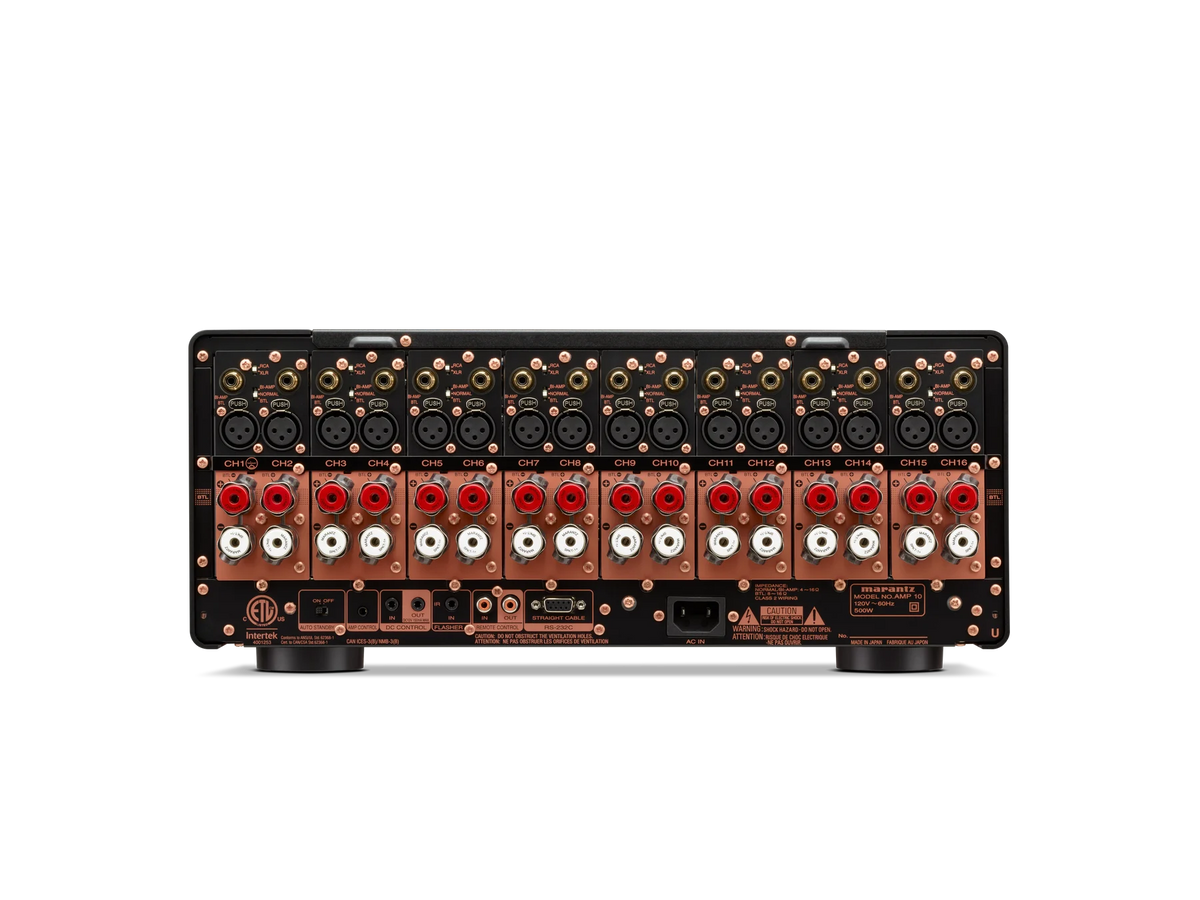

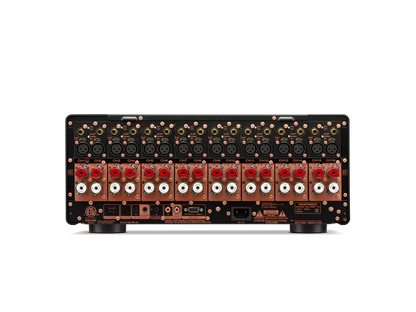

Marantz AMP 10 rear connections, US model

Technical reference

Details & specifications

Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.

Multi-Room CI

IP Control / RS232 Control / Web Control / App Control: No / Yes / No / No
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Input/ Output: 1 / 1

Others

Front Display: Level Meter
Firmware Update by Network / USB / RS232C: No / No / No
Auto Power off: Yes

Inputs Outputs

Main Amplifier in: Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker Terminal: SPKT-1+
Number of Speaker Terminals: 16
Bi-Amp Drive /BTL Drive: Yes / Yes
Level Meter: Yes
Chasiss: Copper Plated

Specifications

Number of poweramps: 16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL: 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal: 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal: 200W
70% Guarantee(Normal/Bi-Amp/BTL): Yes
100% Guarantee(Normal/Bi-Amp): Yes

General

Metal Front Panel: Yes
Pre-Programmed / Learnable / LCD Display: No / No / No
Power Consumption in W: 500
Power Consumption No-Sound in W: 140W
Standby Consumption in W: 0.2
Maximum Dimensions: 【 17.4 x 19.2 x 7.4 】
Weight in lbs.: 43.7
What's in the box: Main unit, quick start guide, AC cord,Amp control cable, Remote control cable,SP terminal wrench
UPC code: 747192137519
