Extensive surround processing
Fifteen processed channels and four subwoofer outputs support demanding immersive layouts.
Marantz

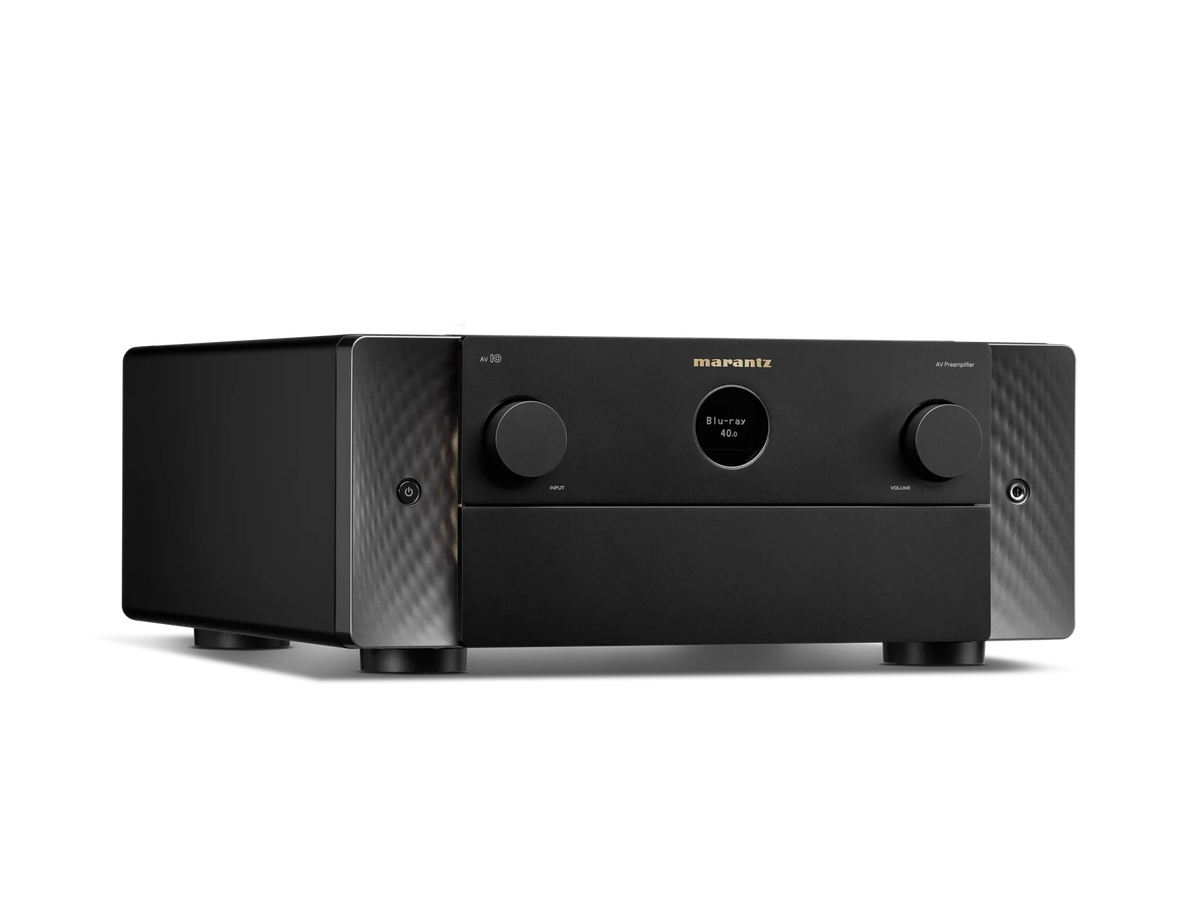

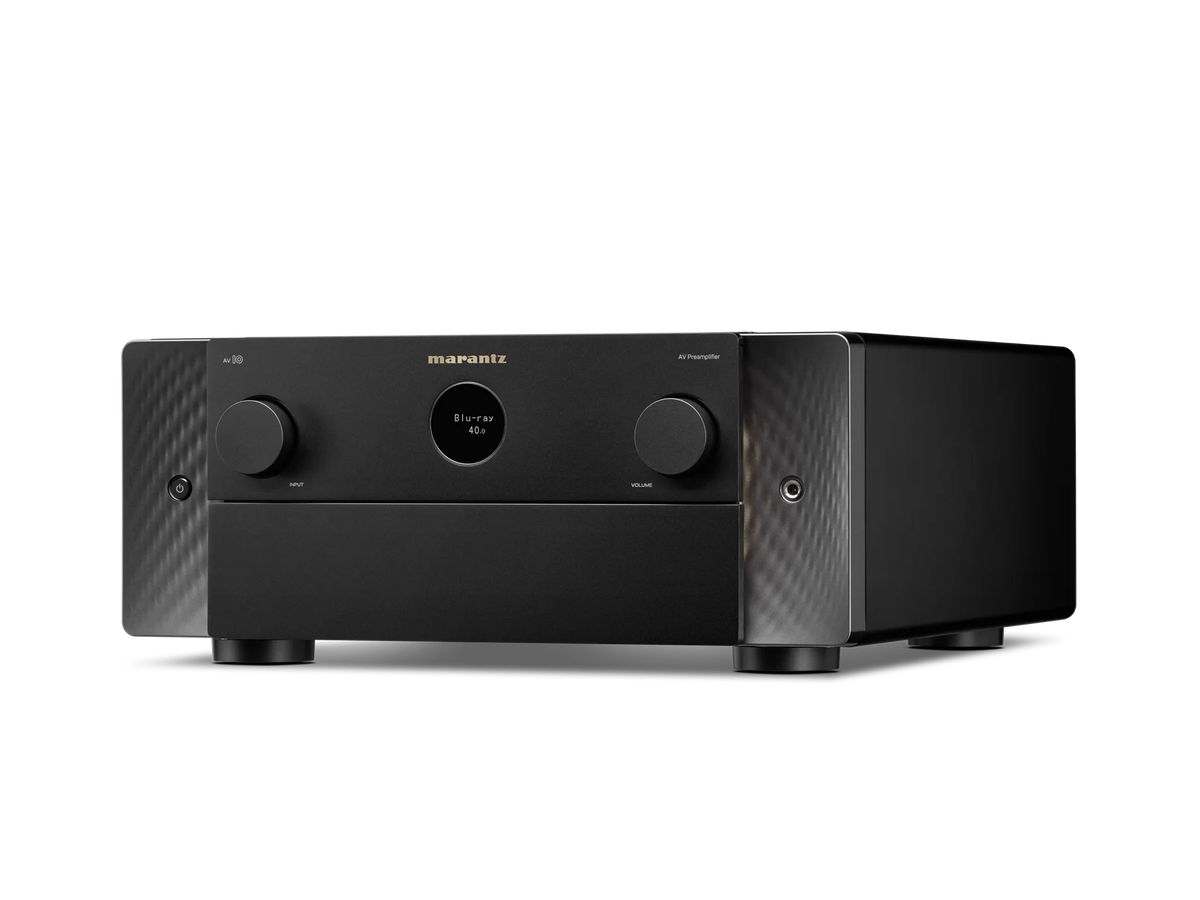

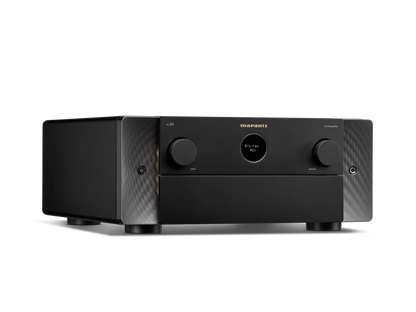

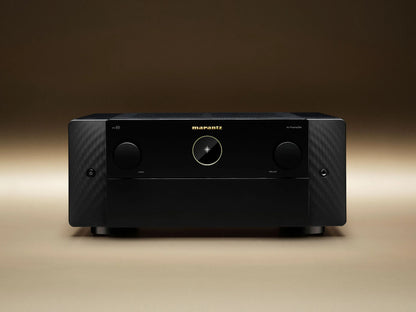

Marantz AV 10
Marantz AV 10
Regular price
$11,413.00 CAD
Regular price
Sale price
$11,413.00 CAD
Shipping calculated at checkout.
Quantity
Deliveries over $700 - Signature Required!
Couldn't load pickup availability
Marantz / AV Processors
AV 10
AV 10 provides 15.4-channel home-theater processing with balanced connectivity, HEOS and 8K HDMI. It is the source and control component in a separates system, with loudspeaker power supplied by external amplifiers.
15.4 Channels
7 HDMI Inputs plus eARC
HEOS Built-in
Design & engineering
Inside the AV 10.
Marantz circuit design
HDAM circuitry and Sound Master tuning are part of the processor’s audio design.
A connected theater
The source connections, supported surround formats and installation controls are detailed below.
Designed as a system

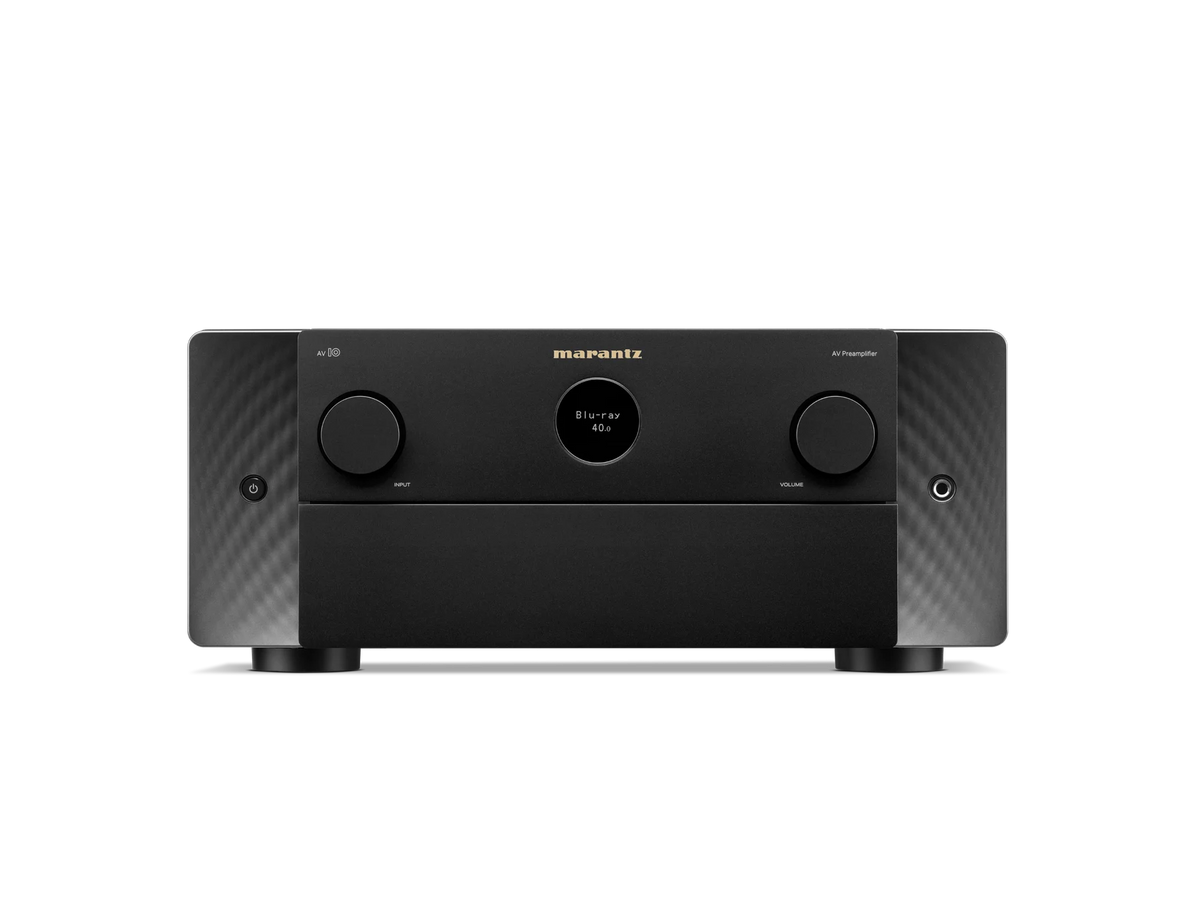

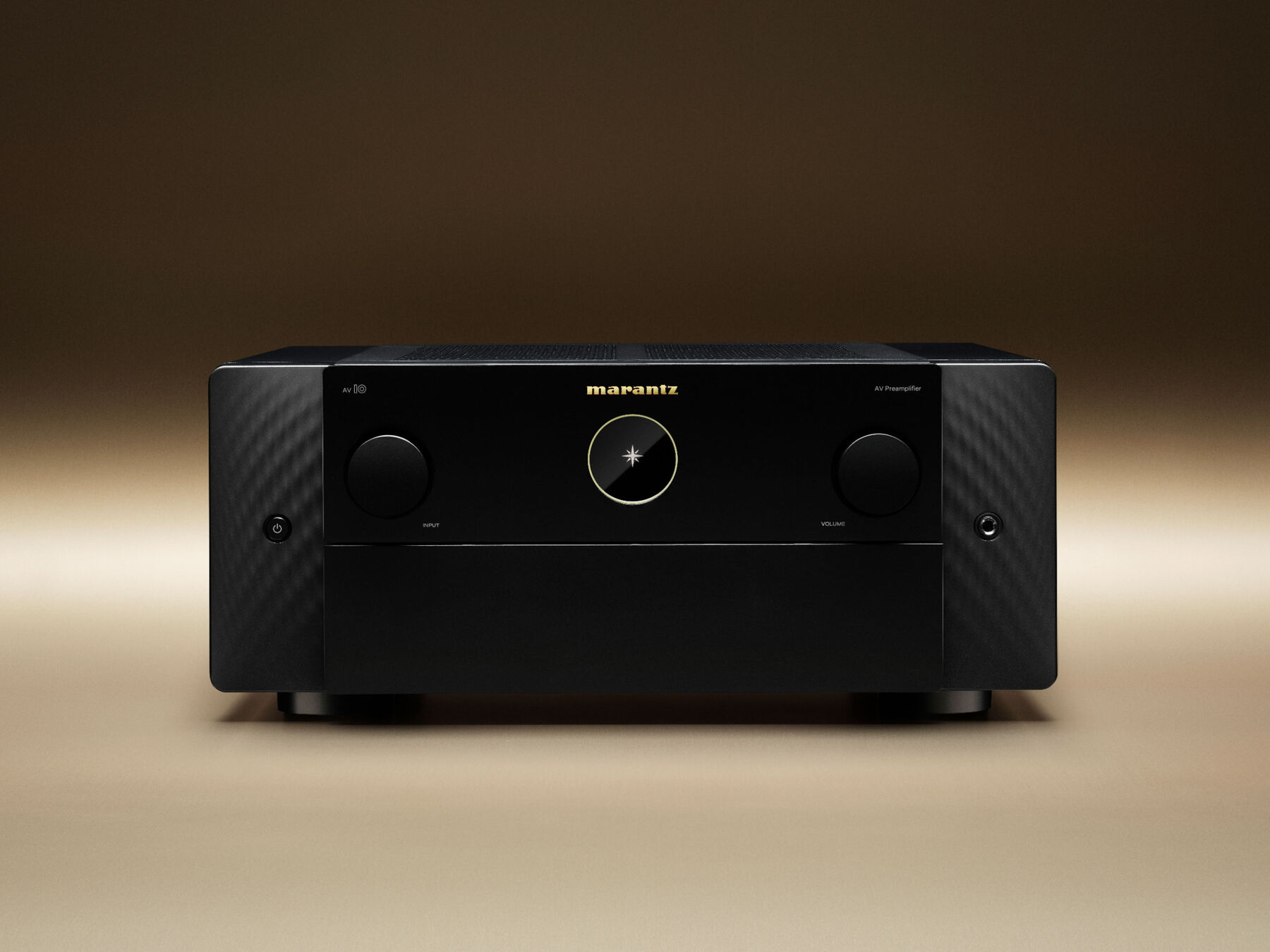

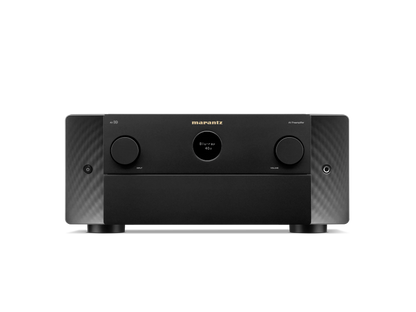

The porthole display and illuminated front-panel details complement AMP 10 and the Marantz separates range.
Powered by HEOS
Find your music.
Connect your rooms.
Use the HEOS app for supported music services and compatible network music. Group compatible HEOS devices for multiroom playback, or choose a different source in each room where the system supports it.
Service availability depends on region and account. Subscriptions, compatible devices and current firmware may be required. The specifications below identify this model’s supported formats and connections.

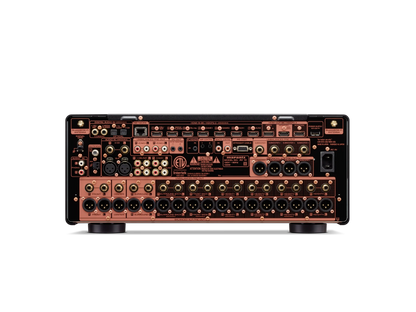

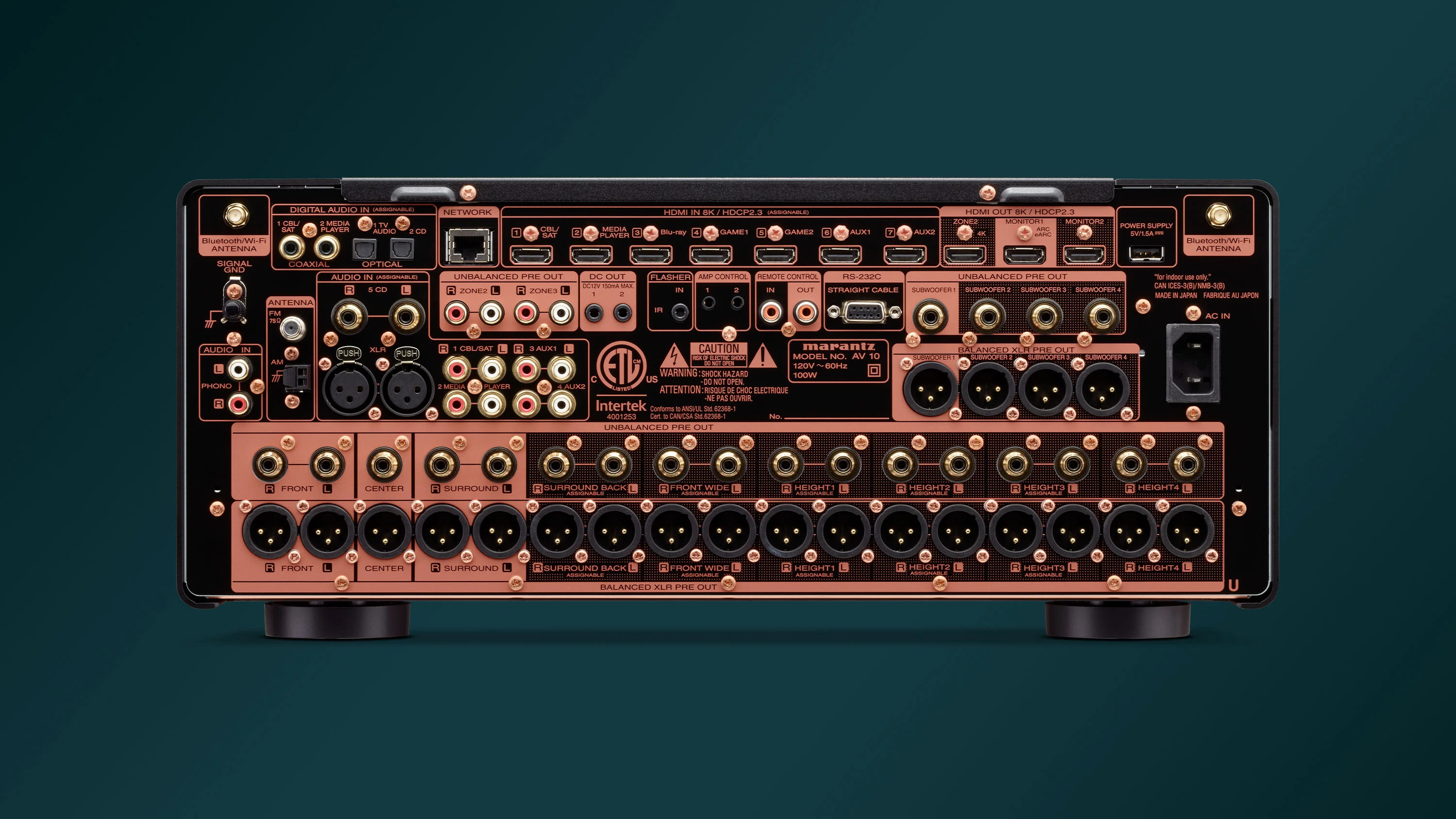

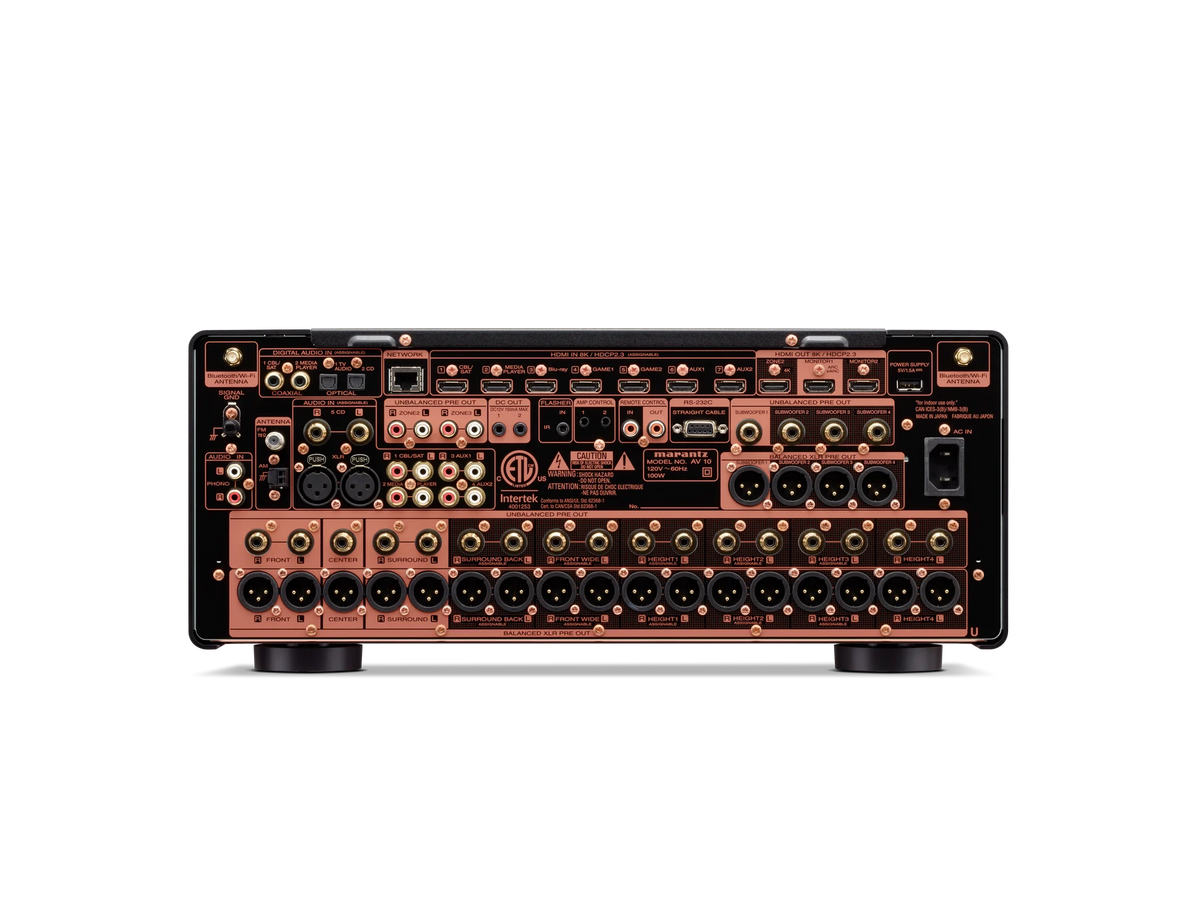

System connections
Plan the rest of your system.
From Marantz
Product film
Technical reference
Details & specifications
Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.
Multichannel Surround
- DTS HD Master / DTS:X / DTS:X Pro
- Yes / Yes / Yes
- DTS Neo:X / DTS Neural:X
- No / Yes (15ch)
- DTS Virtual:X
- Yes
- IMAX Enhanced
- Yes
- Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music
- Yes / Yes / Yes / Yes
- Dolby ProLogic Ilz / Dolby Surround
- No / Yes
- Auro 3D
- Yes
- 360 Reality Audio / MPEG H
- Yes / Yes
- Multichannel Stereo
- Yes
- Max Number of Processing (Preamp) Channels
- 15.4
Sound Enhancements
- Copper Plated Chassis
- Yes
- Power Transformer: Toroidal / EI
- Yes / No
- Current Feedback Topology
- Yes
- Hyper Dynamic Amplifier Modules (HDAM)
- Yes
- Pure Direct
- Yes
- Gold plated RCA terminals
- Yes
- Clock Jitter Reducer
- Yes
- Audyssey
- MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume
- Yes / Yes
- Audyssey LFC
- Yes
- Dirac Live upgradability
- Yes
- Compressed Audio Enhancer: MDAX2
- Yes
Network
- HEOS Multi-room and Streaming
- Yes
- Bluetooth Re-transmit for Bluetooth headphones
- Yes
- Alexa / Google Voice Assistant / Apple HomePod
- Yes / Yes / Yes
- Network Audio Sharing
- Yes
- Lossy formats: MP3 / WMA / AAC
- Yes / Yes / Yes
- Lossless formats: FLAC / ALAC / WAV
- Yes / Yes / Yes
- Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
- Yes / Yes / Yes
- DSD Audio Streaming
- Yes (2.8/5.6MHz)
- FLAC HD 192/24
- Yes
- WAV 192/24
- Yes
- ALAC 192/24
- Yes
- Gapless Playback
- Yes (FLAC, WAV ,ALAC ,DSD)
- AirPlay Audio Streaming
- Yes (AirPlay2)
- Internet radio
- Yes (TuneIn)
- Spotify*
- Yes (connect)
- Pandora
- Yes
- SiriusXM
- Yes
- Other Streaming Services *
- Amazon Music HD/Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
- Roon Tested
- Yes
- Compatible with Remote APP for Smart Phones
- Marantz AVR Remote
- Compatible with Remote APP for Tablets
- Android / iOS / Amazon Kindle
- Ethernet Ports
- Yes
- Wi-Fi
- Yes
- Bluetooth
- Yes
HDMI
- HDMI Inputs: Back / Front
- 7 / No
- HDCP2.3 support
- Yes
- HDMI Outputs: Main / Zone
- 2 / 1
- HDMI to HDMI Scaling
- 1080P/4K to 8K
- GUI Overlay on HDMI
- Yes
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB
- Yes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out
- 7 / 2 (up to 40Gbps)
- HDMI 2.0: 3D / 4K / CEC / ARC
- Yes / Yes / Yes / Yes
- Enhanced ARC
- Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- Yes / Yes / Yes / Yes / Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming
- Yes
- Variable Refresh Rate / Quick Frame Transport
- Yes / Yes
- 3D Signal Pass-Through
- Yes
- 8K signal pass-through / scaling / GUI overlay
- Yes / Yes / Yes
- 4K Signal Pass-Through / Scaling / GUI Overlay
- Yes / Yes / Yes
- HDMI pass-though in standby mode
- Yes
- Picture Adjust / Noise Reduction
- No / No
- CEC
- Yes
- DSD Audio Capability
- Yes
- Audio Return Channel
- Yes
- Auto LipSync
- Yes
Multi-Room CI
- HEOS Multi-Room Integrated
- Yes
- HEOS Link Compatibility: IR/ IP
- Yes / Yes
- Multi-Room Zones
- 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
- Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout
- No / Yes
- Zone HDMI Output from HDMI Source
- Yes
- IP Control / RS232 Control / Web Control / App Control
- Yes / Yes / Yes / Yes
- IR Flasher In
- Yes
- Marantz Remote Bus
- Yes
- DC Trigger Output
- 2
- HDMI Diagnostics
- Yes
Others
- Auto Speaker Setup by Microphone
- Audyssey MultEQ XT32Dirac Live (upgrade)
- Front Display
- 2 line FLD + port hole OLED
- Graphic User Interface - GUI
- Modern HD GUI
- GUI Languages
- 3
- Setup Assistent
- Yes
- Smart Select
- Yes
- Firmware Update by Network / USB
- Yes / Yes
- Variable Cross Over
- Yes
- Optimized Bass Redirection
- Yes
- Bass Sync
- Yes
- Auto Power off
- Yes
- Sleep Timer
- Yes
Inputs Outputs
- Composite In / Out
- No / No
- Component In / Out
- No / No
- HDMI In / Out
- 7 / 3
- Multi-Room Video Out: Video / HDMI
- No / Yes
- Analogue In / Out
- 5 (1x XLR) / No
- Phono (MM) In
- Yes
- Digital In: Optical / Coaxial
- 2 / 2
- Multi-Room Out: analog / digital
- 2 / No
- Multichannel Pre Out
- Yes (17.4 RCA & 17.4 XLR)
- Subwoofer Out
- 4 (independent)
- Speaker A / B
- assignable pre out
- Bi-amp drive
- assignable pre out
- Multi-Room Speaker Terminal
- pre out
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB
- No / No / No / No / Yes
- USB Audio / Made for iPod / Made for iPhone
- Yes / No / No
- AM/FM Tuner
- No
General
- Metal Front Panel
- Yes
- System Remote Control
- RC047SR
- Pre-Programmed / Learnable / LCD Display
- Yes / No / No
- Power Consumption in W
- 100
- Standby Consumption in W
- 0.2
- CEC Standby Consumption in W
- 0.5
- Network Standby Consumption in W
- Less than 2.0
- Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches
- 17.4 x 19.8 x 7.4( 17.4 x 19.8 x 9.9 )【 17.4 x 19.0 x 7.4 】
- Weight in lbs.
- 37.0
- What's in the box
- Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
