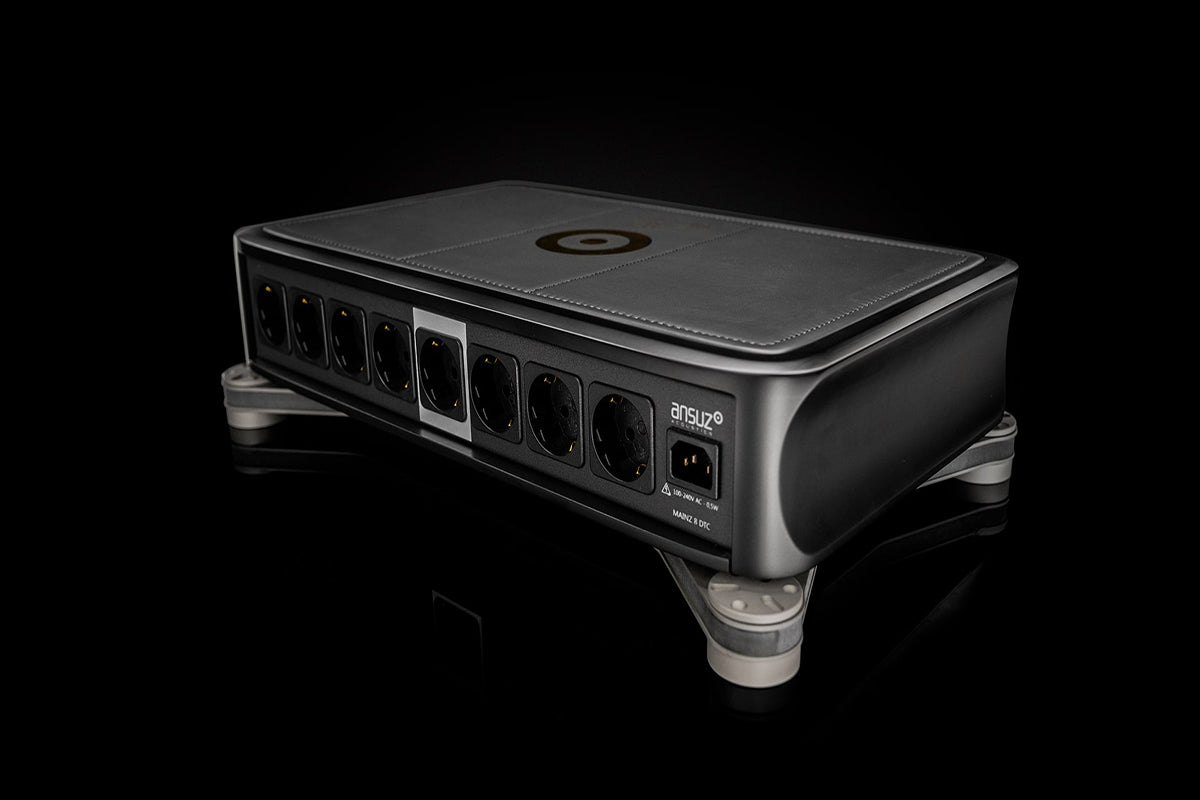

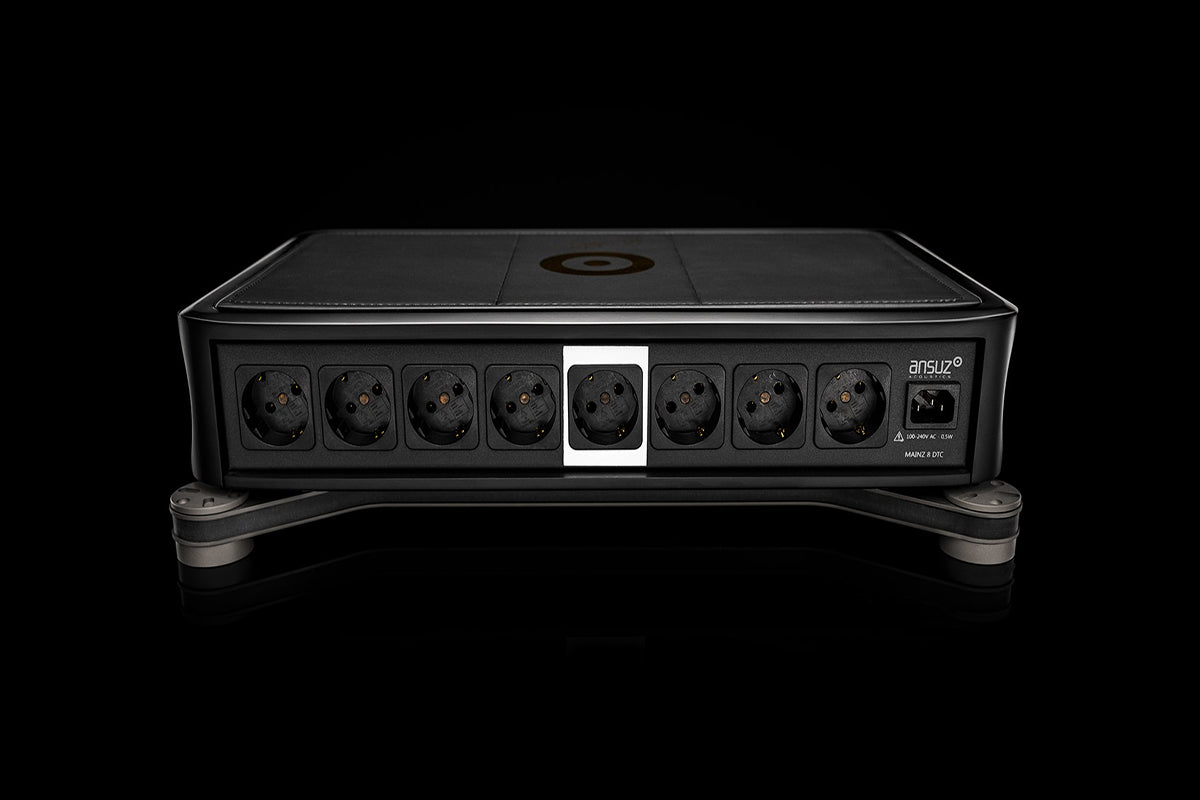

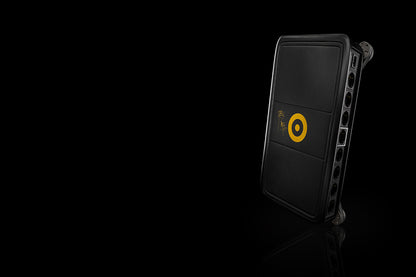

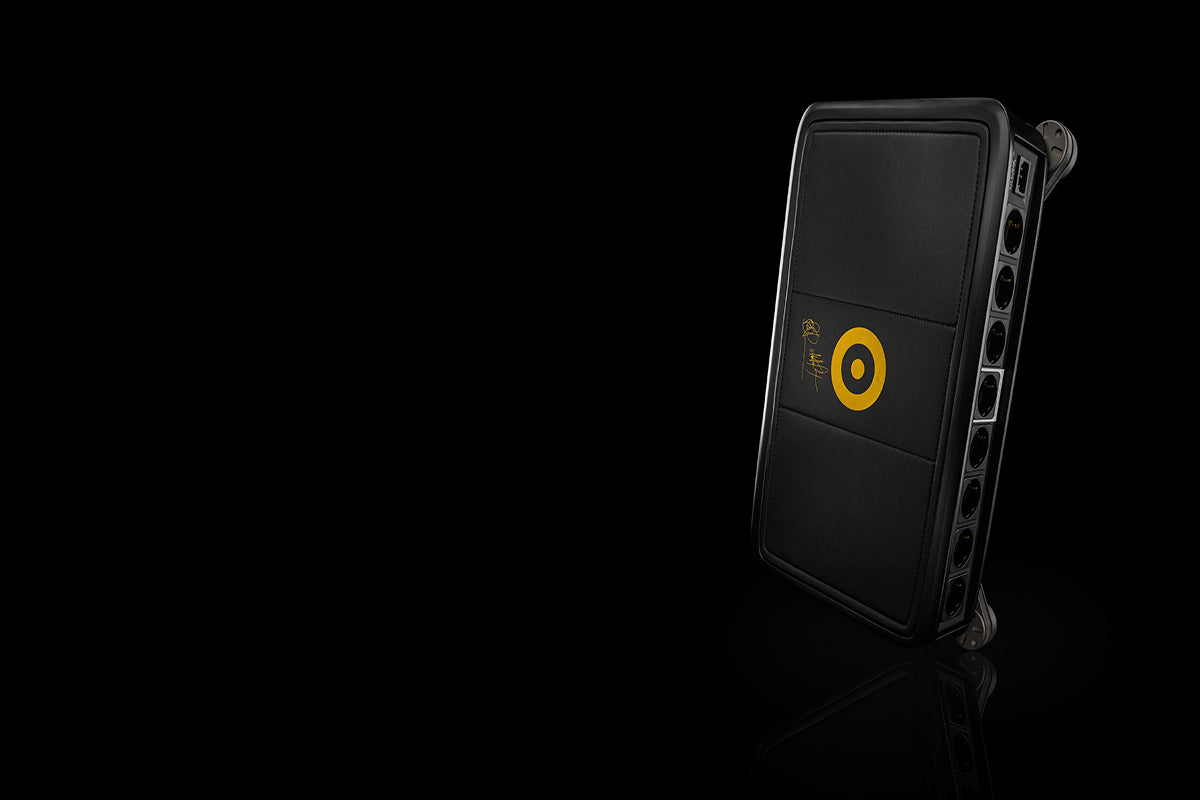

Mainz8 D-TCGold Signature

Power Distributor

Natural-based composite cabinet material

The cabinet design is an important Ansuz characteristic and is design to eliminates sonic distortion. The disturbing sonic influence, which emanates from the material the cabinet is made of – mostly aluminium – results from its mechanical resonance. To eliminate this sonic distortion, the challenge was to minimize the use of aluminium in the cabinet. Ansuz’s sister company Aavik began testing various materials and designed an innovative natural-based composite material, which reduces the mechanical influence, particularly the hysteresis. The sonic result is distinctly audible and reflects a further prominent cornerstone in Ansuz’s quest for the ultimate music experience.

Sandwich bottom plate

The aim is to reduce to an absolute minimum any vibrations that might be absorbed by the electronics and circuitry, and to ensure that audible resonances are perceived as a natural and organic part of the overall sound. The cabinet is connected to this base plate, which is constructed as a sandwich solution. The base material is a heavy, compact laminate panel with titanium layers on the top and bottom. The base plate is also equipped with Ansuz Feet to mount Ansuz Darkz and best support the elimination of interfering resonances. Note that Ansuz Darkz are optional and not

Ansuz Star ground technology

Exemplary electrical grounding.

Voltage also carries disturbing noise, which has a negative impact on the electronics of audio components. Ansuz Star ground technology prevents this disturbing noise from ’bleeding’ into the electronics of all audio components connected to the power distributor. Ansuz Star Ground technology is built around a precisely defined area within the power distributor (star point) boasting the lowest possible grounding impedance. It ensures that no voltage is transferred from the power distributor to the power cables of the individual audio components. Since this star point has the best ground impedance, all sockets in the power distributor are grounded from here. The system can be further optimized by the use of Ansuz Mainz Power cables. They complement the power distributor with a strong grounding conductor as well as various shielding and noise suppressing technologies.

Excellent internal resonance control

Ansuz Darkz resonance control devices are designed to ensure a distinctly better mechanical grounding of the speaker cabinet to the floor. To optimize the musical performance, the Mainz8 is fitted with Ansuz Darkz inside the cabinet.

The Tesla coil principle

The key operating principle of the Ansuz Tesla coil is to have two coils wound in opposite directions – one coil and one counter coil. In Ansuz words, this is called “A double inverted coil”. The two coils both carry voltage, and when one of the Tesla coils encounters a voltage spike, a counter spike is activated to eliminate the noise. Since noise spikes are pure voltage carrying virtually no charge, the cancelation is quite good, but not perfect. Adding more Tesla coils in parallel, increases the noise cancellation and the perceived blackness in the music increases significantly along with the purity and clarity of the sound. Ansuz uses various types of Tesla coils, as their individual properties ideally complement and reinforce each other.

Ansuz active Tesla coil

Minimized Impedance.

The active Tesla coils are current fed, which ensures a much lower impedance and thus, a much better ability to eliminate noise. The active version is about three to four times more efficient than passive Tesla coils.

Active square Tesla coil

Active square Tesla coil

The active square Tesla coils are embedded in our printed circuit boards – a coil on the top and the counter coil on the back. The principle is exactly the same as the active Tesla coil and thus has a greater ability to eliminate noise than the passive Tesla coils.

Active cable Tesla coil

Active anti aerial protection.

The active cable Tesla coil is wound directly on the outer part of the cable and protects the signal from absorbing the airborne RF noise. This noise is absorbed in the Tesla coil. The active version is about three to four times more efficient than the Passive cable Tesla coil.

Analog dither technology 3rd generation

A 3rd generation of the Ansuz analog dither technology has been developed. Analog dither technology originated in radar, where it ensured a stronger signal and thus greater range. The active Tesla coils send pulsating signals at precisely defined frequencies. These signals are sent in anti-phase. This significantly amplifies the musical signal and eliminates the background noise floor.

Analysis and studies have led to new options – and a lot of listening has resulted in this 3rd generation design which is a further optimization of the most effective frequencies which opens the soundscape even more and with the tiniest details when it comes to reproduction of the recordings.

Anti aerial resonance coil technology

Prevents airborne noise.

All cables and cable shields act as antennas for unwanted airborne sound waves (RF noise), which impairs the clarity of the authentic audio signal. The Anti Aerial Resonance coil protects the signal from absorbing the airborne RF Noise. This noise is absorbed in the coil and eliminated in the countercoil. The AARC splits the length of the cable into undefined lengths. As a result, the cable is less likely to absorb RF noise, which no longer can bleed into the audio system as annoying ‘white noise’.

Zirconium anti aerial resonance coil

Based on Ansuz general curiosity on the properties of different materials, Ansuz has implemented a zirconium bar in their anti aerial resonance coil design. This is another impressive upgrade to the Ansuz anti aerial resonance coil technology.

The properties of this zirconium bar allow for unprecedented resonance control resulting in outstanding musical refinement that creates a natural soundstage, unrivalled in its purity, precision and attention to musical detail.

Conductors

Carefully settled signal handling.

The conductors are made of shielded Gold and silver plated copper.

SPECIFICATIONS

Ansuz Mainz8 X 3 | Power Distributor
