Audio-Technica

Audio-Technica AT-VM740xML/H Headshell/Cartridge Combo Kit

$309.00
$309.00
Sale Sold out
Shipping calculated at checkout.

This product may take 3 to 5 business days to fulfill.

AT-VM740xML/H

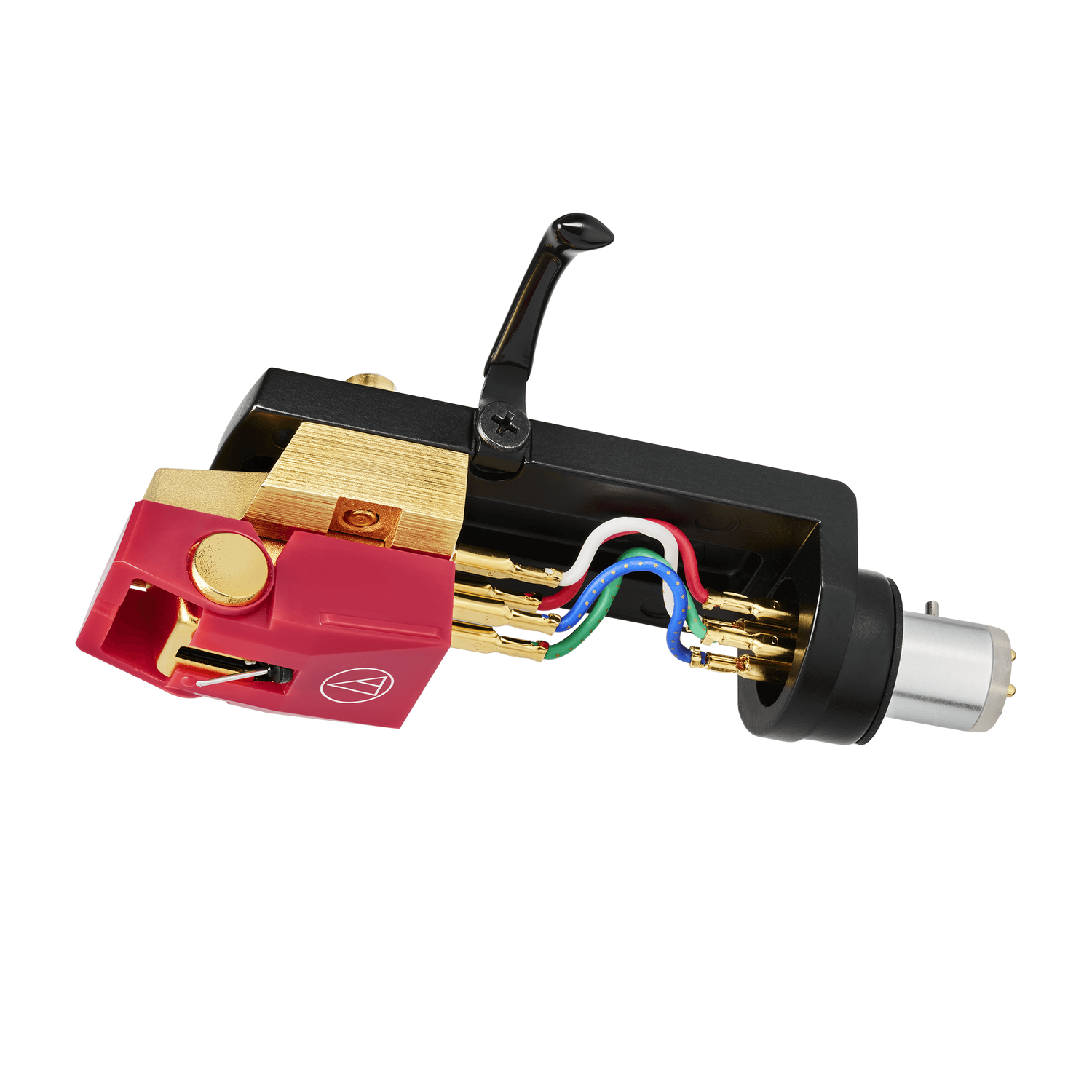

The AT-VM740xML/H combo kit includes the AT-VM740xML microlinear dual moving

 magnet cartridge premounted on the AT-LT10 universal 1/2"-mount headshell. The AT-VM740xML is part of the updated AT-VMx series, which introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.









Features

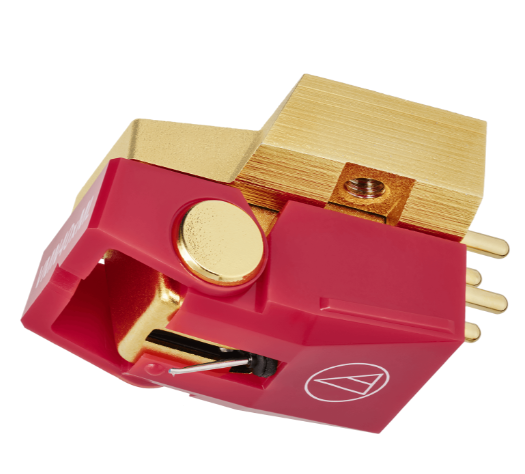

AT-VM740xML Dual Moving Magnet Cartridge

  • AT-VMx dual moving magnet cartridge with microlinear stylus

  • Microlinear stylus tracks the record groove with incredible accuracy, providing more nuanced sound reproduction than elliptical and conical styli

  • Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response

  • PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response

  • Center shield plate between the left and right channels reduces crosstalk for clear stereo sound

  • Die-cast aluminum housing reduces vibrations and resonance

  • Threaded inserts make cartridge easier to mount, especially to integrated tonearms

  • V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record

  • Aluminum tapered cantilever reduces mass near the stylus tip for quicker signal transmission

  • Compatible with any turntable headshell that accepts 1/2" cartridges

  • Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application

*Excludes mono models



AT-LT10 Universal Headshell

  • Universal ½"-mount headshell for 4-pin turntable cartridges with or without threaded inserts

  • Ultra-lightweight aluminum die-cast body keeps vibration to the bare minimum

  • Elongated through holes enable precise cartridge positioning and overhang adjustment

  • OFC (oxygen-free copper) lead wires for exceptional sound quality

  • Slip-resistant finger lift allows stylus to be placed precisely on the record

  • Includes mounting screws



Specifications

Frequency Response 20 to 25,000 Hz
Channel Separation 25 dB (1 kHz)
Vertical Tracking Angle 20°
Tracking Force 1.8 to 2.2 g (2.0 g standard)
Stylus Construction Nude Microlinear
Recommended Load Impedance 47 k ohms
Coil Impedance 3.2 k ohms (1 kHz)
DC Resistance 750 ohms
Coil Inductance 480 mH (1 kHz)
Output Voltage 3.2 mV (1 kHz, 5 cm/sec.)
Output Balance 1.0 dB (1 kHz)
Cantilever Aluminum tapered pipe
Static Compliance 20 × 10-6 cm/dyne
Dynamic Compliance 7 × 10-6 cm/dyne (100 Hz)
Dimensions 68.4 mm (2.7”) × 18.5 mm (0.73”) × 21.5 mm (0.85”) (H × W × D)
Recommended Load Capacitance 150 to 250 pF
Replacement Stylus AT-VMN40xML* (sold separately)
Stylus Curvature Radius 2.2 × 0.12 mil
Type VM
Weight 20.3 g (0.72 oz)
Notes *The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes.
For product improvement, the product is subject to modification without notice.
