Audio-Technica

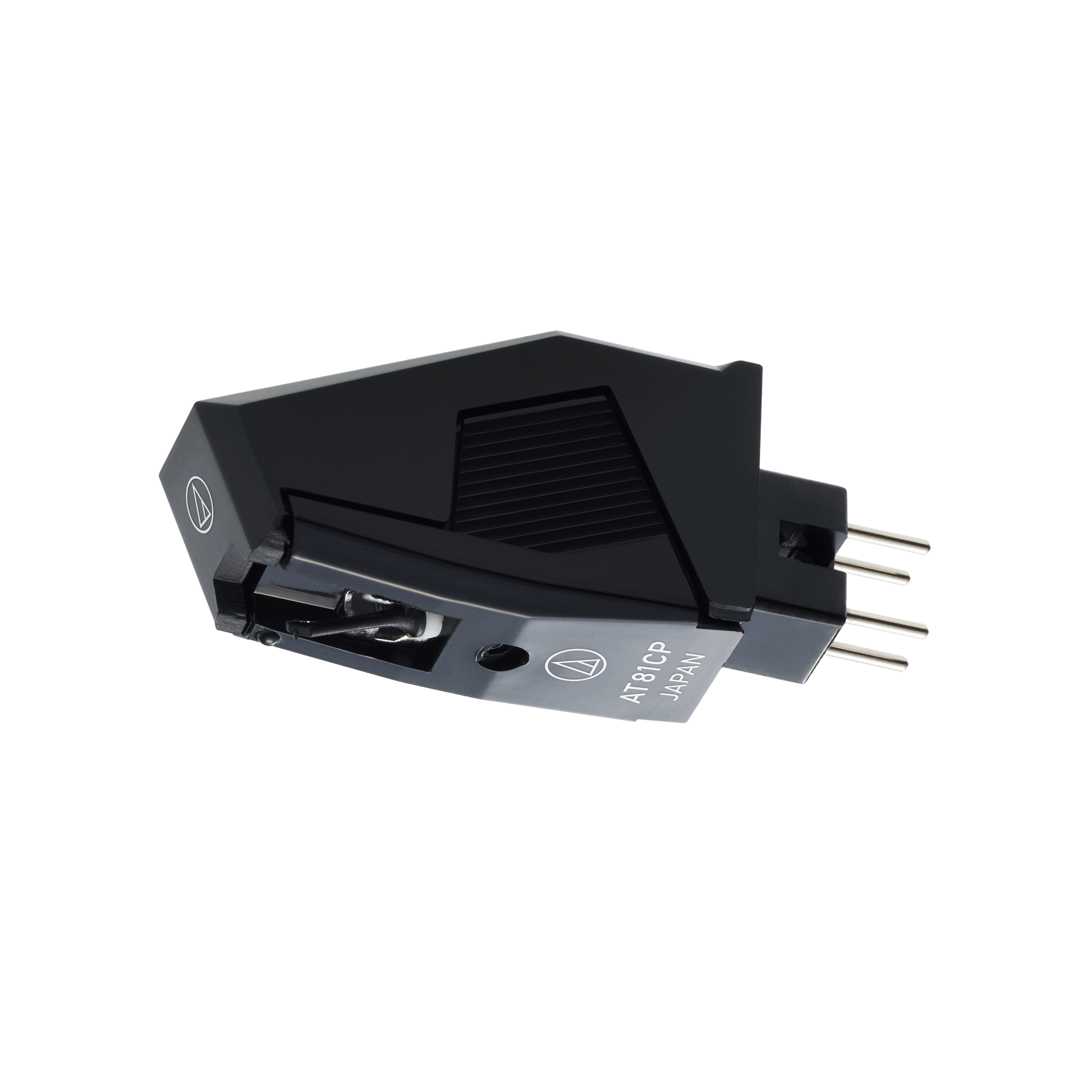

Audio-Technica AT81CP Phonograph Cartridge
Regular price
$29.00
Regular price
Sale price
$29.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
This 0.6 mil conical cartridge fits P-mount turntables.
Specifications
| Frequency Response | 20-20,000 Hz |
| Channel Separation | 18 (dB at 1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 1.0-1.5 g (1.25 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 2.8 k ohms (1 kHz) |
| DC Resistance | 410 ohms |
| Coil Inductance | 400 mH (1 kHz) |
| Output Voltage | 3.5 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 2.5 dB (1 kHz) |
| Stylus Shape | 0.6 mil conical |
| Cantilever | Carbon fiber-reinforced ABS |
| Mounting | P-mount |
| Dimensions | 15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D |
| Mounting Feature | P-mount |
| Recommended Load Capacitance | 100 to 200 pF |
| Replacement Stylus | ATN81CP |
| Stylus Size | 0.6 mil |
| Type | Dual Magnet |
| Weight | 6.0 g (0.21 oz) |
