Canor Verto D4S - Solid-State DAC

Name: Canor Verto D4S - Solid-State DAC
Brand: Canor
Price: 4499.0 USD
Availability: InStock

$4,499.00 USD

Sale Sold out

Shipping calculated at checkout.

Finish Bronze Black Silver

Deliveries over $700 - Signature Required!

View full details

Canor Verto D4S

Solid-State DAC

Foundation Line

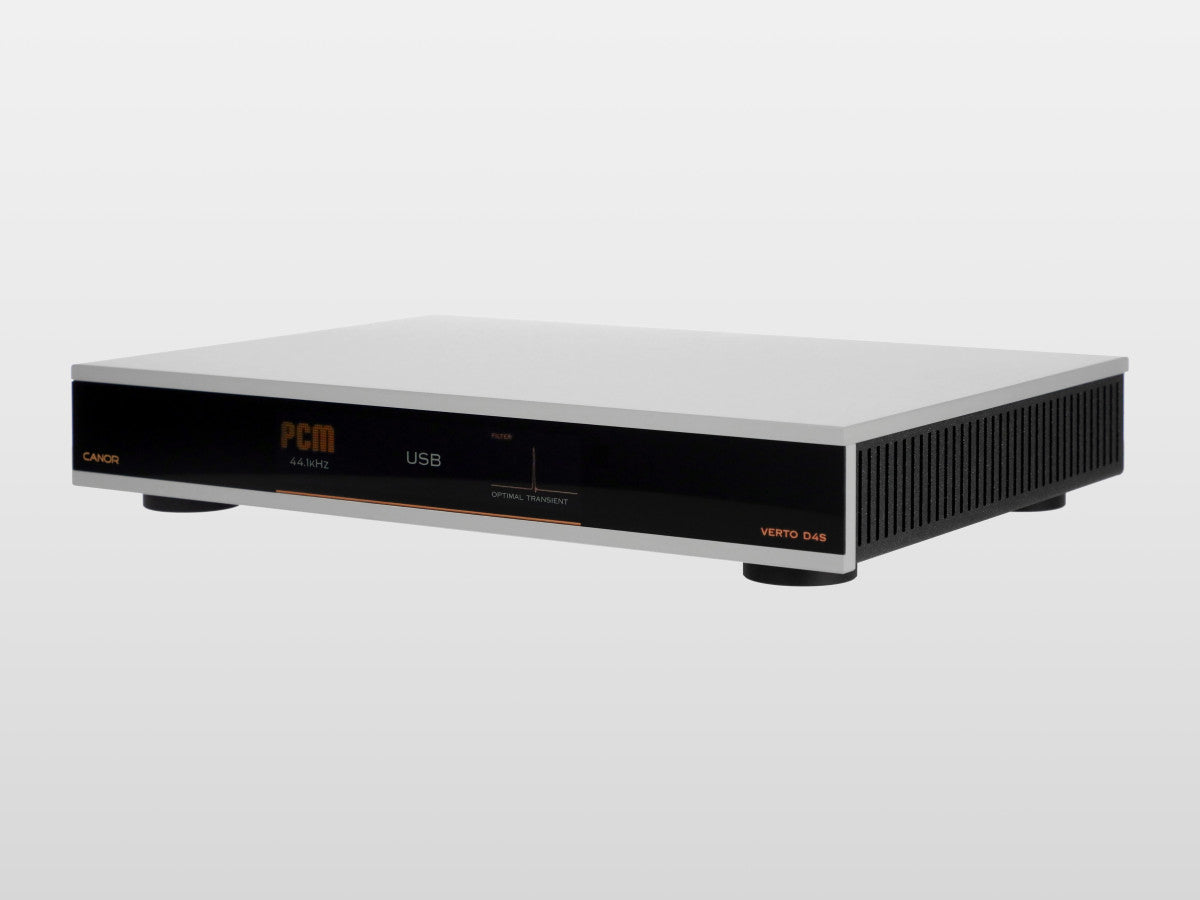

The Verto D4S is a foundation line digital-to-analog converter offering a minimalist form factor and high-end performance.

Highlights

Dual-mono discrete and symmetrical DAC architecture with galvanically isolated digital inputs ensures precisely separated signal paths.

The device supports all commonly used digital inputs, ensuring broad compatibility with today’s audio sources.

Main Features

Lifestyle device packed with high-end technology.

Minimalist design and premium materials frame a high-end, fully discrete dual-mono DAC, resulting in clear, natural, and accurate sound reproduction.

New design defined by premium materials

A new design elevated by premium materials such as aluminum, glass, and steel, introduced with Canor's first-ever bronze finish for a more unique and sophisticated presence.

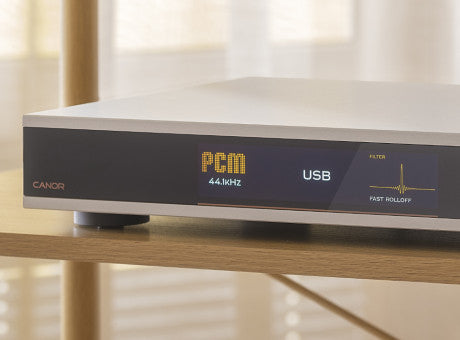

Immersive 7-inch touch screen interface

The spacious 7-inch touchscreen offers excellent readability and smooth touch response, allowing effortless navigation and clear visual feedback during operation.

Dual-mono ESS Sabre DAC architecture

Verto D4S uses a dual ESS Sabre 9038 chipset, configured for high dynamic range and ultra-low noise performance. The analog output stage is entirely discrete, with no operational amplifiers in the signal path.

Pure digital signal path through galvanic isolation

Galvanic isolation on USB, AES/EBU, coaxial, and optical inputs helps block noise and ground interference, preserving a clean and stable digital signal path.

Independently regulated linear power supplies

Power is supplied by a linear power supply, with separate regulation for the digital and analog sections. This minimizes interference and ensures stable operation.

Custom-designed "Optimal Transient" digital filter

This filter enables true Non-Oversampling Mode operation by bypassing internal oversampling, eliminating pre- and post-ringing. This approach prioritizes time-domain accuracy and musical timing over frequency-domain perfection.

Versatile remote control, supporting all settings

The remote control allows full control over the device, including adjusting digital filters, switching inputs, changing display themes, and accessing other key functions with ease.

Color variants

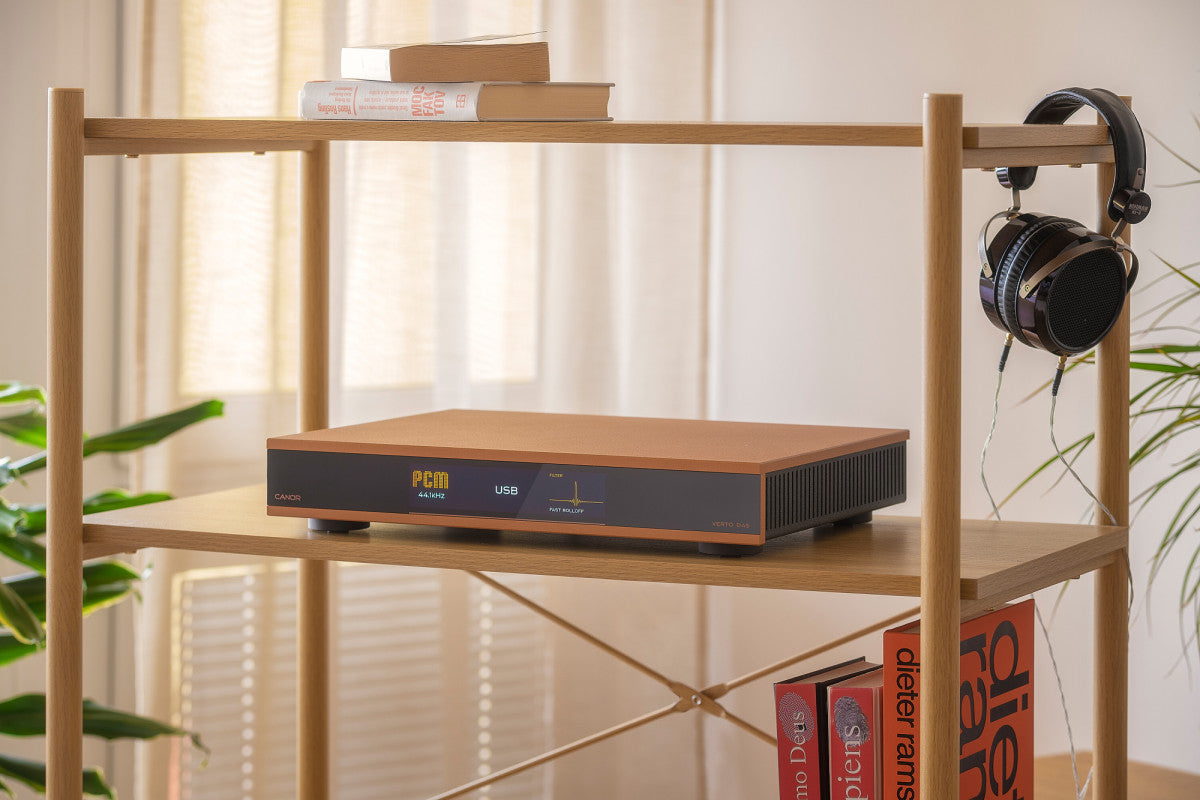

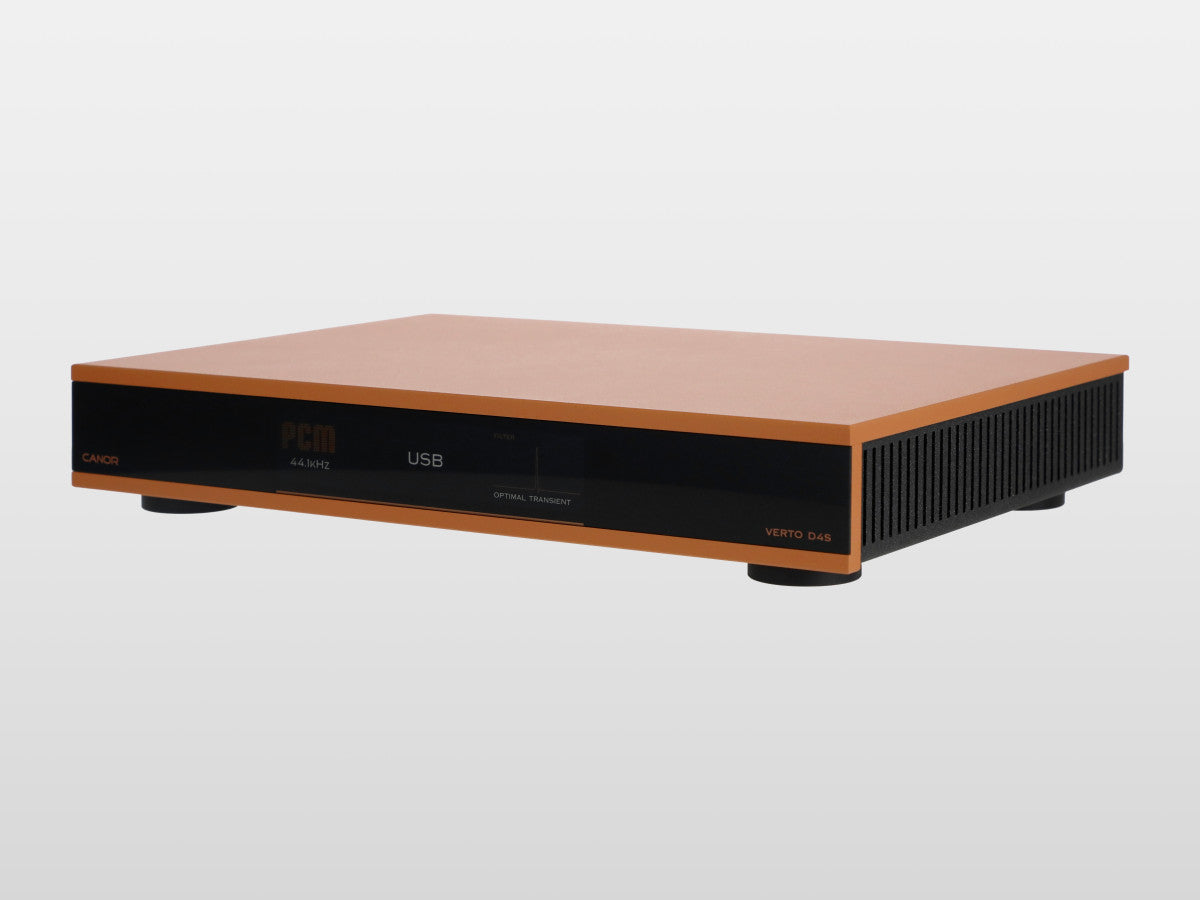

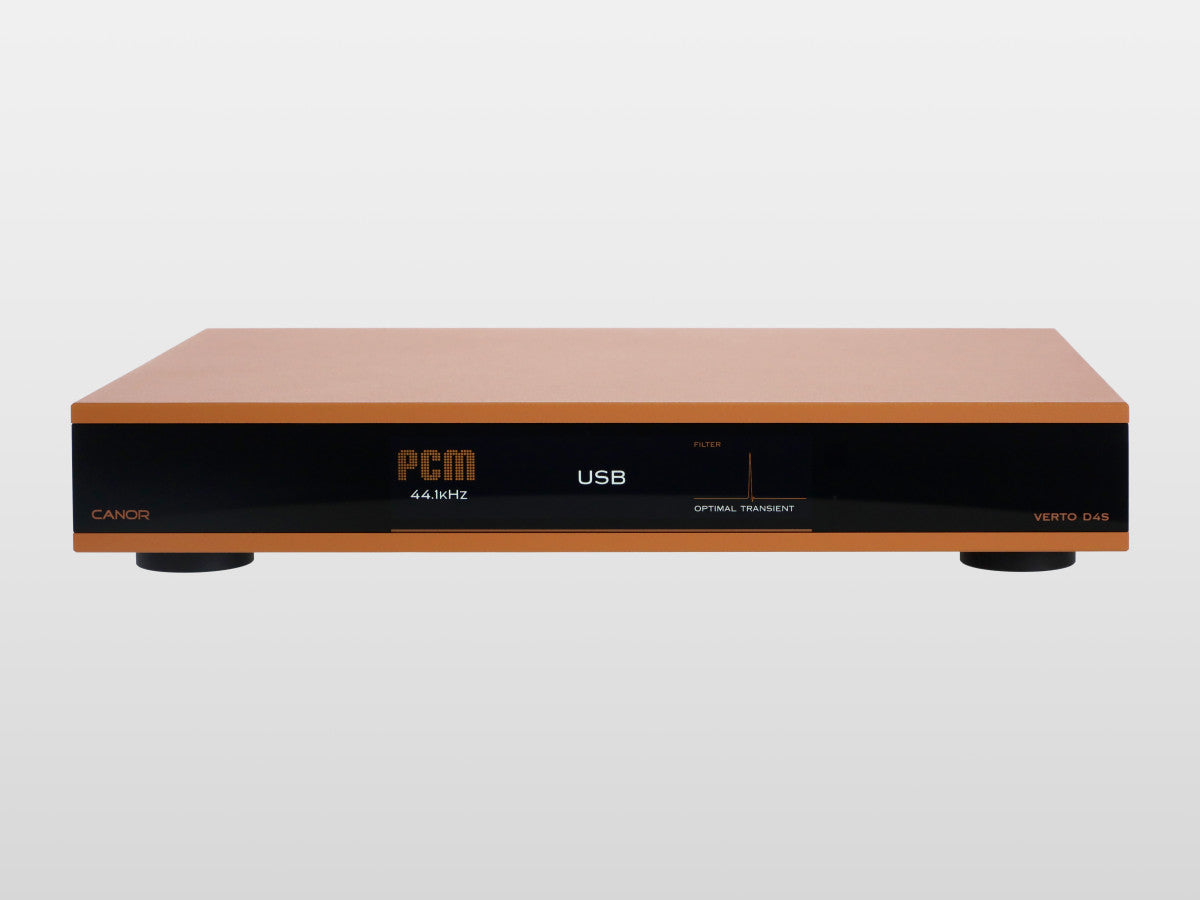

Bronze

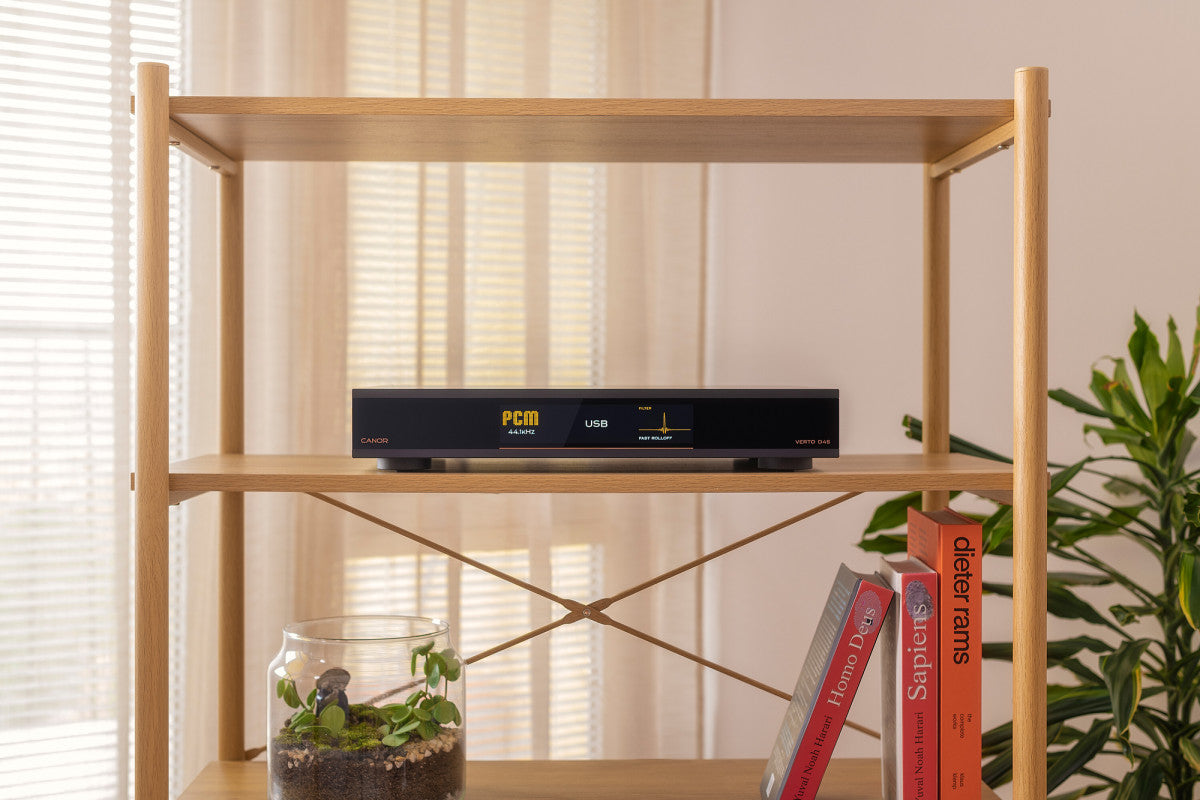

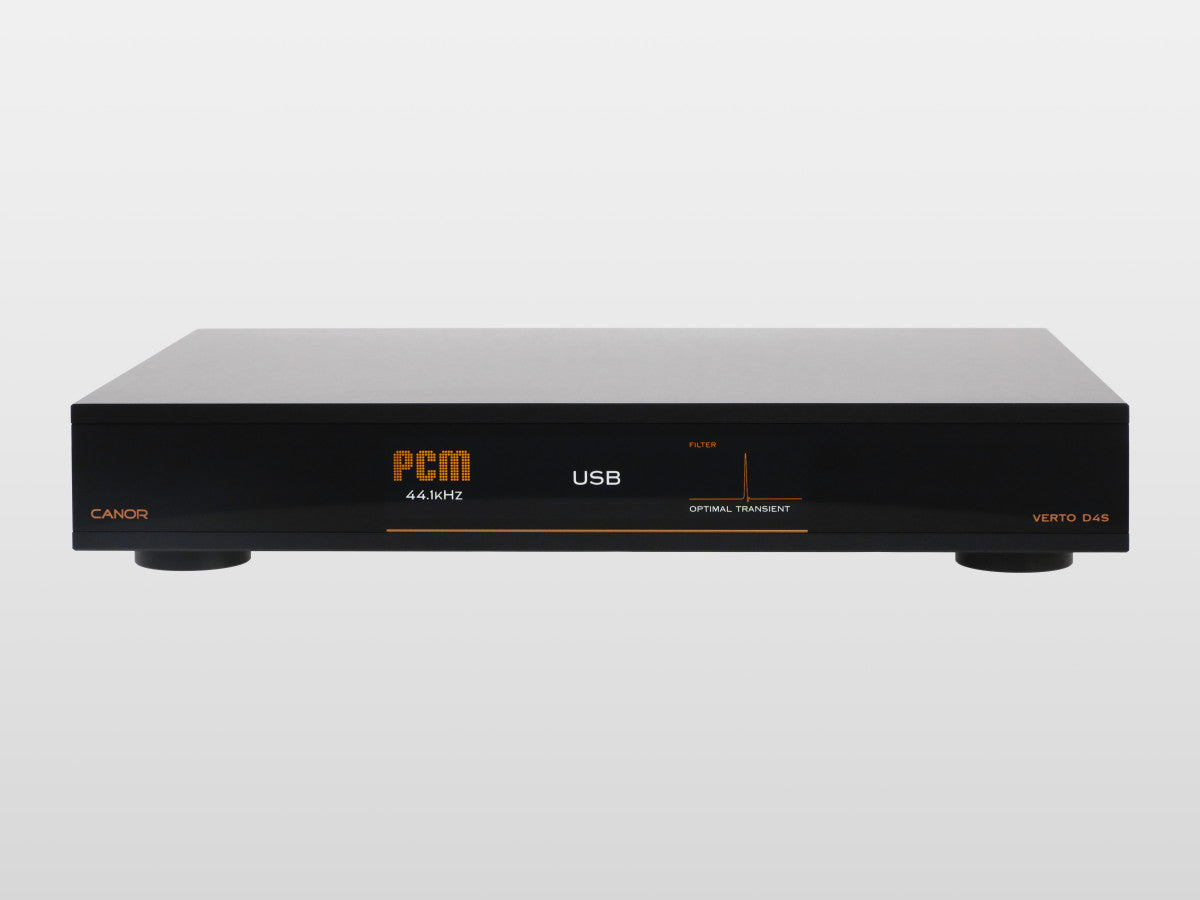

Black

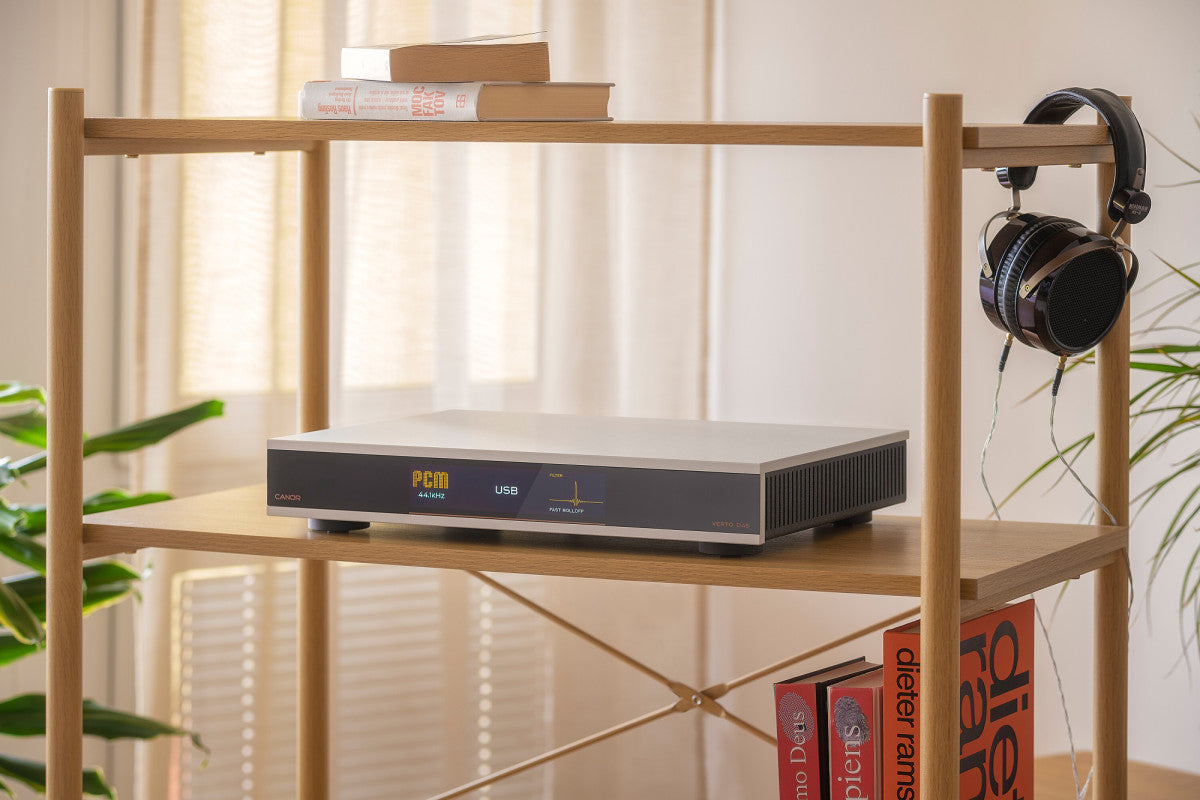

Silver

Gallery

Overview

Product Features

The Verto D4S employs a true dual-mono architecture, with a dedicated ESS Sabre 9038 DAC chip for each channel.
The analog output stage is fully discrete and symmetrical, free of operational amplifiers, delivering high dynamic range with ultra-low noise performance.

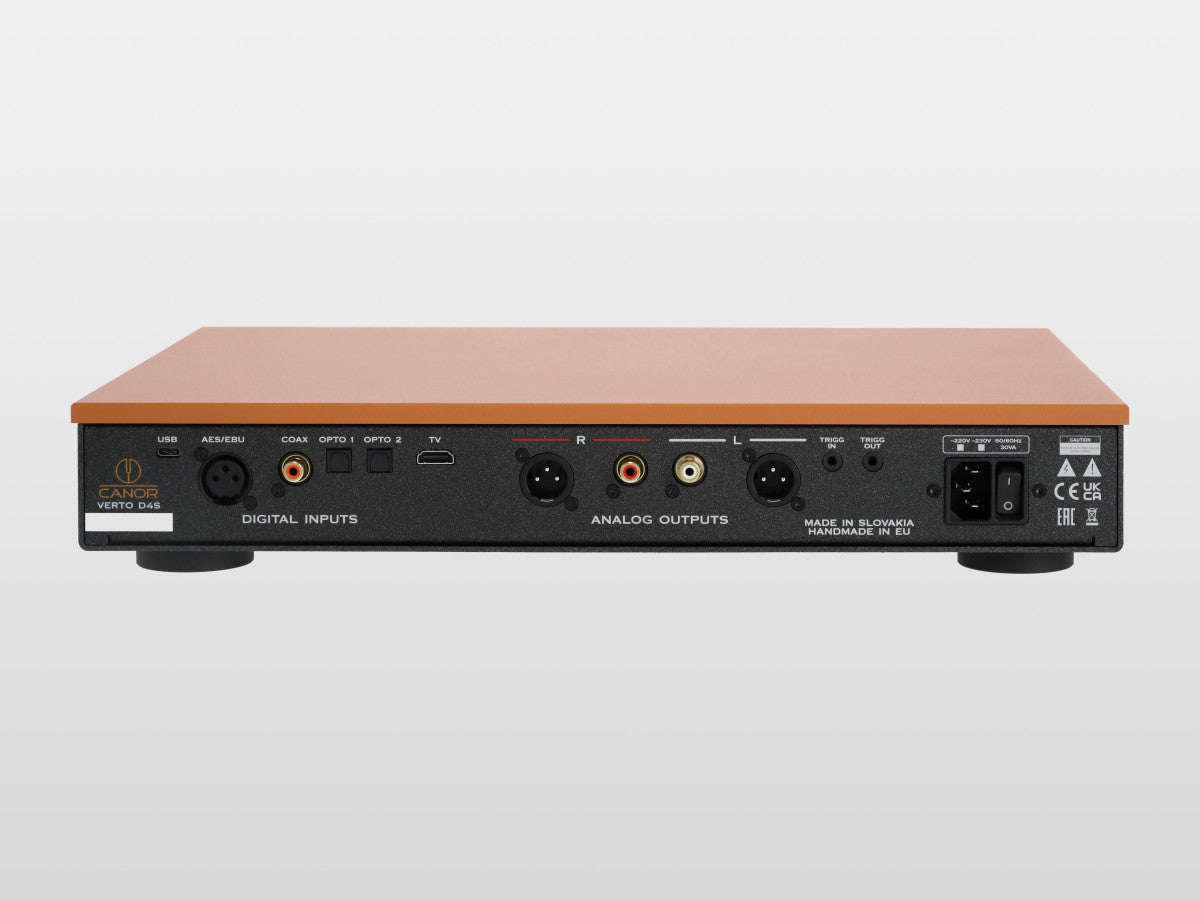

Coaxial, AES/EBU, USB and optical inputs are galvanically isolated, ensuring clean signal transmission and minimizing interference from the source device.

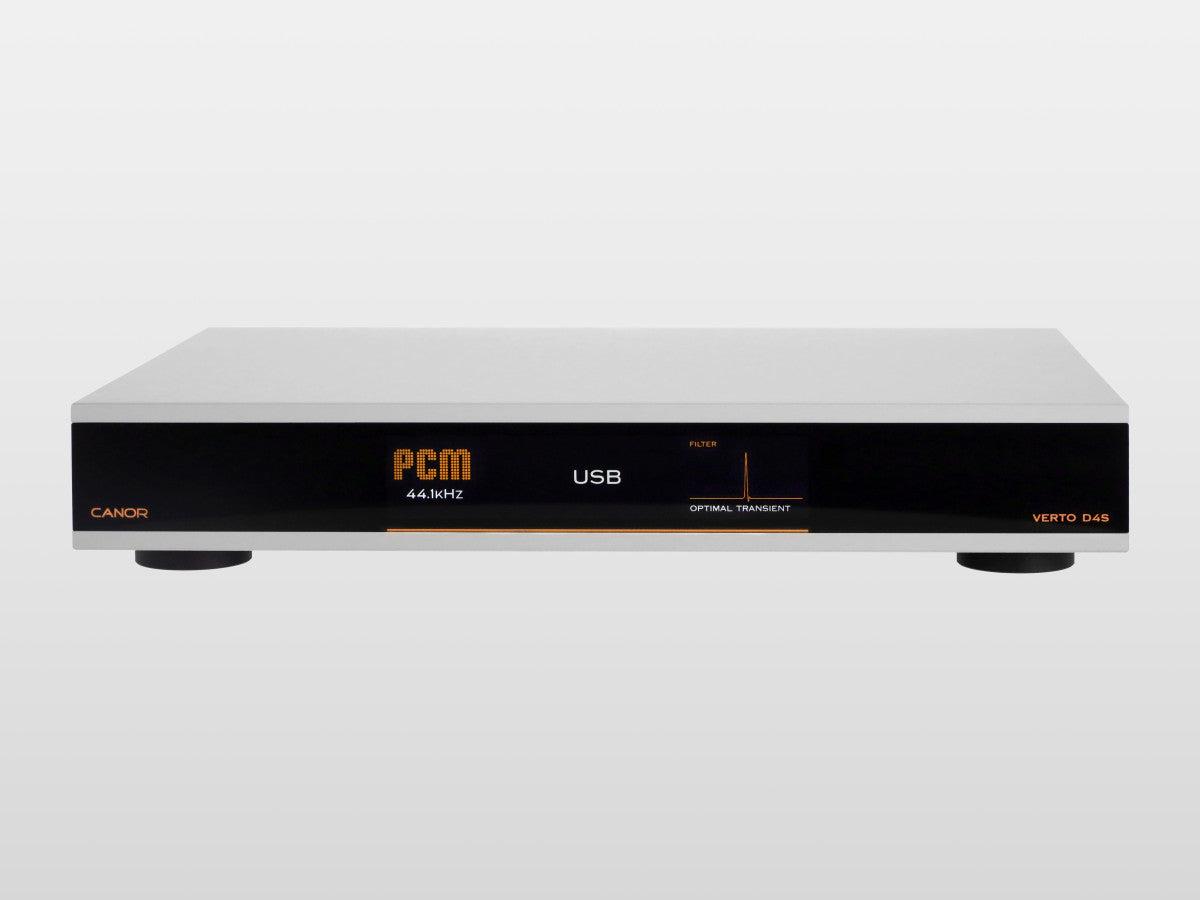

The 7-inch touch display combines a simple, clear, and intuitive user interface, ensuring comfortable operation of the device. The screen is easy to read even from a distance, contributing to a smooth user experience. It shows all key information, including input, sampling frequency, selected digital filter, and other settings, giving the user an immediate overview of the device’s status.
The display offers two color theme options, allowing the user to select their preferred interface appearance.
Verto D4S supports a wired firmware update.

Technical specification

DAC Configuration2 x ESS9038Q2M (Dual-mono)

Filter Settings8 x Digital Filter

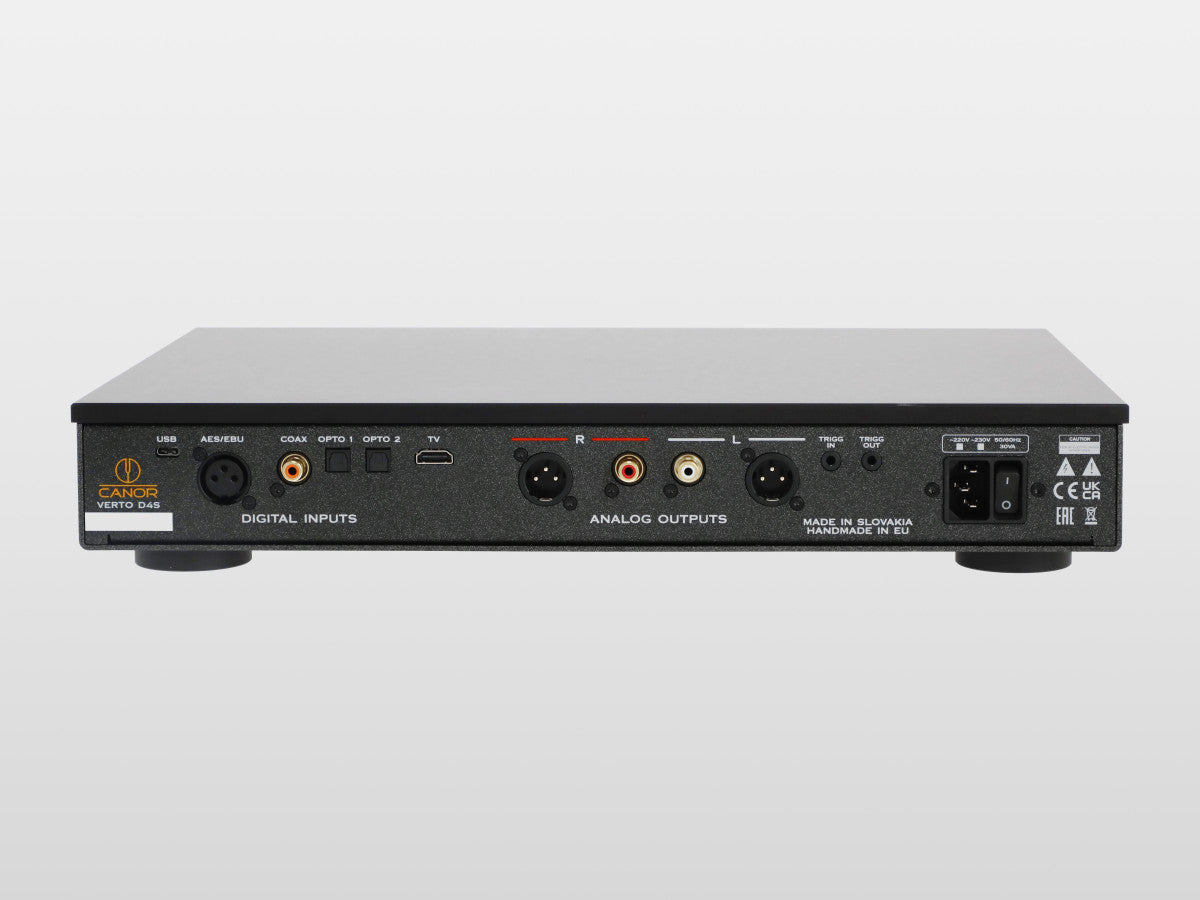

Digital Inputs1 x USB-C (PCM up to 24-bit / 768 kHz & DoP DSD up to DSD256 & Native DSD up to DSD512)
1 x AES/ABU (PCM up to 24-bit / 192kHz)
1 x Coax (PCM up to 24-bit / 192kHz)
2 x Opto (PCM up to 24-bit / 192kHz)
1 x TV Input (PCM up to 24-bit / 192 kHz)

Analog Outputs1 pair RCA
1 pair XLR

Output ImpedanceRCA: 100 Ω
XLR: 200 Ω

Frequency Range20 – 20 000 Hz / < -0.1 dB

Total Harmonic Distortion< 0.0005 %

Output VoltageRCA: 2 VRMS
XLR: 4 VRMS

Signal-to-noise ratio> 112 dB (A-wt)

Crosstalk< -127 dB

Trigger Connectors (12 V)1 x IN (3.5 mm jack)
1 x OUT (3.5 mm jack)

Power230 V / 50-60 Hz / 30 VA

Dimensions (w x h x d)430 x 75 x 300 mm

Weight (net)8 kg

Weight (gross)10 kg
