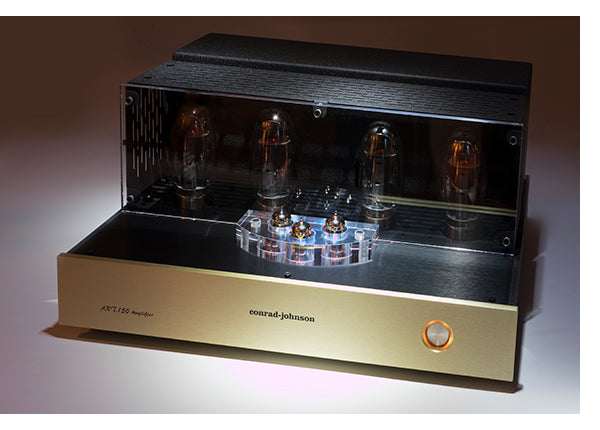

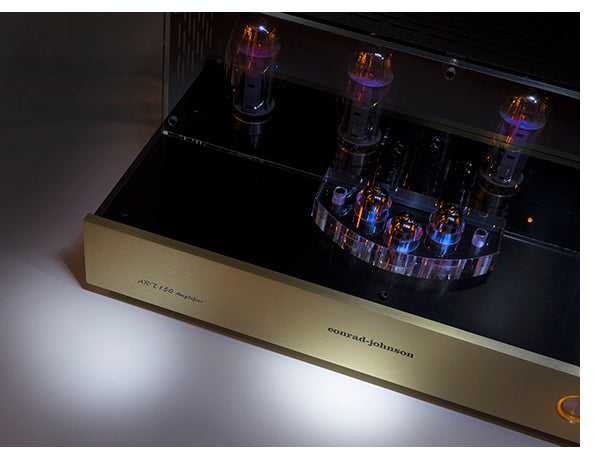

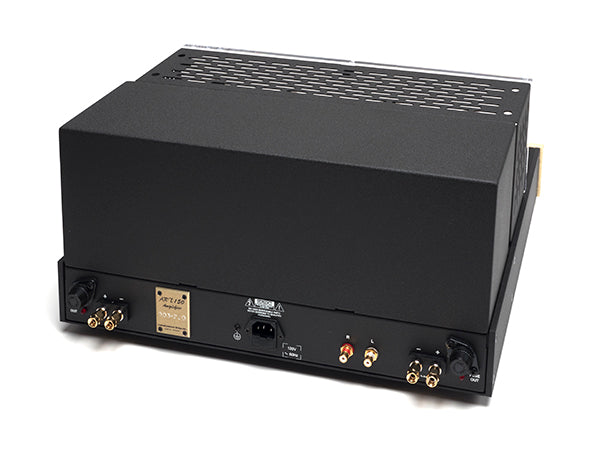

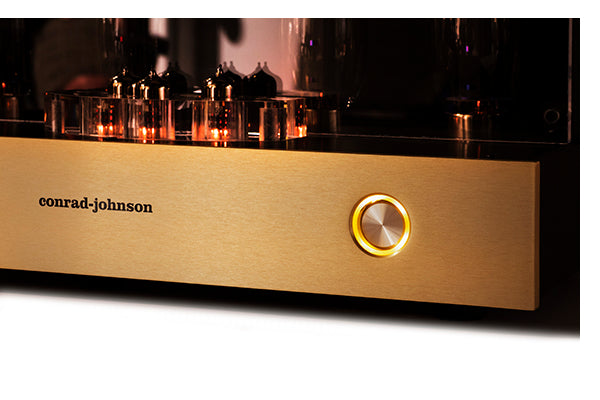

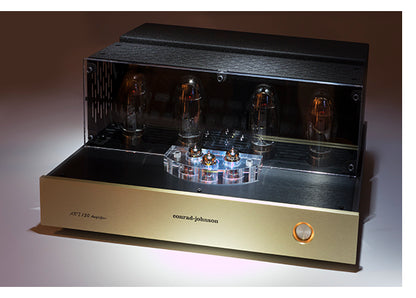

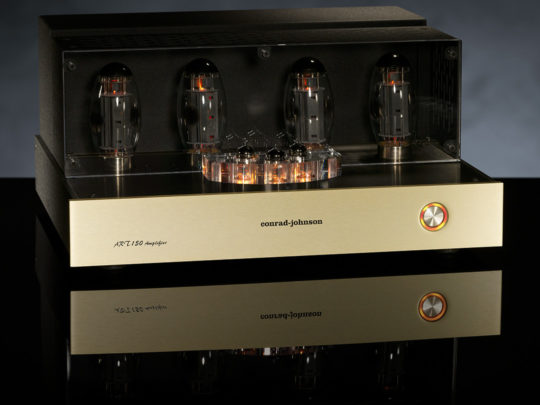

Conrad-Johnson ART150 Amplifier
Conrad-Johnson equipment is one of our first loves in Hi-Fi. The ART150 renews that love, drives my home system, and is the amp I'll be buried with. - Joe Parvey--
In celebration of our 40th anniversary, conrad-johnson has introduced two new ART amplifiers: the ART150 stereo amplifier.This amplifier is designed for our own reference use as well as for industry professionals and dedicated audiophiles. As with previous anniversary products, this amplifier will be offered as limited edition, with just 250 units of the ART150 to be sold through selected conrad-johnson dealers and distributors.
The ART150 amplifier embraces our firm belief that the surest path to both state-of-the-art musicality and exceptional reliability is to keep the circuits simple and build them with the finest available parts.
The audio circuit of the ART 150 and the mono block ART300 amplifiers has just three elements, each as simple as possible, and each essential to the operation of the amplifier. A voltage gain amplifier (a single triode) is direct-coupled to a cathode coupled phase inverter (each phase handled by a single triode), which in turn drives the output stage. Power is developed by KT150 output tubes, chosen for their musical accuracy, high power, and reliability. A single pair is used for each channel to comfortably and reliably achieve the 150 Watts per channel power rating of the ART150, while two pairs are used to produce 300 Watts in the mono ART300. A small amount (about 12 dB) of loop negative feedback reduces distortion and achieves a sufficiently high damping factor to control reactive loudspeaker systems. To assure continued peak performance, the owner need only make a simple bias adjustment when new tubes are installed. Built in LED bias indicators allow the user to make this adjustment using only the supplied adjustment tool.
Separate, low impedance, discrete dc power supply regulators are provided for the input and phase-inverter stages, thoroughly isolating these stages from the power demands of the output stage. These power supplies are designed to maintain a rock solid supply at all audio frequencies.
The ART150 amplifier maintains the exacting quality standards for which conrad-johnson is internationally known.
Resistors are precision laser-trimmed metal foil types. CJD Teflon dielectric capacitors are used for coupling the inverter stage to the output stage, and to bypass the large value polypropylene capacitors in the regulated power supplies. Proprietary wide-bandwidth output transformers contribute to excellent high frequency performance. Even the machined gold plated OFC connectors and the internal wiring have been carefully selected for optimal sonic performance. Attention to every detail enable us to extract the full potential from our circuit designs and ensures that our products will perform to this potential for years to come. The ART150 and ART300 are built without compromise to achieve a new standard in musical performance, and they are built to last.
"c-j's core sonic attributes are oustanding neutrality, transparency, resolution, and transient speed, lifelike dynamic slam and immediacy, precise and stable imaging, three-dimensional soundstaging, lack of grain, and a low noise floor ... My recommendation? Buy it, listen to it, and love it for a long time in good health. It doesn't get any better than this"
|Power:||150 Watts rms per channel from 30 Hz to 15 KHz at no more than 1.5 % THD into 4 ohms (also available connected for 16 ohm loads)|
|Sensitivity||1.0V rms to rated power|
|Frequency Response (at 10 watts)||20 Hz to 20 kHz, +/- .25 dB|
|Hum and Noise||108 dB below rated power|
|Input Impedance||100 kOhms|
|Tube Complement||ART150 – 3 x 6922, 4 x KT150
ART300 – 2 x 6922, 4 x KT150
|Dimensions||16.3125D x 19W x 8.75H inches|
|Weight||ART150 80 lbs.|
Every conrad-johnson ART Amplifier is patiently and carefully hand assembled, then individually inspected and its performance verified by an experienced audio technician.
The owner is protected by our three-year limited warranty covering labor and parts except vacuum tubes.
Service is a top priority at conrad-johnson. In the event that a product does require service, it will be handled promptly and efficiently
