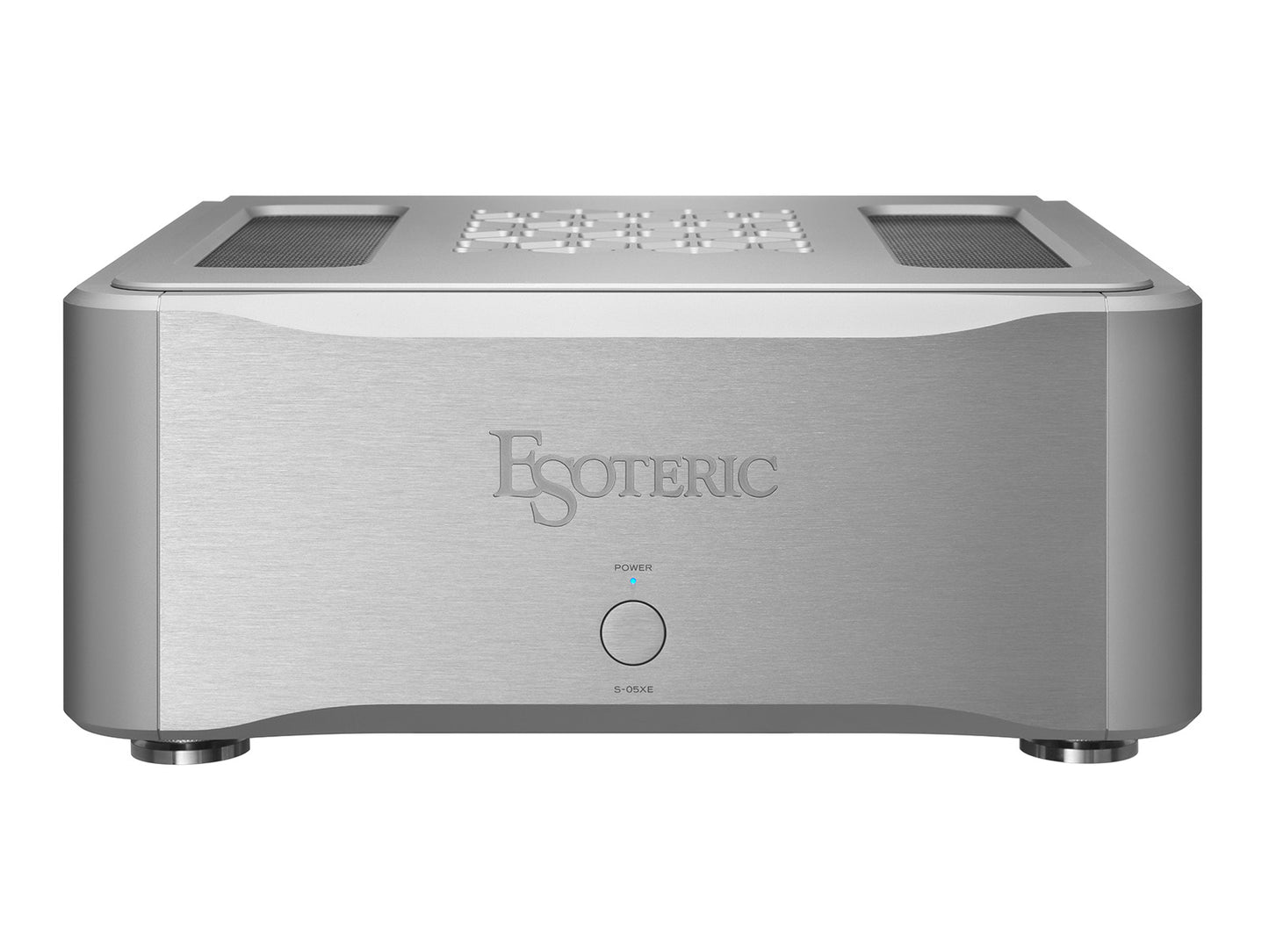

Esoteric S-05XE

Name: Esoteric S-05XE
Brand: Esoteric
Price: 13500.0 USD
Availability: InStock

$13,500.00 USD

Sale Sold out

Shipping calculated at checkout.

This product cannot be sold online.
Please call our store to purchase:
904-642-6677

View full details

OVERVIEW
FEATURES
SPECIFICATIONS
DOWNLOADS
NEWS
MAGAZINES
GALLERY

Class A Stereo Power Amplifier

S-05XE

A New Benchmark for Class A Amplification

NOTICES ABOUT PRODUCTS

08-28-2026 review of the S-05XE has been posted on the U.S. website Enjoy the Music 02-06-2026 Esoteric’s two best-selling models have evolved into the “XE” series. Introducing the Network DAC Preamplifier “N-05XE” and the Class A Stereo Power Amplifier “S-05XE.”

– Minimal High End Style, Upgraded –

Welcome to the first-class of music listening.

Condensing the appeal of an ultra-high-end system, this minimal and versatile, best-selling Esoteric system has evolved into the "XE" model, offering even richer musicality. With the Network DAC Preamplifier N-05XE and Class A Power Amplifier S-05XE,
all that remains is to choose the perfect speakers for your system.

– Advanced Pure Class A Stereo Amplifier –

The finest transparency unique to Class A operation and the richly scaled, three-dimensional soundstage that is a hallmark of Esoteric come together to create an unparalleled listening experience. Featuring a newly designed, fully symmetrical balanced input buffer amplifier, a large 1,000 VA toroidal-core power transformer, and a unique dual-mono power-supply smoothing circuit, the refined S-05XE establishes a new benchmark in Class A stereo power amplification. Experience the polished, expanded Esoteric signature sound in its full expression.

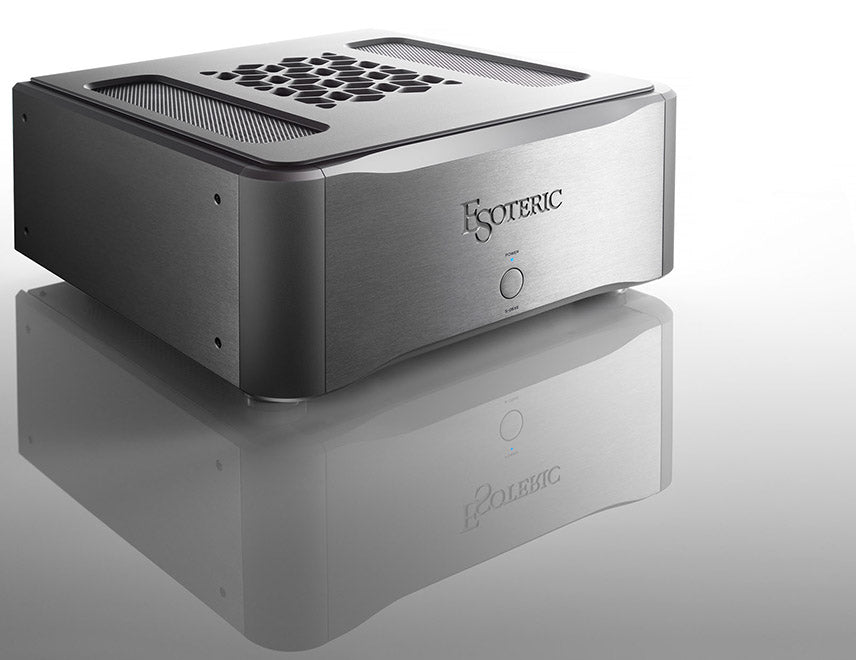

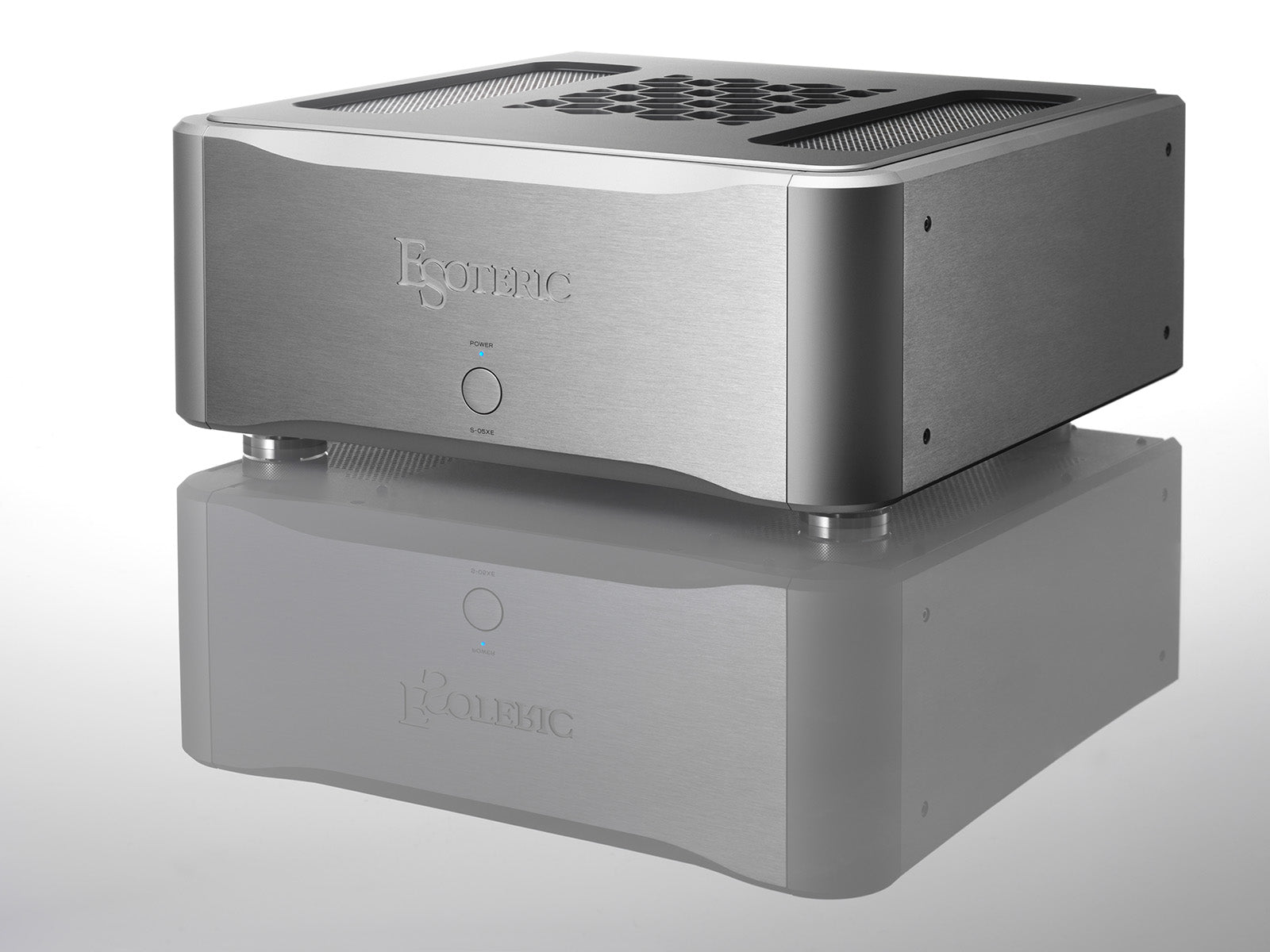

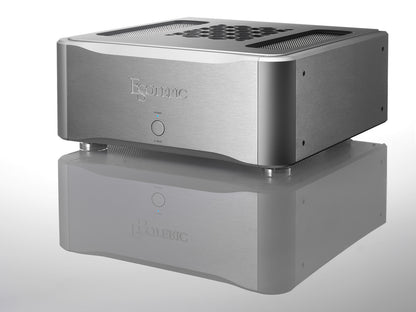

S-05XE Silver

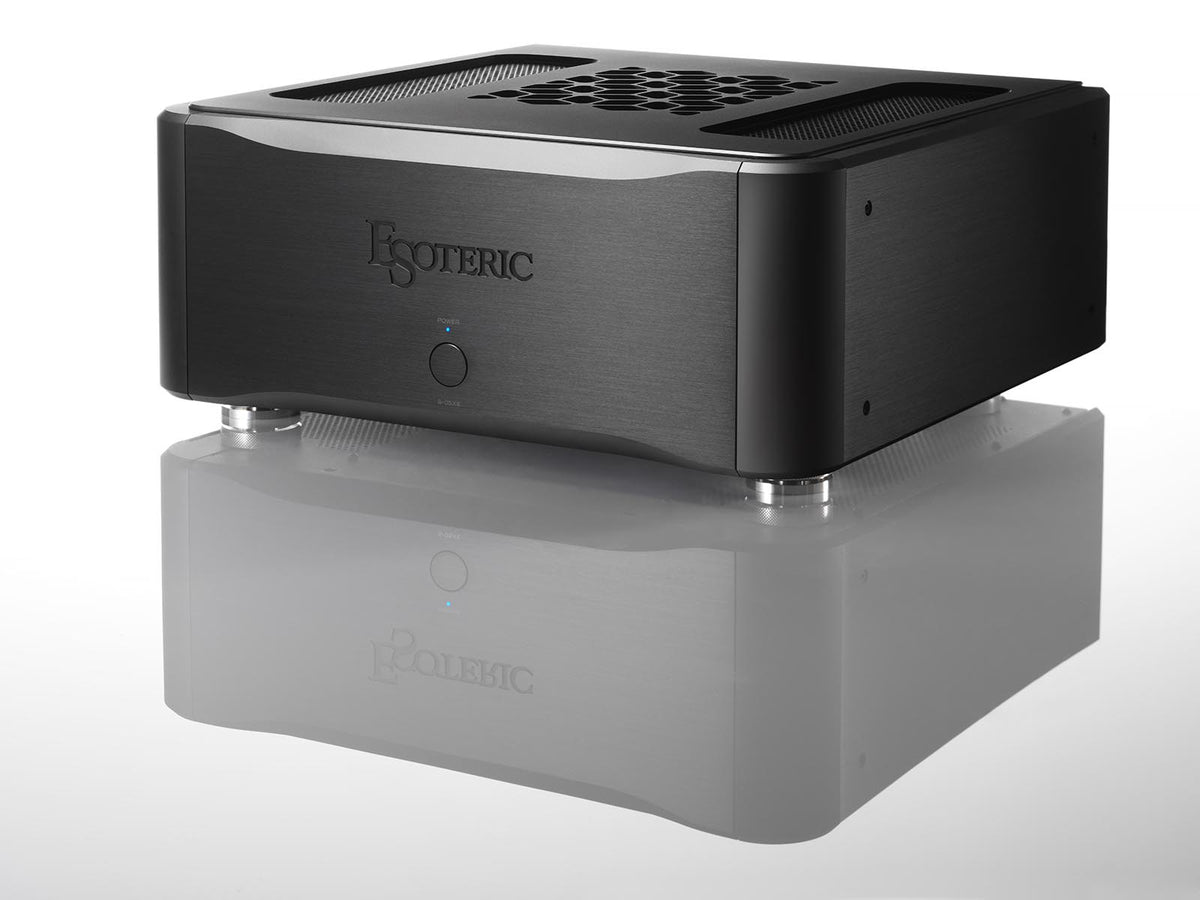

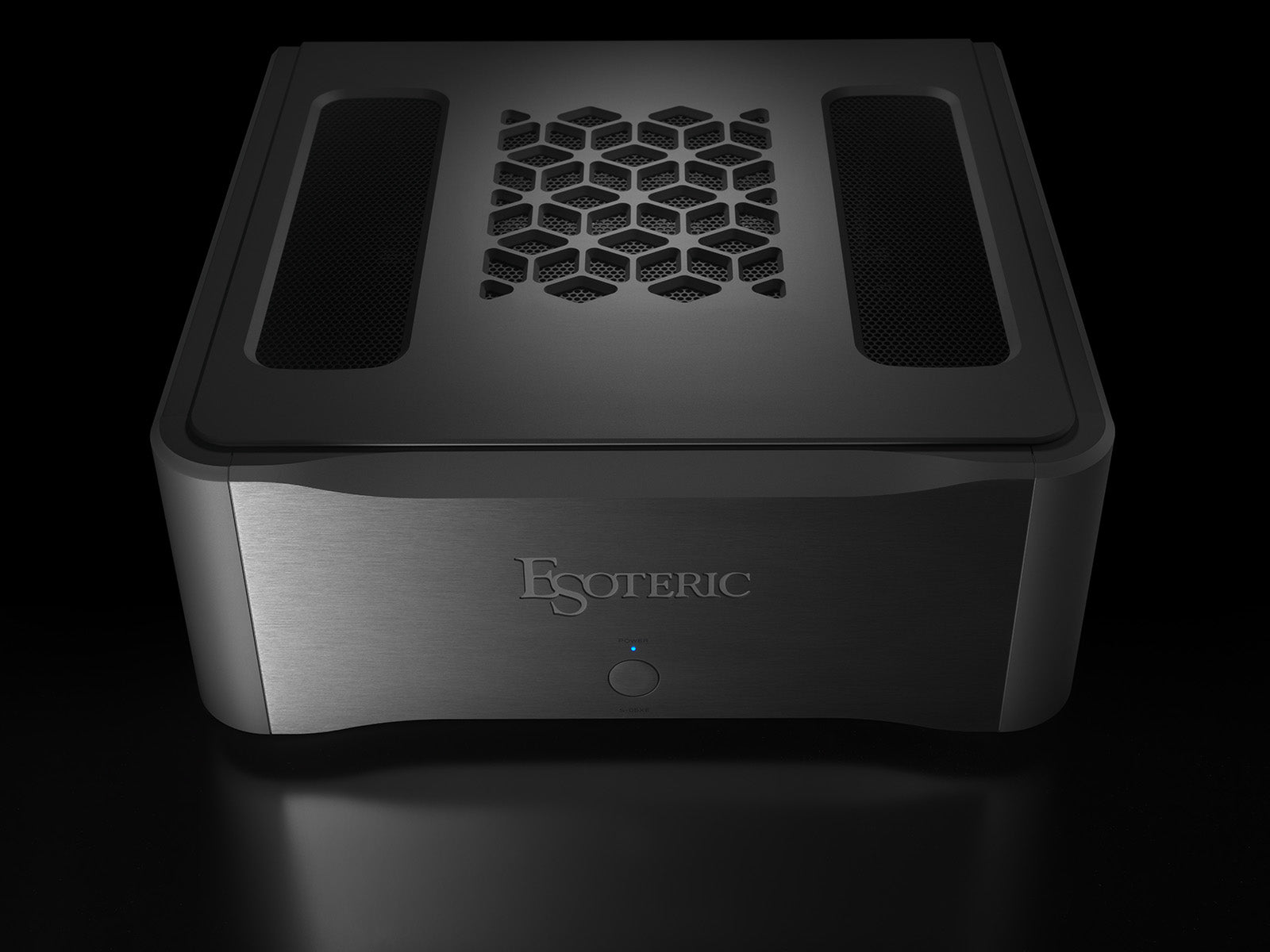

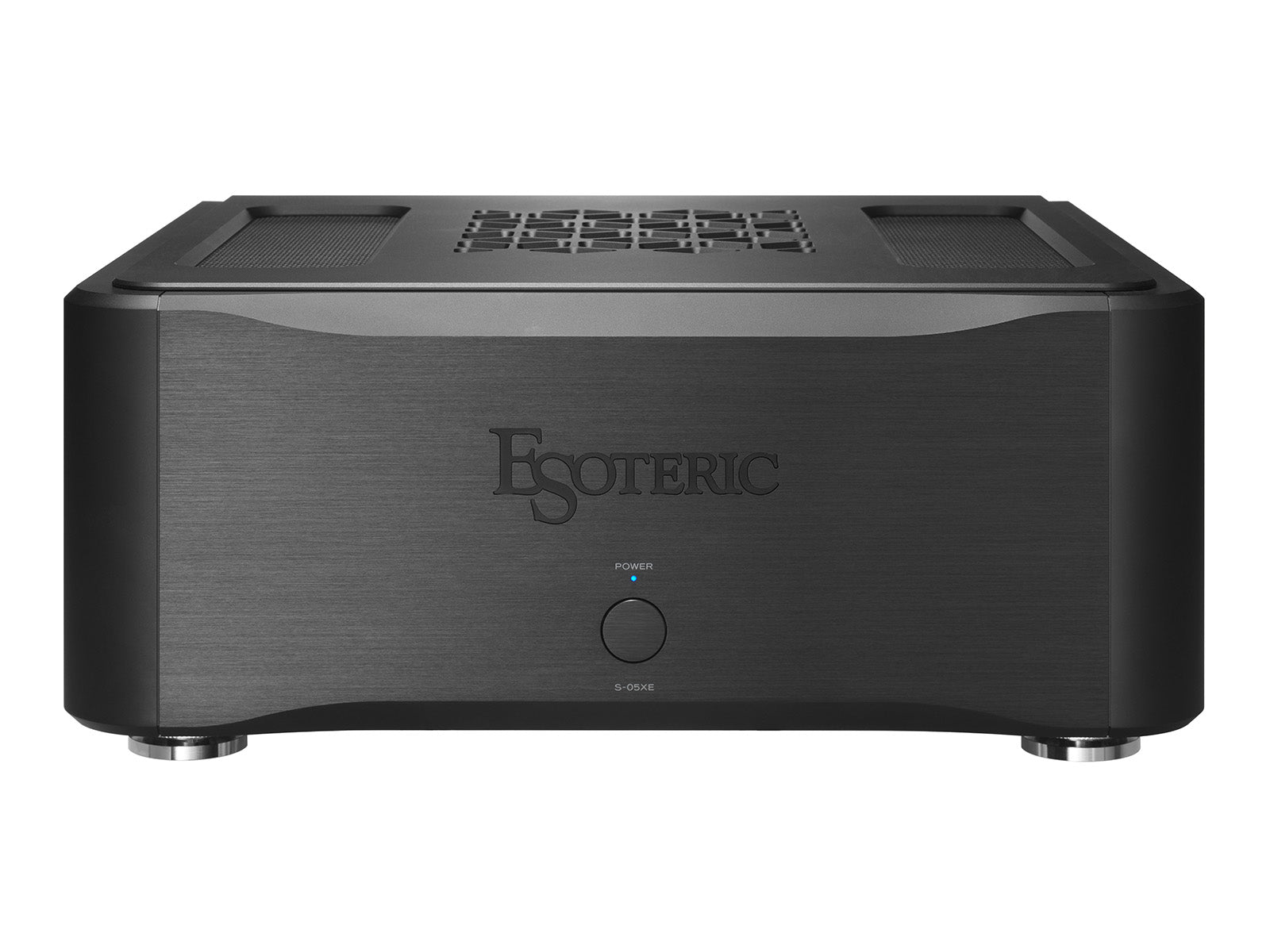

S-05XE B Black

Available for Shipment in Spring 2026

Key Features

Simple. Pure. Straightforward. Circuit design philosophy inherited from Esoteric’s Grandioso amplifiers
The Class A Clarity and Detail Meet Hyper Dynamics – Esoteric's hallmark sonic signature
High-Power Bipolar Transistor in a Three-Parallel Push-Pull Configuration
30W per Channel Into 8Ω (Class A) / 60W per Channel Into 4Ω / 120W Into 8Ω (BTL)
Monoblock-Level Performance in a Stereo Chassis: Fully dual-mono construction, including power-supply smoothing circuits
Minimal NFB (Negative Feedback): Contributes to a lively, dynamic sound
Large 1,000 VA Toroidal-Core Power Transformer: Delivers enhanced dynamic performance S-05XE
New Power Supply Smoothing Circuit: Enhances L/R independence and channel separation S-05XE
“Grandioso Grade” Custom Capacitors: 10,000μF × 4 pcs per channel
New “Fully Symmetrical Balanced Input Buffer Amplifier”: Blocks noise and produces meticulously detailed sound S-05XE
ES-Link Analog Input: Esoteric’s proprietary current-signal transmission for ultra-authentic sound
Triple Drive Mode Switch (Stereo / BTL / Bi-Amp): Supports multi-amplifier system configurations
DC Trigger: For sequential power on/off with the N-05XE
Esoteric’s Patented Isolation Feet and Semi-Floating Top Panel: Contribute to an open and natural sonic character
Wave-Shaped Heat Sink: Reduces peak resonance for a more neutral response
New Top Panel Design: Inspired by the "Dual Honeycomb Grille" design of the Grandioso amplifiers S-05XE
Proudly Made in Tokyo

Class A Stereo Power Amplifier

S-05XE

FEATURES

A New Benchmark of Class A Amplifiers

Refined with cutting-edge technology, the S-05XE sets a new standard for Class A stereo amplifiers. It delivers the transparency and precision unique to Class A amplifiers, combined with the dynamic scale characteristic of Esoteric products. Experience a deep, three-dimensional soundstage.

Inheriting the design philosophy of the Grandioso S1X, this 30 W per channel Class A amplifier embodies the "aesthetics of subtraction" through advanced engineering down to the finest detail. A simple, straightforward circuit design enables rich harmonic reproduction while reducing internal impedance for effortless speaker control. The newly designed “Fully Symmetrical Balanced Input Buffer Amplifier” further enhances signal purity.

The soundstage expands seemingly without limit and the key lies in its powerful power supply architecture. The S-05XE maintains its large-scale, dual-mono configuration across all stages, including the power supply smoothing circuit. It now incorporates a large toroidal core power transformer with a 1,000 VA power supply capacity. The power supply smoothing circuit has been updated with numerous unique technologies, producing a thrilling, scaled-up sound.

Dynamic Sound Stage

A Sense of Scale That Far Exceeds the Numbers

The S-05XE is a pure Class A amplifier featuring a powerful three-parallel push-pull configuration of bipolar transistors. It delivers 30 W per channel into 8 Ω (Class A), 60 W per channel into 4 Ω, and 120 W into 8 Ω (BTL). In practice, its performance far surpasses these figures, creating an impressive sense of scale and authority that belies its rated output.

Minimal Circuit Design Highlighting Harmonics

The S-05XE’s exceptional sound quality vividly differentiates the timbre of each instrument, bringing music to life with dynamic energy and realism. This is achieved through the philosophy known as the “aesthetics of subtraction,” realized through advanced engineering techniques. With its pure single-ended design, signals take the shortest path. This minimalist design philosophy preserves the most vital harmonics in music, allowing it to be rendered with rich expression. The phase compensation circuit uses a simple, single-pole configuration, and the final stage is coil-less. Negative feedback (NFB) is minimized to prevent loss of dynamic energy.

Temperature Management Circuit Topology: Pursuing the Ideal of Class A

Class A amplifiers inherently generate significant heat, stabilizing the temperature of the amplifier block is essential to achieving consistently high sound quality.
In a unique layout, all transistor elements are arranged in a single row at the lowest point of the amplifier block, where temperature variation is minimized. This ensures that all devices operate under identical thermal conditions. Comprehensive temperature management across the entire circuit enables optimal performance, with idle current stabilizing rapidly after power-up, allowing the S-05XE to deliver peak performance almost immediately.

Low-Impedance Design for Enhanced Driving Power

The S-05XE employs high-fidelity components and minimizes internal impedance to deliver exceptional driving capability. This allows it to exert firm control over large-diameter speaker woofers and drive them effortlessly to their low-frequency limits. The PCB pattern utilizes 105 μm-thick copper conductors, while extra-thick gauge cables are securely fastened using bolt-mounted terminals rather than conventional clip-on connectors, significantly reducing contact resistance. In the drive stage, eight bus bars made from 1.0 mm-thick, high-purity OFC are employed. The speaker output section further adopts MOSFET switches to eliminate mechanical contacts and maintain signal integrity.

Newly Designed, Fully Symmetrical, Balanced Input Buffer Amplifier

The S-05XE delicately renders the subtle gradation between silence and musical climaxes. A key contributor to its expressive low-level resolution is the newly designed, fully symmetrical balanced input buffer amplifier. This circuit converts all incoming music signals from upstream components into balanced signals before they reach the amplification stage, effectively eliminating common-mode noise.
In the XE model, the positive/negative and left/right balanced circuits are laid out in perfect symmetry to enhance operational accuracy. In addition, the power-supply smoothing circuits are independently designed for each channel, further refining overall sound quality. MOSFET switches, known for their minimal tonal coloration are used at all switching points within the audio signal path.

Perfect Noise Isolation

A photocoupler electrically isolates the input buffer amplifier from the control circuitry, further enhancing audio signal purity.

ES-Link Analog

ES-Link Analog is an ideal signal transmission method that uses "current" instead of the conventional "voltage." Esoteric developed this method to improve the fidelity of signals transmitted from preamplifiers to power amplifiers. It transmits music energy purely from the preamplifier to the power amplifier using a current level approximately 100 times higher than that of conventional voltage transmission. Since it is unaffected by the impedance of the connecting cable, ES-Link Analog maintains an extremely high degree of signal integrity between the two components. Experience powerful, three-dimensional sound that is vividly lifelike, as if you were monitoring the performance directly from the analog console in the recording studio.

ES-Link Analog – Esoteric’s Unique Current Transmission

ES-Link Analog is Esoteric’s proprietary current transmission method. By connecting devices that support this method, it is possible to reproduce the sound as if it were being played directly from an analog console in a recording studio. The sonic signature of ES-Link Analog is powerful, live and dimensional.

In conventional voltage transmission, the output impedance of the source device is low, and the input impedance of the target device is high. In other words, the current required for signal transmission tends to be kept low.

Also, due to the resistance component (impedance) of the transmission path (interconnect cable), the voltage of the transmitted signal is attenuated by the level calculated by Ohm's law (voltage = current × resistance) when delivered to the target device. Therefore, a longer the cable causes increased resistance which has significant effects on that signal.

In contrast, in current transmission, the output impedance of the source device is high and the input impedance of the input device is low, resulting in a “High out, Low in” circuit, and the current level is maintained higher during signal transmission than in voltage transmission, allowing a powerful audio signal delivery.

Also, in current transmission, the current level output from the source device always matches the one on the target device.
Imagine using a hose to send water from a faucet to a bucket. As long as there are no holes in the hose, the same amount of water from the faucet will always flow to the bucket, regardless of the length of the hose.
Similarly, if the cable that serves as the transmission path is not divided into multiple paths, all current from the source device will be delivered to the target device, and the current values flowing will always be the same, even if the transmission path is longer.

This advantage of accurate transmission of even the smallest signals is evident from the fact that current transmission is widely used in measuring instruments that measure precise signals.
Conventional voltage transmission impedance of the Esoteric products is designed several tens of ohms on out-going circuits and around 100k ohms on in-coming circuits. In contrast, the ES-Link Analog out-going/in-coming circuits are designed approximately 1k ohms on the out-going circuit, and 0 ohm on the in-coming circuit.

If we focus on the current value that flows when transmitting audio signals, the current level of ES-Link Analog transmission when transmitting audio signals at the same level as normal voltage transmission is approximately 100 times higher than the current level flowing in voltage transmission. Consequently, the high current level allows for the full energy of the music to be delivered.

Upgraded Power Supply

In Class A amplifiers, which demand a constant supply of high current, the power supply is the most critical element. In the XE model, this foundation has been significantly enhanced beyond the already powerful original design, delivering dynamic musical expression fully worthy of a true high-end amplifier.

1,000 VA Large Toroidal-Core Power Transformer

The S-05XE features a newly developed 1,000 VA toroidal-core power transformer characterized by low leakage flux and exceptionally high transient response. By employing a transformer with current-supply capacity that far exceeds the requirements dictated by the amplifier’s rated specifications, the S-05XE achieves outstanding responsiveness to sudden changes in current demand. The result is a dynamic, open, and effortlessly expressive sound. To further prevent any degradation in sound quality, the transformer is bare-mounted without an enclosure, minimizing mechanical influence and vibration.

Unique Dual-Mono Power Supply Smoothing Circuit

The power-supply smoothing circuit adopts a fully independent left- and right-channel dual-mono configuration rather than a conventional shared design, effectively eliminating mutual interference. This architecture delivers exceptional channel separation and resolution. In the XE model, the power-supply smoothing circuitry has been comprehensively redesigned to further enhance left/right independence and achieve performance approaching that of a monoblock amplifier. Grandioso-grade, high-fidelity custom capacitors are employed throughout. Each channel features a dual-mono, parallel configuration using four 10,000 μF capacitors, ensuring stable energy delivery and uncompromised musical dynamics.

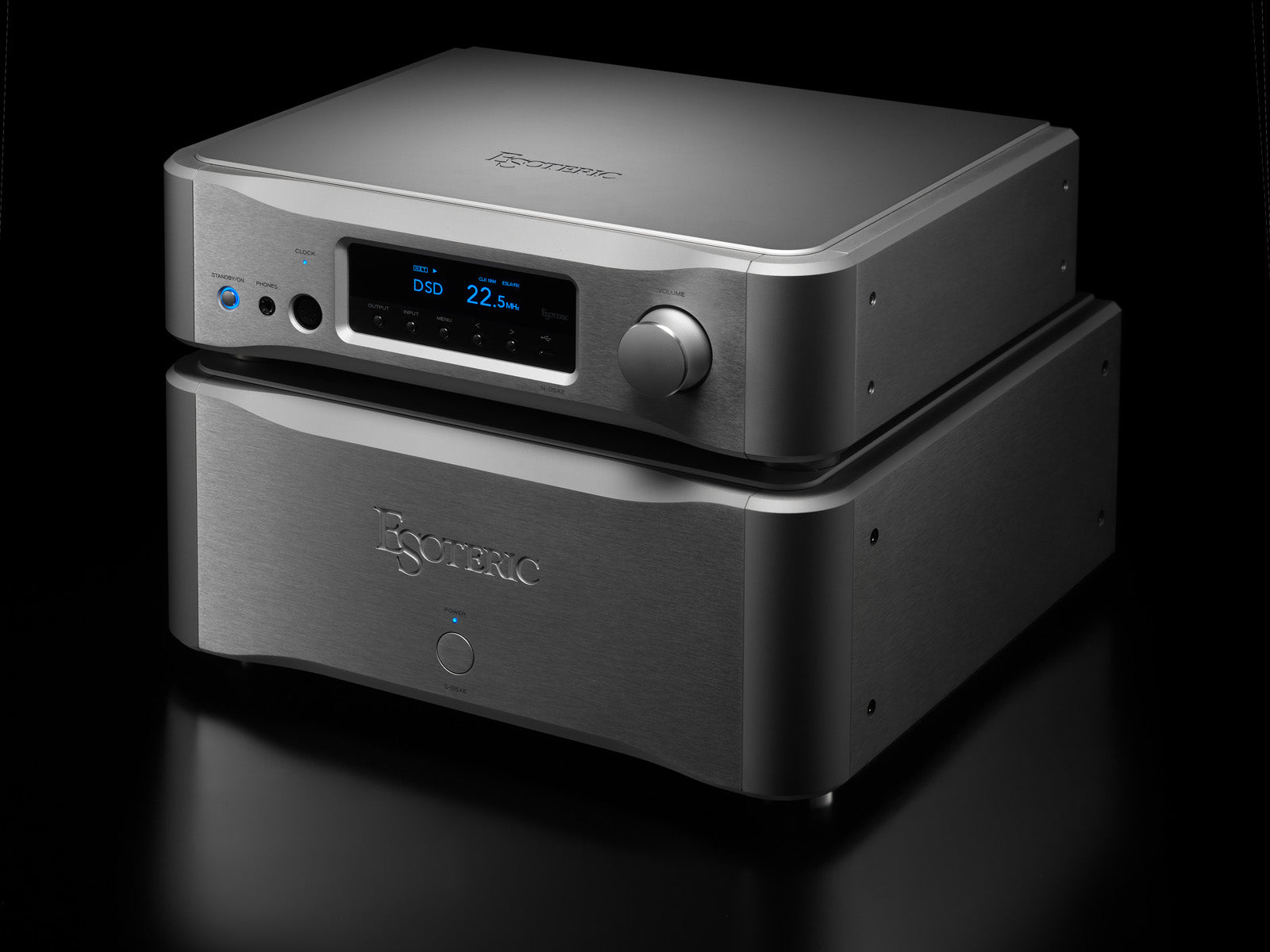

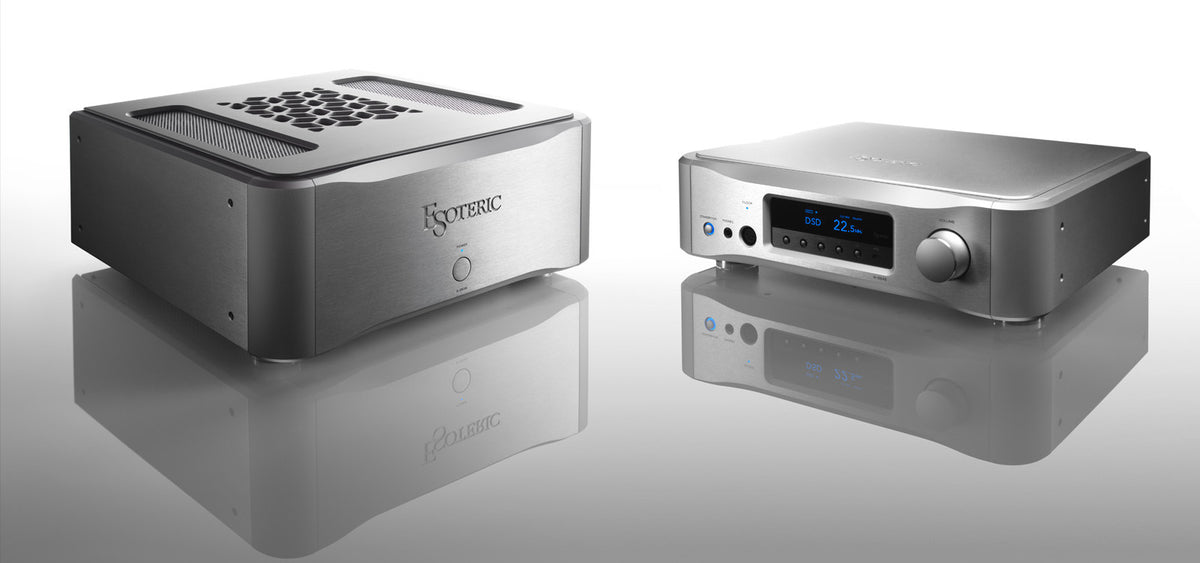

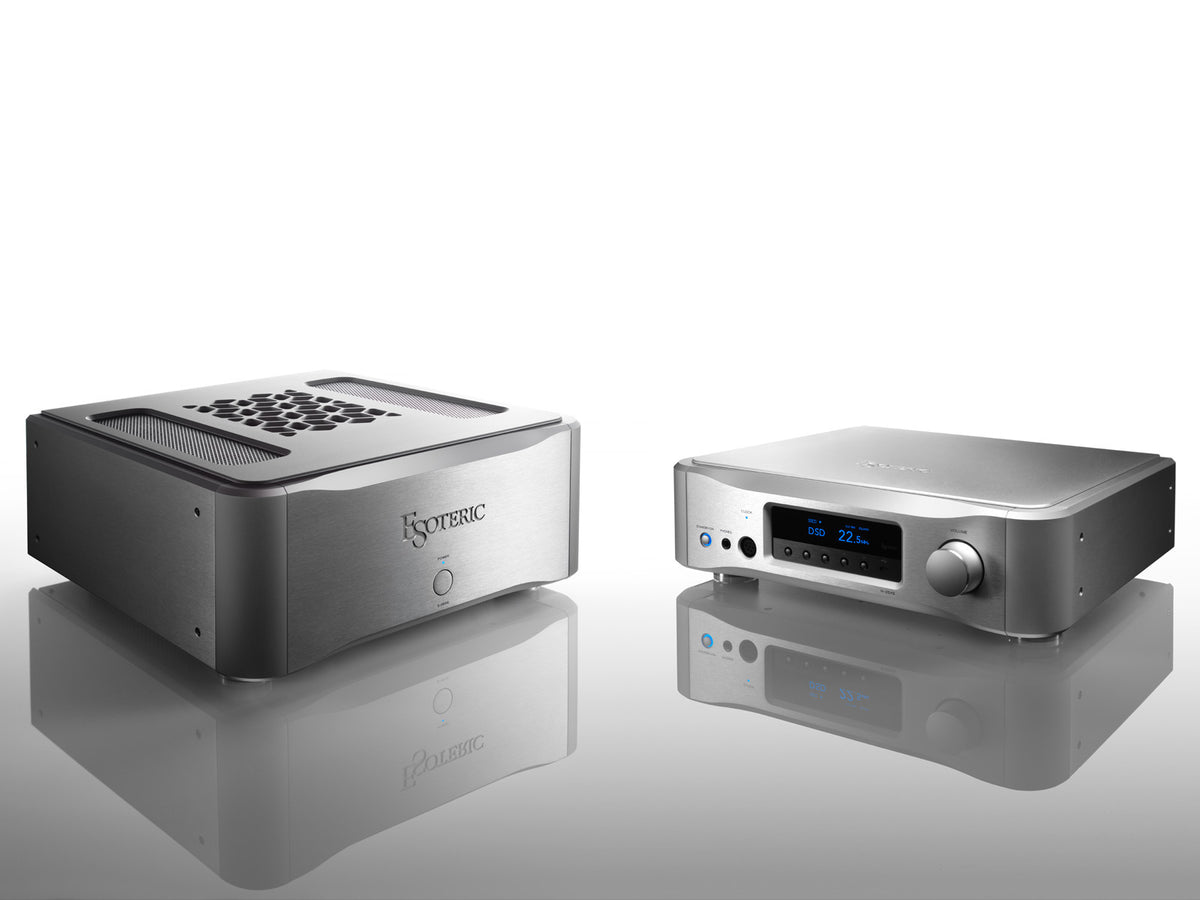

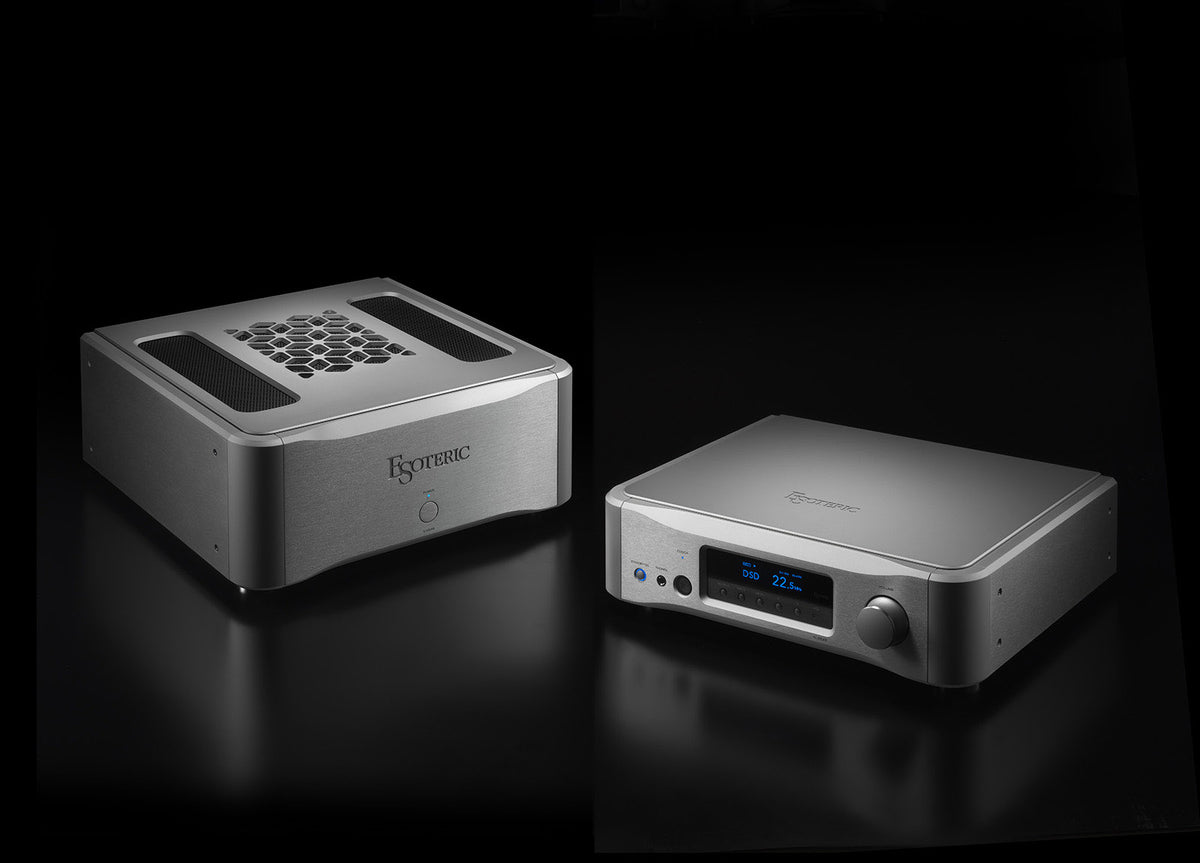

Minimal and Versatile

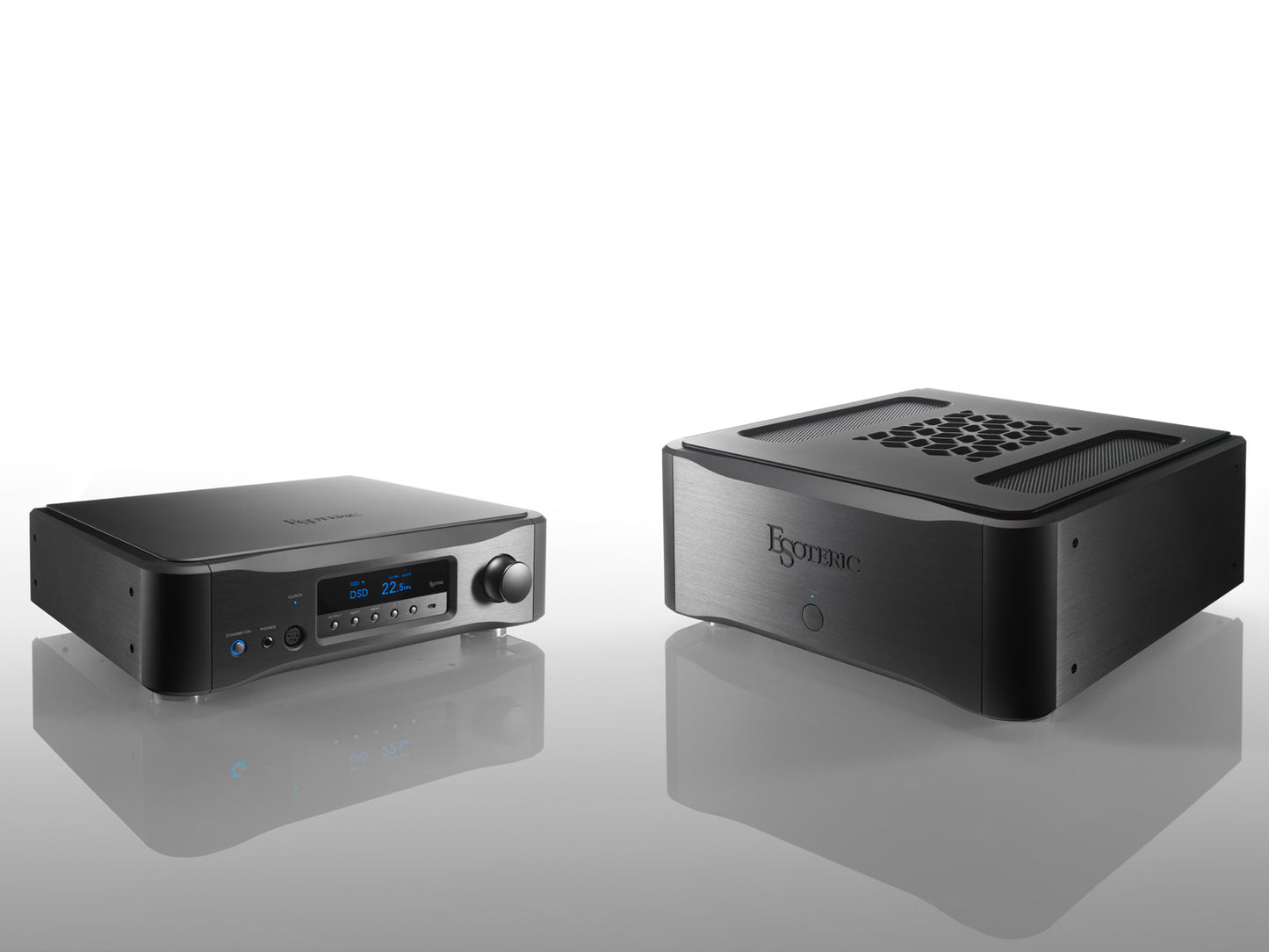

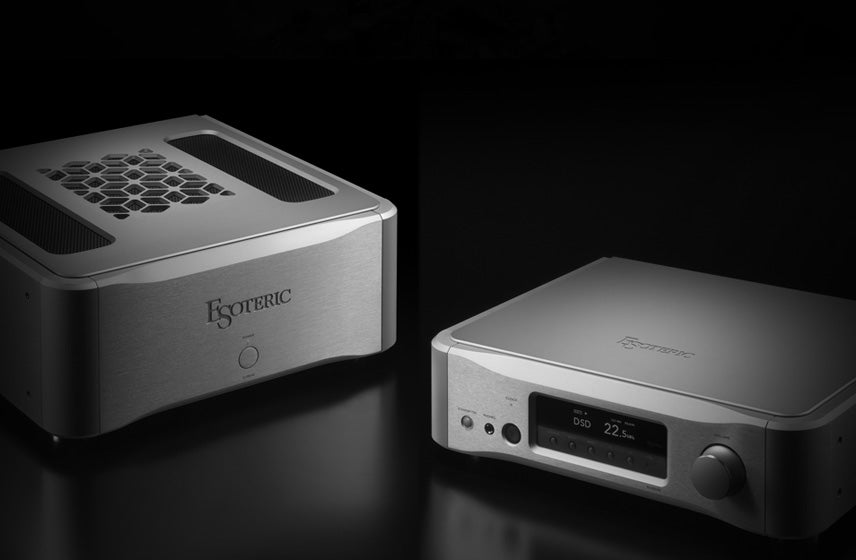

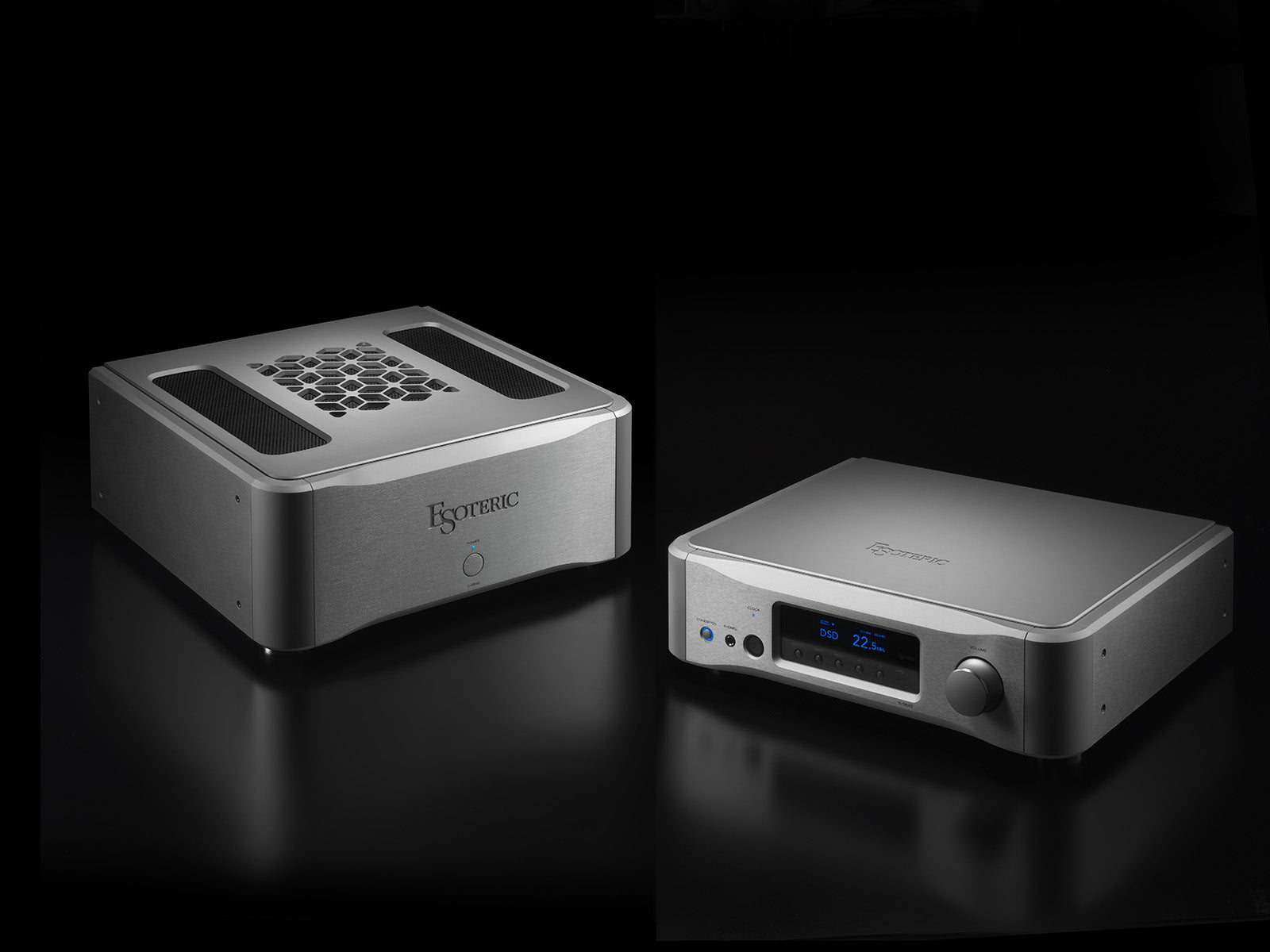

Complete your high-end system with just two components: the S-05XE and the N-05XE network DAC preamplifier. Simply select speakers that match your personal taste. Enjoy a refined and luxurious musical lifestyle, free from equipment complexity while experiencing compelling sound delivered through the ES-Link Analog connection.

Three Mode Switches for System Upgrades

The S-05XE offers flexible system expansion, allowing two units to be configured as a multi-amplifier system or a single unit to be used in standard stereo operation. Mode switching enables BTL drive for higher output or bi-amp operation for enhanced sound quality when used with multi-way loudspeakers featuring separate high-frequency (HF) and low-frequency (LF) inputs.

BTL Connection

BTL Mode

When greater driving power is required such as with low-efficiency loudspeakers, using two S-05XE units in BTL mode is recommended. In this configuration, the two internal amplifier blocks are bridged to deliver 120 W into 8 Ω as a high-power monoblock system. Balanced drive ensures firm control and a powerful grip over the loudspeaker units.

Bi-Amp Connection

Bi-Amp Mode

In Bi-Amp mode, the same audio signal is output from the left and right output terminals. Using two S-05XE units allows the high-frequency (HF) and low-frequency (LF) sections of bi-wire-compatible loudspeakers to be driven by separate amplifier circuits. Although the output power remains the same as in standard stereo operation (30 W per channel into 8 Ω), this mode is ideal for applications where maximum resolution and refinement are prioritized over sheer driving power.

Advanced Mechanical Engineering

Mechanical Perfection

The S-05XE chassis was designed with one goal in mind: to reproduce the master sound. Every aspect of its construction is designed to optimally control vibrations that can affect sound quality. Its mechanical engineering rivals that of a Formula 1 car, achieving an ideal balance between rigidity and flexibility. The chassis’ clean, understated form stands as a testament to its uncompromising design philosophy.

Optimal Control of Resonance

The enclosure prioritizes rigidity and makes extensive use of solid aluminum blocks to achieve a thoroughly non-resonant structure. In contrast, the top panel employs a semi-floating design to promote an open and natural sound.
The isolation feet incorporate a special structure that reduces mechanical stress and further enhances sound quality. In addition, the amplifier block’s large heat sink features a wave-shaped profile that disperses peak resonance in the fins, effectively suppressing unwanted vibration.

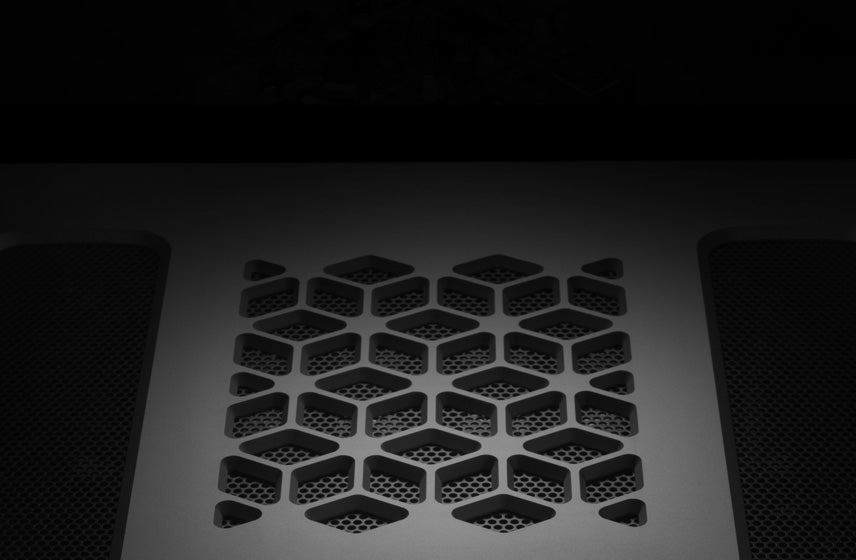

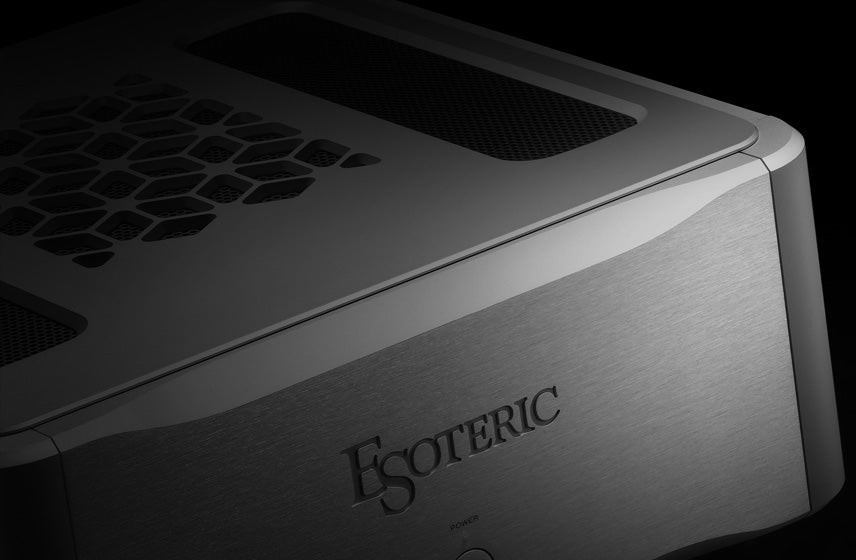

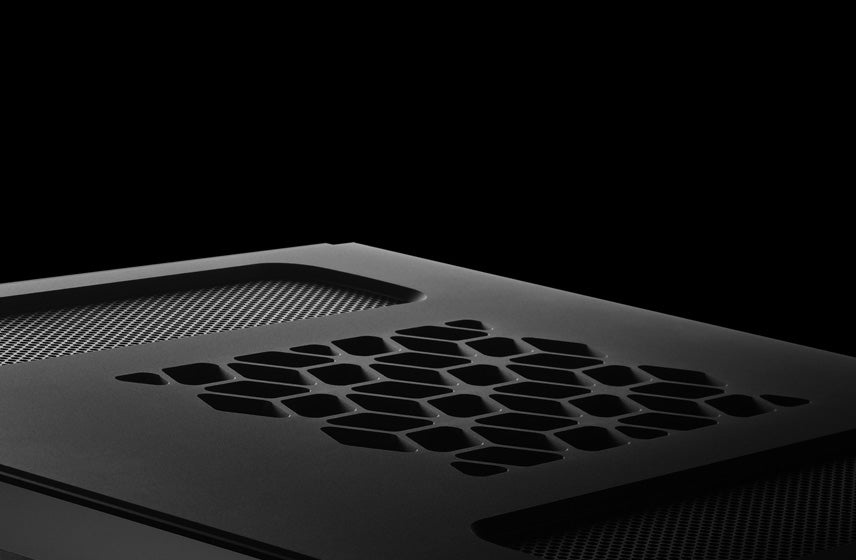

Exquisite Design Motif of the Top Panel

The XE model’s top panel incorporates heat-dissipation vents inspired by the Dual Honeycomb Grille motif of the brand’s iconic Grandioso amplifier series. This meticulous design, characteristic of true high-end amplifiers not only serves a functional purpose but also heightens the pleasure of the music listening experience.

Class A Stereo Power Amplifier

S-05XE

SPECIFICATIONS

Spec description

Audio Performance
Rated Output Power	30W + 30W (8Ω, Class A) 60W + 60W (4Ω) 120W (BTL Mode, 8Ω)
Frequency Response	5Hz to 100kHz (+0dB, –3dB, 8Ω)
S/N Ratio	104dB (IHF-A, XLR)
Distortion	0.007% (1kHz, 8Ω, 30W)
Compatible Speaker Impedance	4Ω to 16Ω 8Ω to 16Ω (BTL Mode)
Gain	28.5dB 34.5dB (BTL Mode)
Damping Factor	500

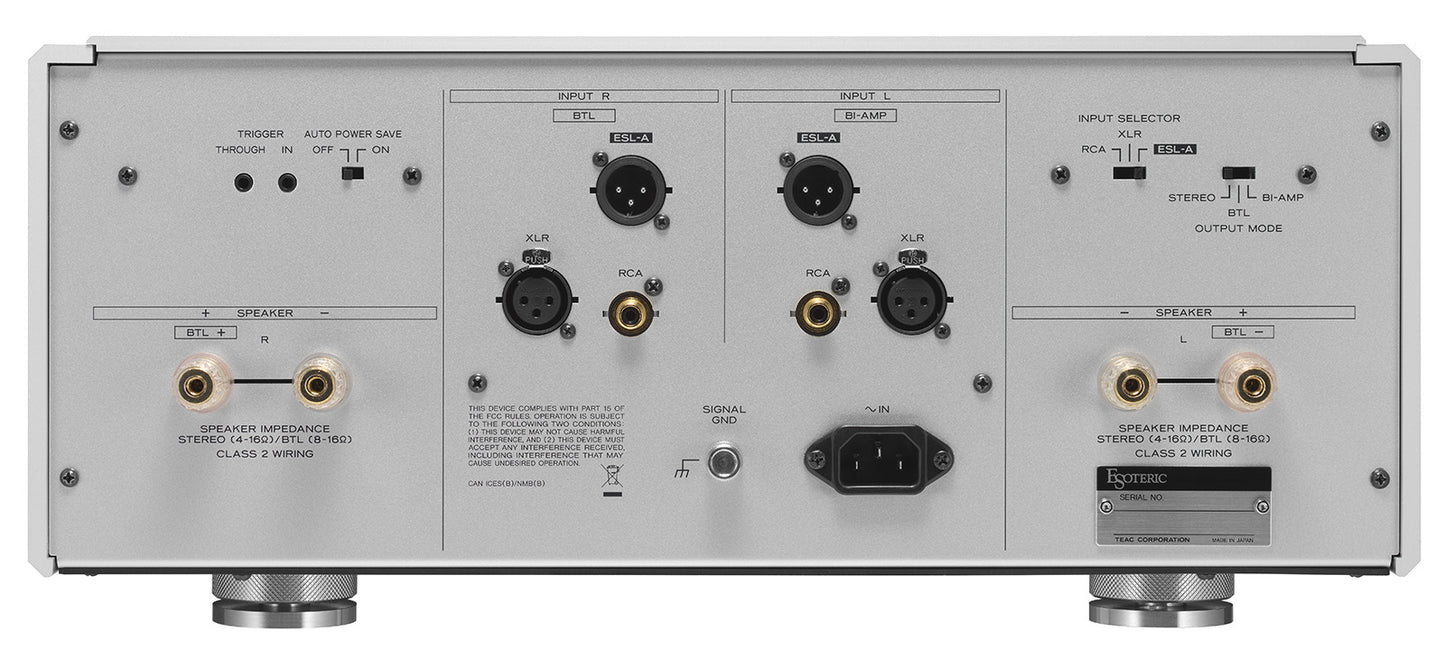

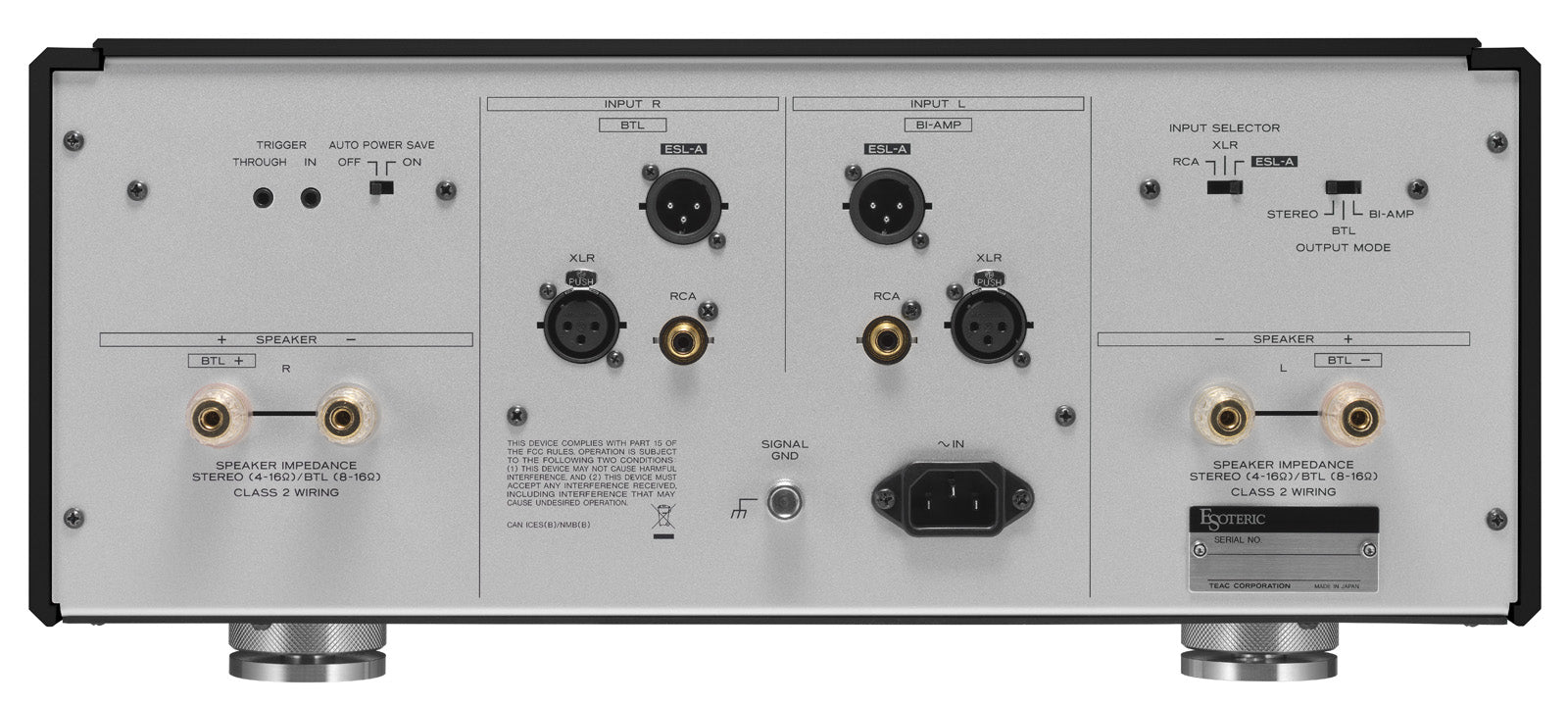

Analog Audio Inputs
ES-Link Analog	1 Pair
XLR	1 Pair
Input Impedance	10kΩ
RCA	1 Pair
Input Impedance	10kΩ
External Control
Trigger In	1 (3.5mm Mono Mini Jack)
Input Level	12V, 125mA
Trigger Through	1 (3.5mm Mono Mini Jack)
General
Power supply	AC 230V 50Hz (Europe) AC 120V 60Hz (US/Canada)
Power consumption	215W (195W When no signal)
External Dimensions (W×H×D)	445 × 191 × 443mm (Including Protrusions)
Weight	25.6kg
Included accessories	Power Cord × 1 Owner’s Manual × 1 Warranty Card × 1
