Focal

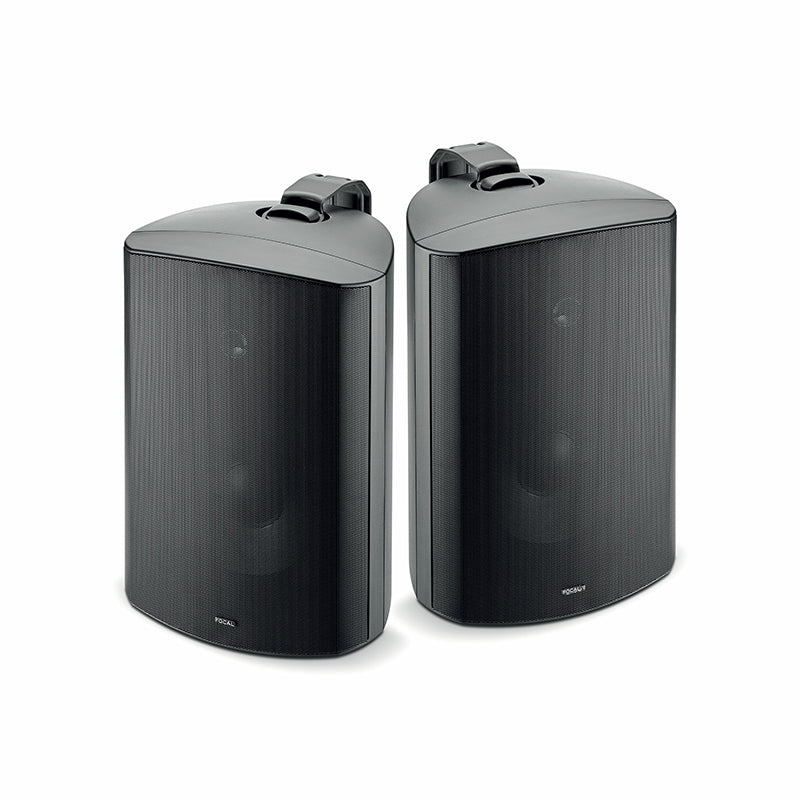

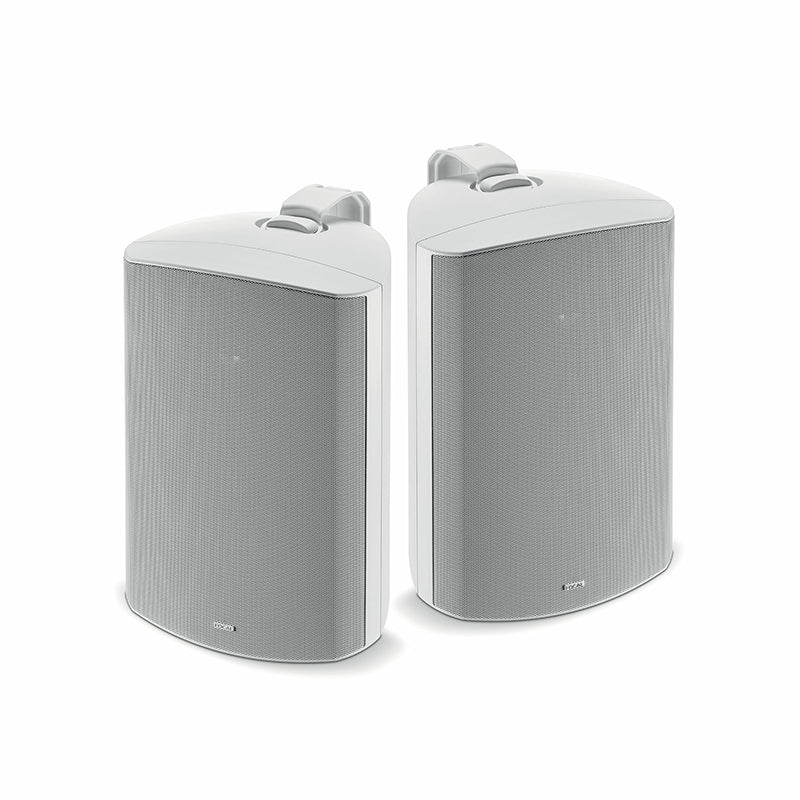

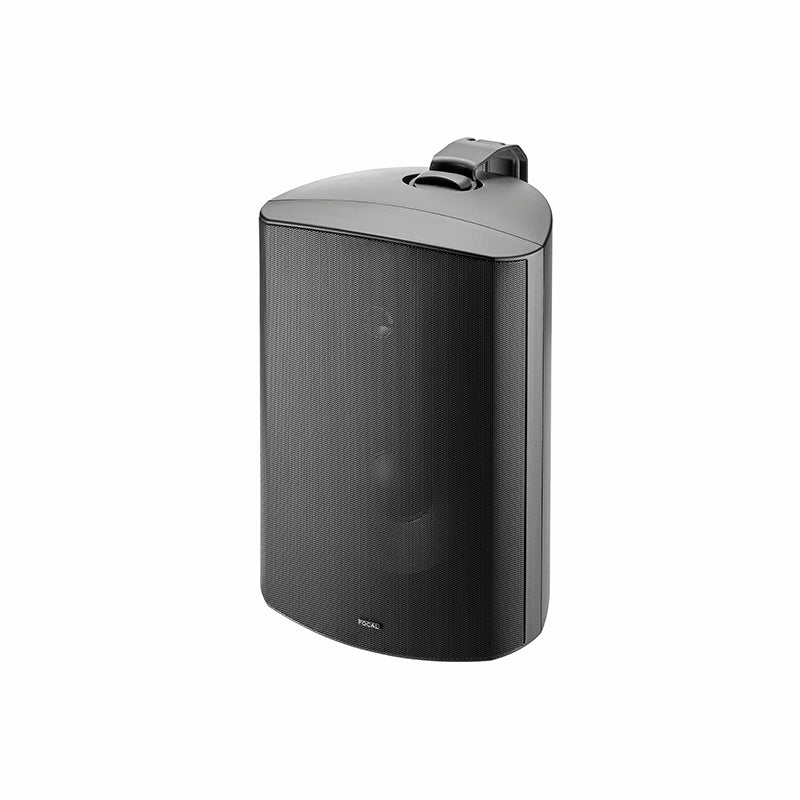

Focal 100 OD8

Regular price $319.00
Regular price Sale price $319.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

100 OD 8

Outdoor speaker

Benefiting from Focal know-how, 100 OD8 delivers high-quality sound outdoors. It delivers slightly higher efficiency and power handling than the 100 OD6, enabling you to configure a higher-performance installation. With its anti-UV treatment and IP66 certification (the benchmark for protection and waterproofing), the loudspeaker is highly resistant to extreme weather conditions and dust. Thanks to its high impedance (8 ohms), two other speakers can be connected to the same amplifier output.








FOCAL SOUND

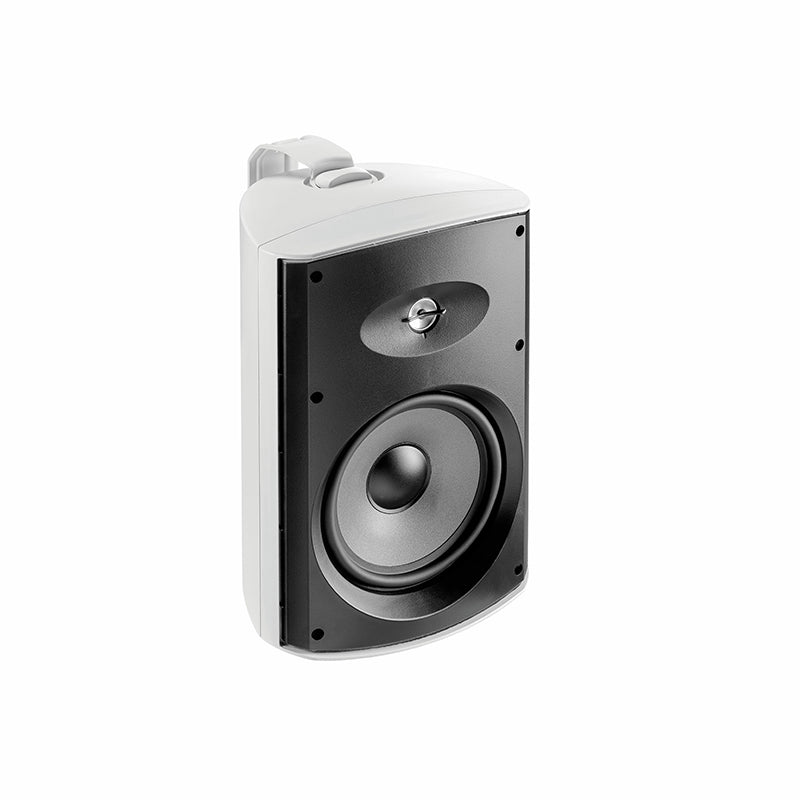

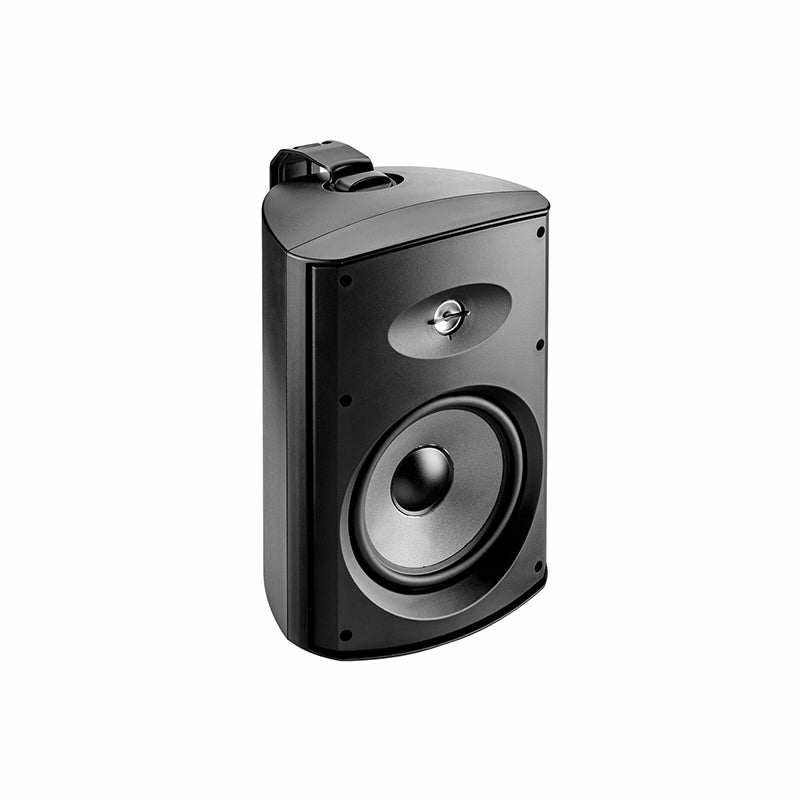

Aluminum inverted dome tweeter for excellent sound dispersion; bass/midrange driver with Polypropylene cone and Polyglass treatment for perfect definition: the loudspeaker reproduces hi-fi quality sound outdoors.











HIGH-QUALITY SOUND OUTDOORS



EASY INTEGRATION

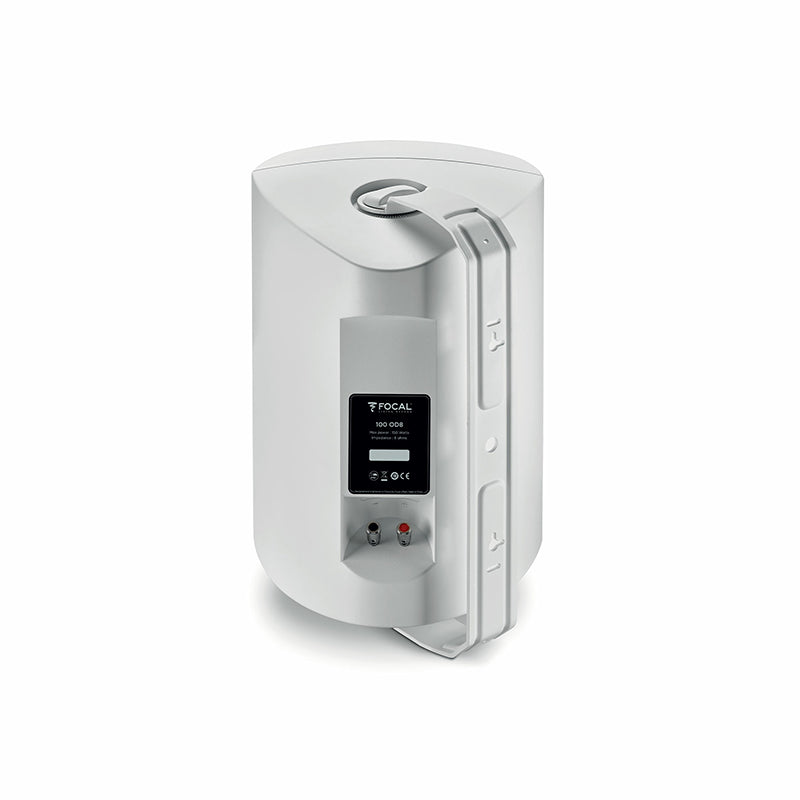

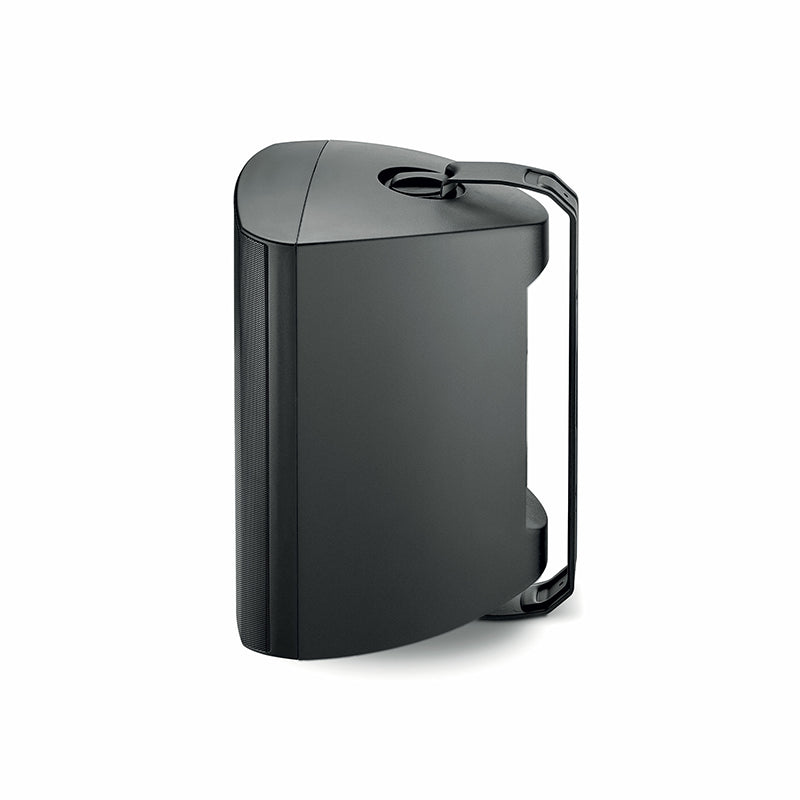

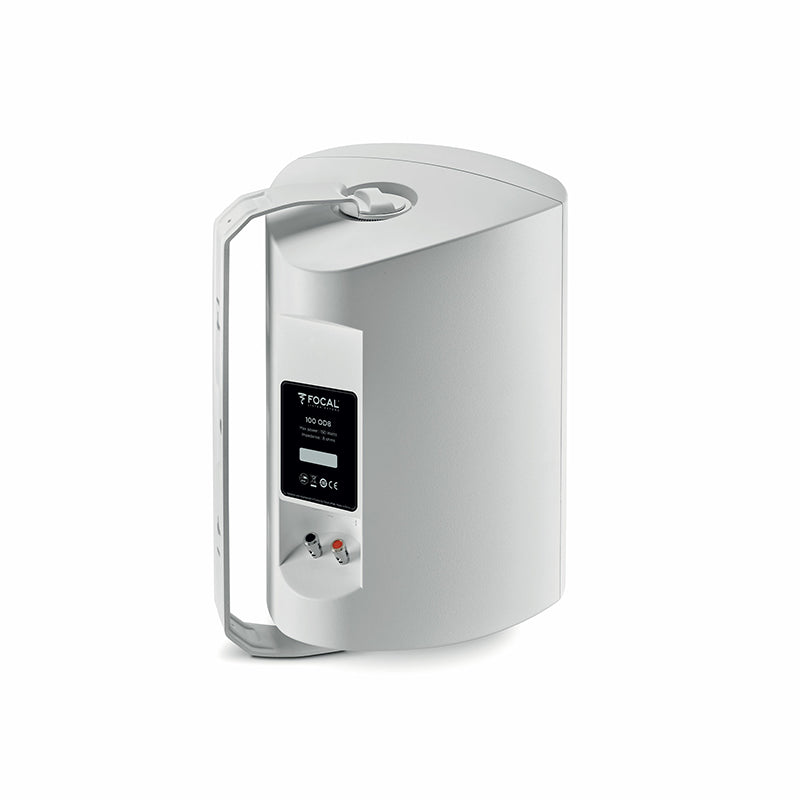

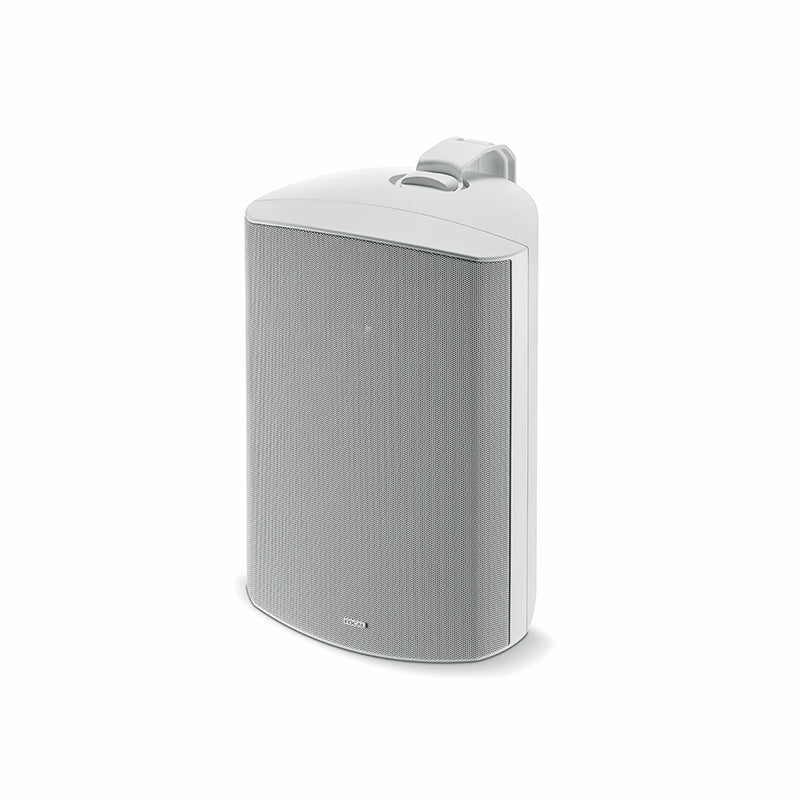

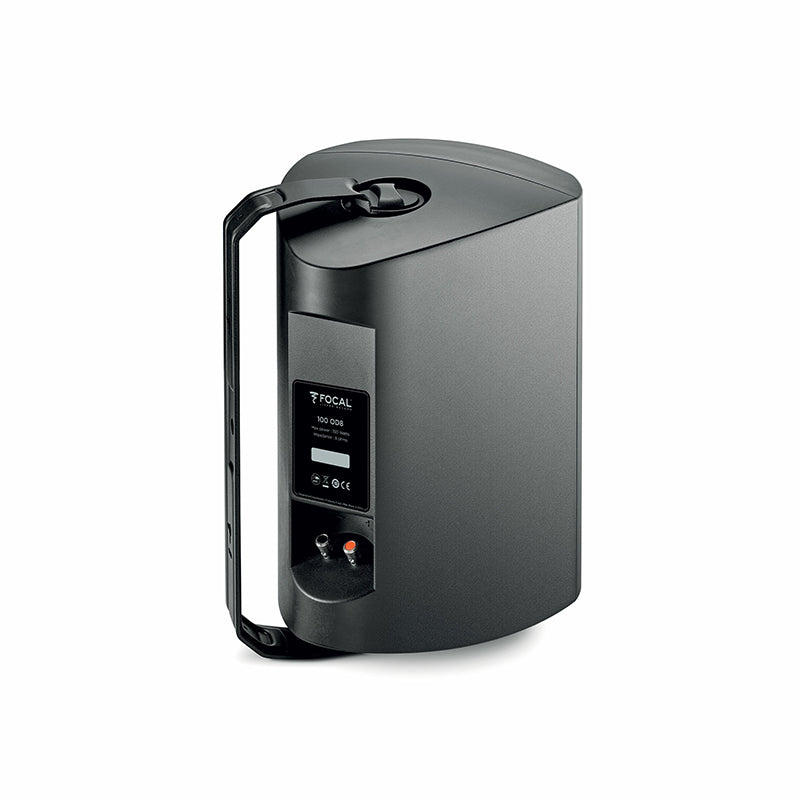

Thanks to its mounting bracket and 180-degree rotation system, the loudspeaker is easy to install and position. Perfect integration requires special attention to design: the ready-to-paint grille and cabinet are available in black or white.








TECHNOLOGIES

INVERTED DOME TWEETER

Optimum space dispersion

The inverted dome tweeter has been a Focal signature since 1981, offering the property of being a true micro-speaker. The curvature of the dome is much less pronounced than that of positive domes. This results in better space dispersion and very low directionality, unlike ribbon tweeters. The inverted dome tweeter therefore generates unrivalled dynamics, enabling sound engineers to precisely control the dosage of compression. The precision of the image (height, width and depth) is remarkable, making it easy to position each instrument. What's more, a waveguide has been developed to perfect spatialization and further enhance the inverted dome's very low directionality. In the horizontal plane, the frequency response is within +/- 0.5 dB. This performance guarantees an incredibly stable soundstage.









REVIEW & AWARDS

Review: Focal 100 OD 8 - Read More

"Focal 100 OD8 is an obvious choice for those who want a high party factor in the garden or on the terrace. They play loud, and there is plenty of bass here. They are also easy to set up, but the height of just under 40 cm can make them too large. As mentioned, there is a smaller OD6 with 6.5-inch woofer, but we would choose this one for sheer brutality." - Geir Nordby





SPECIFICATIONS

 Sound - Acoustics


Product type Outdoor speaker
Woofer 8" (210mm) waterproof woofer with Polyglass treatment
Tweeter Aluminum inverted dome tweeter
Membrane Polyglass
Response at - 6dB (Low frequency point) 45 Hz
Frequency response (+/- 3dB) 60 Hz - 23 kHz
Minimum impedance 7 Ω
Nominal Impedance 8 Ω
Recommened amplifier power 20 - 150 W
Sensivity 88 dB

Design


IP rating IP66
Depth 280 mm / 11 in
Height 390 mm / 15.4 in
Width 258 mm / 10.2 in

Accessories


Black and white felt Black and white felt ready to stick
Grids Fixed Aluminum grille, with rotating logo for vertical or horizontal installation
