Focal 100 ICW8

Regular price $349.00 USD
Regular price Sale price $349.00 USD
Sale Sold out
Shipping calculated at checkout.

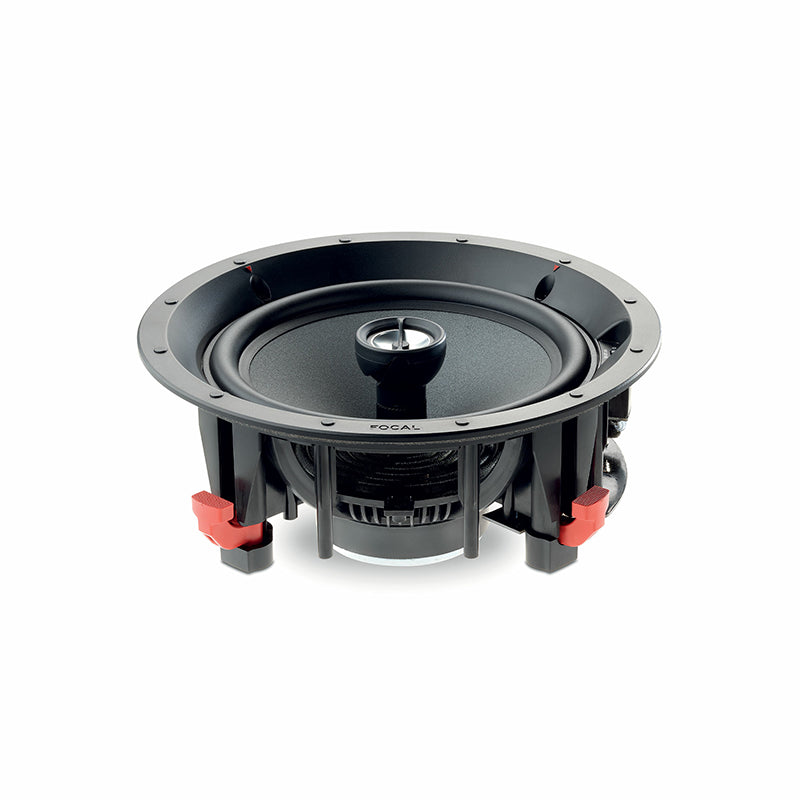

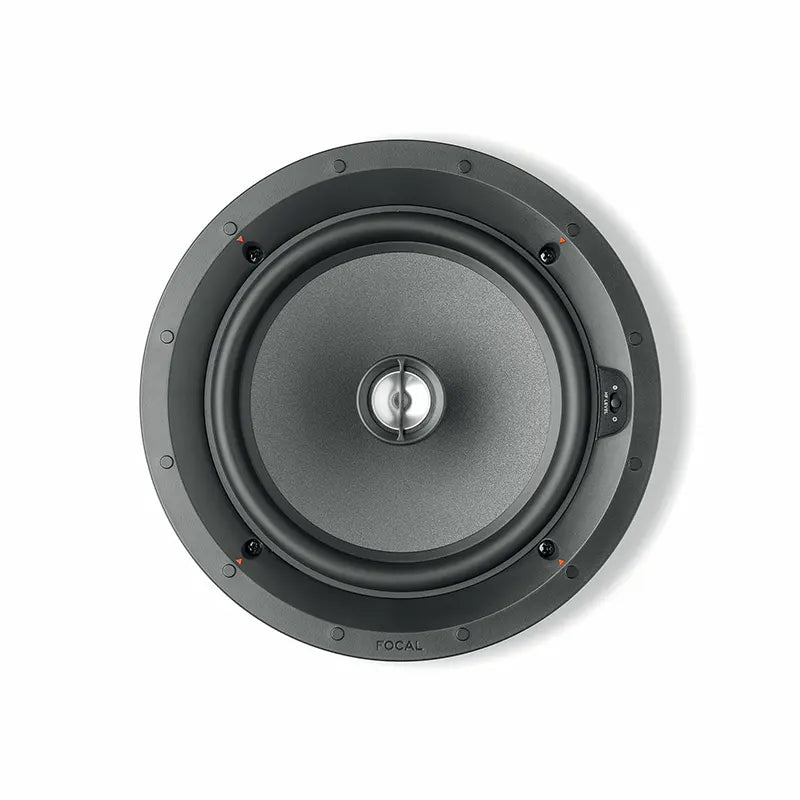

100 ICW8

2-way coaxial speaker

The elder statesman of the 100 Series ICW loudspeakers (wall and ceiling integration), 100 ICW8 features a 21 cm driver. It combines sound performance, compactness and ease of installation for hi-fi listening in the home. Versatile, it ensures perfect sound diffusion in a variety of spaces (hallway, living room, bedroom, kitchen...), making it ideal for both stereo and home cinema installations.










An inverted dome tweeter, adjustable for perfect adaptation to your room, combines with a 21 cm Polyglass diaphragm loudspeaker and a special crossover for defined sound and extended sound coverage. You can adjust the treble level (-3 dB, 0 dB, +3 dB) to match the acoustics of your room.







Thanks to the tropicalization of the Polyglass membrane, 100 Series in-wall and in-ceiling loudspeakers are perfectly suited to use in damp environments, such as bathrooms.








With its shallow mounting depth, the loudspeaker is quick and easy to install in walls or ceilings. Ready-to-paint magnetic grilles, circular or square, ensure discreet, aesthetic integration into your environment.












Optimum space dispersion

The inverted dome tweeter has been a Focal signature since 1981, offering the property of being a true micro-speaker. The curvature of the dome is much less pronounced than that of positive domes. This results in better space dispersion and very low directionality, unlike ribbon tweeters. The inverted dome tweeter therefore generates unrivalled dynamics, enabling sound engineers to precisely control the dosage of compression. The precision of the image (height, width and depth) is remarkable, making it easy to position each instrument. What's more, a waveguide has been developed to perfect spatialization and further enhance the inverted dome's very low directionality. In the horizontal plane, the frequency response is within +/- 0.5 dB. This performance guarantees an incredibly stable soundstage.





Well-defined mids

The diaphragm, the key component of a loudspeaker, is at the heart of our acoustic engineers' research. Polyglass technology, exclusive to Focal, consists of applying fine glass microbeads to a cellulose pulp cone. This process reconciles the excellent damping of paper with the rigidity of glass. The stiffness index is almost 10 times that of polypropylene. Adjusting the mass-rigidity-damping ratio results in a remarkably linear frequency response curve, right from the membrane design stage. This innovation also significantly increases definition in the midrange register.







Sound - Acoustics

Product type Wall/Ceiling - 2 Coxial Ways
Membrane Polyglass
Medium 8" (21cm) Polyglass Midbass
Response at - 6dB (Low frequency point) 40 Hz
Frequency response (+/- 3dB) 53 Hz - 23 kHz
Minimum impedance 6.9 Ω
Nominal Impedance 8 Ω
Recommened amplifier power 25 - 150 W
Sensivity 90 dB


Allowable ceiling thickness (min) 8 mm / 0.3125 in
Allowable ceiling thickness (max) 40 mm / 1.56 in
Depth behind surface (Mounting depth) 4.19 in / 4.19 in
Cut-Out diameter 224 mm / 8.81 in
Depth 111 mm / 4.37 in


Black and white felt Black and white felt ready to stick

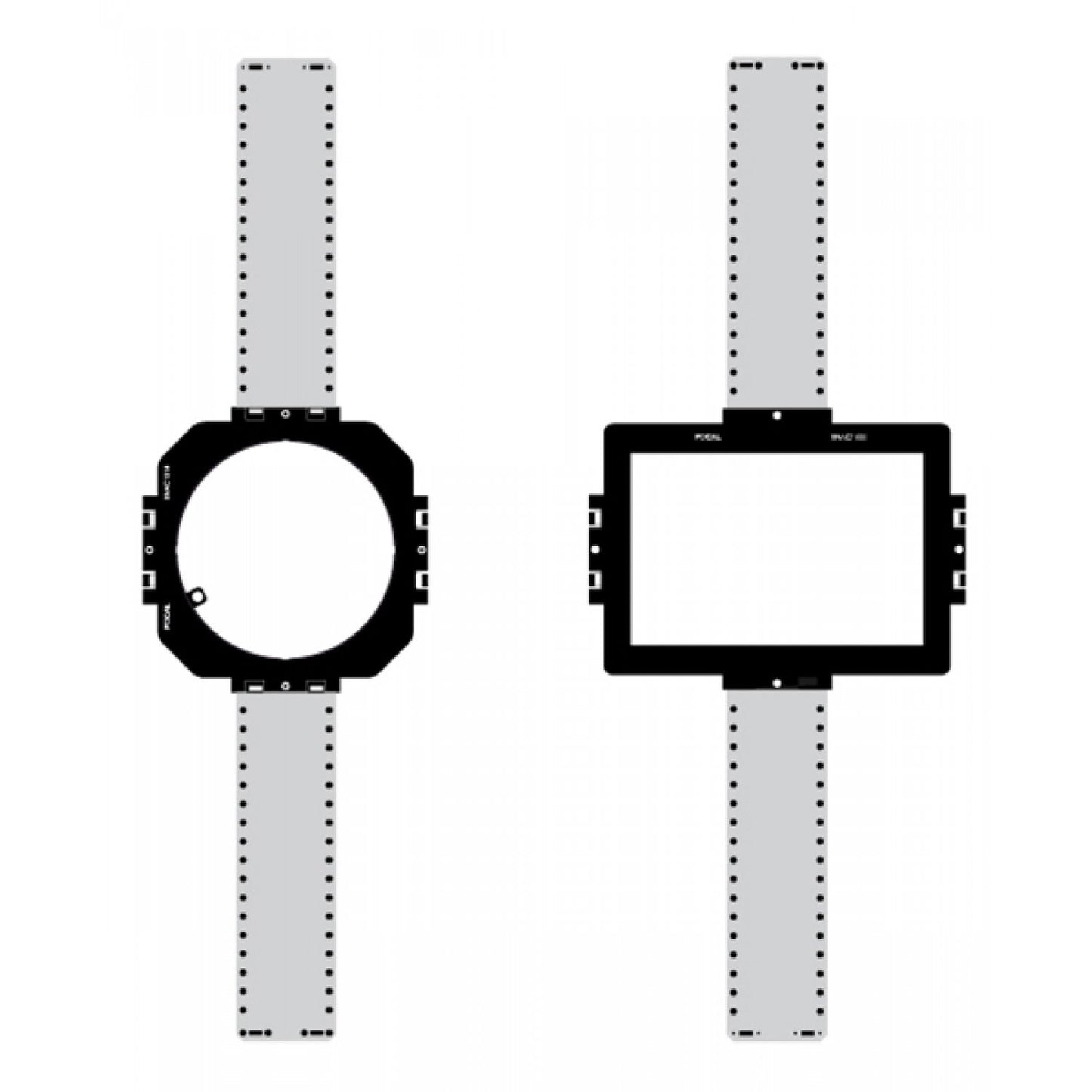

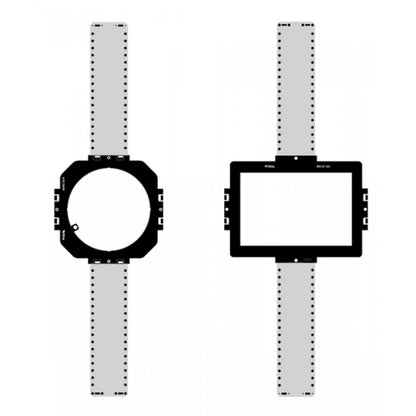

Cut Out template Yes

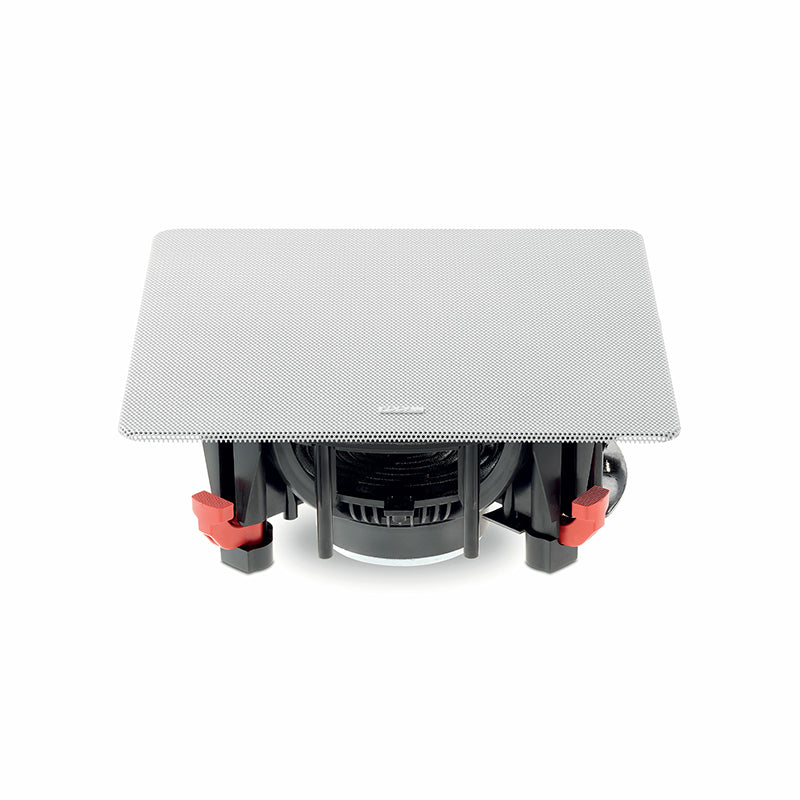

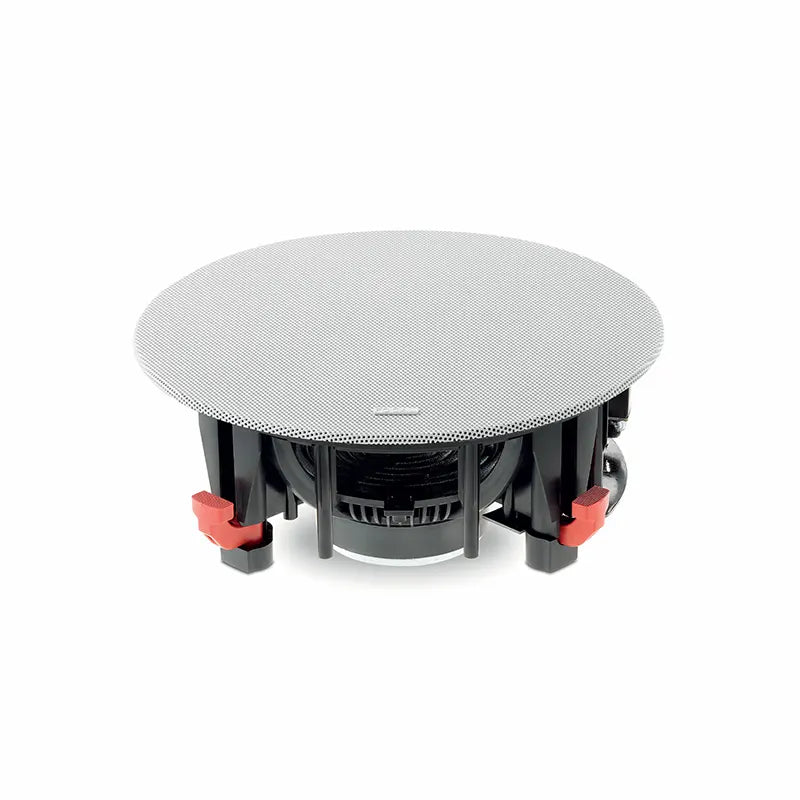

Grids Ready-to-paint grille
