Focal
Focal OD SAT 5
SELECT OPTIONS:
Couldn't load pickup availability
OD SAT 5
2-way outdoor speaker
With its discreet design that adapts to any outdoor setting (garden, terrace, swimming pool, etc.), the OD Sat 5 loudspeaker offers Focal sound quality in all weathers and for a long time to come. Thanks to its integrated transformer, the speaker is capable of covering very large spaces, with no loss of power. OD Sat 5, your ally for outdoor listening all year round!
PRECISE AND POWERFUL
Benefiting from Focal's expertise, OD Sat 5 offers top-of-the-range sound quality. It features a bass-midrange driver with Iris IP cone and an inverted dome tweeter with Focal's signature "M" profile. Thanks to its integrated transformer, it's also 70/100 V compatible, so you can cover large spaces precisely and without loss of power.
PERFECT EXTERIOR INTEGRATION

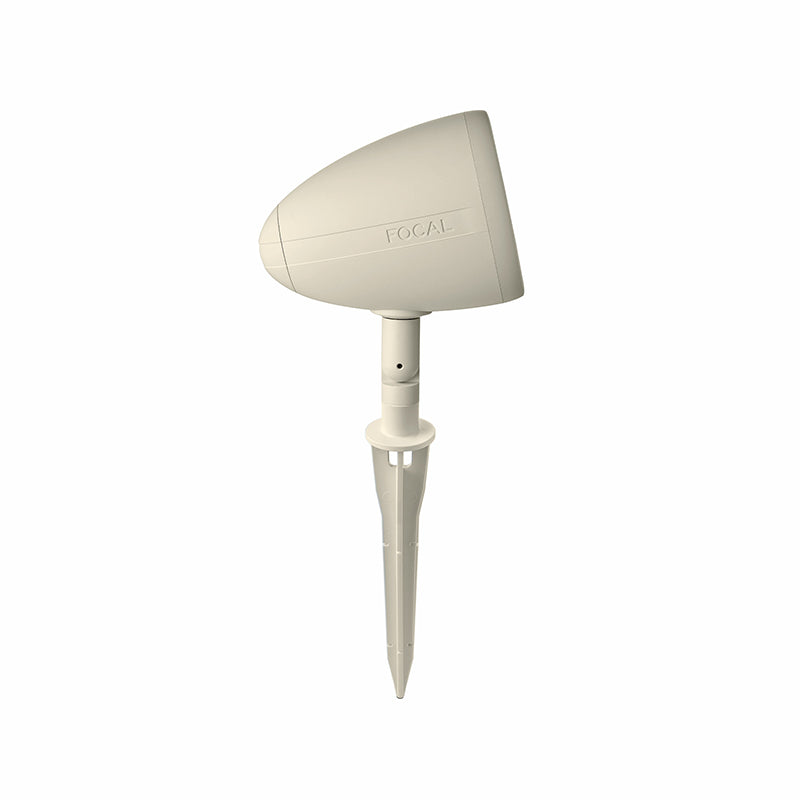

The loudspeaker can be wall-mounted using the brackets supplied, or anchored in the ground. The Light and Dark finishes and grille ensure discreet, aesthetic and refined integration into your outdoor environment.
MUSICAL EMOTIONS OUTDOORS
TOUGH AS NAILS
The OD Sat 5 loudspeaker is IP55-certified, attesting to the product's soundproofing and resistance to dust and solid intrusion. Its anti-UV treatment protects it from the elements and extreme climatic conditions.
MULTIPLE ASSOCIATIONS
For a complete, aesthetically pleasing, high-performance system, OD Sat 5 is the perfect partner for OD Sub 12 and OD Stone 8 subwoofers.
TECHNOLOGIES
Aluminium grille
Dedicated to outdoor products
The Iris IP membrane, developed by our acoustic engineers, embodies the performance of outdoor sound. Its composition ingeniously combines the rigidity of polypropylene with injected carbon fibers, guaranteeing rich, dynamic sound. Designed to resist water infiltration, dust and UV rays, it is specially dedicated to Focal products for outdoor use. Its tropicalization treatment reinforces its resistance to the most extreme climatic conditions, for great durability.
"M" PROFILE INVERTED DOME TWEETER
Better sound directionality
As specialists in loudspeaker diaphragms and tweeters, our acoustic engineers work as much on materials as on cone shapes. That's what they've done with the famous inverted dome tweeter, which they've further developed with a new "M" shape that offers two decisive advantages: even lower sound directionality, for an ever more flexible listening position, and a significant gain in stiffness for the dome, which further reduces distortion and thus delivers quality sound.
SPECIFICATIONS
Sound - Acoustic |
|
| Product type | 2 -way outdoor speaker |
| Membrane | Iris IP |
| Medium | 5" (12.7cm) Midbass |
| Tweeter | 1" (2.5cm) Aluminium 'M'-shaped tweeter |
| Minimum impedance | 5.2 Ω |
| Recommened amplifier power | 20 - 100 W |
| Sensivity | 88 dB |
| Power in 100 V | Yes |
| Power in 70 V | Yes |
Design |
|
| Easy Quick Install | Yes |
| IP rating | IP55 |
| Depth | 21 cm / 8.25 in |
| Height | 32 cm / 12.62 in |
| Width | 32 cm / 12.62 in |
| Net weight (with grille) | 2.5 kg / 5.5 lb |
