Seven amplified channels
The receiver powers a seven-channel layout. Power bandwidth, load and distortion conditions are listed below.
Marantz

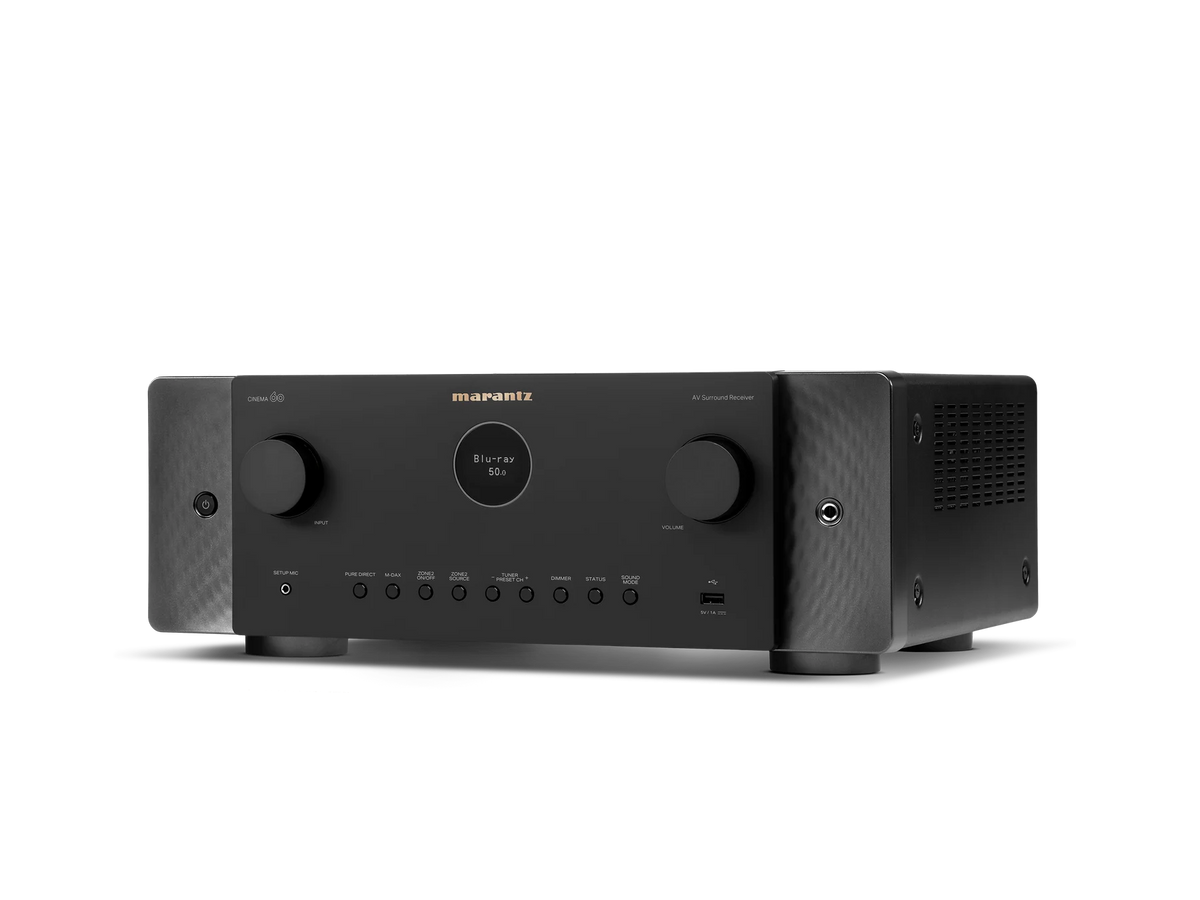

Marantz CINEMA 60
Marantz CINEMA 60
Regular price
$1,399.00 USD
Regular price
$1,800.00 USD
Sale price
$1,399.00 USD
Shipping calculated at checkout.
Quantity
Deliveries over $700 - Signature Required!
Couldn't load pickup availability
Marantz / AV Receivers
CINEMA 60
CINEMA 60 is a seven-channel, 100W-per-channel Marantz AV receiver with two subwoofer outputs. It combines 8K-capable HDMI connections, HEOS streaming and Audyssey setup tools in the original CINEMA 60 generation.
7.2 Channels
100 Watts per Channel
6 HDMI Inputs plus eARC
HEOS Built-in
Design & engineering
Inside the CINEMA 60.
A familiar front panel
The porthole display and symmetrical design follow the Marantz CINEMA family.
Marantz audio circuitry
HDAM technology and Sound Master tuning form part of the receiver’s audio approach.
Movies and music
Supported immersive formats, HDMI connectivity, room correction and HEOS cover both theater and network listening.
Powered by HEOS
Find your music.
Connect your rooms.
Use the HEOS app for supported music services and compatible network music. Group compatible HEOS devices for multiroom playback, or choose a different source in each room where the system supports it.
Service availability depends on region and account. Subscriptions, compatible devices and current firmware may be required. The specifications below identify this model’s supported formats and connections.
System connections
Plan the rest of your system.
From Marantz
Product film
Technical reference
Details & specifications
Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.
Power Amplifier
- Number of Powered Channels
- 7
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
- 100 W
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)
- -
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
- 140 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive)
- 200 W
- 70% Guarantee
- Yes
- Discrete Power Amplifier
- Yes
- Amplifier Topology
- Class A/B
- Current Feedback Topology
- Yes
- Bi-Amp Drive
- assignable
Multichannel Surround Technologies
- DTS
- DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
- Dolby
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- Other
- —
- Max Number of Processing (Preamp) Channels
- 7.1
Inputs Outputs
- Composite In / Out
- 0/0
- Component In / Out
- 0/0
- HDMI In / Out
- 6 / 2
- Multi-Room Video Out via HDMI
- No
- Analog In / Fixed Level Out
- 4 in / 0 out
- Phono (MM) In
- Yes
- Digital In: Optical / Coaxial
- 2 / 2
- Multi-Room Out: analog / digital
- 1 / 0
- Multichannel Preamp Out
- 7.2
- Subwoofer Out
- 2
- 7.1 multichannel input
- No
- Number of Speaker Terminals
- 7
- Speaker A / B
- assignable
- Multi-Room Speaker Terminal
- assignable
- Front Inputs
- USB-A
- USB Audio / Made for iPod / Made for iPhone
- Yes / No / No
- AM/FM Tuner
- Yes
HDMI
- Total HDMI Inputs / No. Support 8K
- 6 / 3
- HDCP2.3 support
- Yes
- HDMI Outputs: Main / Zone
- 2 / 0
- Analog to HDMI Video Conversion
- No
- HDMI Upscaling
- 1080P/4K to 8K
- Max resolution @ framerate
- 8K/60Hz, 4K/120Hz
- Audio Return Channel
- ARC, eARC
- Video Dynamic Range
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- ALLM (Auto Low Latency Mode) Pass-through for gaming
- Yes
- Variable Refresh Rate / Quick Frame Transport
- Yes / Yes
- HDMI Pass-Through in Standby Mode
- Yes
- CEC
- Yes
- DSD Audio over HDMI
- No
- Auto LipSync
- Yes
Performance Technologies
- Copper Plated Chassis
- No
- Toroidal Power Supply Transformer
- No
- Hyper Dynamic Amplifier Modules (HDAM) (List version)
- Yes
- Pure Direct Mode
- Yes
- Gold Plated RCA Terminals
- No
- Clock Jitter Reducer
- No
Acoustic Room Correction
- Audyssey
- MultEQ XT
- Audyssey Dynamic EQ / Dynamic Volume
- Yes / Yes
- Audyssey LFC
- No
- Dirac Live Support
- No
- Variable Cross Over
- Yes
- Optimized Bass Redirection
- Yes
- Bass Sync
- No
Music File Support
- Lossy Formats
- MP3 / WMA / AAC
- Lossless formats
- FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
- DSD Audio
- 2.8 MHz / 5.6MHz
- Gapless Playback
- FLAC, WAV ,ALAC ,DSD
- Compressed Audio Enhancer: MDAX2
- Yes
- Network Audio Sharing
- Yes
Streaming Services
- HEOS Multi-room and Streaming
- Yes
- AirPlay Audio Streaming
- AirPlay 2
- Internet Radio
- TuneIn
- Spotify*
- Spotify Connect
- Pandora
- Yes
- SiriusXM
- Yes
- Other Streaming Services *
- Amazon Music HD/Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
- Roon tested
- Yes
Network Connectivity
- Ethernet Ports
- Yes
- Wi-Fi (include version / band)
- Yes
- Bluetooth (Include version)
- Yes
- Bluetooth Re-transmit for Bluetooth headphones
- Yes
Smart Home Integration and Control
- Voice Assistant Compatibility
- Alexa / Google Voice Assistant / Apple HomePod
- App for Smart Phones & Tablets (iOS & Android)
- Marantz AVR Remote App, HEOS
- HEOS Multi-Room Integrated
- Yes
- HEOS Link Compatibility: IR/ IP
- Yes / Yes
- Multi-Room zones
- 2
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
- 2 Ch / 2Ch / Yes / Yes
- Zone Audio Output: Speaker / Preout
- Yes / Yes
- Zone HDMI Output from HDMI Source
- No
- Control Connectivity
- IP Control / RS232 Control / Web Control / App Control
- IR Flasher In
- Yes
- Marantz Remote Bus
- Yes
- DC Trigger Output
- 1
- HDMI Diagnostics
- Yes
Others
- Front Display
- port hole OLED
- GUI Languages
- 3
- Setup Assistant
- Yes
- Smart Select on Remote
- Yes
- Firmware Update by Network / USB
- Yes / Yes
- ECO Mode
- Yes
- Auto Power off
- Yes
- Sleep Timer
- Yes
General
- Available Colors
- Black
- Metal Front Panel
- No
- System Remote Control
- RC049SR
- Power Consumption in W
- 650
- Power Consumption No-Sound (ECO on/off) in W
- 45 / 75
- Standby Consumption in W
- 0.2
- CEC Standby Consumption in W
- 0.5
- Network Standby Consumption in W
- Less than 2.0
- Maximum Dimensions Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches
- 17.4 x 13.9 x 6.517.4 x 13.9 x 9.317.4 x 13.5 x 6.5
- Weight in lbs.
- 24
- What's in the box
- Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
