Class A/B amplification
The amplifier is rated at 70W per channel into 8 ohms and 100W into 4 ohms.
Marantz

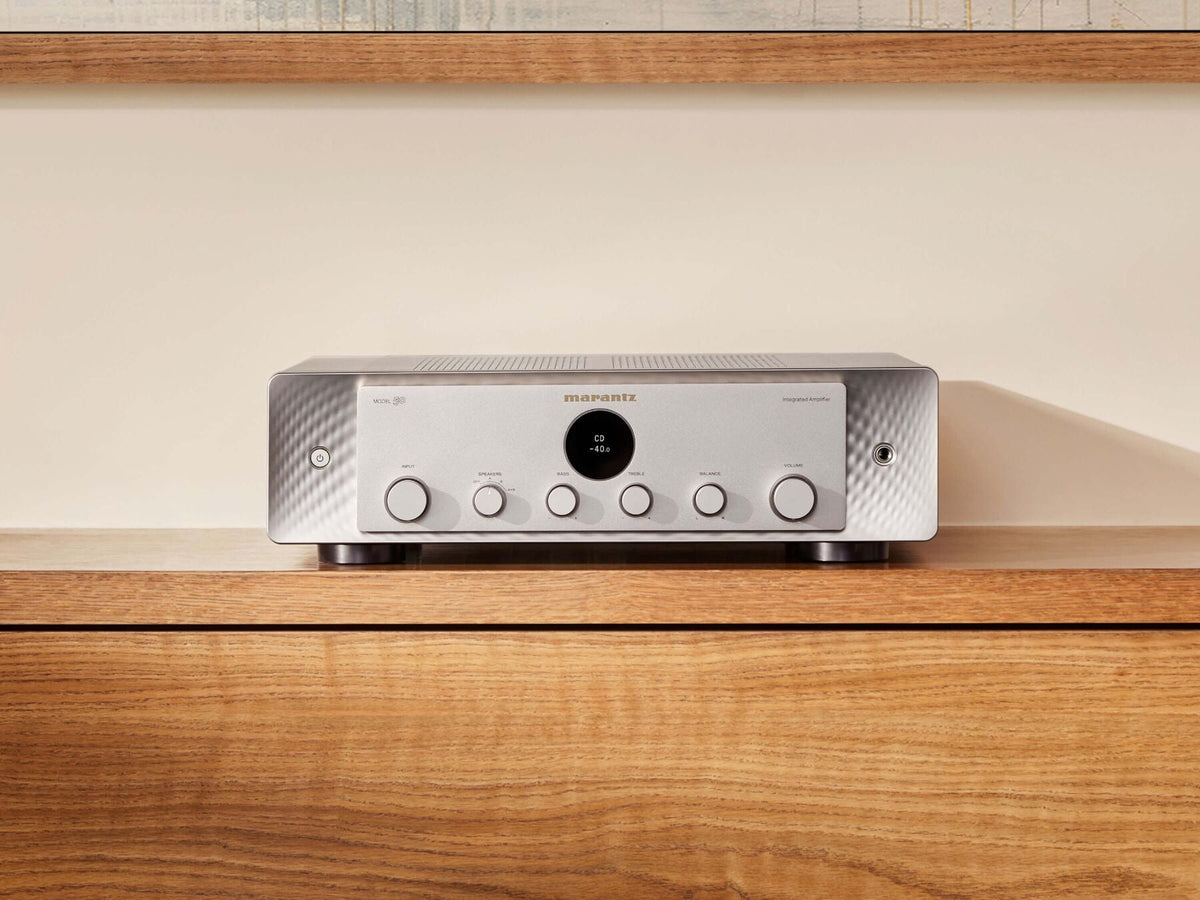

Marantz MODEL 50
Marantz MODEL 50
Regular price
$2,000.00 USD
Regular price
Sale price
$2,000.00 USD
Shipping calculated at checkout.
Quantity
Deliveries over $700 - Signature Required!
Couldn't load pickup availability
Marantz / Integrated Amplifiers
MODEL 50
MODEL 50 is a 70W-per-channel Class A/B integrated amplifier with MM phono and stereo preamplifier outputs. It centers on analog sources and separate digital players, with the current Marantz front-panel design.
2.2 Channels
70 Watts Per Channel
Design & engineering
Inside the MODEL 50.
Moving-magnet phono
A dedicated MM stage connects a compatible turntable without a separate phono preamplifier.
Stereo preamplifier outputs
The pre-outs add flexibility for external amplification or compatible subwoofer integration.

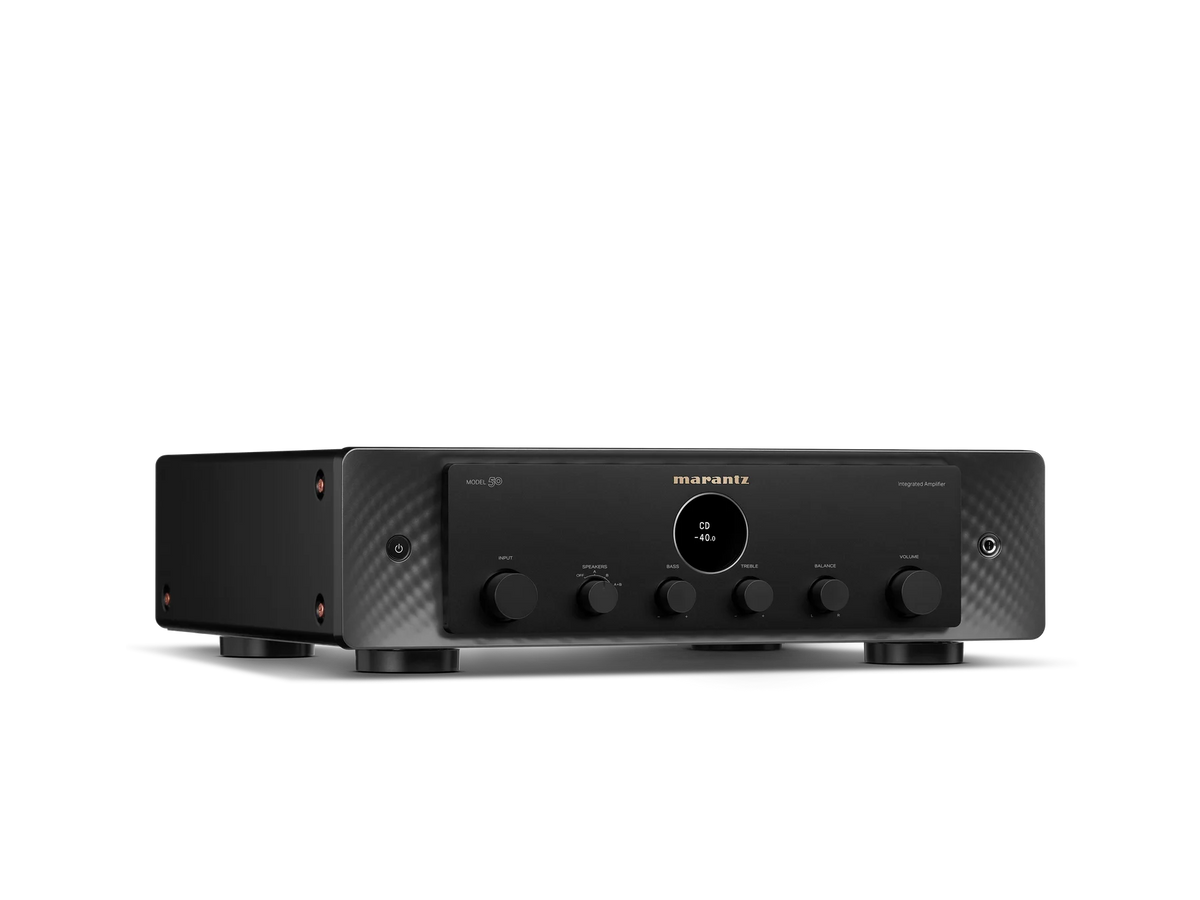

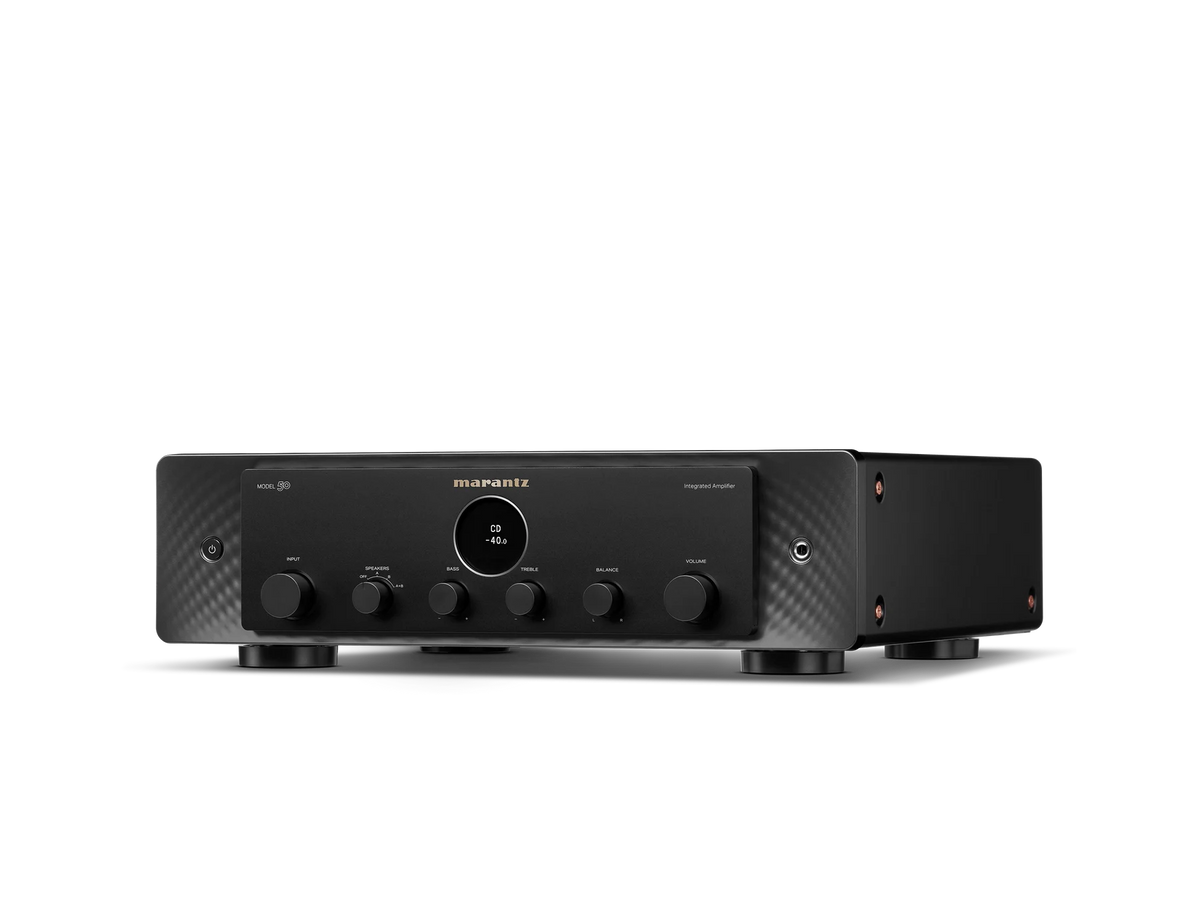

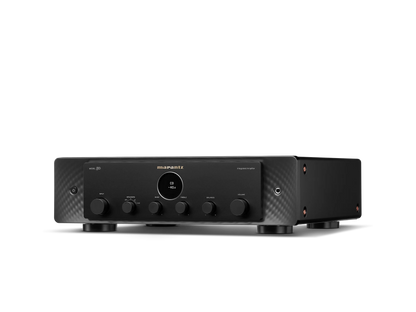

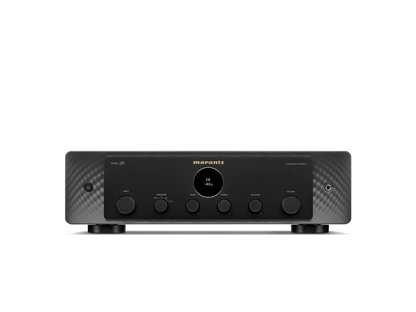

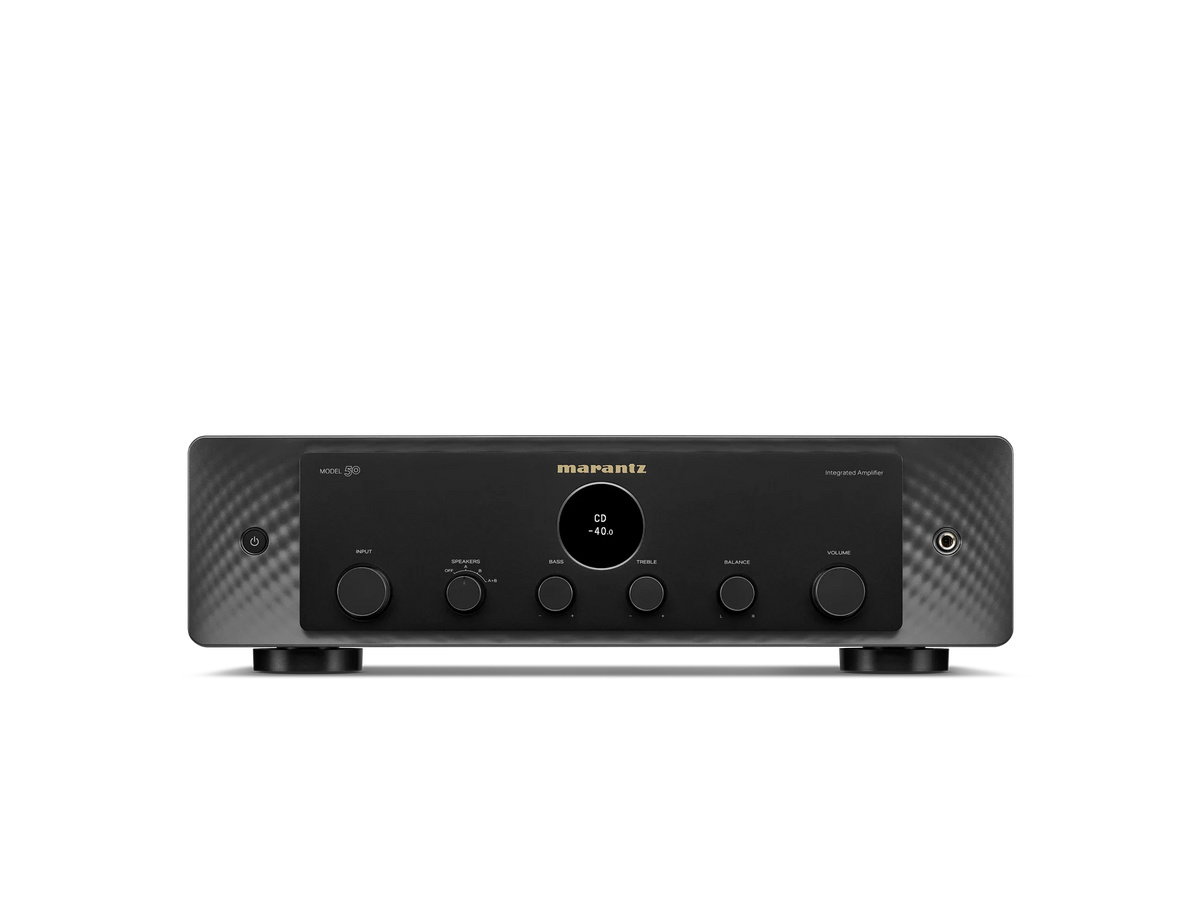

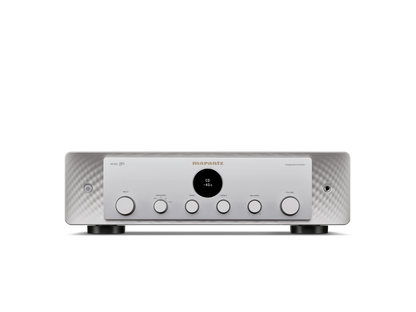

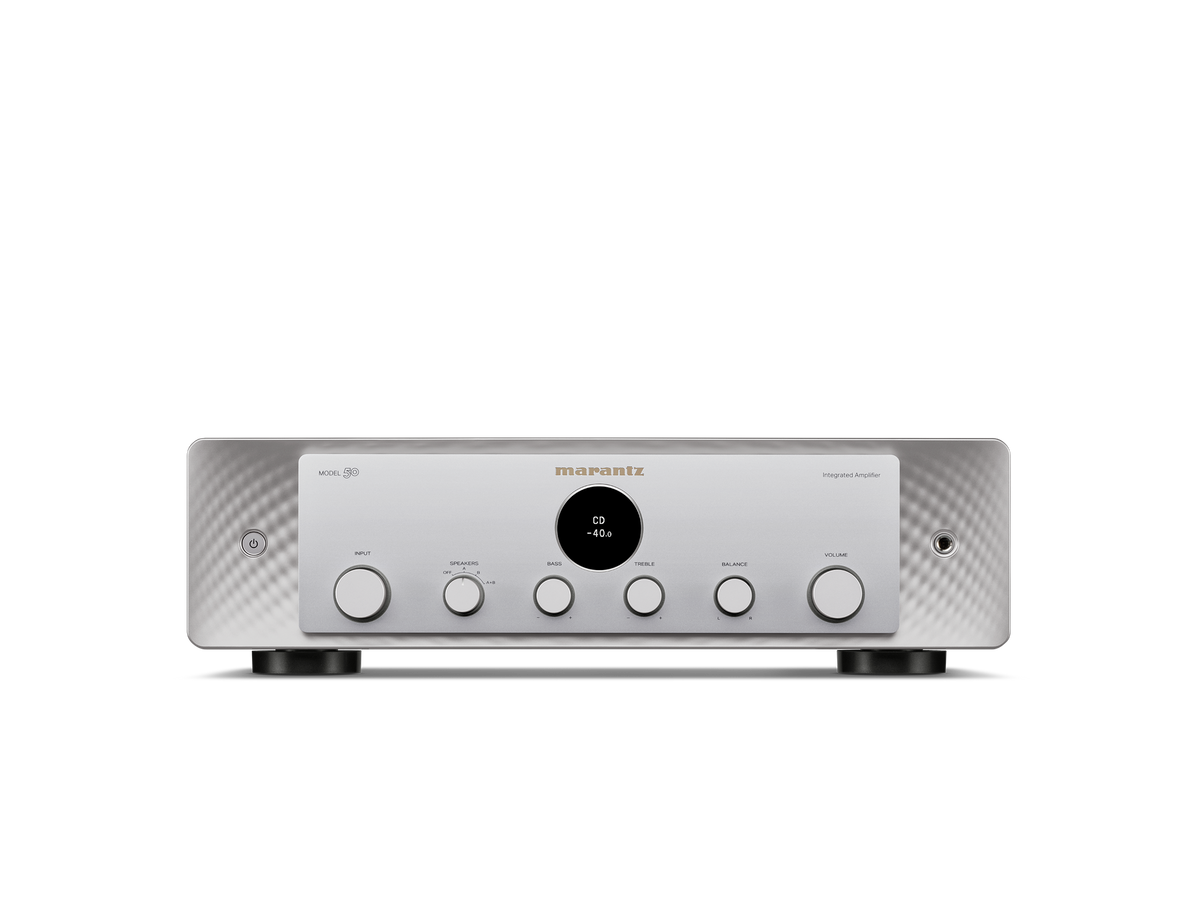

Materials and controls
Symmetry and tactile front-panel controls carry the modern Marantz design language into an analog integrated amplifier.

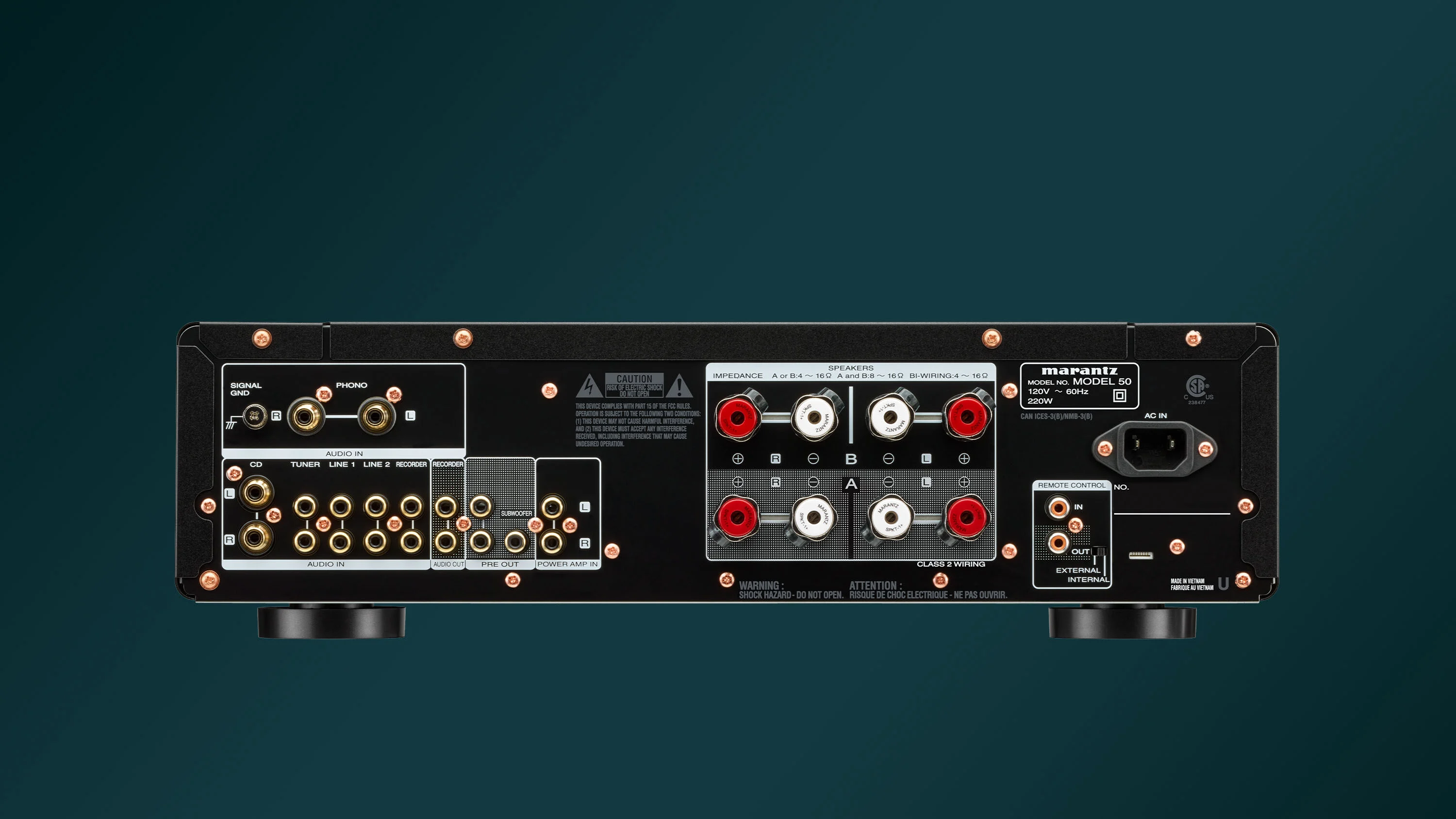

System connections
Plan the rest of your system.
From Marantz
Product film
Technical reference
Details & specifications
Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.
Features
- Channels
- 2
- Current Feedback Topology
- Yes
- Phono EQ: Standard / Marantz Musical / Marantz Musical Premium
- - / Yes / -
- Digital in: USB-B / optical / coaxial / USB-A
- - / - / - / -
- HDAM version
- SA3, SA2
- Power Transformer: Toroidal / El
- Yes / -
- High Grade Audio Components
- Yes
- Customised Components
- Yes
- Symmetric PCB Layout
- Yes
- Aluminium extrusion heat sink
- Yes
- Balance / Bass / Treble / Loudness
- Yes / Yes / Yes / -
Others
- Linear Drive Power Supply
- Yes
- Liniear volume control
- Yes
- Schottky diodes
- Yes
- Input buffer amp (all inputs / CD only)
- - / -
- Solid Heat Sinks
- Yes
- System block shielding: Copper / metal / none
- none
- Bottom Plate
- triple
- Low noise OLED display
- Yes
- Source Direct
- Yes
- Power Amp direct
- Yes

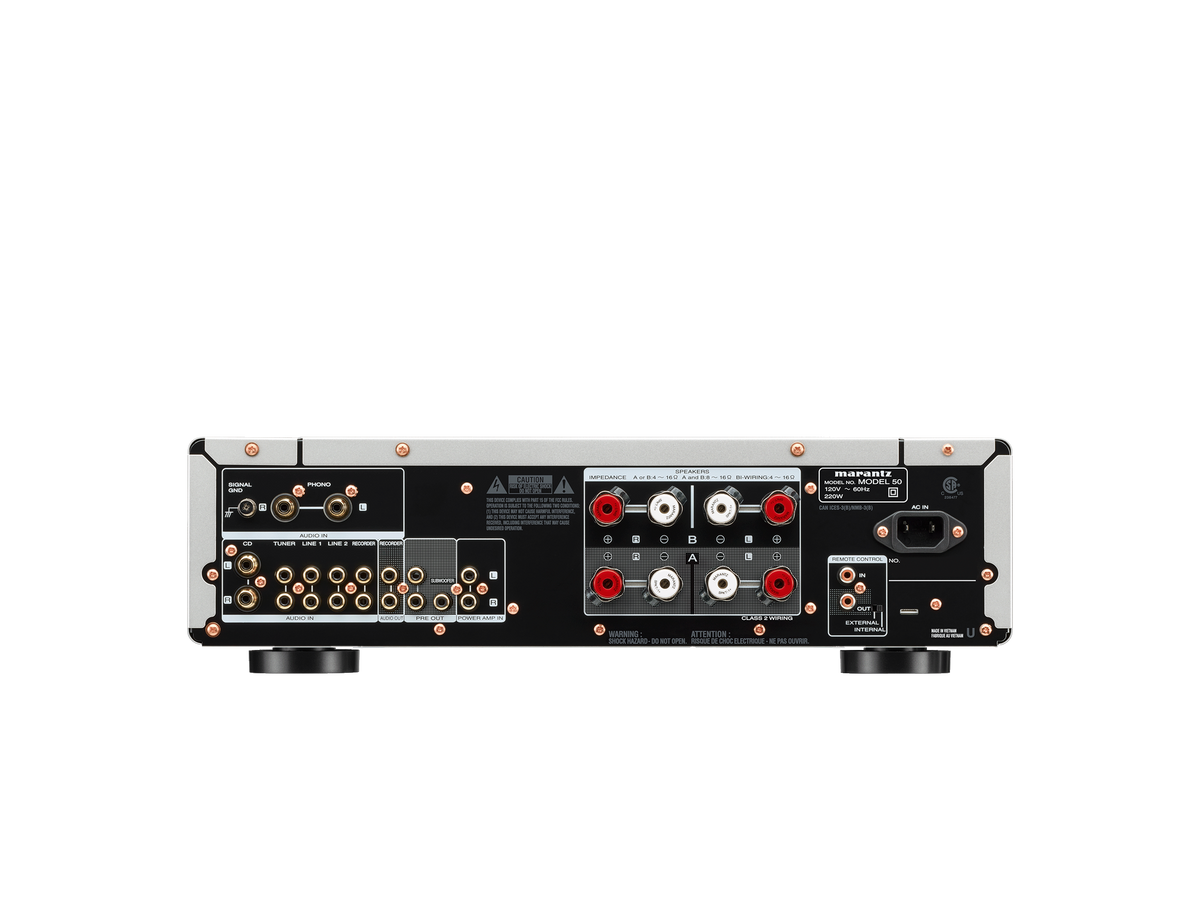

Inputs Outputs
- Audio Inputs
- 6
- Digital in: USB-B / optical / coaxial / USB-A
- - / - / - / -
- Phono Input: MM / MC
- Yes / -
- Audio Outputs
- 1
- Balanced In / Out
- - / -
- Pre-out / Main-in
- Yes + subwoofer / -
- Power Amp Direct IN
- Yes
- Gold Plated Cinch
- Yes
- Speaker A / B
- Yes
- Speaker Terminals
- Marantz SPKT-1+
- Number of terminals
- 4
- D-Bus
- Yes
- Headphone Out
- Yes
Specifications
- Power Output (8 / 4 Ohm RMS)
- 70 W / 100 W
- Frequency Response
- 5 Hz–100 kHz
- Total Harmonic Distortion
- 0.02 %
- Damping Factor
- 100
- Input Sensitivity: MM
- 1.4 mV / 47 kΩ
- Signal to Noise Ratio: MM/MC
- 87 dB / -
- Input Sensitivity: High level
- 185 mV / 16 kΩ
- Signal to Noise Ratio: High level
- 116 dB (2 V input)
- Input Sensitivity: Power Amp Direct IN
- 1.5 V / 15 kΩ
- Signal to Noise Ratio: Power Amp Direct IN
- 125 dB
- Treble Control
- ± 10 dB at 15 kHz
- Bass Control
- ± 10 dB at 50 Hz
General

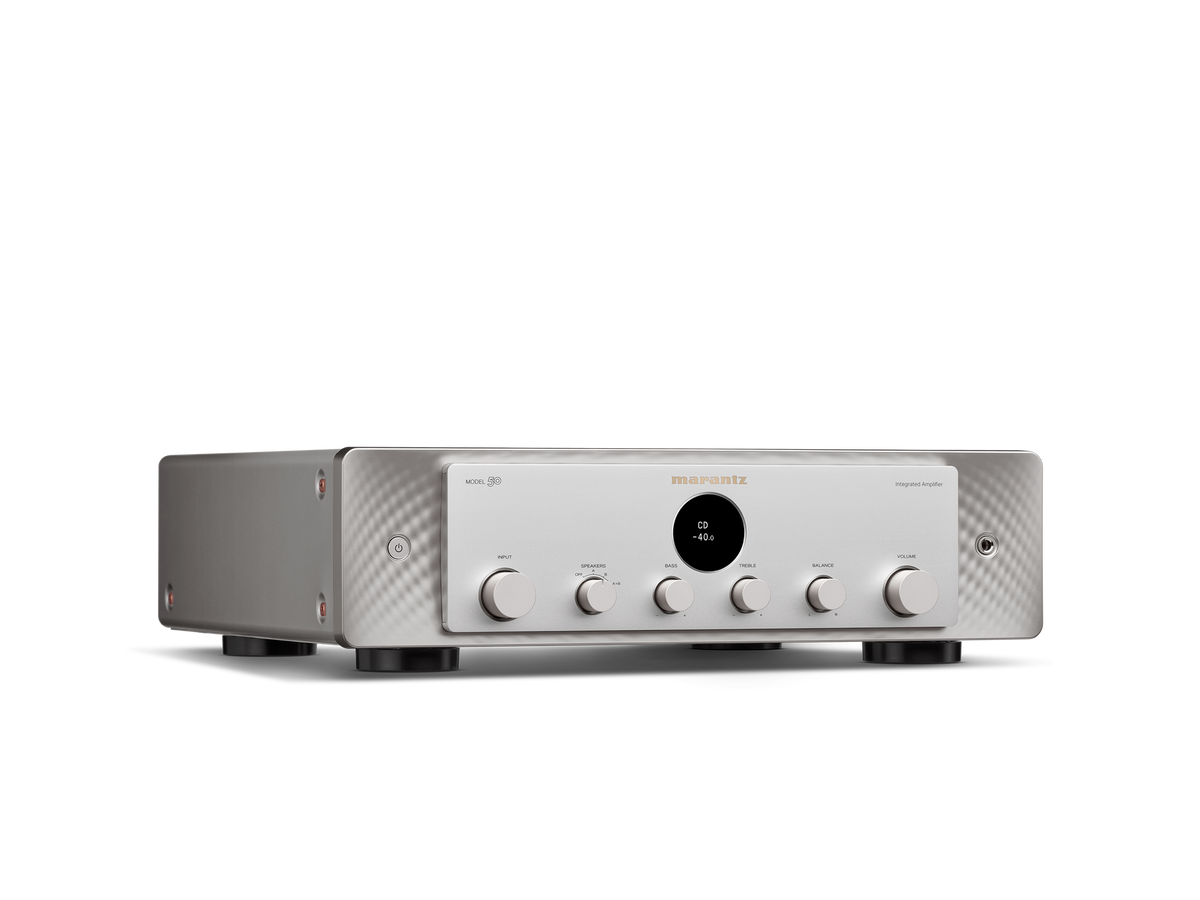

- Available Colors: Gold / Silver / Black / Silver-Gold
- - / - / Yes / Yes
- Metal Front Panel
- Yes
- Power Consumption in W
- 220
- Standby Consumption in W
- 0.3
- Auto Power off
- Yes
- Detachable Power Cable
- Yes
- Remote Control
- RC003PMND
- System Remote Function
- Yes
- Maximum Dimensions (W x D x H) in mm
- 442 x 431 x 130
- Weight in kg
- 14.2
- Carton Maximum Dimensions (W x D x H) in mm
- 527 x 517 x 255
- Carton Weight (inc. product) in kg
- 17.5
