Compact stereo power
Two amplifier channels power passive speakers; a subwoofer output supports an optional powered subwoofer.
Marantz

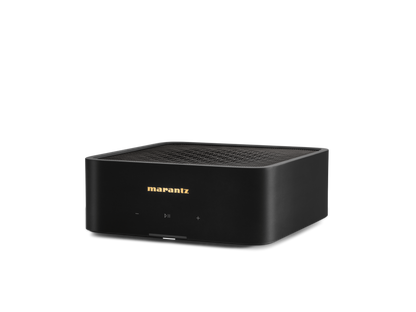

Marantz MODEL M1
Marantz MODEL M1
Regular price
$1,000.00 USD
Regular price
Sale price
$1,000.00 USD
Shipping calculated at checkout.
Quantity
Deliveries over $700 - Signature Required!
Couldn't load pickup availability
Marantz / Streaming Amplifiers
MODEL M1
MODEL M1 is a compact streaming amplifier with 100W per channel and HDMI eARC. HEOS, AirPlay 2, Bluetooth and a subwoofer output let it anchor a two-speaker music and TV system.
2.1 Channels
100 Watts per Channel
HDMI eARC
HEOS Built-in
Design & engineering
Inside the MODEL M1.
Several streaming paths
HEOS, AirPlay 2, Bluetooth and Spotify Connect support different ways to choose and play music.
Marantz digital filtering
Marantz Musical Digital Filtering is part of the amplifier’s digital audio processing.
TV audio over eARC
HDMI eARC and Dolby Digital+ processing connect the amplifier to compatible televisions.
Powered by HEOS
Find your music.
Connect your rooms.
Use the HEOS app for supported music services and compatible network music. Group compatible HEOS devices for multiroom playback, or choose a different source in each room where the system supports it.
Service availability depends on region and account. Subscriptions, compatible devices and current firmware may be required. The specifications below identify this model’s supported formats and connections.
From Marantz
Product film
Technical reference
Details & specifications
Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.
Amplifier
- Power Amplifier Rated output & THD (8 ohm)
- 100 W+100 W (8 Ω, THD 0.05%)
- Power Amplifier Rated output & THD (4ohm)
- 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%)
- Frequency Response
- 20 Hz to 20 kHz : ±1 dB
- Connected loudspeaker Impedance
- 4 – 16 Ω/ohms

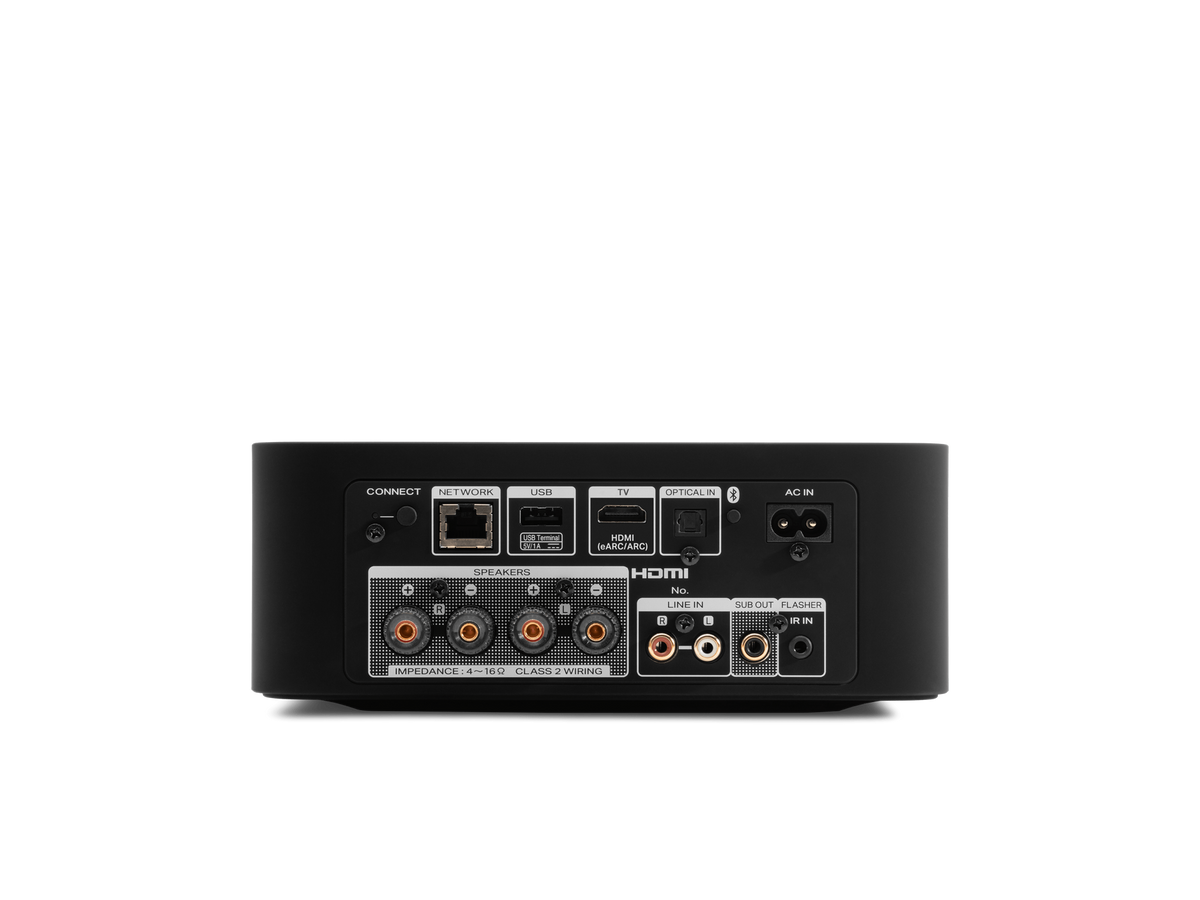

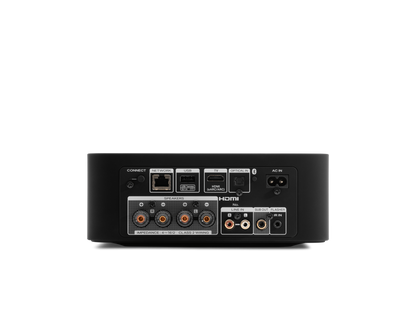

Audio Inputs / Outputs
- Loudspeaker Binding Posts
- 4-way binding posts
- Digital Inputs
- HDMI (eARC), TOSLINK
- Analog Inputs
- RCA L/R
- Subwoofer Out
- RCA Mono
Inputs Audio Options
- Channel Assignments
- Stereo (Default), Dual Mono
- Volume Limit
- 80-100%
- Balance
- -15dB to +15dB
- Adjustable High Pass / Low Pass Filters
- 40-250 Hz / 40-120 Hz
- EQ
- Bass, Treble -5dB to +5dB
- Sound Modes
- Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
- TV Sound Grouping
- Yes
Audio Format Support
- Decoding
- Dolby Digital +, Dolby Digital, LPCM, DSD
- Stereo PCM / Multi-channel PCM
- Yes / Yes
- Stereo File Formats (HEOS network share or USB)
- WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
- Bluetooth Receive
- BT 4.2.X
- Bluetooth Trasmit
- No
- AirPlay
- AirPlay 2
- Spotify
- Spotify Connect
Music Services and Sources
- Music Services Supported (HEOS®, subject to change and local availability)
- Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
- Music stored on mobile device
- Yes (iOS, Android or Kindle Fire)
- NAS (Network Attached Storage)
- Network share
- USB Storage Device Playback
- Yes (FAT32, NTFS formatted drives)
Networking & Control
- Wired Connectivity
- Ethernet
- Wireless Connectivity
- Dual band, 802.11 a/b/g/n/ac
- IR Input
- 3.5mm
- IR Learning
- Yes
- Control System Compatibility via TCP/IP
- Creston, Control4, AMX
- HEOS® App
- iOS, Android, Kindle Fire
General
- Product Color
- Black
- User Interface
- Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
- Dimensions (W x D x H) Inches
- 8.54 x 9.41 x 3.31
- Dimensions (W x D x H) mm
- 217 x 239 x 84
- Weight (lbs)
- 4.84
- Weight (kg)
- 2.2
