Current-feedback amplification
Two discrete amplifier channels supply 45W each into 8 ohms under the manufacturer’s stated conditions.
Marantz
Marantz PM6007
Marantz PM6007
Regular price
$750.00 USD
Regular price
Sale price
$750.00 USD
Shipping calculated at checkout.
Quantity
Deliveries over $700 - Signature Required!
Couldn't load pickup availability
Marantz / Integrated Amplifiers
PM6007
PM6007 is a current-feedback stereo integrated amplifier rated at 45W per channel into 8 ohms. Analog inputs, MM phono and optical/coaxial digital connections support a straightforward two-speaker system.
2.2 Channels
45 Watts Per Channel
Design & engineering
Inside the PM6007.
Digital conversion built in
Optical and coaxial connections allow compatible digital sources to use the internal DAC.
Analog-source flexibility
Line-level inputs and an MM phono input accommodate traditional source components.
Marantz tuning
The Sound Master’s final evaluation complements the circuit design and component selection.
System connections
Plan the rest of your system.
From Marantz
Product film
Technical reference
Details & specifications
Technical data from Marantz’s US product page. Power ratings use different loads and test conditions; read the complete entry when comparing models. A dash means no value is supplied. Unsupported or malformed source entries are identified where encountered.
Features
- Channels
- 2
- Current Feedback Topology
- Yes
- Full balanced circuitry architecture
- No
- Double Mono Power Amp construction
- No
- Phono EQ: Standard / Marantz Musical / Marantz Musical Premium
- Yes / No / No
- Digital in: USB-B / optical / coaxial / USB-A
- No / 2 / 1 / No
- Sample Rate digital In
- 192 kHz / 24-bit
- USB-A: DSD / WAV / FLAC / AIFF / ALAC
- No
- USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6
- No
- USB-B PCM sample rate
- No
- Asynchronous mode rear USB
- No
- Bit-perfect transmission
- No
- Ground isolator for DAC Mode operation
- No
- Tuner: FM / AM
- No
- Bluetooth / aptX / NFC
- No
- Streaming audio from PC
- No
- Wi-Fi / Wired LAN
- No
- Internet radio
- No
- AirPlay 2 Audio Streaming
- No
- Roon Tested
- No
- Spotify Connect* / Tidal* / Deezer* / others *
- No
- Amazon Prime Music* / Pandora*
- No
- HEOS Multiroom and Streaming
- No
- Voice control using Alexa
- No
- Voice Control - Google Assist / Apple Siri
- No
- Voice Control - Microphone built-in
- No
- DSD-Audio network streaming
- No
- Lossy formats: MP3 / WMA / AAC
- No
- Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF
- No
- Gapless Playback
- No
- Remote APP: iDevice / Android
- No
- Analog Mode
- No
- HDAM version
- SA3, SA2
- Power Transformer: Toroidal / El
- Yes / No
- High Grade Audio Components
- Yes
- Customised Components
- Yes
- Symmetric PCB Layout
- No
- Aluminium extrusion heat sink
- Yes
- Copper Plated Chassis
- No
- Tri Tone Control (Bass / Mid / Treble)
- No
- Balance / Bass / Treble / Loudness
- Yes / Yes / Yes / No
Others
- Marantz Musical Digital Filtering
- Yes
- Linear Drive Power Supply
- Yes
- Liniear volume control
- Yes
- BI-AMP and Multichannel option
- No
- Shottky diodes
- Yes
- Input buffer amp (all inputs / CD only)
- No / No
- System block shielding: Copper / metal / none
- No / No / Yes
- Double Layer Bottom Plate
- No
- Low noise OLED display
- No
- Low noise LCD display
- No
- Source Direct
- Yes
- Power Amp direct
- No
- 5mm aluminium top plate
- No

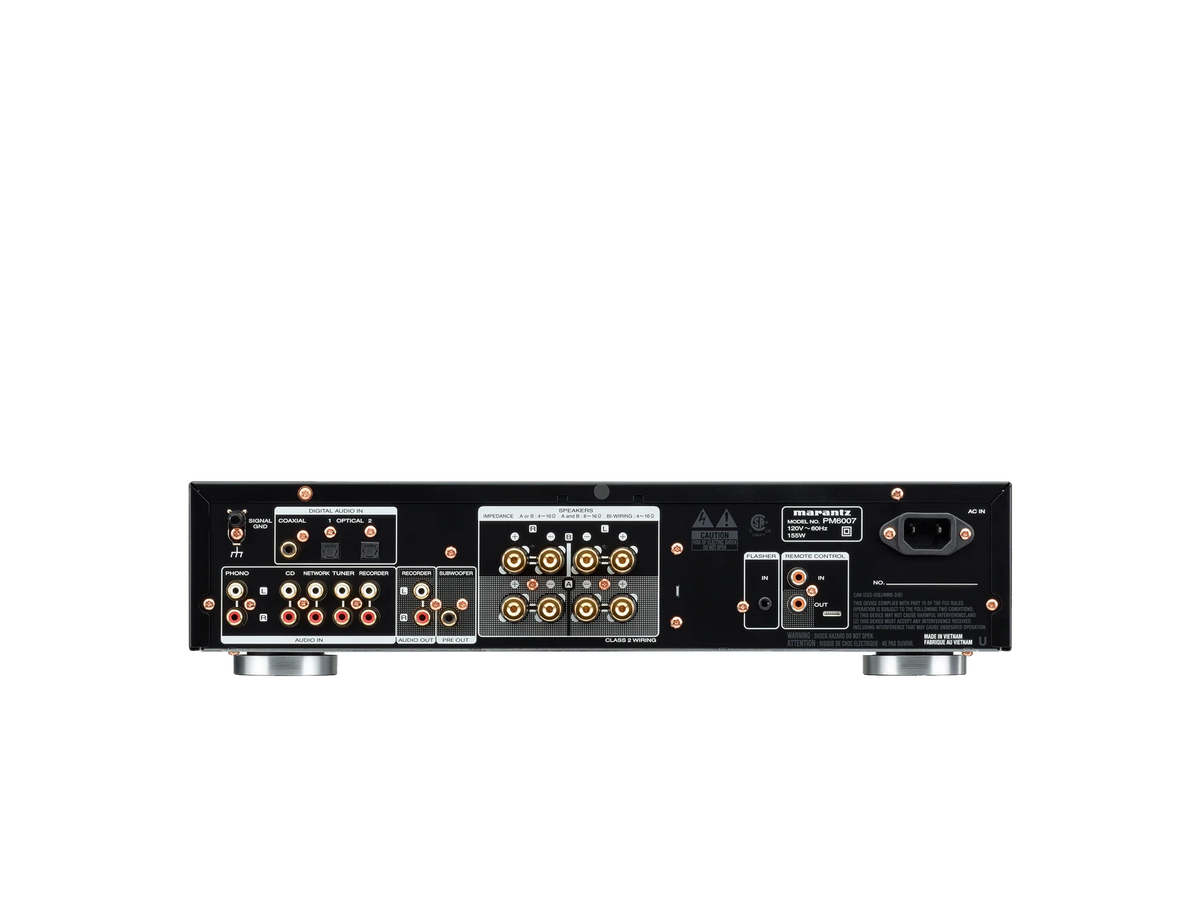

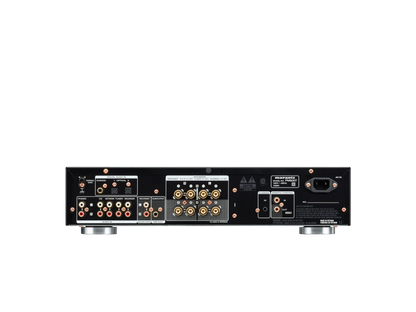

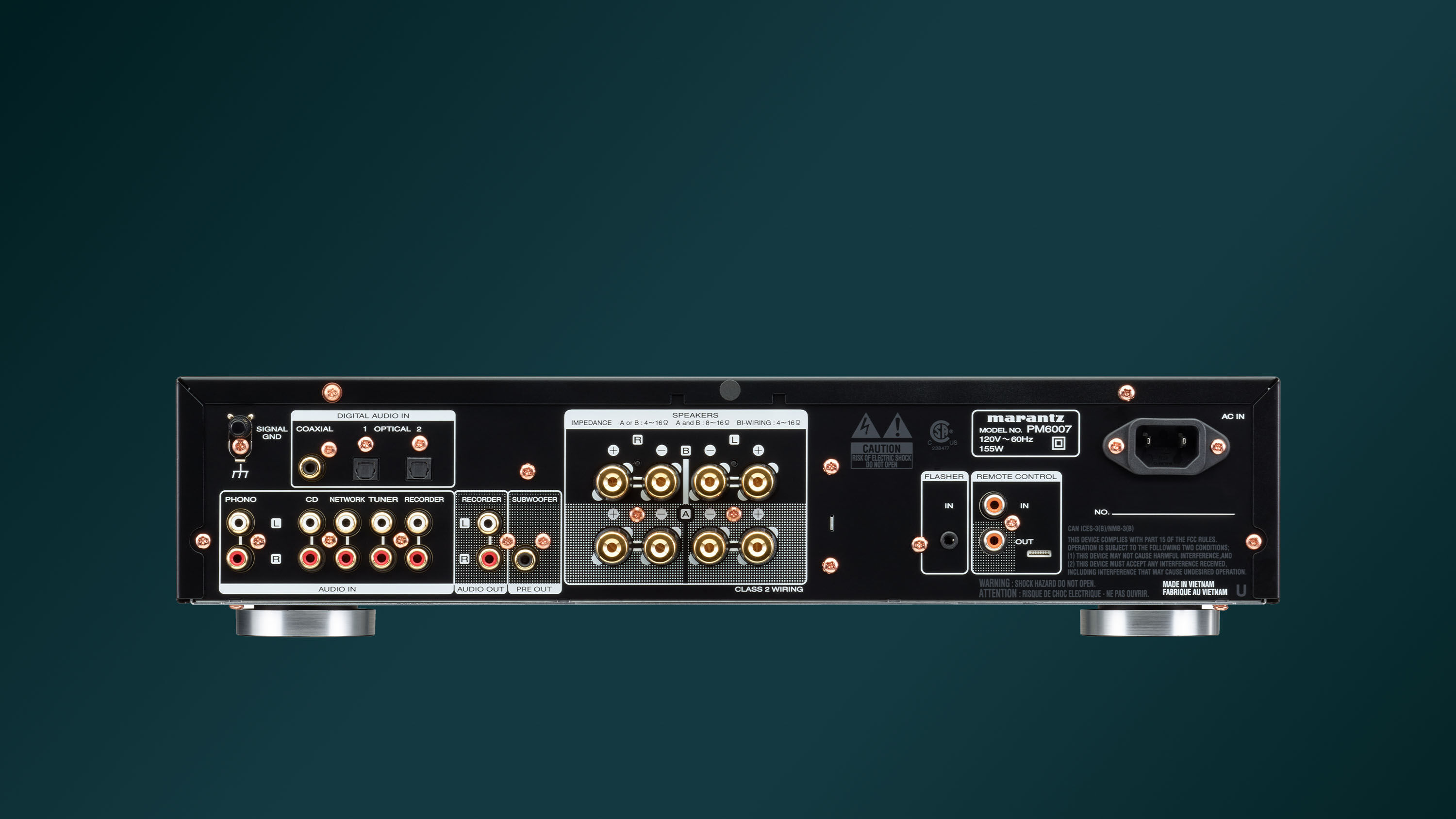

Inputs Outputs
- Audio Inputs
- 5
- Digital in: USB-B / optical / coaxial / USB-A
- No / 2 / 1 / No
- Phono Input: MM / MC
- Yes / No
- Audio Outputs
- 1
- Balanced In / Out
- No / No
- Pre-out / Main-in
- subwoofer / No
- Power Amp Direct IN
- No
- HDMI: inputs / outputs
- No
- Gold Plated Cinch
- Yes
- Speaker A / B
- Yes
- Speaker Terminals
- Metal (Gold) Screw
- Number of terminals
- 4
- D-Bus
- Yes
- Floating Control Bus (3.5 mm mono jack x 2)
- No
- Headphone Out
- Yes
- Headphone Gain Control (low / mid / high)
- No
Specifications
- Power Output (8 / 4 Ohm RMS)
- 45 W / 60 W
- Frequency response
- 10 Hz - 70 kHz
- Total Harmonic Distortion
- 0.08%
- Damping Factor
- 100
- Input Sensitivity: MM
- 2.2 mV / 47 kOhm
- Input Sensitivity: MC
- No
- Signal to Noise Ratio: MM/MC
- 83 dB / No
- Input Sensitivity: High level
- 200 mV / 20 kOhm
- Input Sensitivity: Balanced High level
- No
- Signal to Noise Ratio: High level
- 102dB(2V input)
- Input Sensitivity: Power Amp Direct IN
- No
- Signal to Noise Ratio: Power Amp Direct IN
- No
General
- Available Colors: Gold / Silver / Black / Silver-Gold
- No / No / Yes / Yes
- Metal Front Panel
- Yes
- Power Consumption in W
- 155
- Standby Consumption in W
- 0.3
- Auto Power off
- Yes
- Detachable Power Cable
- Yes
- Remote Control
- RC004MCD
- System Remote Function
- Yes
- Maximum Dimensions (W x D x H) in inches
- 17.3 x 14.5 x 4.1
- Weight in lbs.
- 16.7
- Carton Maximum Dimensions (W x D x H) in inches
- 20.3 x 7.4 x 18.4
- Carton Weight (inc. product) in lbs
- 21.3
