DSC Mini
IN A SMALL BOX
Major evolution in the Digital Sharing range, Métronome presents the DSC mini, the converter designed to be paired with the DSS 2.
Receiving the native I²S signal from the DSS 2, the DSC mini is the ideal complement for converting music files of all formats, up to DSD256.

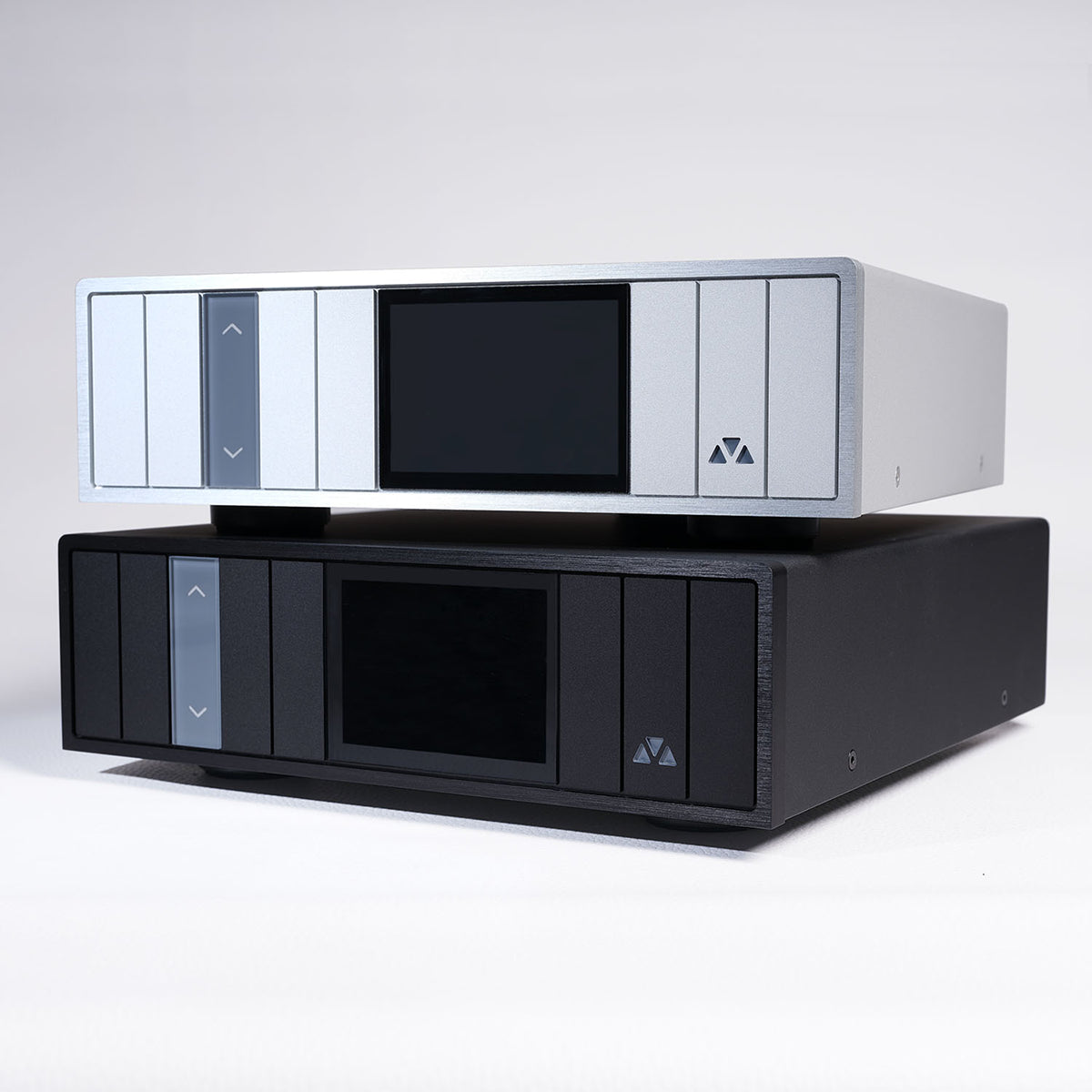

The chassis of the DSC mini is made of steel with a solid aluminum front panel, available in black and silver finishes.
IN THE PRESS
CONVERSION PROCESSORS
Reference
ES9026PRO
Range
High-End
THD+N
-110 dB
Dynamic range
S/N 124 dB
DIGITAL INPUTS
S/P DIF
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD128 DoP
AES/EBU
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD128 DoP
Toslink
PCM: 44.1 to 192 kHz / 32 bits
DSD: DSD64 DoP
USB
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD512 Native
I2S
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD256 Native
ANALOG OUTPUTS
RCA
Output impedance: 100 Ohms
Max. output level (0dB): 3V
XLR
Output impedance: 150 Ohms
Max. output level (0dB): 3V
DISPLAY
Size
3,5 inches
Resolution
320 x 240
Touch screen
No
GENERAL SPECIFICATIONS
Power consumption
15 Watts
Operating temperature
+5°C to +35°C
Operating humidity
5% to 90%
Dimensions (L x H x W)
250 x 70 x 250 mm
Weight
4.8 kg
