Monitor Audio Creator W3M
This product may take 3 to 5 business days to fulfill.
Couldn't load pickup availability

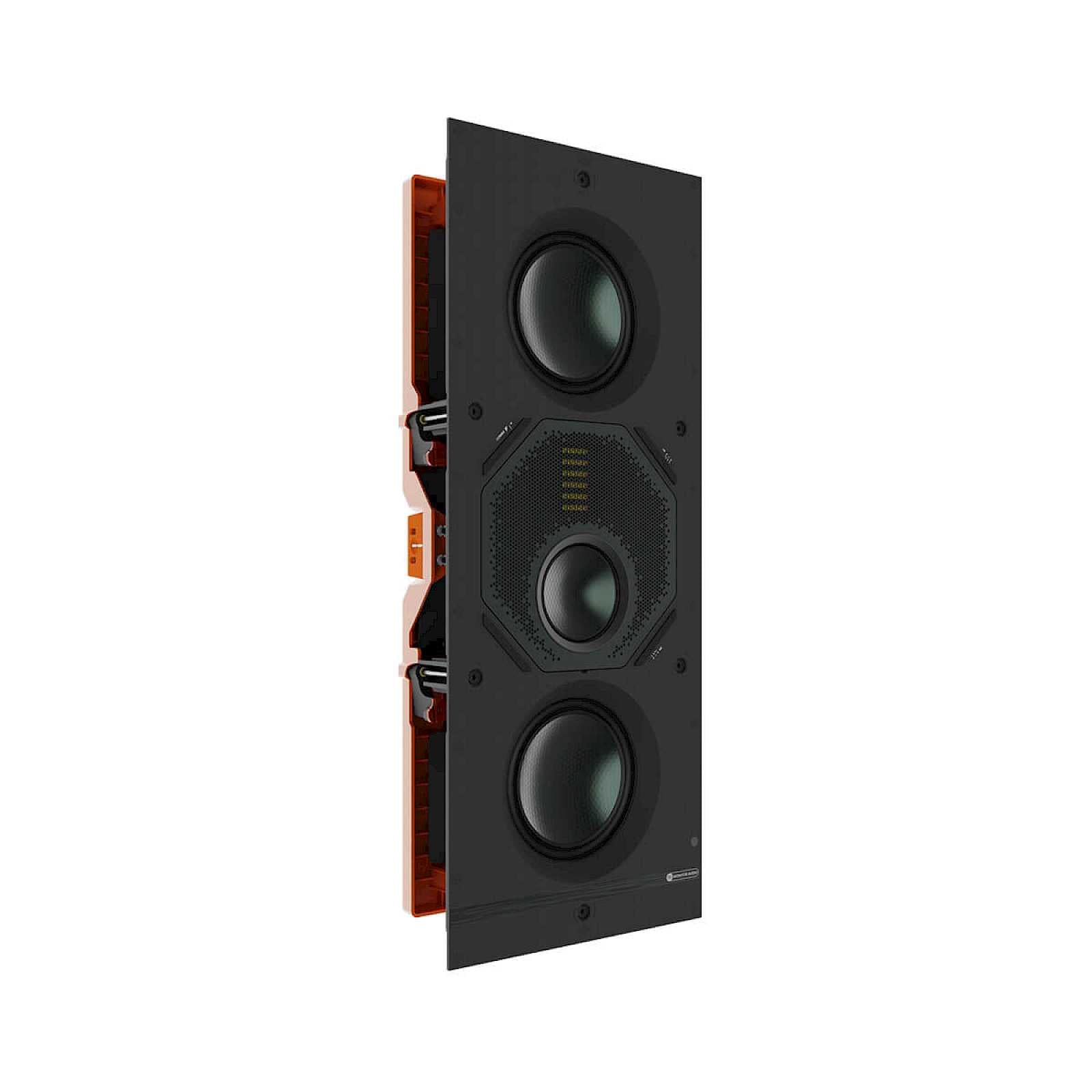

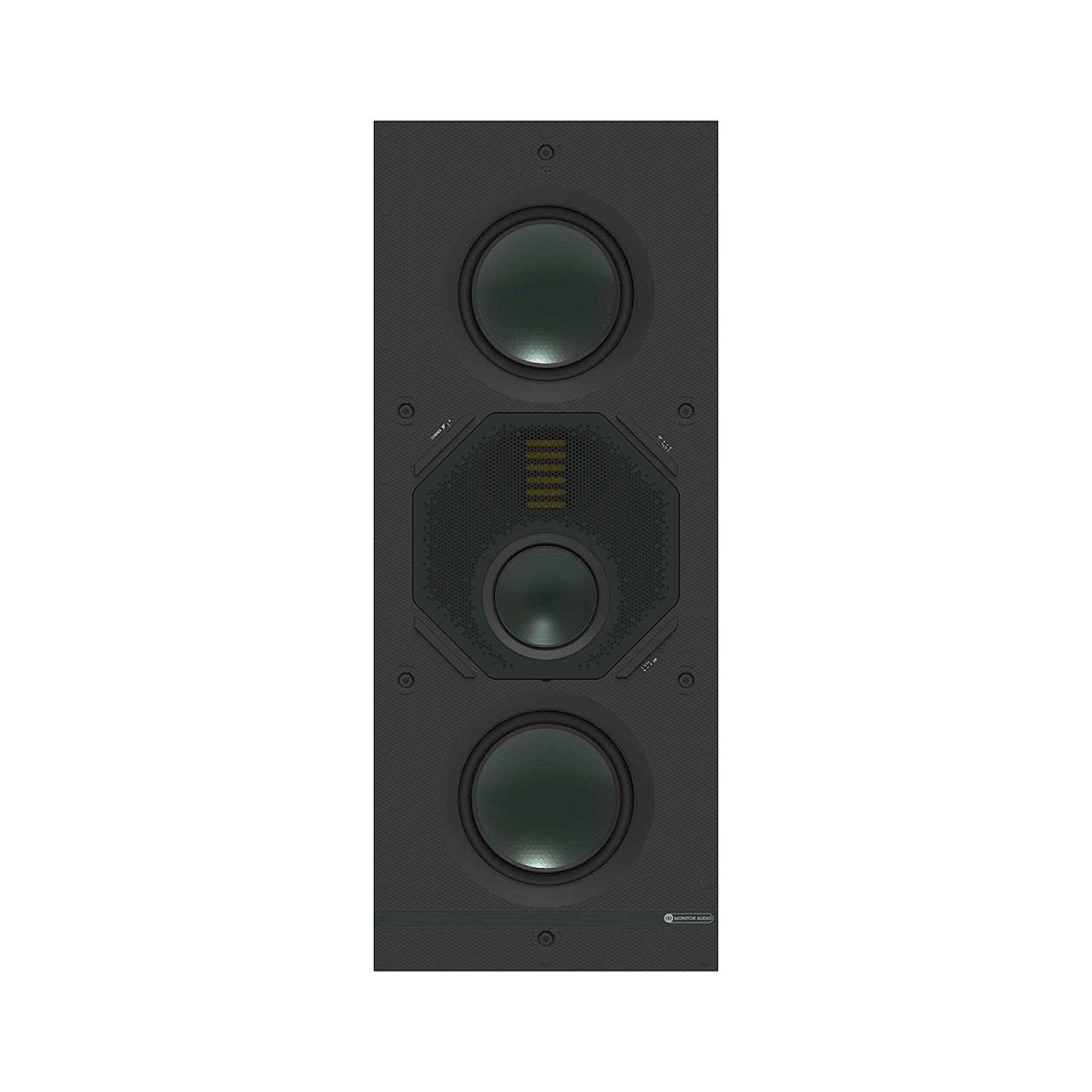

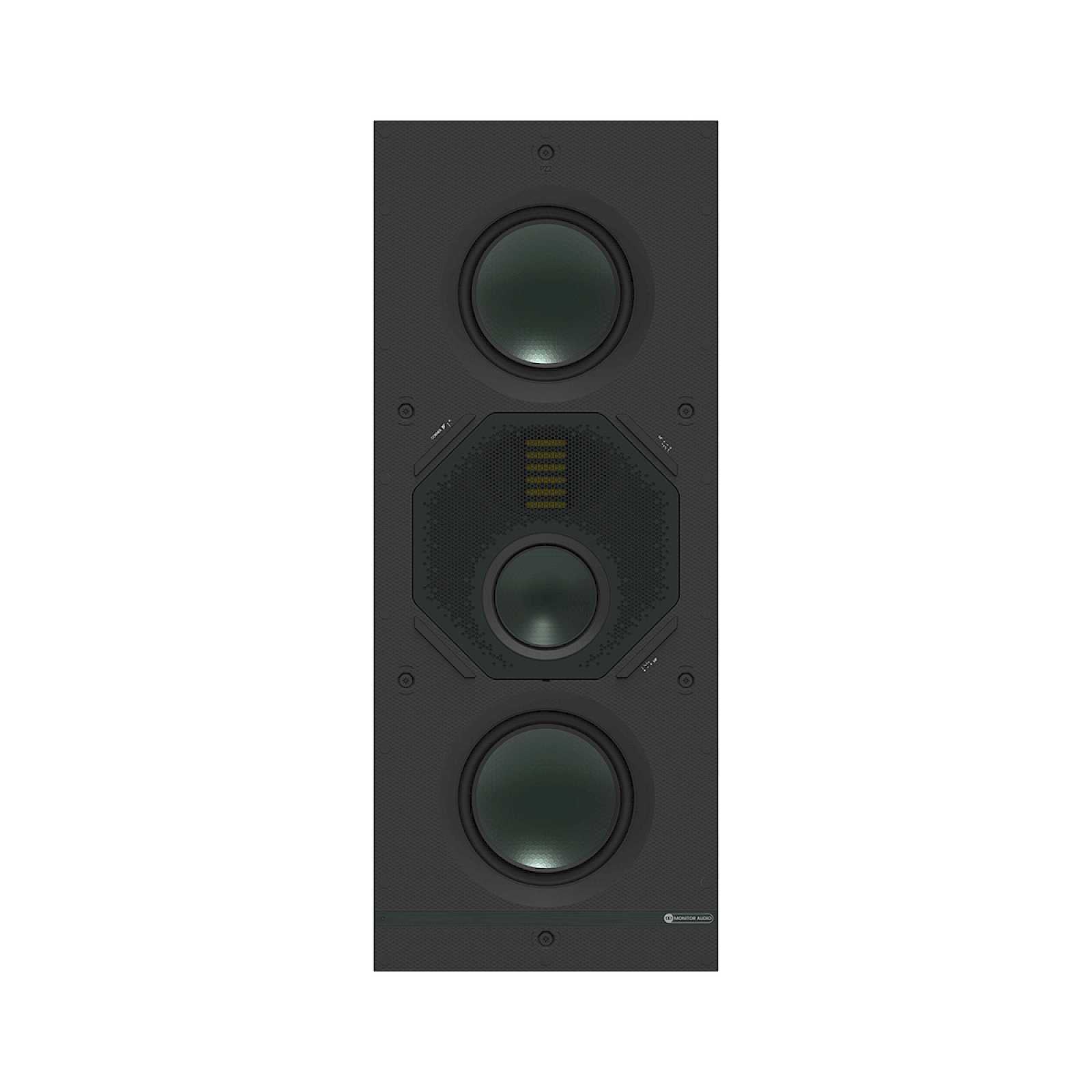

This high-performance, medium-sized Tier 3 in-wall loudspeaker is a three-way model featuring two RDT III bass drivers, a C-CAM mid-range driver, and an MPD II transducer. It has a cut-out dimension of 527 x 198 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Key Features:
- Ideal for installations where high-performance acoustics are desired
- Three-way design
- 1 x 1" MPD II transducer
- 2 x 5" RDT III bass drivers
- 1 x 3" C-CAM midrange driver
- Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
"Incredible detail and musicality".
- Ecoustics
British High-Fidelity Architectural Sound Redefined
This high-performance, medium Tier 3 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model based on the Platinum Series 3G and features the very latest acoustic technologies from Monitor Audio. This includes an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion. This is coupled with a C-CAM midrange driver and two RDT III bass drivers.
This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. This really is the last word in installed performance.
It has a cut-out dimension of 527 x 198 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable, and strong fitment.
Specifications
Category |
Details |
|---|---|
| System Format | 3–Way |
| Channels | 1 |
| Frequency Response, Installed (-6dB) | 45 Hz – 60 kHz |
| Nominal Impedance | 6 ohm |
| Minimum Impedance (20Hz to 20kHz) | 4.8 Ohm @ 150 Hz |
| Sensitivity (2.83Vrms@1m, Installed) | 88 dB |
| Maximum Peak SPL (single speaker @ 1m Z-Weighted)* | 122 dB |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 150 W |
| Recommended Amplifier Power (RMS into 8 OHM, Music Signal) | 60 – 225 W |
| Drive Unit Complement |
2 x 5" (127 mm) RDT III bass driver 1 x 3" (76 mm) C-CAM midrange driver 1 x MPD II transducer |
| Crossover Frequency |
LF/HF: 650 kHz MF/HF: 3.5 kHz |
| Mounting Depth | 85 mm (33/8") |
| Cutout L x W | 527 x 198 mm (203/4 x 713/16") |
| External Dimensions (Including Grille (H x W x D)) | 560 x 231 x 90 mm (221/16 x 91/8 x 39/16") |
| Weight (each) | 4.7 kg (10 lb 6 oz) |
| Pre-Construction Bracket | WM-B |
| Cabinet Finish | Matte black & Orange & Green |
| Sold As | Single Unit |
| Corner Switch | On/Off |
| MF Switch | - / 0 / + |
| HF Switch | - / 0 / + |
| Warranty | Lifetime |
Transparent Design Philosophy
Every Monitor Audio product is the result of intense collaboration, drawing on decades of experience within the design team and ensuring that all the elements of performance, technology and design work in harmony.
Creator Series is the physical manifestation of this approach.
-
Tier 1
A comprehensive range of speakers designed for cost-effective installations where product simplicity and solid acoustic performance is required.
Features
- C-CAM mid-bass drivers
- C-CAM gold dome Tweeters with UD Waveguide I
- Tri-Grip II legs
- Quik-Link
-
Tier 2
Where enhanced performance is required, Tier 2 models offer a significant step up over Tier 1 models, both in terms of acoustics and features.
Features
- Boundary correction, mid/high frequency & cut/boost
- C-CAM RST II mid-bass drivers
- C-CAM gold dome Tweeters with UD Waveguide II
- RST II bass drivers
- Tri-Grip II legs
- Quik-Link
- Rotating mid-pod
-
Tier 3
Tier 3 offers discreet, premium high-fidelity sound, coupled with technological innovations that offer enhanced flexibility of speaker placement.
Features
- Boundary correction, mid/high frequency & cut/boost
- IDC II coaxial mid/tweeter drivers
- RDT III bass drivers
- MPD II transducer
- Tri-Grip II legs
- Quik-Link
- Rotating mid-pod
Creator Series - In-Ceiling models
The in-ceiling loudspeaker sits at the heart of architectural sound; its ability to fill a room with wonderful sound while remaining virtually invisible delivers on the primary dream of a custom installation audio system. The Creator Series features small, medium and large in-ceiling models, allowing you to select the perfect array of speakers for your space.
Creator Series - In-Wall models
The in-wall loudspeaker is a versatile, high-performance tool that can add localised quality to any custom installation. The Creator Series in-wall models allow you to create areas of high-performance sound, most usually in a dedicated home cinema space, that rival that of stand-alone loudspeakers, while remaining virtually invisible.
Mount Boxes
The On-Ceiling and On-Wall Creator Series Mount Boxes allow simple delivery of audio in spaces where fully integrated, built-in solutions aren’t an option—delivering high-fidelity sound without restrictions.
Quik-Link

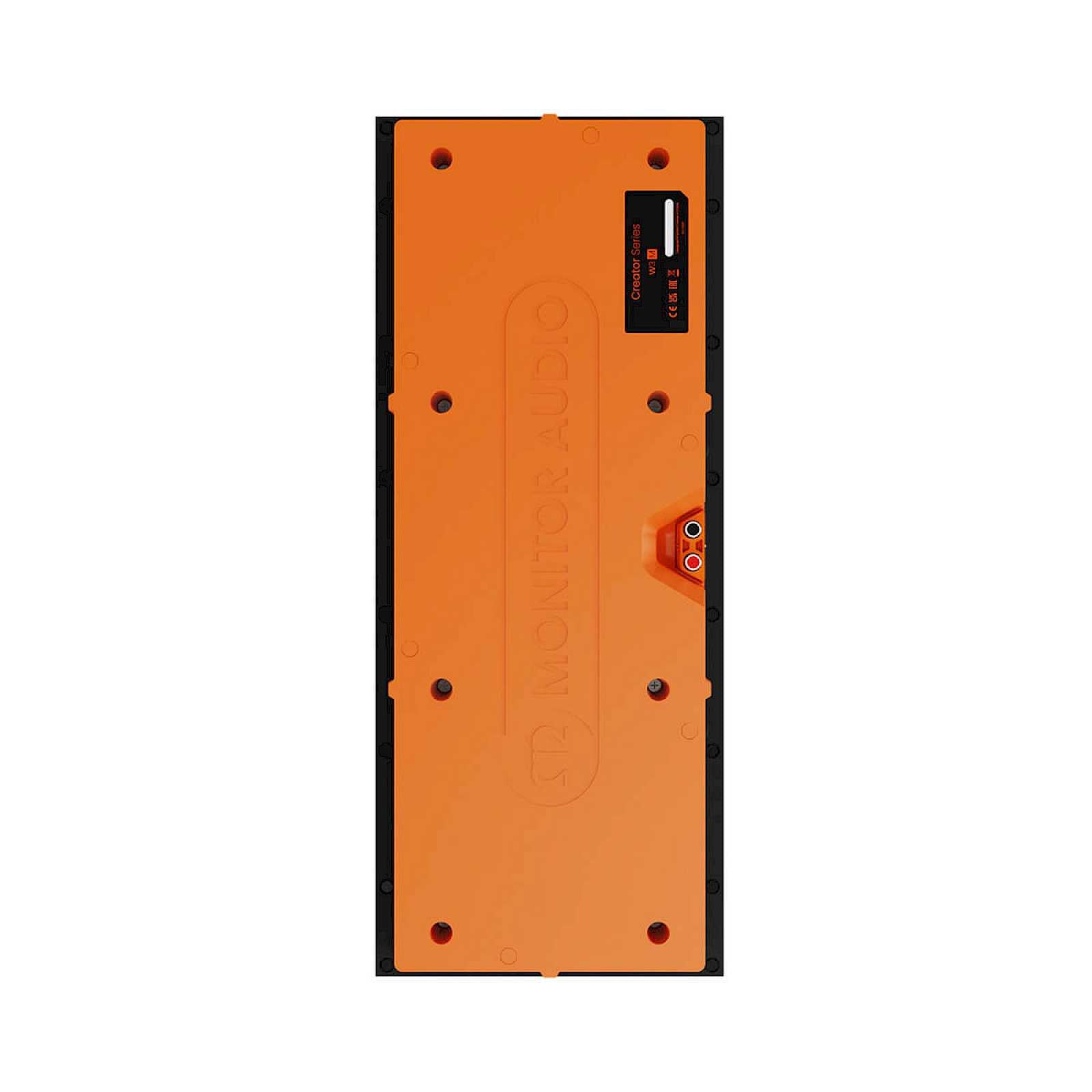

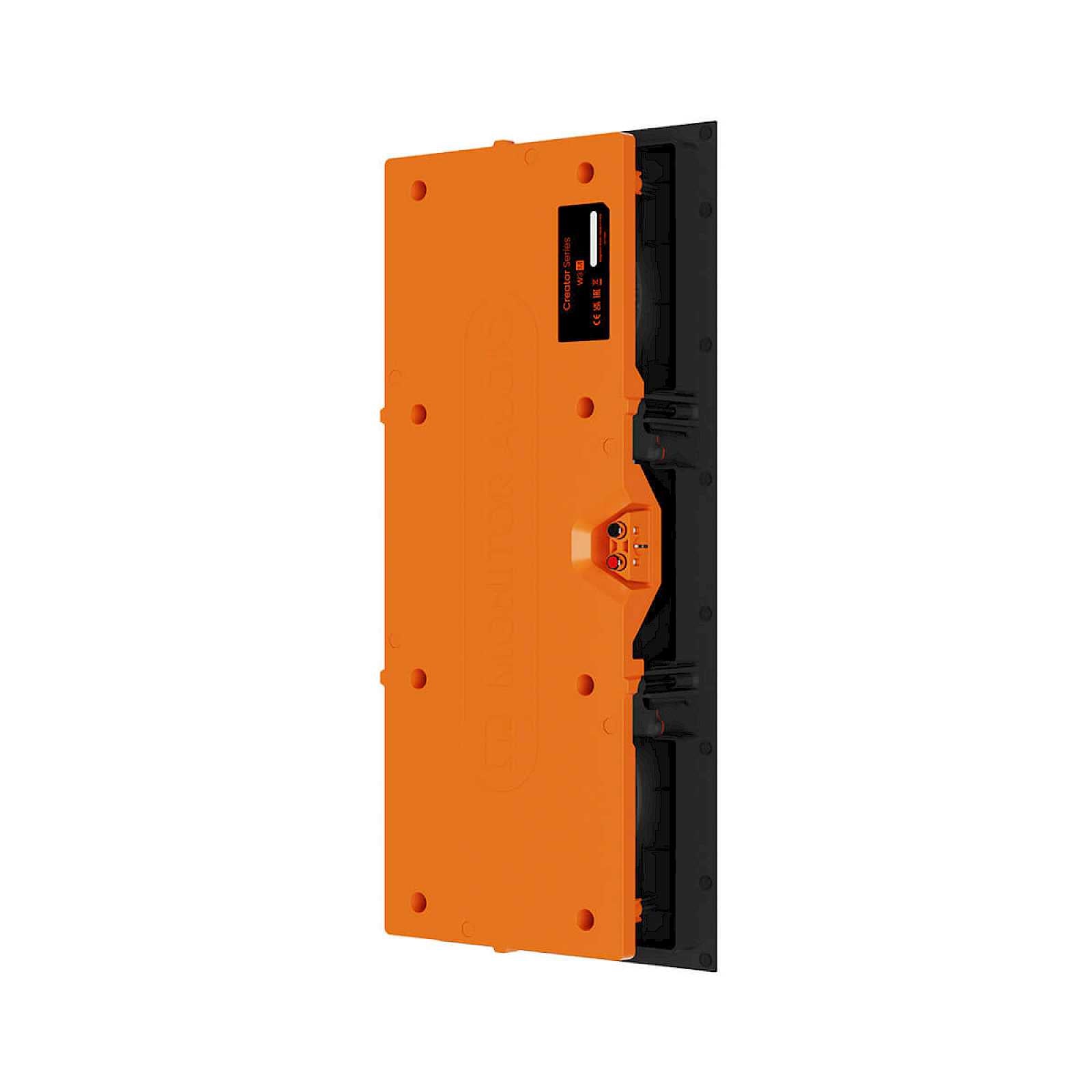

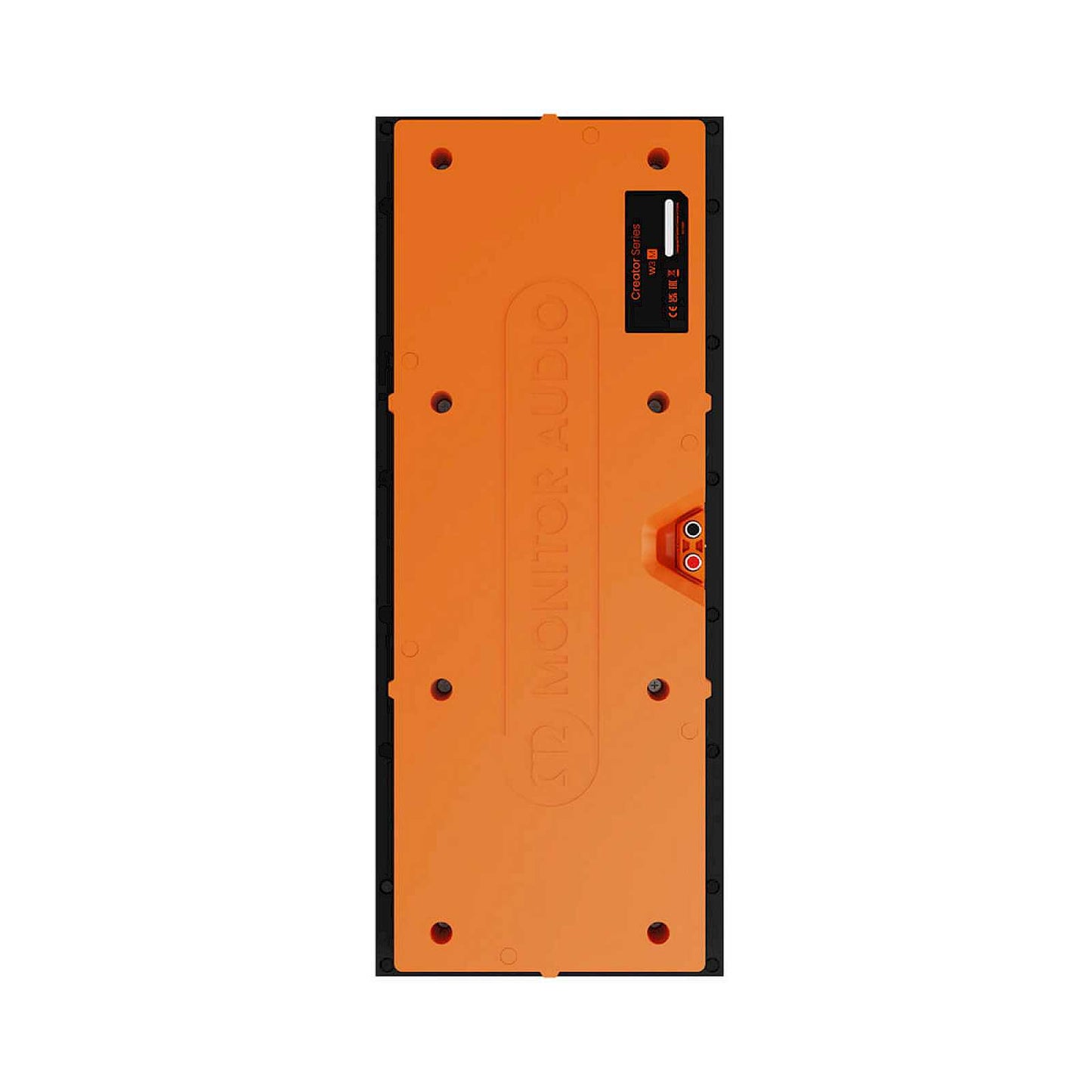

Our new innovative Quik-Link terminal revolutionises speed of installation. With Quik-Link you can make cable connections up the ladder at pre-installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It’s that easy.
Tri Grip II
Tri-Grip II is a new dog-leg mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.
RDT III
Rigid Diaphragm Technology III (RDT III) is a composite ‘sandwich’ structure made from ultra-thin low-mass skins, bonded to a honeycomb Nomex® core material. It is very light and very strong, meaning that it can respond with great speed without bending - just like a perfect piston.
MPD II
Tier 3 In-Wall speakers feature an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion.
Accessories
From installation to finishing touches, you’ll find everything you need to accessorise your Monitor Audio listening experience with our selection of Pre-Construction Brackets, Speaker Back Boxes and Speaker Grilles.
