Monitor Audio Streamers & Amplifiers IA60-12
This product may take 3 to 5 business days to fulfill.
Couldn't load pickup availability
The IA60-12 powers up to 12 channels (6 stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology, this model takes our unrivalled experience in the custom installation sector and delivers an audio engine ready to excel.
Superior power for your home cinema or multi-room installation
From our line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch, and the trigger input (– 3 – 30 V AC or DC) provides a signal for additional amplifiers or other equipment.

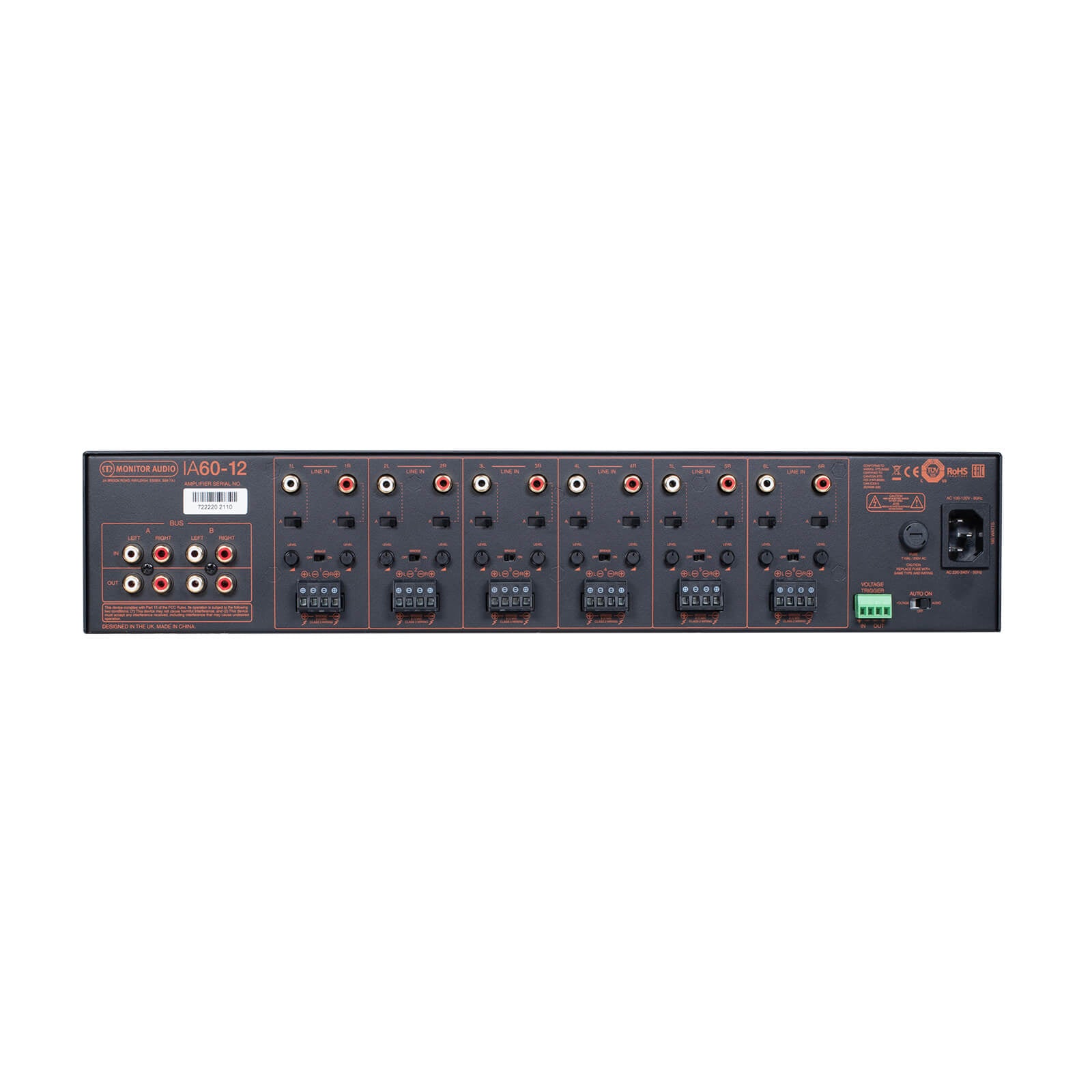

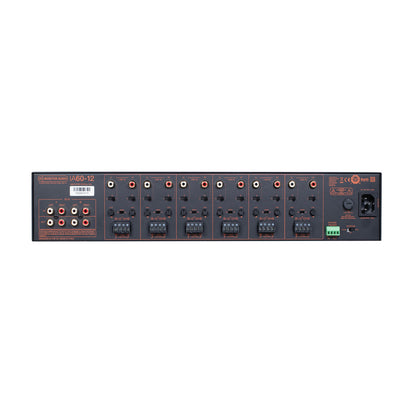

This model offers Buss Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio to successfully complete your project.
Specifications
Category |
Details |
|---|---|
| 'Connect' IP Control | N/A |
| Channel Number | 12 (6 Stereo Pairs) |
| Power (W / Channel) | 4 ohms | 60 W |
| Power (W / Channel) | 8 ohms | 45 W |
| Power (W / Channel) | Bridge (8 ohms) | 100 W (6CH) |
| Power (W / Channel) | 70V | N/A |
| Input Impedance | 20 K ohms |
| Output Impedance (Loop RCA) | 600 ohms |
| Input Sensitivity | 100 mV / 1 W, 700 mV – Full power |
| Maximum Input Voltage | 2.9 V |
| Signal to Noise (SNR) | -100 dB (20 Hz – 20 kHz) |
| Frequency Response | 5 Hz – 50 kHz |
| Total Harmonic Distortion (THD + N @ 1 kHz) | 0.03% |
| Rack Height | 2U |
| Dimensions (Excluding Feet) (H x W x D) | 86.8 x 438 x 427 mm (37/16 x 171/4 x 1613/16") |
| Dimensions (Including Feet) (H x W x D) | 97.2 x 438 x 427 mm (313/16 x 171/4 x 1613/16") |
| Width (Including Rack Brackets) | 482 mm (19") |
| IP Communication | N/A |
| Mains Operating Voltage |
100 –120 V @ 60 Hz 220 – 240 V @ 50 Hz |
| Fuse Rating | 10 A (T10AL ~ 250VAC) |
| Standby Power Consumption | <0.5 W (green mode) |
| Networked Standby Power Consumption | N/A |
| Weight | 7.34 kg (16 lb 2 oz) |
| Sold As | Single Unit |
| Warranty | 5 years |
Superior power for your home cinema or multi-room installation
Behind every great home cinema or multi-room installation is smart and powerful amplification. That’s why every model in Monitor Audio’s comprehensive range of high-performance amplifiers is capable of delivering precise, head-turning power in the blink of an eye, for a dynamic experience with movies, music, or the big match, inside or even outside in a garden system. Engineered to deliver a pristine performance, they benefit from robust build, intuitive technologies, and comprehensive connection options. They are the perfect partners for ourIMS-4 music streamer, which uses BluOS™ technology and can play music in up to four separate zones.
Technology that works for you
Our range of custom installation amplifiers comes with plentiful reserves of power as standard. That power is complemented by user-friendly technologies that deliver brains alongside the brawn. On our newest amplifiers, these technologies include DSP matrix configuration and flexible power options, which allow you to use your amplifier’s power the way you need it.
BluOS
BluOS is a wireless ecosystem that uses a home network to connect more than one enabled device and play your music in perfect sync, or different music simultaneously, anywhere in the house. Using advanced technologies, BluOS can wirelessly transmit lossless music up to 24-bit/192 kHz at lightning-fast speeds with no lag and zero loss in sound quality.
Indoor sound quality, outdoors
Monitor Audio’s installation amplifiers are more than just the ideal power source for home theatre and multiroom systems; they also deliver pristine performance in your garden or around your pool. When coupled with our Climate Garden range of all-weather loudspeakers, you can enjoy pristine sound anywhere you like—the only thing we can’t guarantee is the weather.
Designed for installation
Each and every amplifier Monitor Audio manufactures is engineered with custom installation projects in mind. Beyond power and user-friendly technologies, they are also quick and easy to fit, and their discreet form ensures they use the minimum amount of space. They also support a wide range of connectivity options, and their rugged design is engineered to last. Whatever they project, we have the custom installation amplifiers for you.
