Ortofon

Ortofon SPU Classic N E

$1,163.99
$1,163.99
Sale Sold out
Shipping calculated at checkout.
This product cannot be sold online.
Please call our store to purchase:
904-642-6677

The SPU Classic NE provides the same sound reproduction properties as the SPU Classic GM E series

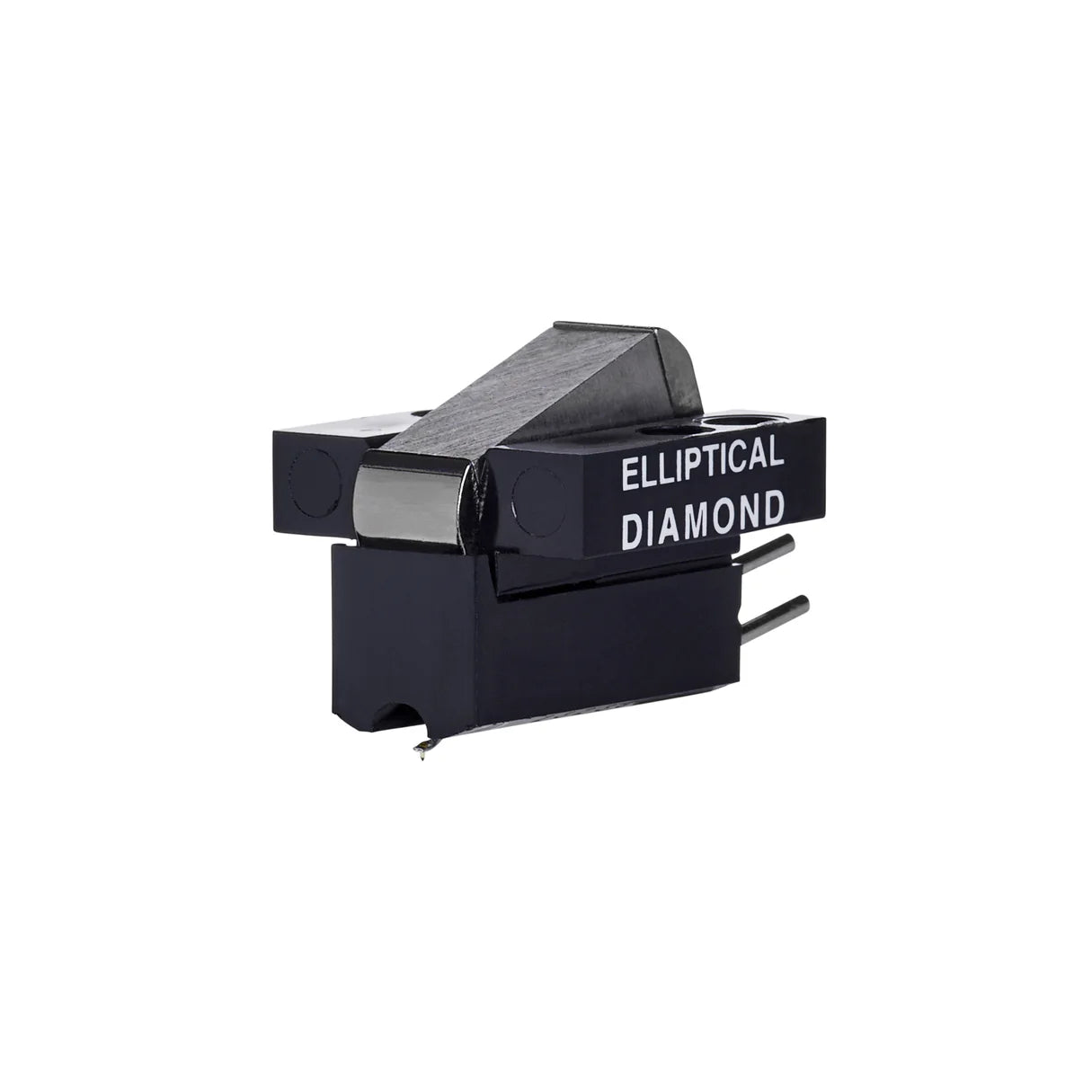

SPU Classic N E

The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging. The Classic NE can be used with vintage SPU-type headshells to recreate an authentic and functional SPU cartridge.

The SPU Classic NE is sold without the integrated headshell unit. Vintage SPU-type headshells are no longer available.

Listeners who wish to mount the SPU Classic NE on a traditional headshell may do so by using the SPU N adaptor.

Specifications

Channel balance at 1 kHz
1 dB
Output voltage at 1 kHz, 5cm/sec
0.2 mV
Channel separation at 1 kHz
20 dB
Frequency response 20 Hz - 20 kHz
3/- 2 dB
Tracking ability at 315 Hz
60 µm
Compliance, dynamic, lateral
8 µm/mN
Stylus type
Nude Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
3.0-5.0 g (30-50 mN)
Tracking force, recommended
4.0 g (40 mN)
Tracking angle
20°
Internal impedance, DC resistance
2.0 ohm
Recommended load impedance
10 ohm
Coil wire material
High Purity Copper (OFC)
Cartridge colour
Black matte
Cartridge weight
13 g
