Ortofon

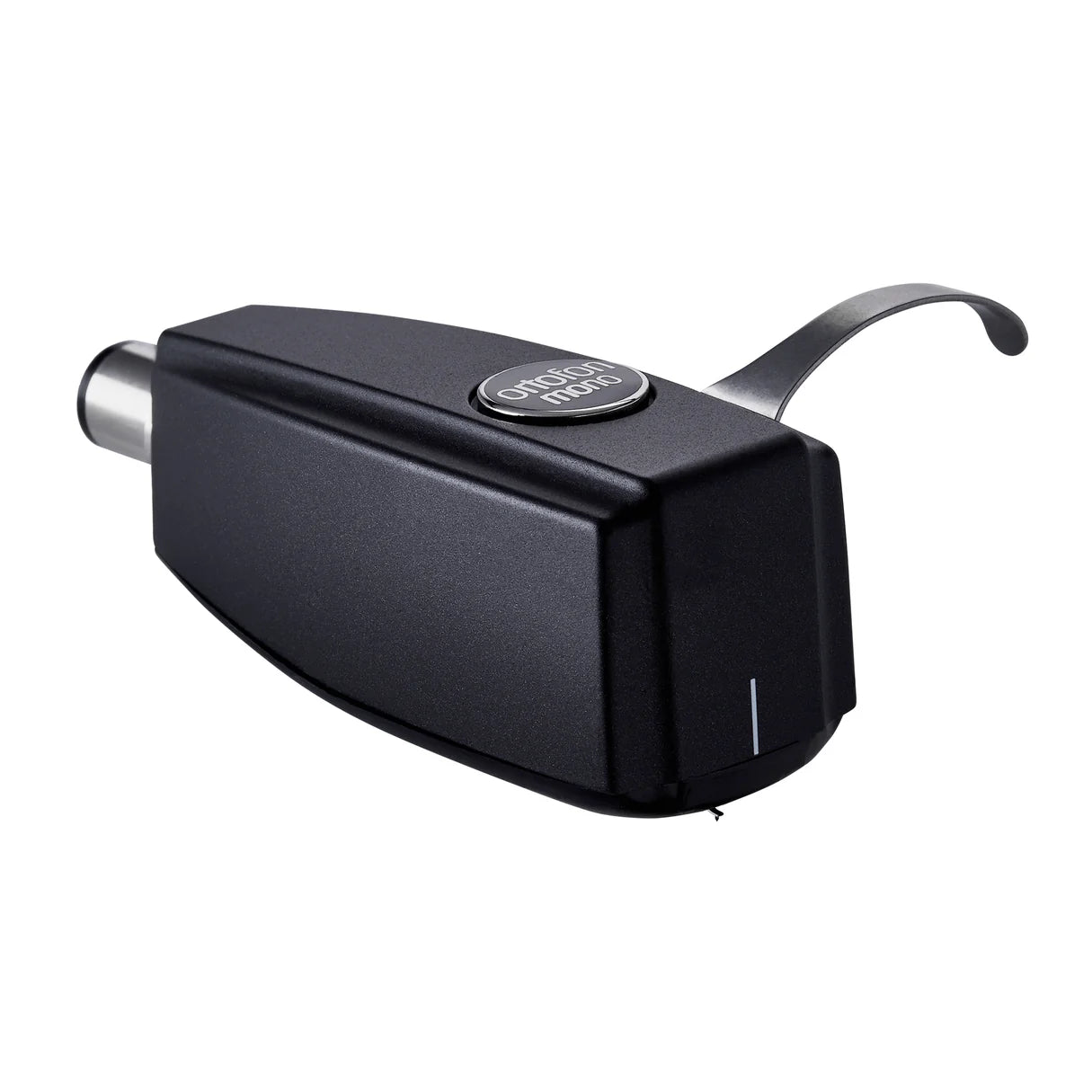

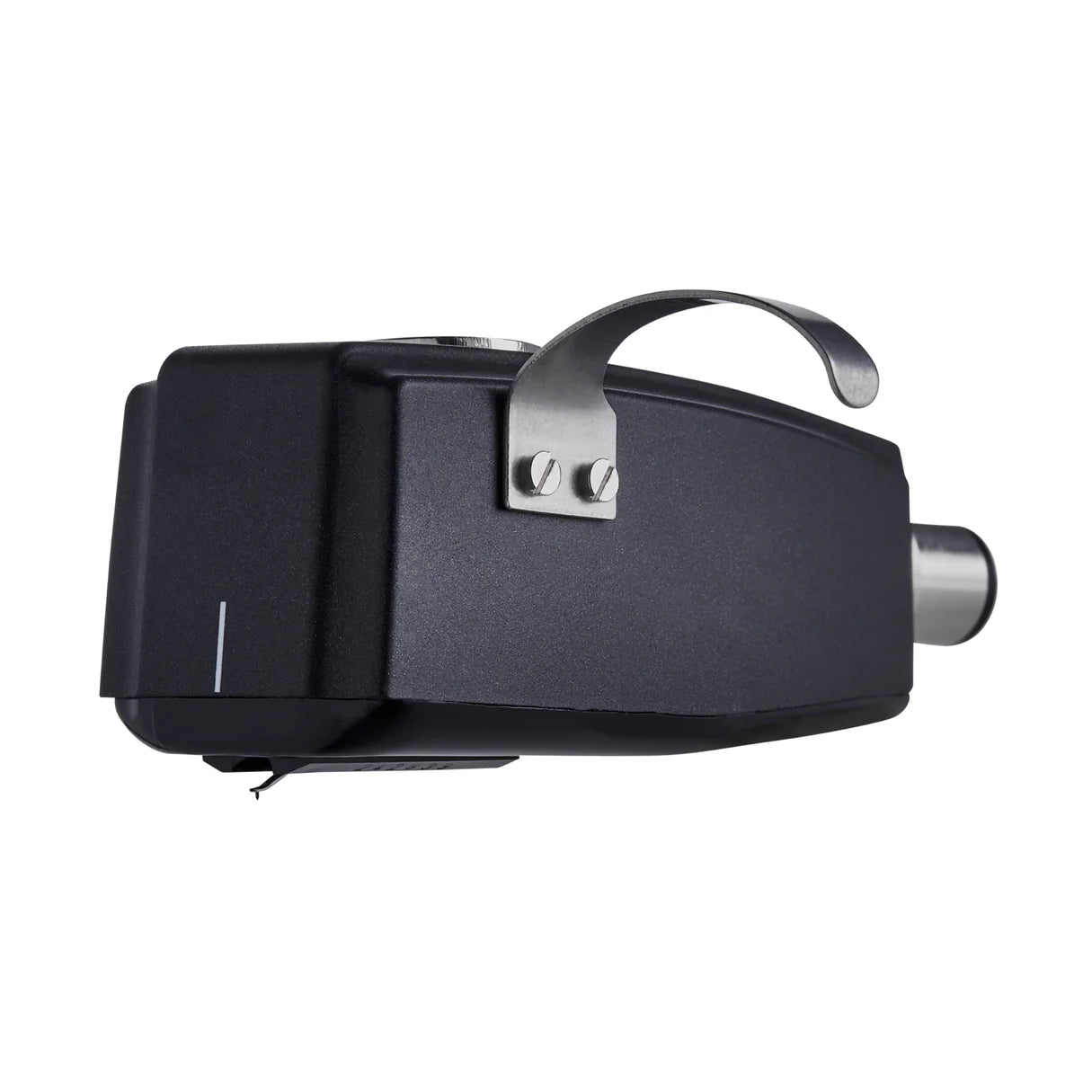

Ortofon SPU Mono G MKII
Regular price
$1,237.99
Regular price
Sale price
$1,237.99
Unit price
per
Shipping calculated at checkout.
This product cannot be sold online.Please call our store to purchase:
904-642-6677
For playback of early 25µm mono recordings
SPU Mono G MKII
The SPU Mono GM MkII is a high output Moving Coil cartridge with a spherical stylus profile for the playback of early 25µm mono recordings.
The SPU Mono GM MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.
The SPU Mono GM MkII is for the playback of early 25µm mono recordings
The SPU Mono GM MkII is a high output Moving Coil cartridge a with a spherical stylus profile, for the playback of early 25µm mono recordings.
The SPU Mono GM MkII provides an authentic method of playing back these early vinyl recordings with remarkable level of sonic accuracy, and its high output negates the need for a moving coil transformer.
Specifications
Output voltage at 1 kHz, 5cm/sec
3 mV
Frequency response 20 Hz - 20 kHz
2/- 1 dB
Tracking ability at 315 Hz
70 µm
Compliance, dynamic, lateral
12 µm/mN
Stylus type
Spherical
Stylus tip radius
R 25 µm
Tracking force range
3.0-5.0 g (30-50 mN)
Tracking force, recommended
4.00 g (40 mN)
Tracking angle
20°
Internal impedance, DC resistance
100 ohm
Recommended load impedance
47 kohm
Coil wire material
High Purity Copper (OFC)
Cartridge body material
Ground wood and resin composite
Cartridge colour
Black matte
Cartridge weight
28 g
