Parasound

Parasound Halo Series A-23+ Power Amplifier

Regular price $1,799.00 USD
Regular price Sale price $1,799.00 USD
Sale Sold out
Shipping calculated at checkout.

This product may take 3 to 5 business days to fulfill.



For all Parasound Product, please contact us on lead time and availability.

A 23+




Changes from the original A 23→A 23+



    • 125 → 160 Watts (8Ω)

    • 225 → 240 Watts (4Ω)

    • 400 → 500 Watts (bridged)

    • Filter cap: 40,000 uF →54,400 uF

    • Crosstalk (20kHz): 63dB → 70dB

    • Transformer size: 1.0 kVA → 1.1 kVA

    • Refined Halo cosmetic with aluminum end caps & gold highlights

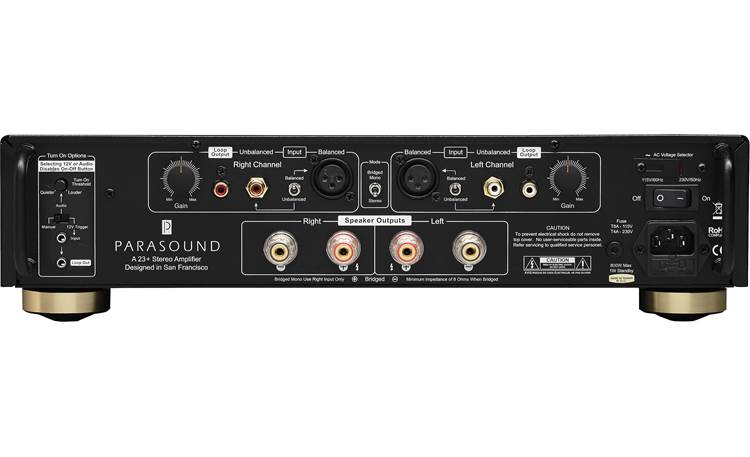

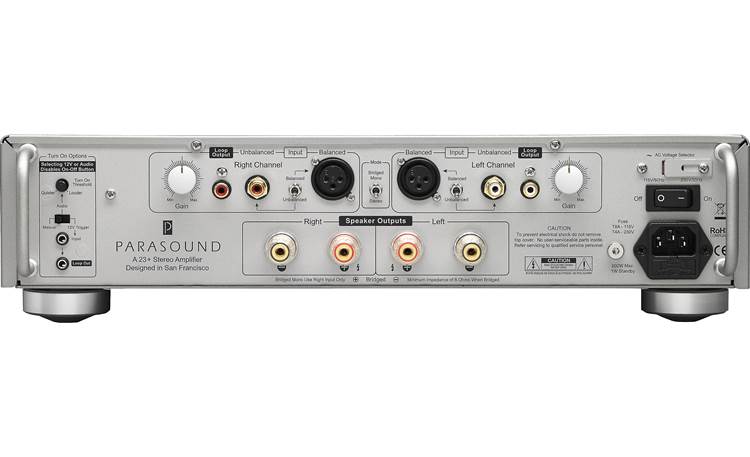

    • Updated rear panel with heavy duty speaker terminals from HINT 6

    • Upgraded internal gold on gold audio connections

    • Updated auto turn on circuit


All Features



    • 160 watts x 2 @ 8 Ω RMS, both channels driven

    • 240 watts x 2 @ 4 Ω RMS, both channels driven

    • 500 watts x 1 @ 8 Ω, in bridged mode

    • Circuitry designed by legendary John Curl

    • High bias Class A/AB operation

    • 45 amperes peak current per channel

    • Stable with speaker impedance dips below 2 Ω

    • Balanced inputs with discrete circuits

    • Heavy-duty 24k gold-plated 5-way speaker binding posts

    • Gold-plated RCA input & loop output jacks

    • Direct-coupled signal path, no capacitors or inductors

    • DC Servo and relay protection circuits

    • AC turn-on inrush surge protection with relay bypass

    • JFET input stage, MOSFET driver stage

    • 12 beta-matched 15 ampere, 60 MHz bipolar output transistors

    • 1.1 kVA shielded toroid transformer w/ independent windings for each channel

    • Independent power supplies for input stage, driver stage and output stage

    • 54,400 µF filter capacitors for output stages

    • Full power is rated all the way down to 5Hz for unrestricted low-end bass

    • Harris hyper-fast soft-recovery bridge diode rectifiers

    • Automatic turn-on by 12 V trigger or audio sensing

    • 2 rack space chassis with rear carry handles

    • Rack mount hardware available separately

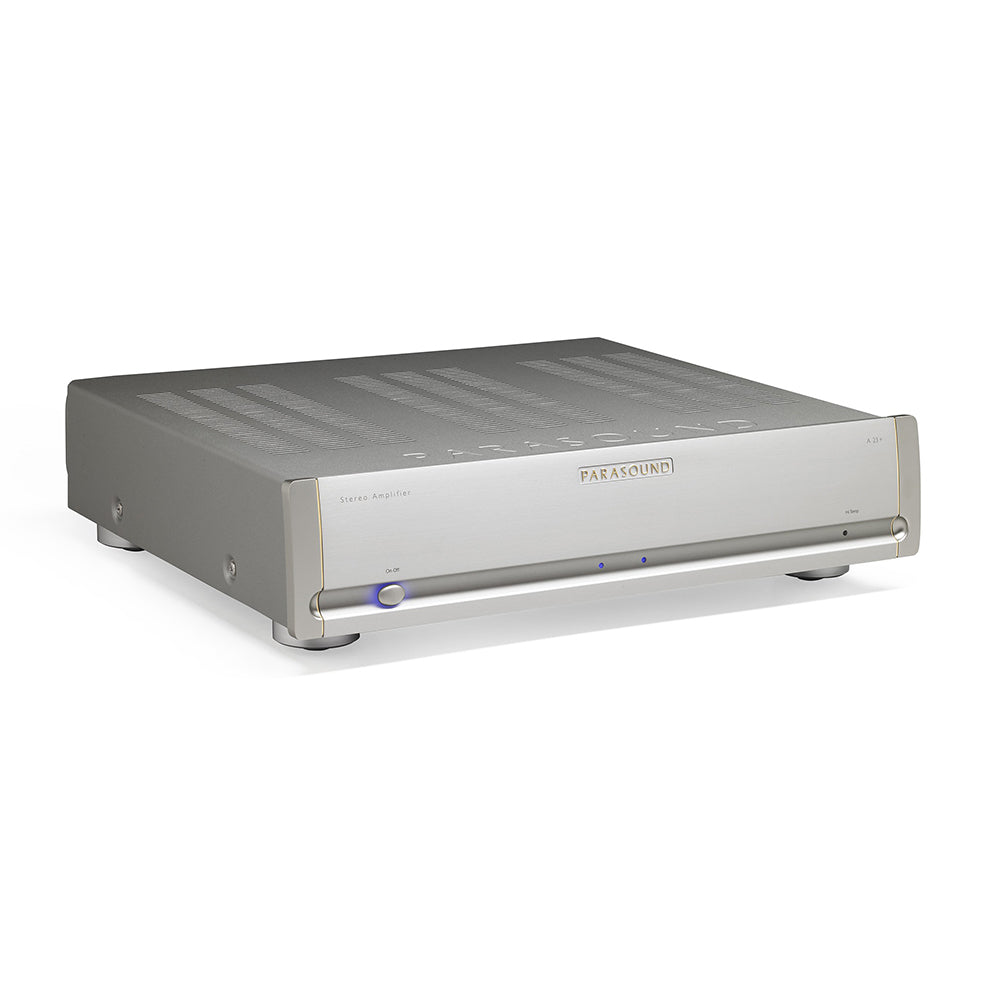

    • Available in silver or black
