Phasemation

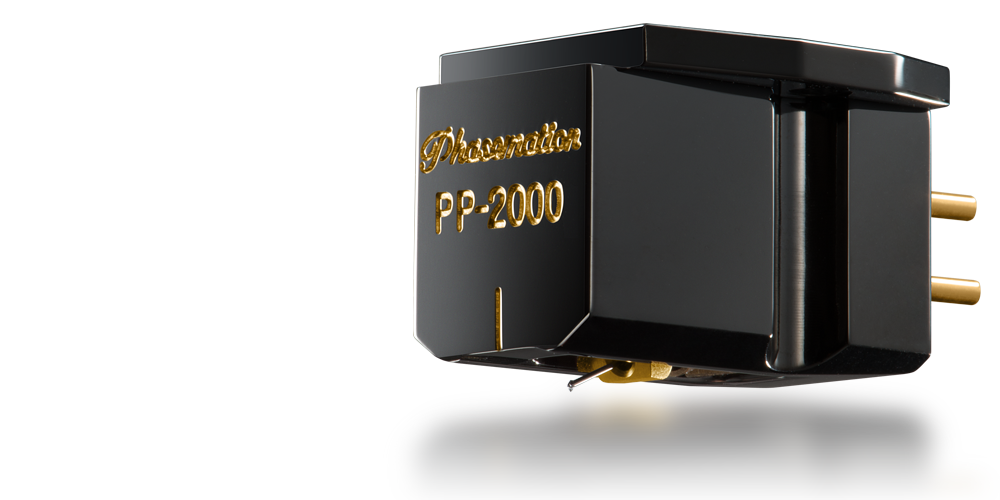

Phasemation PP-2000 MC Phono Cartridge

Regular price $7,999.00 USD
Regular price Sale price $7,999.00 USD
Sale Sold out
Shipping calculated at checkout.

MC Phono Pickup Cartridge PP-2000

Phasemation's flagship MC cartridge which can educe music reality and even the artist's passion engraved in the record

We, Phasemation, have been continuing to research the cartridges which are our brand starting point. By our daily research, we have succeeded in creating auditory lateralization, space reproduction ability, the midrange-treble-part with high freshness and the resonant bass part, which we can call as "ultimate" We gave it the name, PP-2000, to this cartridge and will release it as a new product.

Main feature

New design of a magnetic circuit

We decided to re-examine the magnetic circuits of PP-1000. Having permendur to remain as the magnetic material, the shape of the yoke is newly designed.
Due to this, an excellent shape to have furthermore high efficiency and uniformity of the magnetic field is achieved.
Increased output has been achieved without increasing the weight of the vibration system.

New design of vibration system

The vibration system has been newly designed in order to pursue the best balance of the sound quality. Reproducibility of a very small sound is furthermore improved because the damping material has been changed to the selected damping material and the damping characteristics have been newly designed; thereby, it can reproduce even the atmospheric feeling.

Inheriting the high quality materials for audio sound

High quality materials for audio sounds verified in PP-1000 and in other models listed in the followings are inherited: cantilever made of pure boron material which are well-acknowledged until now, magneto coil made of 6N oxygen-free copper wire, pure iron coil bobbin, wire damper, etc.

The DLC (Diamond Like Carbon)*1) which is well-acknowledged continues to be adopted for the body. The sound quality without fuzzy sounds has been achieved because the rigidity and vibration-damping characteristic are excellent.

*1DLC(Diamond Like Carbon) DLC(Diamond Like Carbon)is a generic name of carbon film to be produced with vapor phase synthesis utilizing ion processing; and the high rigidity and high electric insulation similar to a diamond are provided for it.

Needle exchange

Please contact the dealer when exchanging the needle.

Product Specification

Power Generation Method Moving Coil Type
Impedance 4 Ohm
Applicable Stylus Force 1.7 to 2.0g
Output Voltage 0.3mV(horizontal direction of 1kHz 50mm/s)
Compliance 8.0X10(e-6)cm/dyne
Playing Frequency Range 10Hz to 30kHz
Separation 30dB or more (1kHz)
Channel Balance Within 1dB (1kHz)
Range of Recommended Temperature 20℃ to 26℃
Tare 14.3g
Stylus Chip Diamond(line contact / curvature 0.03×0.003mm)
Cantilever Pure Boron φ0.26
Magnet Samarium Cobalt Magnet
Magnetic Circuit Composition Material Permendur
Base Stainless(Diamond Like Carbon processing)
Body Duralumin(Diamond Like Carbon processing)
