PIEGA

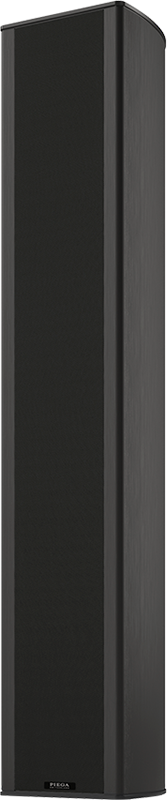

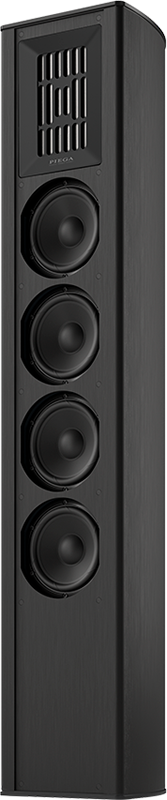

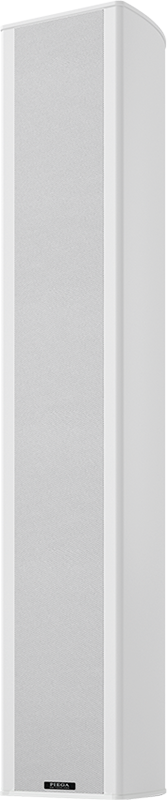

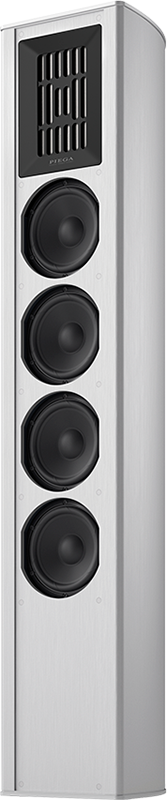

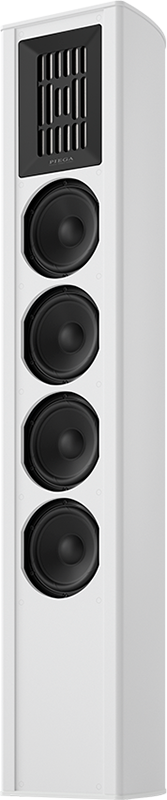

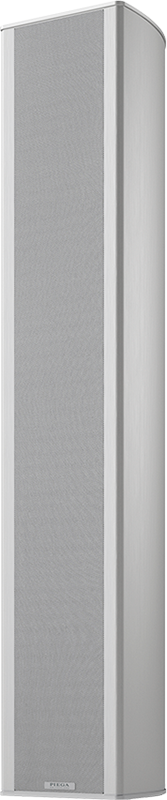

PIEGA Coax 511 LTD Speakers

Regular price $15,995.00 USD
Regular price Sale price $15,995.00 USD
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

This product may take 3 to 5 business days to fulfill.

COAX 711 LTD

The largest model in the PIEGA Coax series, the almost 1.20 m high loudspeaker delivers a superlative sound experience. The coaxial ribbon provides brilliant and detailed highs, silky and clear mid-range and a room-filling sound image.

C212 COAXIAL RIBBON

All high and midrange frequencies are radiated from a point source, thus reaching the listener correctly in phase.

FOUR WOOFERS

The extremely powerful bass of the Coax 711 LTD is due to its large membrane area. Two woofers and two passive membranes.

TIM

The tension improve modules (TIM) specially developed by PIEGA provide the entire cabinet with a controlled tension and thus prevent even the slightest cabinet vibration.

ALUMINUM CABINETS

Aluminum is the ideal material for loudspeaker cabinets thanks to its outstanding acoustic properties and elegant look.

ELEGANT DESIGN

The highly elegant design with the rounded cabinet shape at the back is timeless and offers a stunning visual highlight in any living room.

TOP-CLASS TWEETER MIDRANGE SYSTEM

The filigree and incredibly light foils of the Coax ribbon have significantly more surface area and require less movement than the diaphragms of conventional midrange tweeter loudspeakers. This makes the Coax 711 LTD sound incredibly airy, dynamic and impulsive. It also ensures that the frequencies emitted by the coax ribbon always arrive in phase, regardless of the listening position. That’s why PIEGA Coax speakers sound “right” in any room.

WE BRING VOLUME INTO YOUR LIVING ROOM

We know our strengths. But also those of others. The woofers manufactured by the renowned chassis manufacturer SEAS offer powerful bass reproduction of the highest class. This loudspeaker offers four 220 mm woofers. Two of them are actively driven by the connected amplifier, two resonate passively and support the bass reproduction.

MORE ABOUT THE COAX CONSTRUCTION

The Coax loudspeakers are a unique combination of intelligent designs with the know-how required for outstanding music reproduction. Read more about our aims to show you what is needed to build a state of the art loudspeaker in our blog post.

TECHNICAL DATA

RECOMMENDED AMPLIFIER OUTPUT
20 - 250 Watt
SENSITIVITY
92 db/W/m
IMPEDANCE
4 ohms
FREQUENCY RANGE
22 Hz - 50 kHz
DIMENSIONS (H × W × D)
118 × 28 × 33 cm
WEIGHT
47 kg
DESIGN PRINCIPLE
3-way system floor-standing loudspeaker
EQUIPMENT
2 x 220 mm UHQD woofer
2 x 220 mm UHQD passive radiators
1 x C212 Coaxial ribbon
CONNECTIONS
Bi-Wiring / Multi Connectors
VERSIONS
Aluminum cabinet brushed, silver / speaker grille cloth silver
Aluminum cabinet brushed, black anodized / speaker grille cloth black
Aluminum cabinet, white-lacquered finish / speaker grille cloth white
