Pro-Ject Audio Systems

Pro-Ject MC Step Up Box DS3 B

$1,199.00
$1,199.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

MC Step Up Box DS3 B

Premium step-up transformer

Made In Europe








Premium balanced sound upgrade

Use the single-ended RCA, or go balanced with the XLR in- and outputs and benefit from a low noise interference free signal transmission. Switch the in- and outputs via the push buttons on the front. Additionally, you can set the gain level either on 24dB or 30dB.

As there is no amplification, the MC Step Up Box DS3 B has a remarkable noise performance and a very low level of distortion. The sound with a Step-Up Transformer will be more lively, dynamic and natural.





We always recommend a step-up transformer in combination with a high quality MM phono (especially tube) preamp, rather than MC phono preamplifiers.







Lundahl LL 1678

For the MC Step Up Box DS3 B we use high quality Lundahl LL 1678 audio transformers to ensure every detail remains.

















Balanced XLR

Lundahl LL 1678

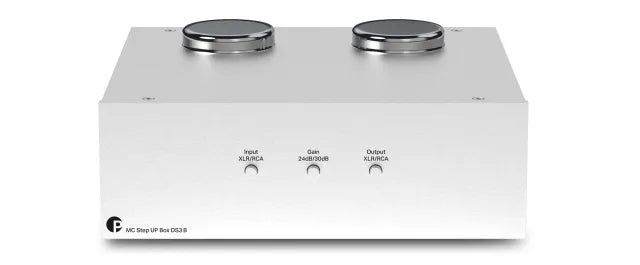

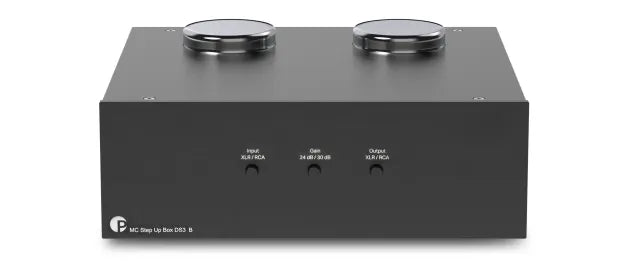

Settings

Made in EU

Interference free
A balanced connection can extract the final musical information, effectively filtering out any noise from interferences stemming from our noisy, modern homes.

High quality transformers
Lundahl transformers ensure highest sound quality and that every detail of your record remains.

Match your cartridge

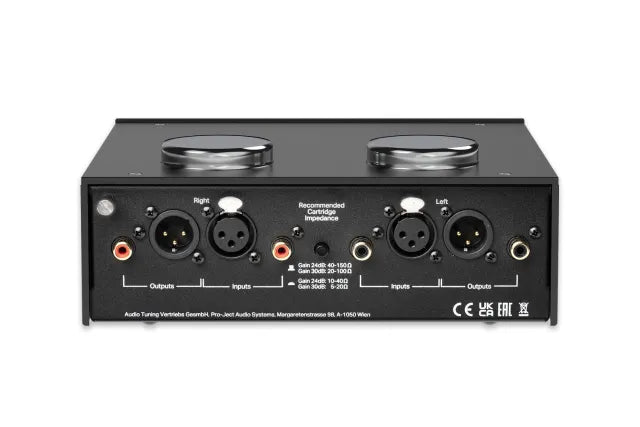

Switch the in- and output & adjust the gain on the front. The cartridge impedance can be set on the back with a push of a button.

High-quality materials
The new Step Up Box DS3 B is carefully designed and handmade in Europe.





SPECIFICATIONS

Frequency response 10Hz - 55kHz +/- 1dB
Recommended load 47 kOhm / 100pF
Transformation ratio 1:16, 1:32
Input MC 1x pair RCA phono sockets, XLR
Output 1x pair RCA phono sockets, XLR
Dimensions WxHxD 206 x 79 x 197 (209 with sockets) mm
Weight 1740 g
