Pro-Ject Audio Systems

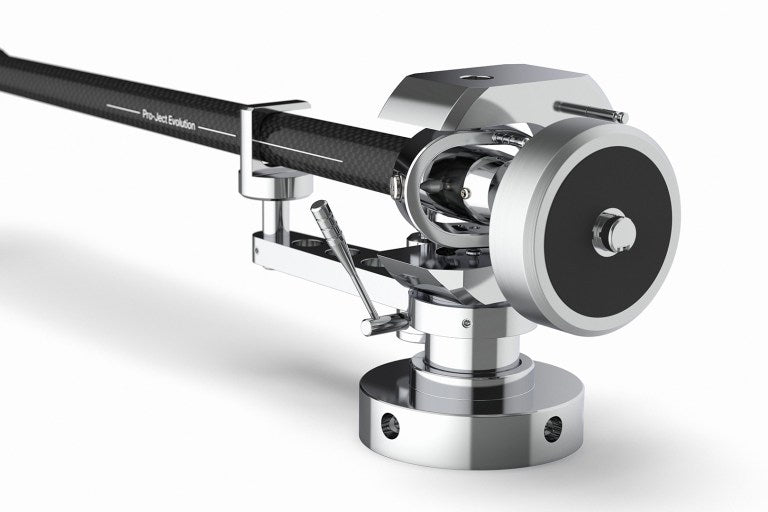

Pro-Ject TONEARM EVO 10 CC

$999.00
$999.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

High precision tonearms with carbon-fibre armtube

The next generation in 9, 10 and 12 inch

The tonearm is one of the most important parts of a turntable and therefore not only influences, but also shapes the sound in a specific way. We did in-depth listening tests with different bearing types, tonearm materials and also cartridge combinations to develop the sound we are looking for.

What you need to know

The new EVO tonearm uses an inverted cardanic ABEC 7 quality bearing with 4 stainless steel tips. This bearing type is very stable and low friction, which guarantees a clear tracking. This results in a detailed and open sound stage. All the microinformation from the groove is preserved. The bearing sits in a an full aluminium housing, which provides the needed stability.

The EVO CC tonearm tube is made out of one-piece carbon fiber, which is lightweight and strong at the same time. If you look closely, you can see that the arm tube has a conical shape, which means it gets thinner. This design avoids standing wave reflections. The arm tube is fixed by a single screw to allow rotation for an easy azimuth adjustment.

The tonearm height can be continuously adjusted by loosening the two grub screws. It gives you the option of adapting the tonearm to height changes to always achieve the best sound quality. Setting and experimenting with the VTA & Azimuth is crucial in extracting every last bit of performance out of your cartridges.



Features

  • Flexible high-purity copper inner wiring
  • Aluminium bearing block
  • Ultra-low friction 4 pin point cardanic tonearm bearing
  • Stiff and lightweight carbon tonearm tube
  • TPE damped counterweight prevents resonances
  • Accurate azimuth and VTA adjustment
  • Outside ring is open to prevent bell-mode resonances
  • Silicone-damped armlift can be adjusted to suit arm height
  • Gold plated 5PIN DIN output socket
  • Shiny aluminium parts polished by hand
  • Available as CC Black & CC HG version in 9, 10, 12 inch
  • Made in Europe



    Technical Specifications

    Effective tonearm lenght: 304,8 mm (12"), 254 mm (10"), 230 mm (9")
    Mounting distance: 291,6 mm (12"), 238 mm (10"), 212 mm (9")
    Offset angle: 18° (12"), 21,4° (10"), 24° (9")
    Overhang: 13,2 mm (12"), 16 mm (10"), 18 mm (9")
    Pitch of mounting grooves in headshell: 12,7 mm (12"), 12,7 mm (10"), 12,7 mm (9")
    Effective tonearm mass: 10,5 g (12"), 8,5 g (10"), 8 g (9")
    Cartridge weight: 6-15 g (12"), 6-14 g (10"), 7-14 g (9")
    The range of the tracking force: 0 - 3 g (12"), 0 - 3 g (10"), 0 - 3 g (9")
    The minimal null point: 125 mm (12"), 126,8 mm (10"), 130,6 mm (9")
    The maximal null point: 251,7 mm (12"), 248,2 mm (10"), 243,7 mm (9")
    Tonearm weight (without flange): 271g (12"), 269g (10"), 265g (9")
