Rega

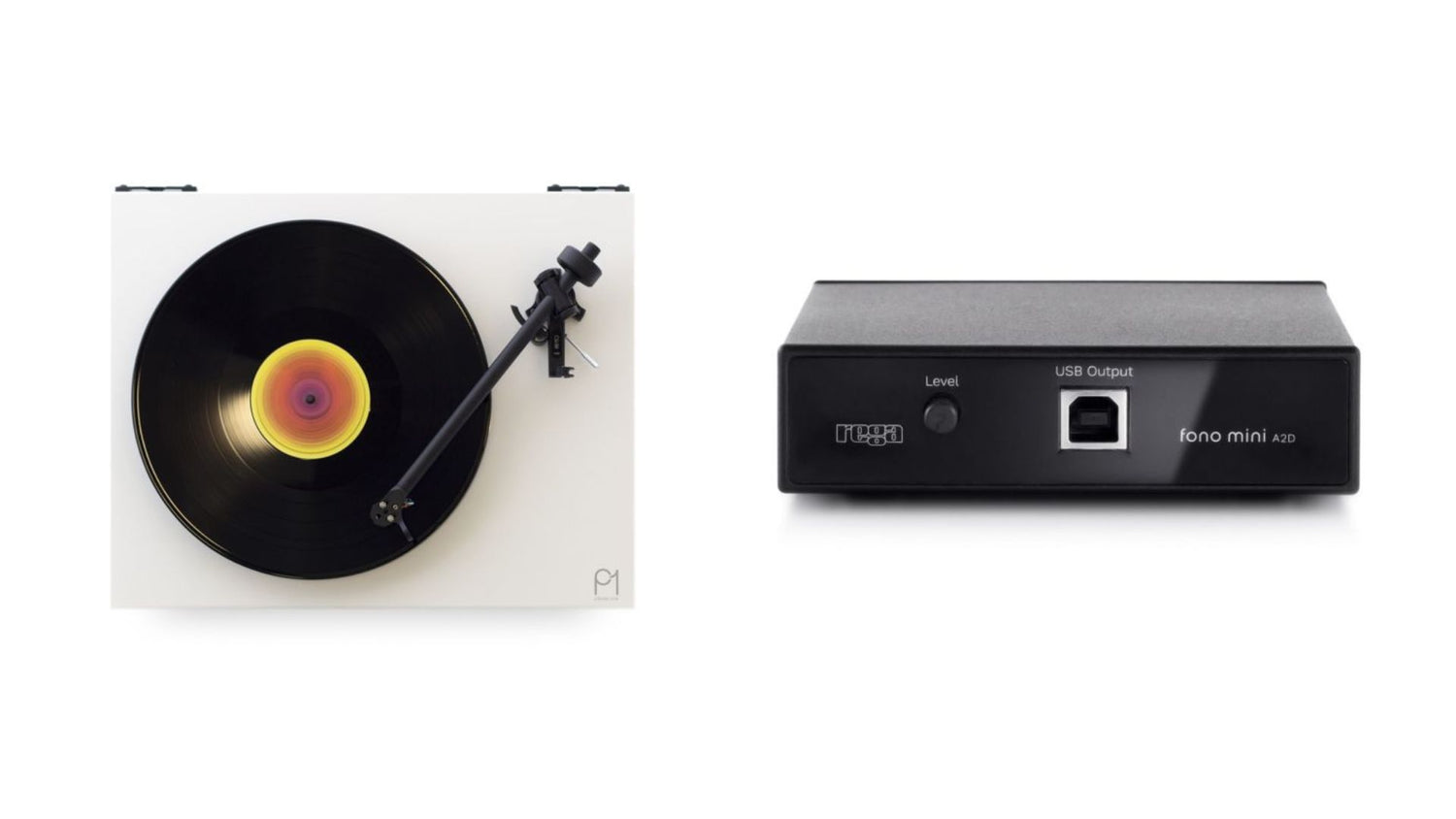

Rega Planar 1/Fono Mini A2D Bundle

$725.00
$725.00
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

This product may take 3 to 5 business days to fulfill.

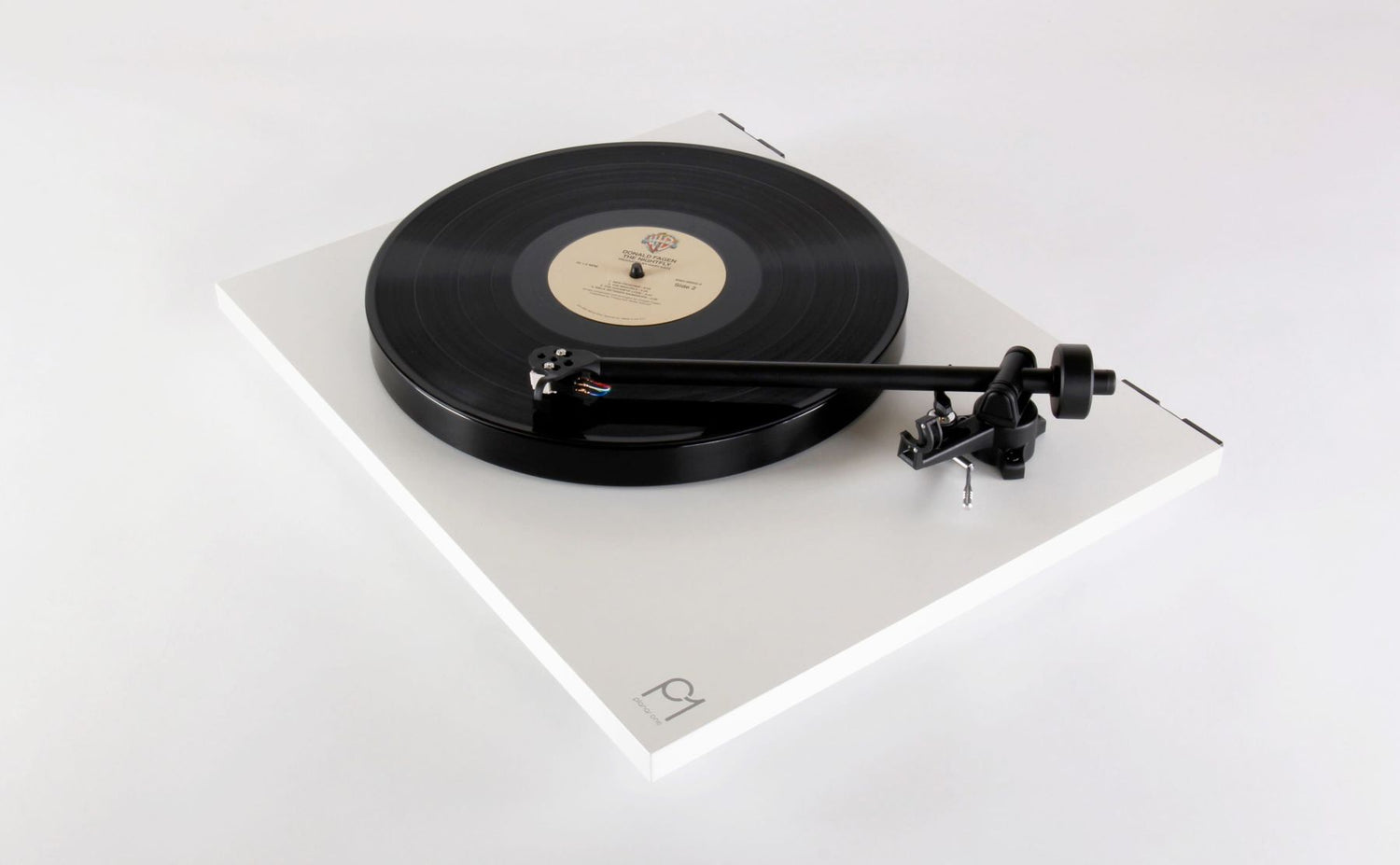

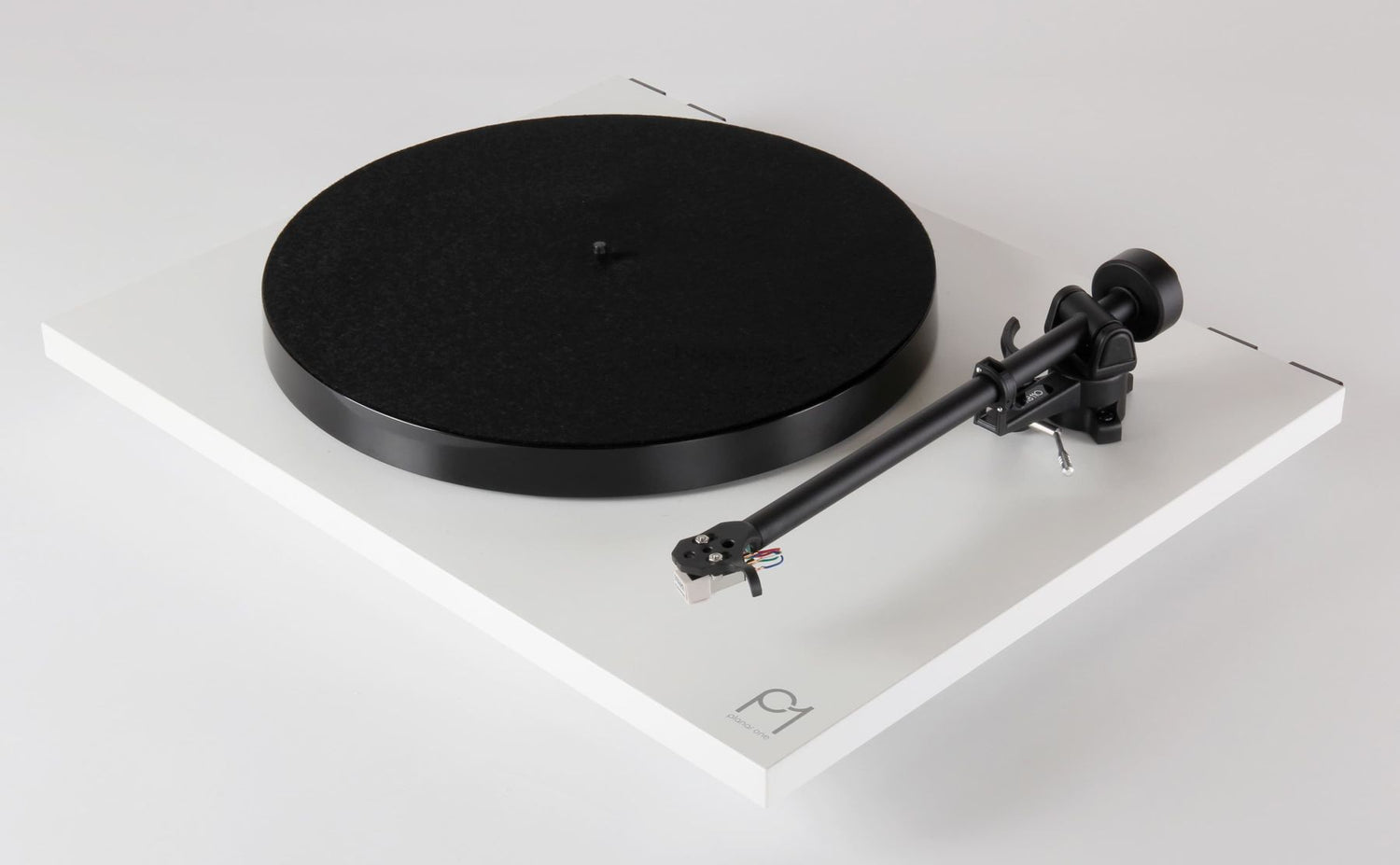

Rega Planar 1 Turntable


Planar 1



This multi-award winning (What Hi-Fi? Best turntable £200-£500 five years in a row) ‘Plug and Play’ design utilises our handmade RB110 tonearm, with pre-set bias and a factory fitted Carbon cartridge. Set-up is possible in under 30 seconds and delivers incredible performance well beyond its price point.







Performance beyond price

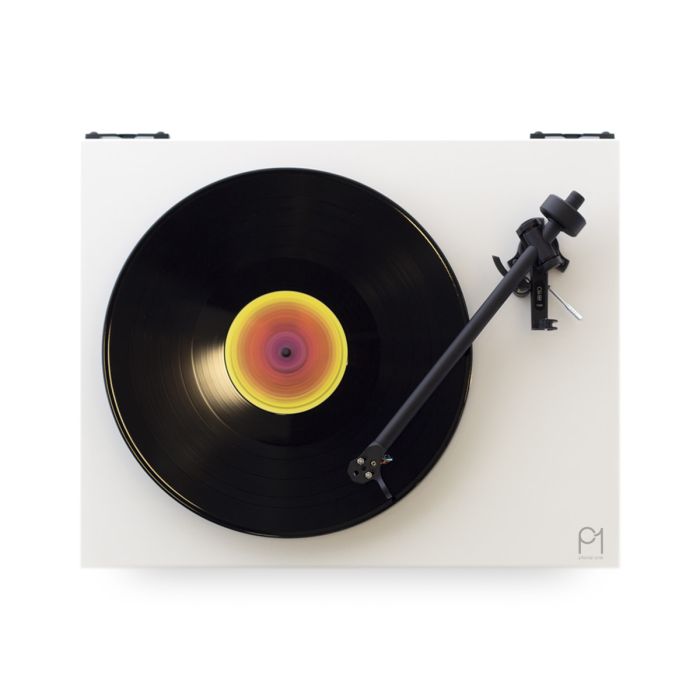

A fresh new look for the multi-award winning Planar 1. We are delighted to introduce the new matt finish Planar 1. Every single aspect of the Planar 1 has been meticulously designed to improve performance. The Planar 1 uses a bespoke 24 V, low noise, synchronous motor to reduce vibration combined with our hand made RB110 tonearm fitted with our unique Rega-designed ultra-low friction bearings. We have added our latest drive belt technology the EBLT belt which delivers greater accuracy and improved speed performance. If you are looking to get back into vinyl and want serious performance that will last you a lifetime, then look no further.

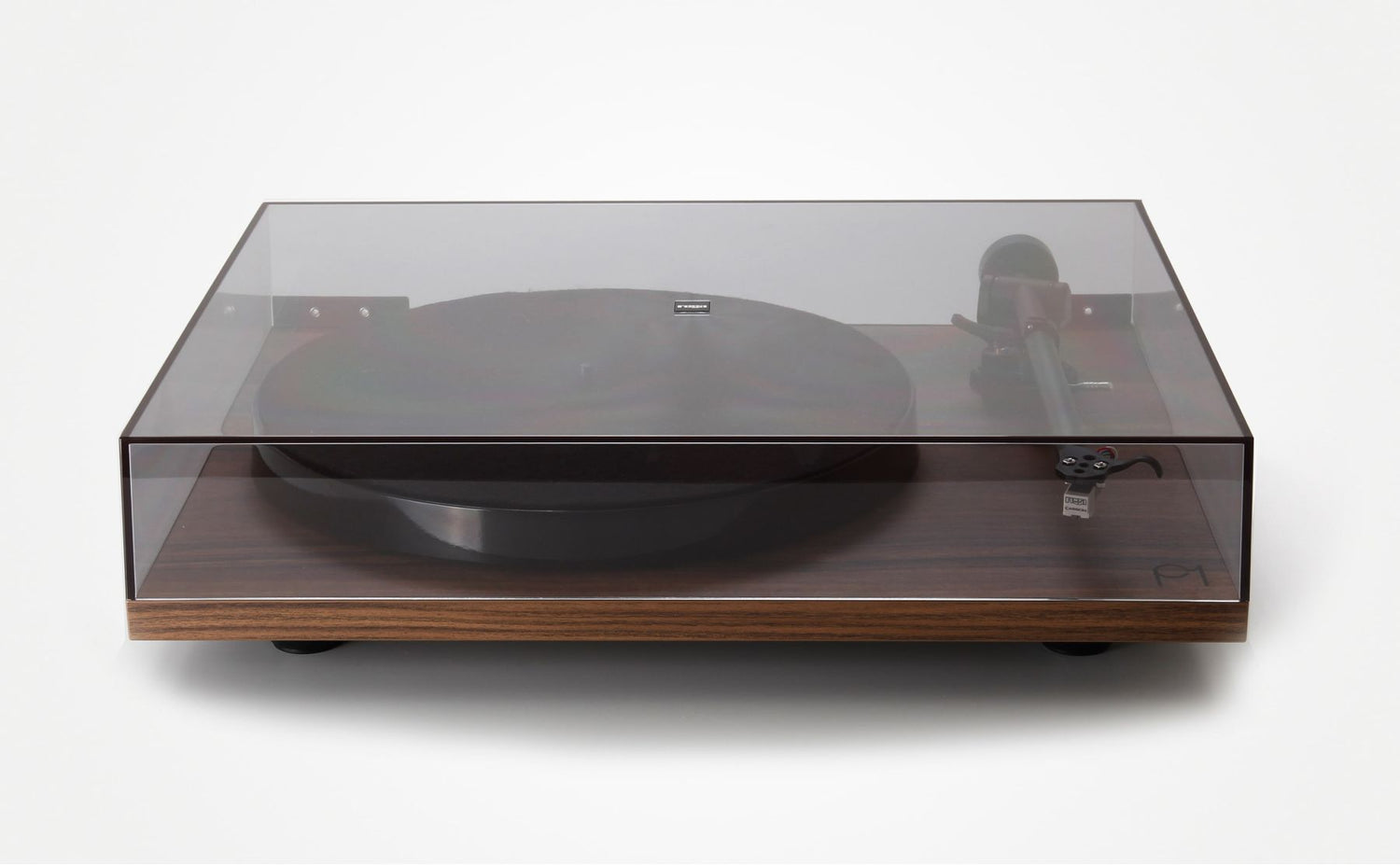

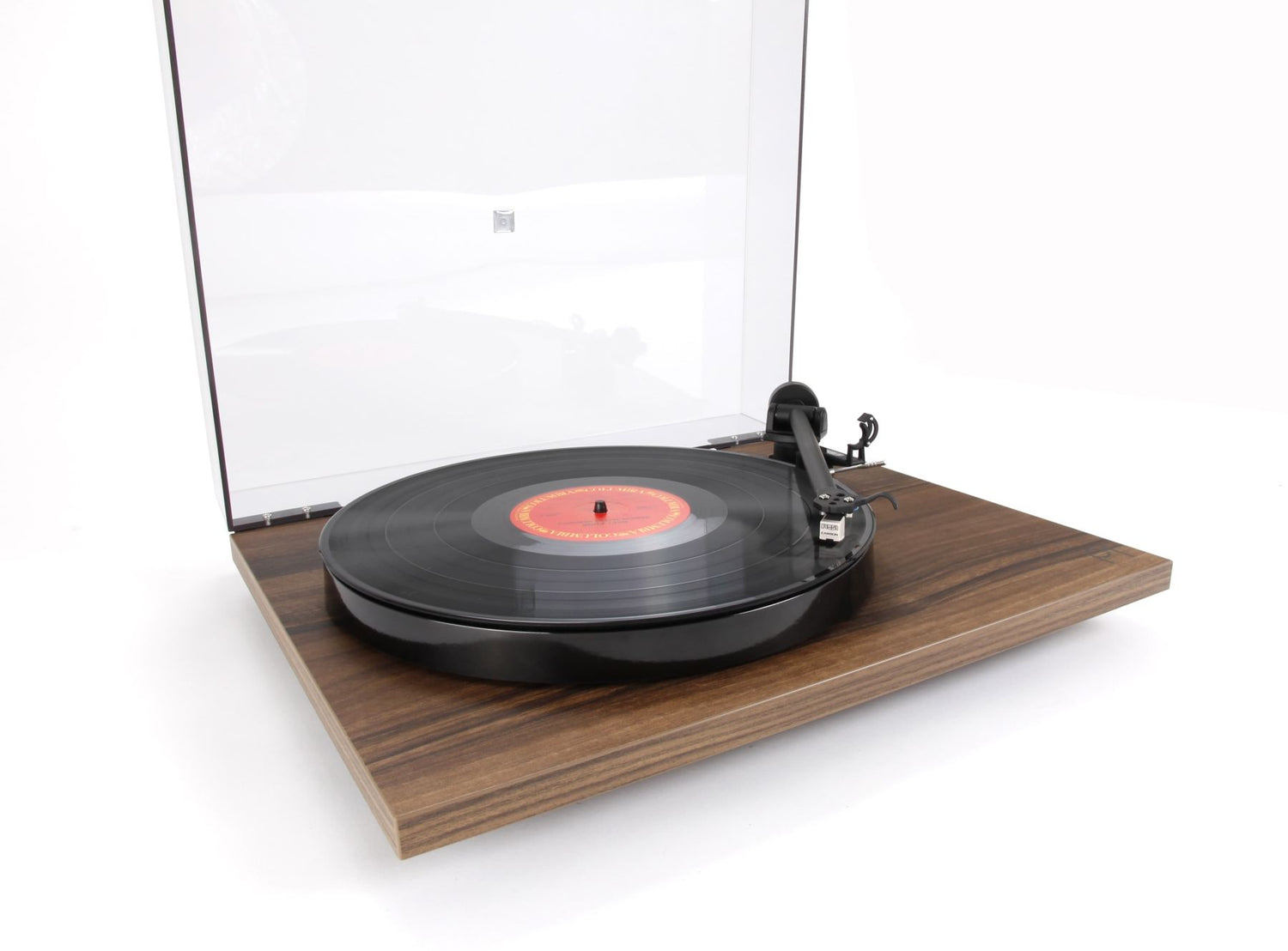

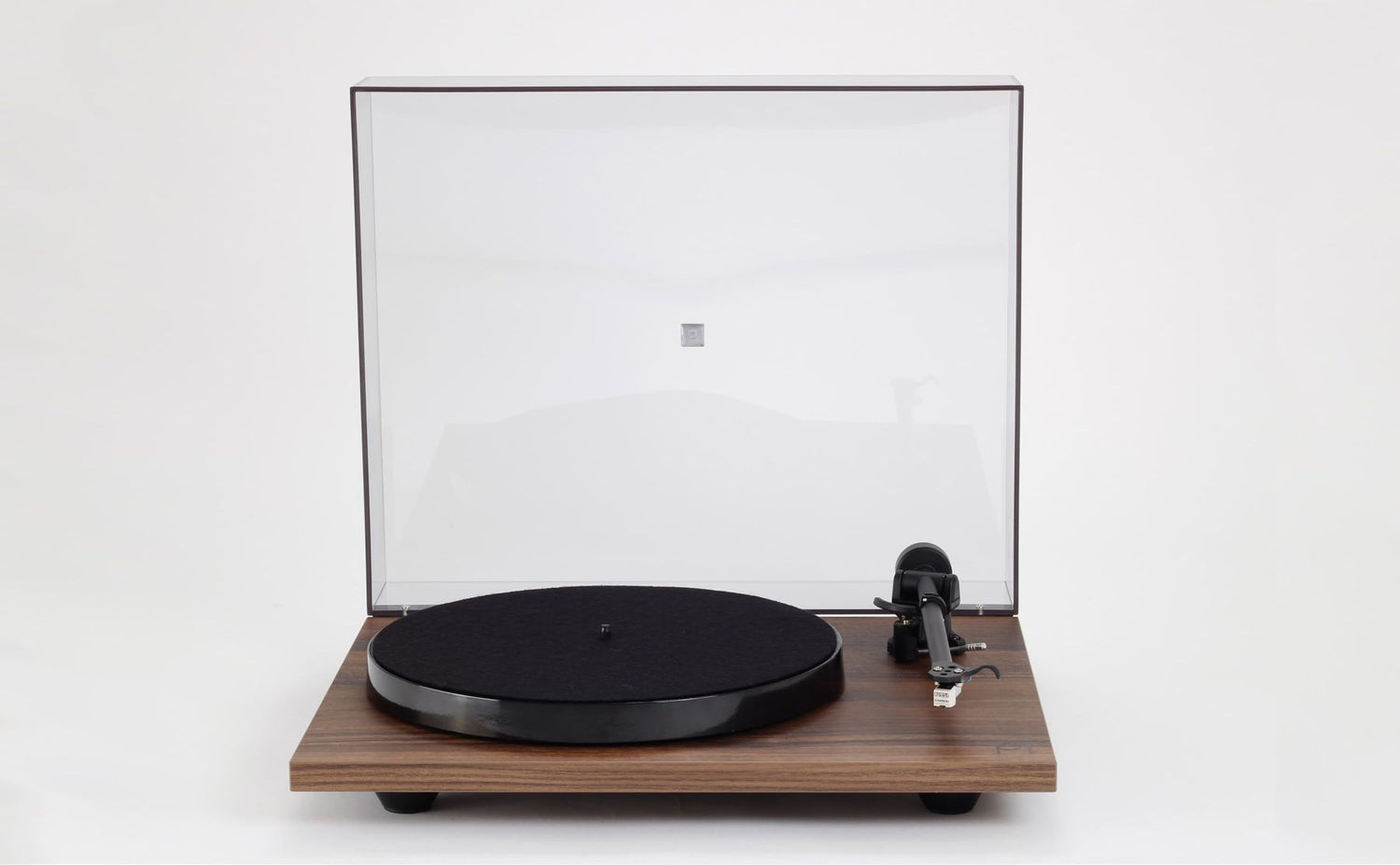

The new special edition Walnut effect finish was introduced in September 2022 and is constructed from the same high rigidity premium laminate used on the standard matt  P1. This is an attractive, high quality, realistic finish which is supplied as standard with the premium smoked dustcover to set off the design.

Key Features

  • New Walnut effect finish added for 2022
  • EBLT Advanced drive belt fitted as standard

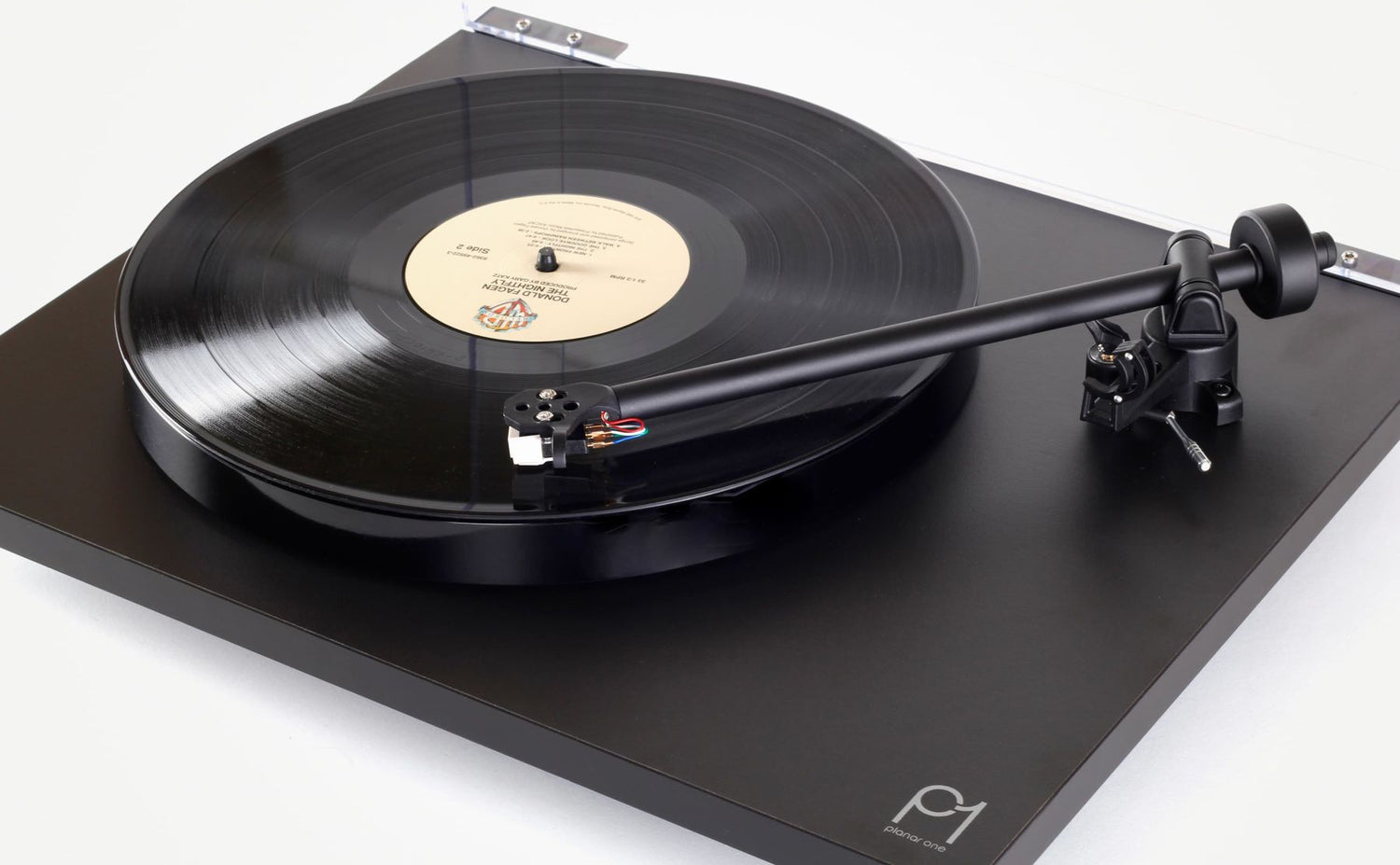

  • New matt finish for 2021
  • RB110 tonearm with ultra-low friction play bearings
  • Factory fitted Carbon moving magnet cartridge
  • Phenolic resin, flywheel effect platter
  • High quality, 24 V low noise synchronous motor
  • Lifetime warranty against manufacture defects

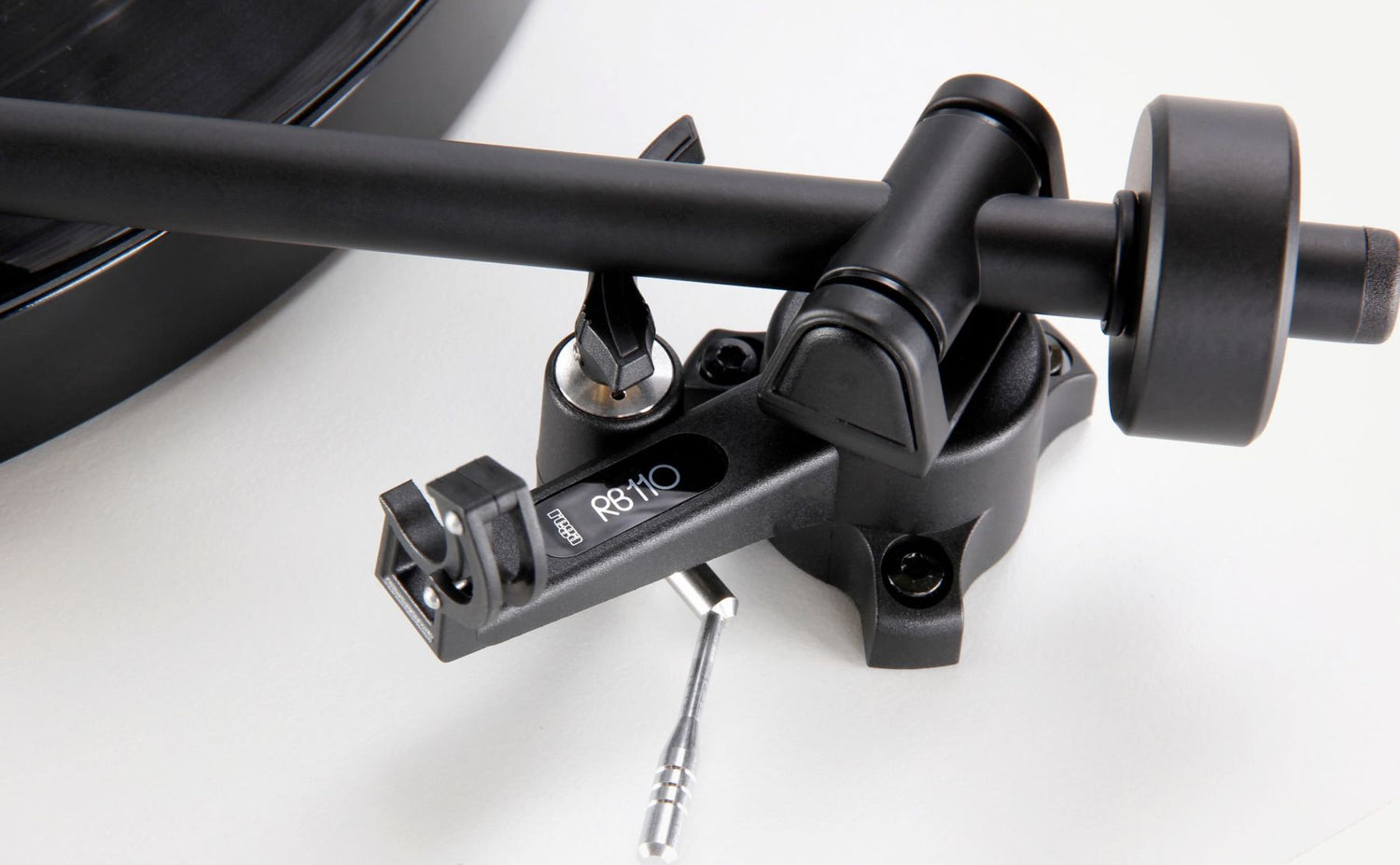

Tonearm

Brand new RB110 tonearm built with the new Rega designed, bespoke, ultra-low friction bearings (patent pending). New bias assembly and integrated arm clip. Includes automatic bias adjustment negating the need for the user to set bias, making this the most ‘plug & play’ turntable we have ever manufactured. Ergonomically, designed headshell for improved usability and appearance.

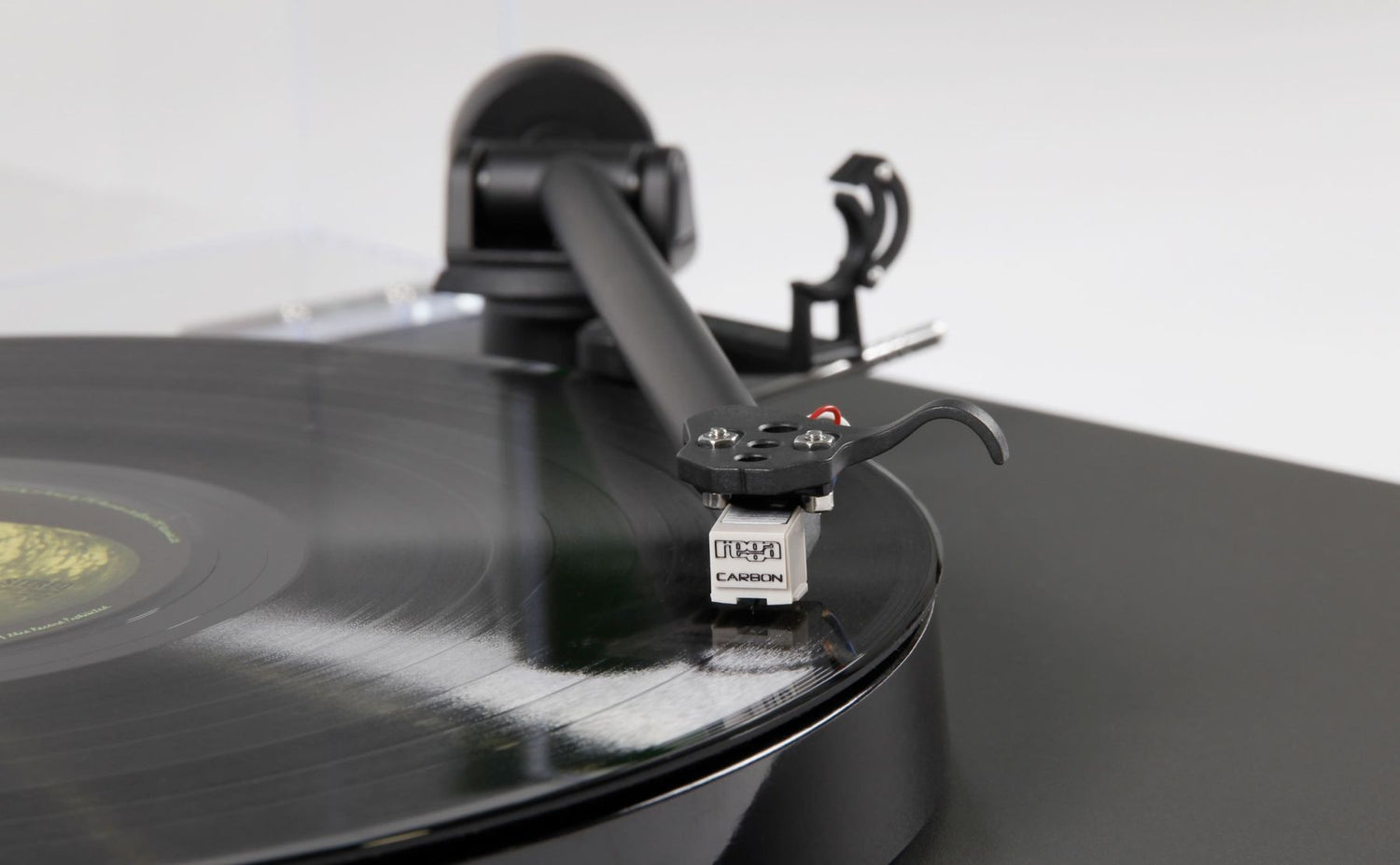

Cartridge

Rega Carbon cartridge supplied fitted as standard.

24 V Synchronous Motor

The first entry-level Rega turntable to use a 24 V, synchronous AC motor with a new motor PCB and aluminium pulley offering low noise and better speed stability.

Plinth

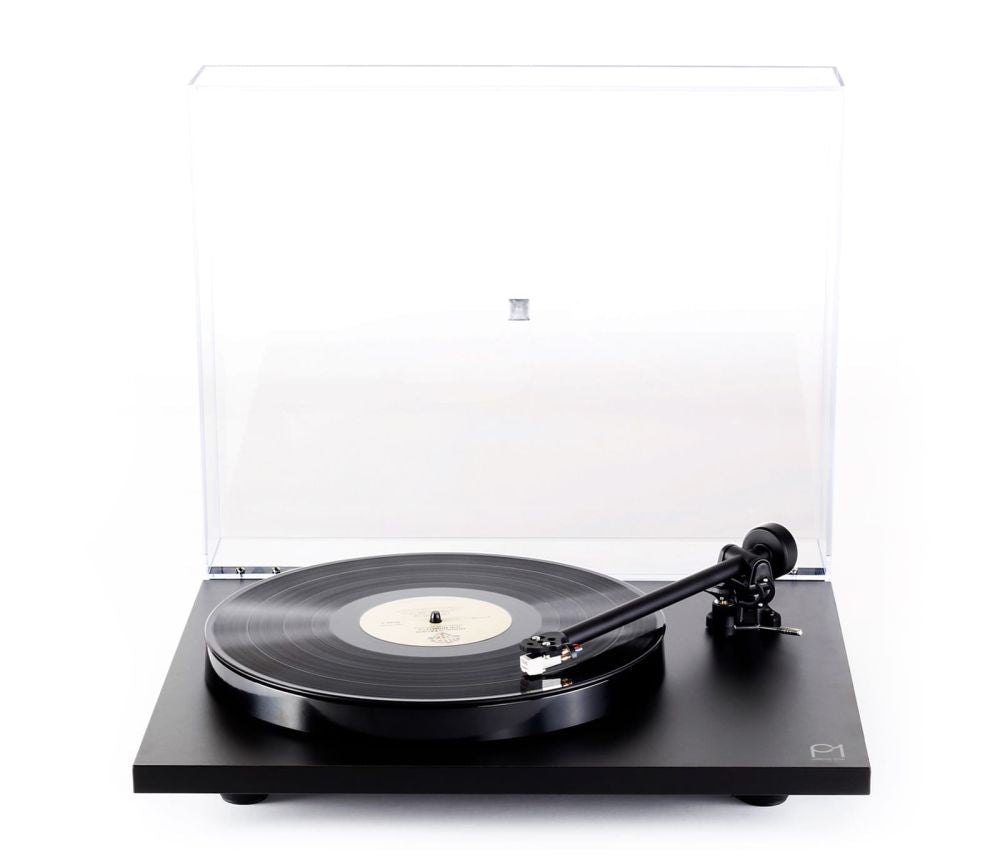

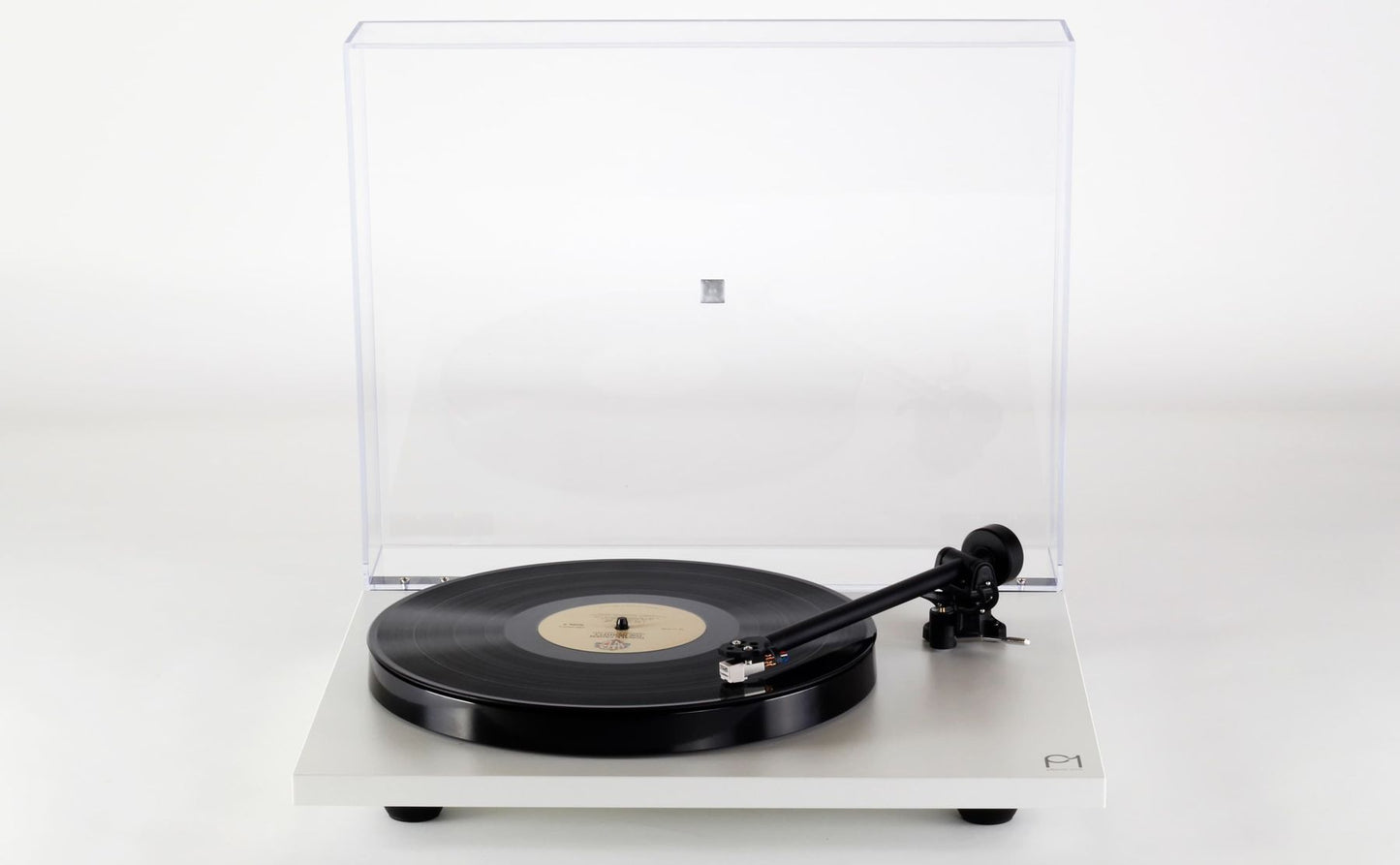

Brand new matt finish and Walnut effect option with vastly improved appearance and ergonomically positioned on/off switch located on the underside. Three stunning plinth finishes available, matt black, matt white and Walnut effect.

Central Bearing Housing

Performance brass main bearing, offering improved fit and removing stress on the bearing itself whilst minimizing the transfer of potential energy (patent pending).

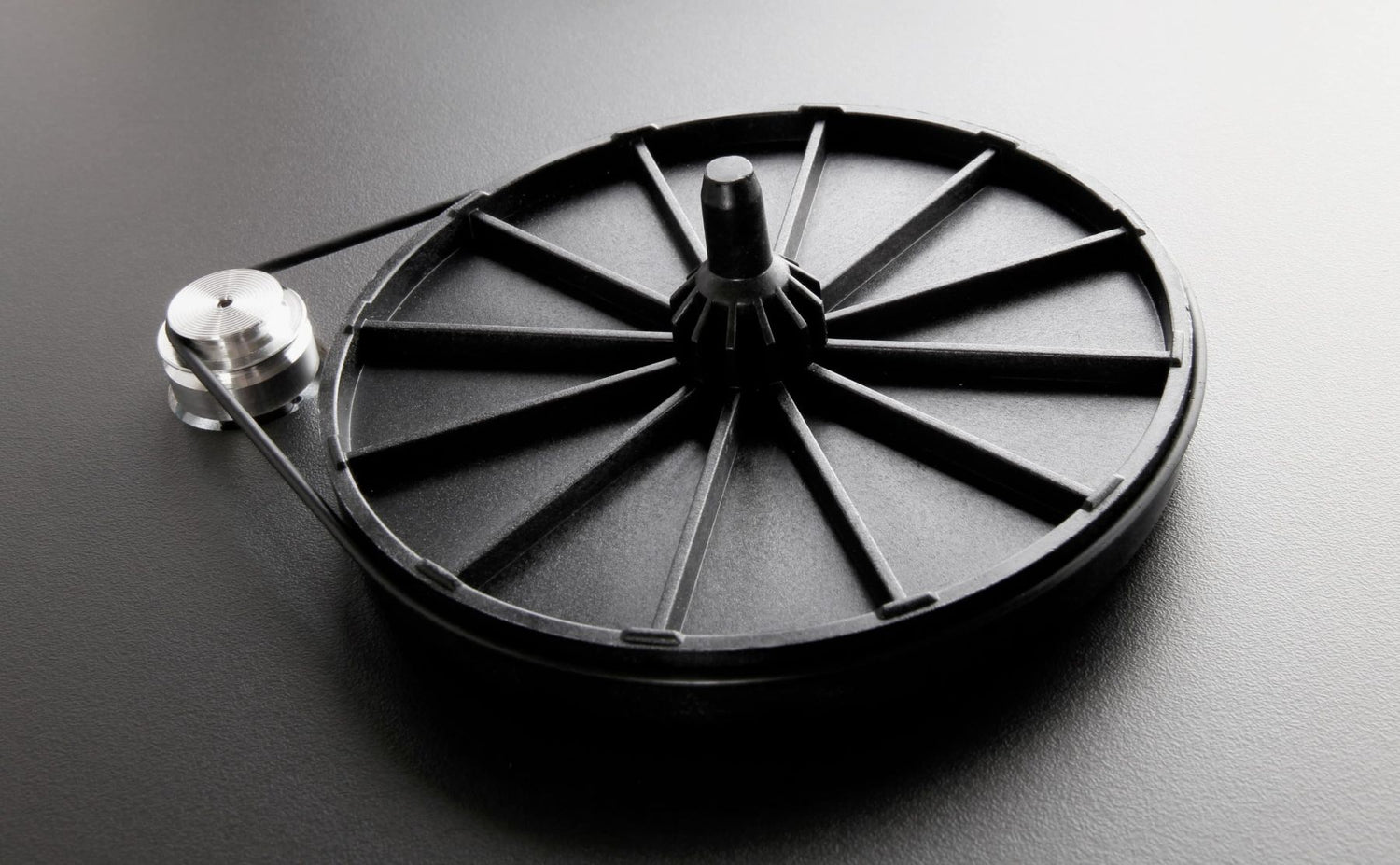

Platter

23 mm, higher mass, phenolic platter with improved flywheel effect for improved speed stability.

Isolation

Our latest design foot assembly increases stability and reduce vibration transfer.

Motor Cover Tray

Motor cover tray with integrated cooling.

Balance Weight

111 g ‘plug & play’ balance weight.



Planar 1 icon
Technical Specifications



Tonearm  Hand assembled RB110 tonearm
Cartridge Factory fitted Carbon moving magnet cartridge
Motor 24 V low noise motor
Platter Phenolic resin platter
Dimensions (lid closed) (W x H x D) 447 x 117 x 360 mm
Weight 4.2 kg



For full technical specifications, download Planar 1 - User Manual Multilingual - Ver 10 below.

Downloads

Environmental Labelling of Packaging

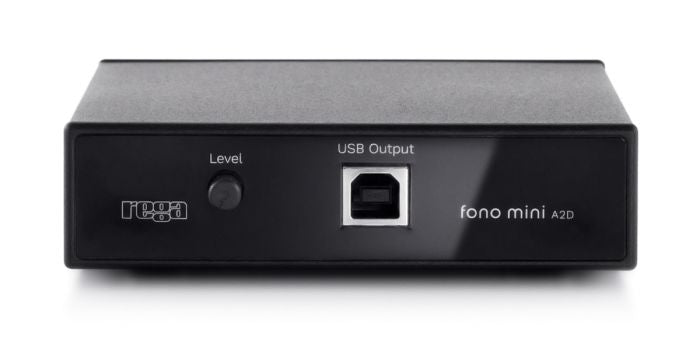

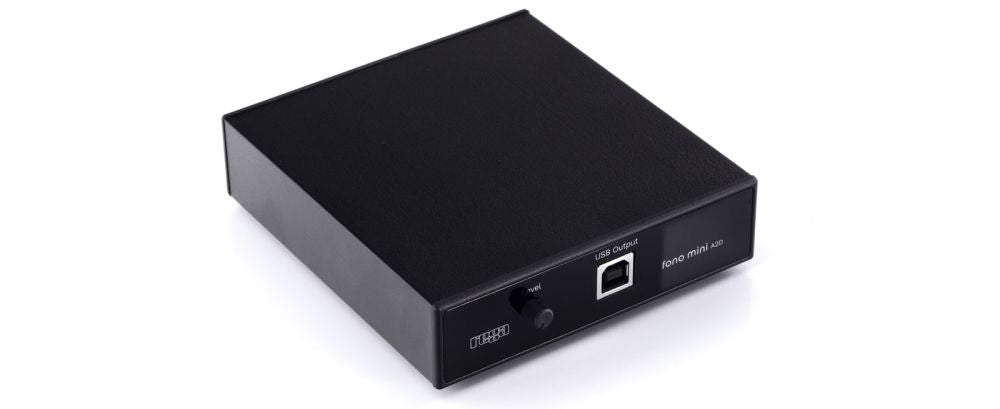

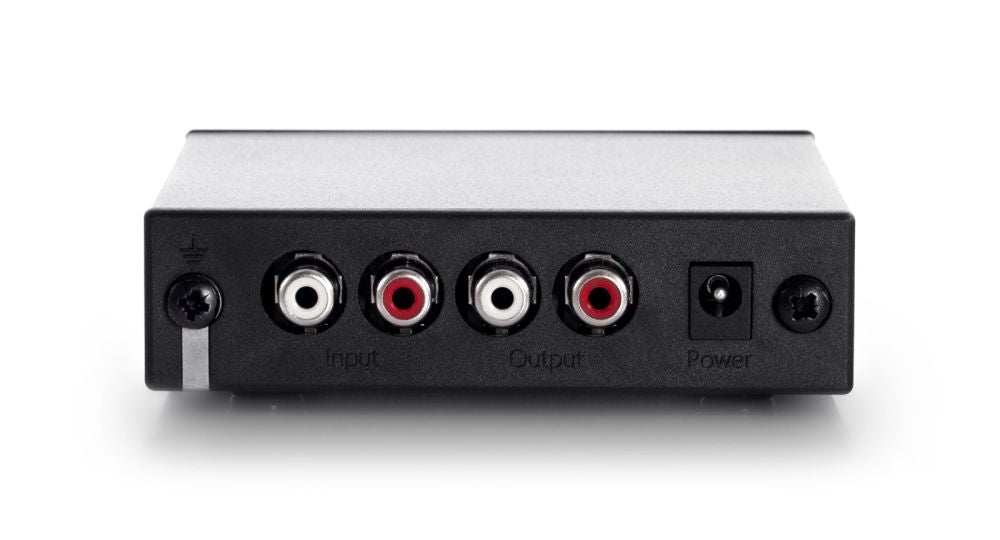

Fono Mini A2D MK2

The Fono Mini A2D is a compact high quality moving magnet disc stage with a circuit based on our multi award winning Fono MM. Our best selling phono stage also includes a USB interface which allows you to transfer your beloved vinyl to digital audio files.



Analogue to Digital

The Fono Mini A2D is a high-quality phono pre-amplifier for use with any moving magnet cartridge. The addition of a USB interface allows you to easily transfer vinyl to your PC if required. The restyled Fono Mini A2D amplifier offers improved usability, exceptional performance and incredible value for money while promising to be a valuable addition to any hi-fi set up.



Key Features

  • Compatible with all moving magnet cartridges
  • USB output
  • A2D functionality
  • Compact custom case design
  • Adjustable gain level to optimise quality when recording to PC
  • Lifetime warranty against manufacture defects





To transfer vinyl to your PC, you will need to install a digital audio editor. Such software is widely available as a free download (such as Audacity), from the internet. This is a simple interface which allows monitoring of volume and balance whilst transferring your audio to your PC hard drive.

Audio editing software includes a level meter which indicates the output level achieved when playing a piece of vinyl. You should adjust the output as necessary via the ‘Level’ control located on the front panel. Always take special note of record levels to ensure optimum recording quality.



Fono Mini A2D MK2 icon

Technical Specifications



Input Sensitivity 5 mV for 500 mV Output
Input Loading 47 k +100 pF
Maximum input level 70 mV @ 1 kHz
Output Impedance 100 Ω
Signal to noise ratio 78 dBA ref 5 mV
Power requirements 24 V AC 85 mA
Input for full scale digital output 7.5 mV
Dimensions (W × H × D) 102 × 30 × 125 mm
Sample rate 16bit 44.1kHz (48kHz max) when transferring files via USB.

For full technical specifications, download Fono Mini A2D MK2 - User Manual Multilingual - Ver 8 below.
