Ortofon
Ortofon Stylus Omega 1e
Regular price
$46.99
Regular price
Sale price
$46.99
Unit price
per
Shipping calculated at checkout.
This product cannot be sold online.Please call our store to purchase:
904-642-6677
Historical product

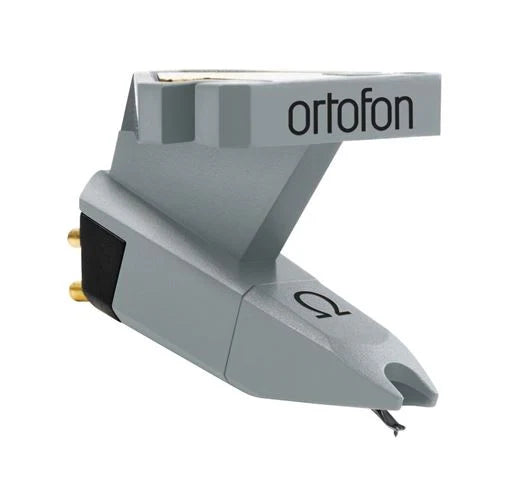

Ortofon OMEGA moving magnet cartridge
The Omega is a standard-mount cartridge for true high-fidelity sound reproduction.
It's a perfect match for standard USB turntables and fits a wide range of modern and vintage turntables. The Omega uses a standard elliptical diamond and is a very reliable cartridge with a characteristic for Ortofon accurate sound.
The Omega provides upgraded sound quality in a cost-effective package.
Specifications
Output voltage at 1000 Hz, 5cm/sec
4 mV
Channel balance at 1 kHz
2 dB
Channel separation at 1 kHz
22 dB
Channel separation at 15 kHz
15 dB
Frequency response
20-21.000 Hz
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
1,5-2,0 g (15-20 mN)
Tracking force, recommended
1,75 g (17,5 mN)
Tracking angle
20°
Internal impedance, DC resistance
750 Ohm
Internal inductance
450 mH
Recommended load resistanc
47 kOhm
Cartridge weight
5 g (additional weight incl.)
