Triangle Audio Alpha Signature
This product may take 3 to 5 business days to fulfill.
Alpha SIGNATURE HIFI SPEAKERS

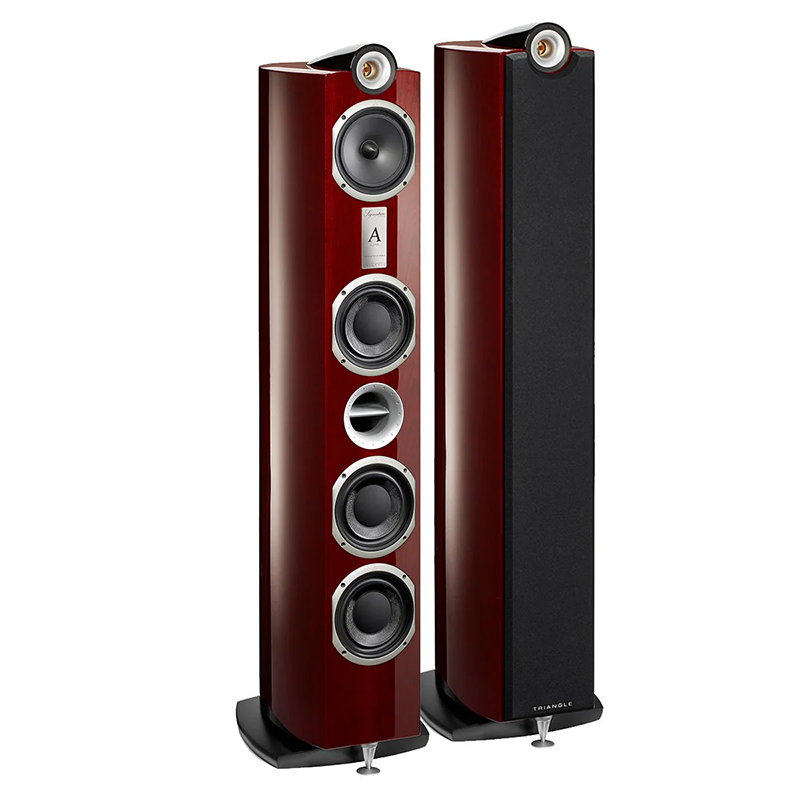

The flagship of the Signature range, this 1.3-meter-high floorstanding loudspeaker displays the synthesis of TRIANGLE acoustic and technological know-how. As with every Signature product, the Alpha has been designed and hand-crafted in France at the company’s Soissons workshop.
Benefiting from Magellan R&D, the Signature speaker features extremely high-density cabinets for an unmatched acoustic experience. All mechanical aspects have been studied to improve the overall performance.
The Alpha loudspeaker integrates a semi pod-mounted horn loaded tweeter, one paper midrange with small pleated suspensions and three woofers specifically designed for this model. It has all Signature technologies including a twin vent ensuring a complete woofer insulation for better sound transparency.
The Signature Alpha is a powerful speaker with deep and fast bass, it is mostly recommended for large room sizes (above 30m2).
DRIVER IN DIE-CAST ALUMINUM
The new phase plug has been designed to go with the 25 mm titanium dome. The tweeter horn is made from 100% injected aluminum originally developed for the Magellan project. The tweeter’s larger surface offers a greater dispersion of high frequencies. The compression volume of the back chamber has been significantly increased to provide better shock absorbance, thus preventing the return of sound waves within the dome. These enhancements have improved the quality and detail of high frequencies, finesse and transparency, as well as minimal sound distortion.
PAPER CONE DRIVER OFFERING CLEAR SOUND
The 185 mm aluminum basket has been entirely redesigned to provide better ventilation to its double-layered coil. It is equipped with a small pleat and peripheral short travel suspension. The new version of this treated paper cone provides increased clarity at this critically important frequency level of sound reproduction. The phase plug has been replaced by a dust cap of identical shape and size to prevent air leaks.
DOUBLE FERRITES FOR PRECISE BASS PERFORMANCE
This driver benefits from numerous enhancements producing a faster and deeper bass. It is equipped with a double magnet motor, a double-layered coil and an inverted half-roll rubber suspension, all of which ensure a faster speaker response. The cone profile was developed to be purely used in low frequencies. To make it more rigid, the glass fiber membrane is supported by a second paper membrane.
BOOKSHELF AND CENTER CHANNEL WOOFER
Specifically designed for this range, with the objective of creating a bass unit capable of reproducing low frequencies without a large volume load, while maintaining linearity in the high frequencies. It uses the same aluminum basket and treated paper cone to achieve the perfect tonal balance. The dust cap shaped as a phase plug reduces power surges and prevents any agressive sounds.
HIGH QUALITY COPPER ALLOY
Each model is equipped with a terminal for bi-wiring or biamplification. The terminals are designed and assembled by TRIANGLE. Made of high quality copper alloy they provide an excellent conductivity. They accommodate a 5 mm diameter cable and banana plugs with a locking system for excellent security.
A unique element to the Twin Vent is that it discharges the rear wave created by the two separated bass drivers through a single vent. This system means that each of the drivers can operate in complete isolation. Increasing the volume does not disrupt the tonal balance, the only remaining distortion limit is the driver mechanics. The results in terms of power handling are amazing. The listening experience offers a dynamic, solid, well sustained bass.
|Frenquency Response (+/-3dB Hz-||32-20|
|Power handling (W RMS)||140|
|Minimal impedance (Ohms)||3,3|
|External Dimensions (mm)||1270 x 233 x 372|
|External Dimensions with stand (mm)||1330 x 370 x 386|
|Net Weight (Kg)||34,70|
