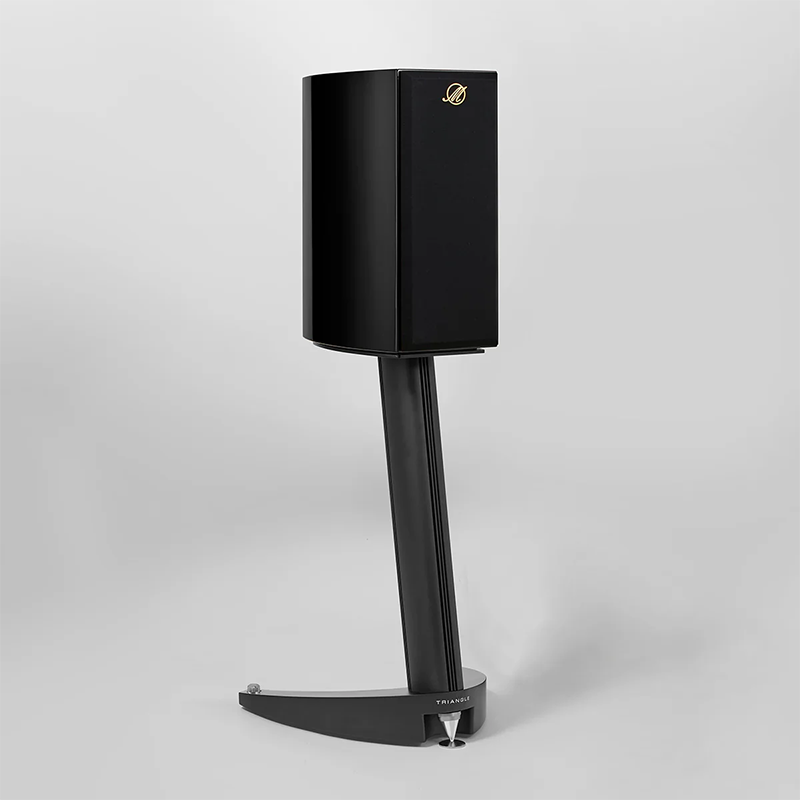

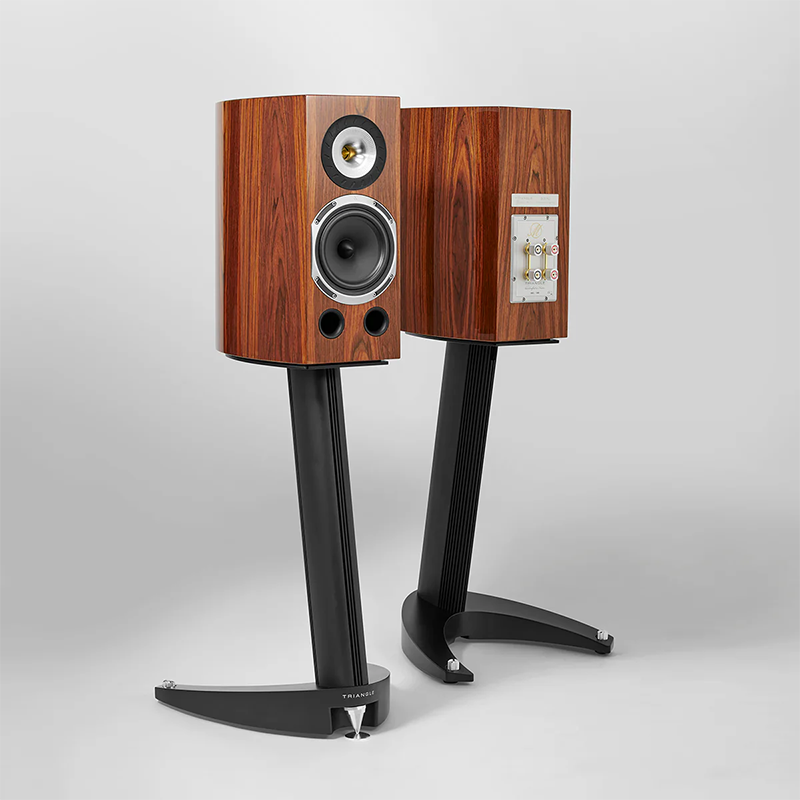

Triangle Magellan Duetto 40TH

New

Regular price $7,000.00 USD
Regular price $6,600.00 USD Sale price $7,000.00 USD
Sale Sold out
Shipping calculated at checkout.

SELECT OPTIONS:

The Pinaccle of French Audio Engineering

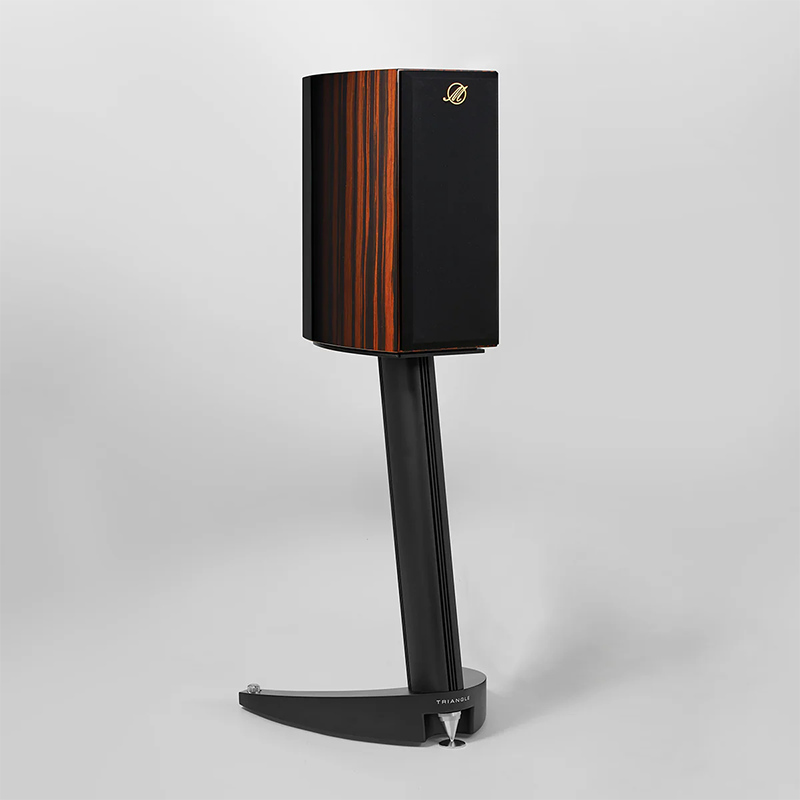

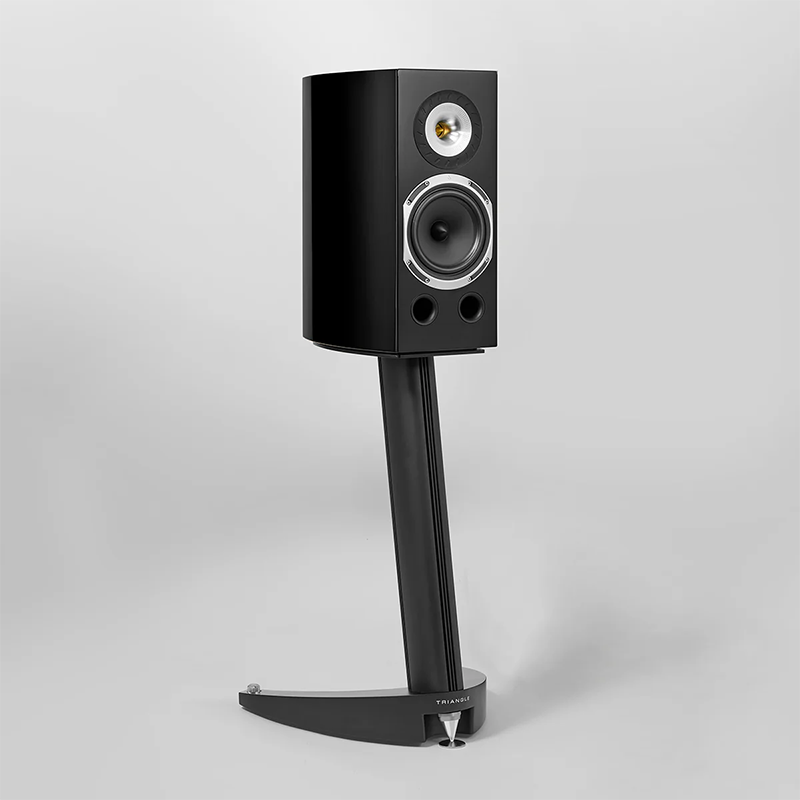

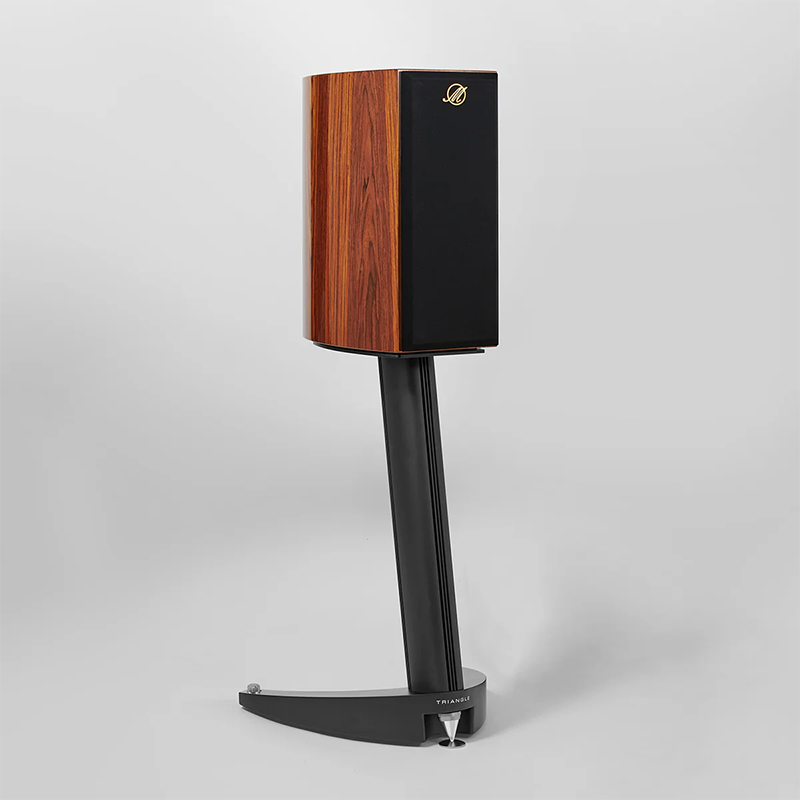

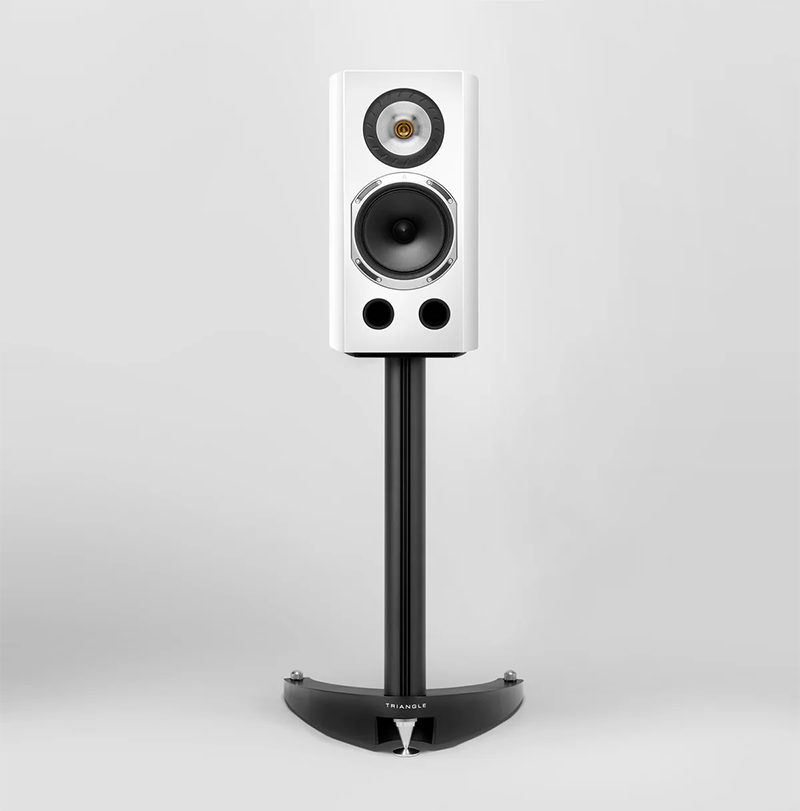

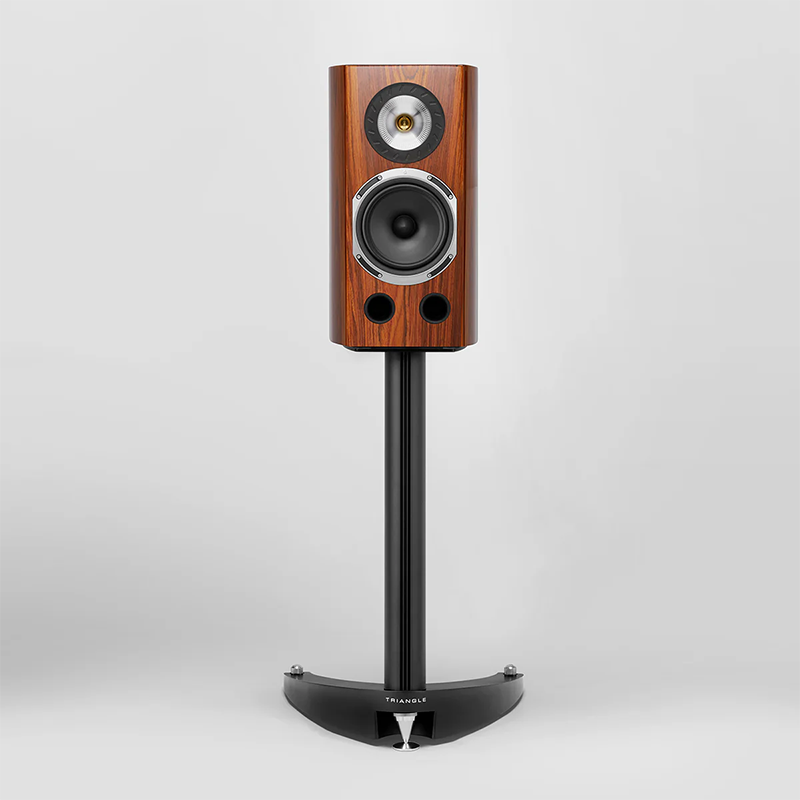

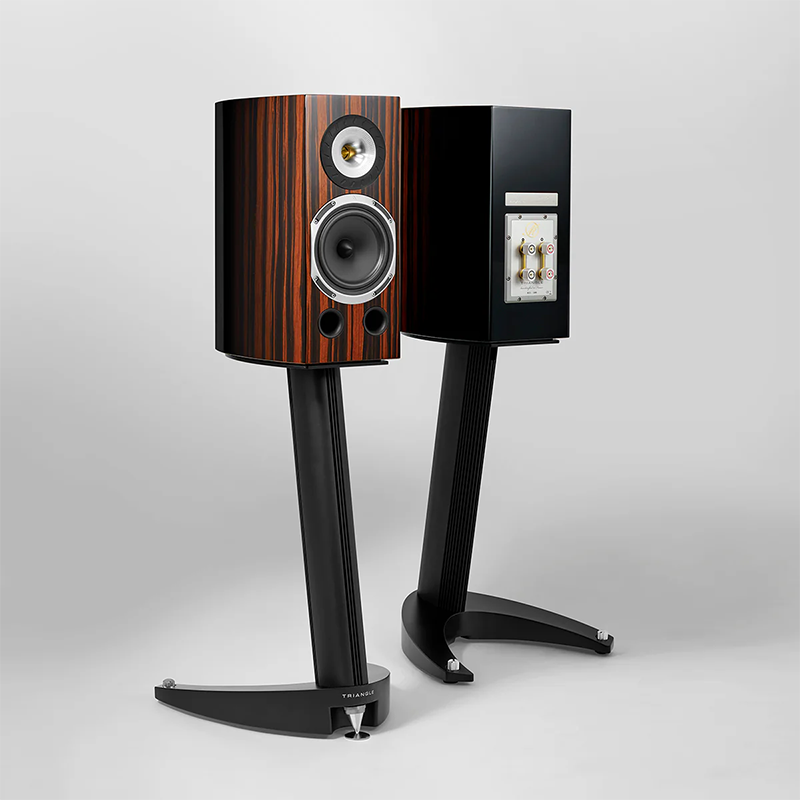

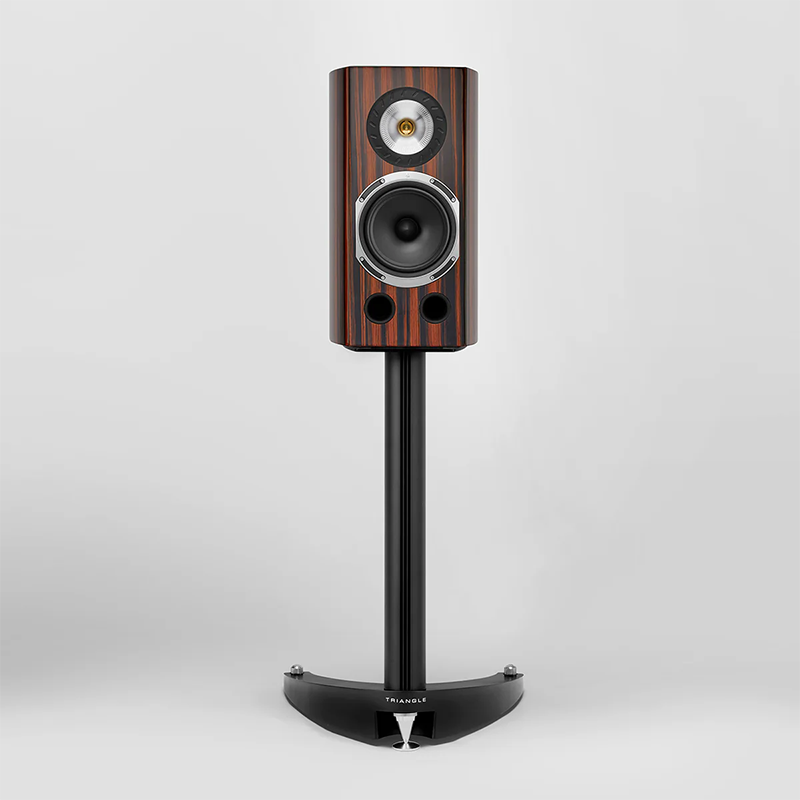

Triangle Audio Magellan Duetto 40TH

Liveliness and dynamics are trademarks of TRIANGLE’s sound, and they are packed into this gem, the Duetto, a compact 2-way bookshelf speaker.

Superb piece of engineering, its horn-loaded tweeter TZ2900 is equipped with a next generation dome in magnesium alloy. This transducer highlights the finest details of your recordings and brings out the subtlety of the upper harmonics.

Its full-range 16 cm midrange/bass driver produces rich bass details. It features a new paper cone that reproduces any vocal register with great neutrality without the slightest coloration. The Duetto speaker offers a really clear sound and puts the music forward.

Its elaborate crossover, equipped with high quality components, optimizes the bass and treble phasing for an outstanding transparency.

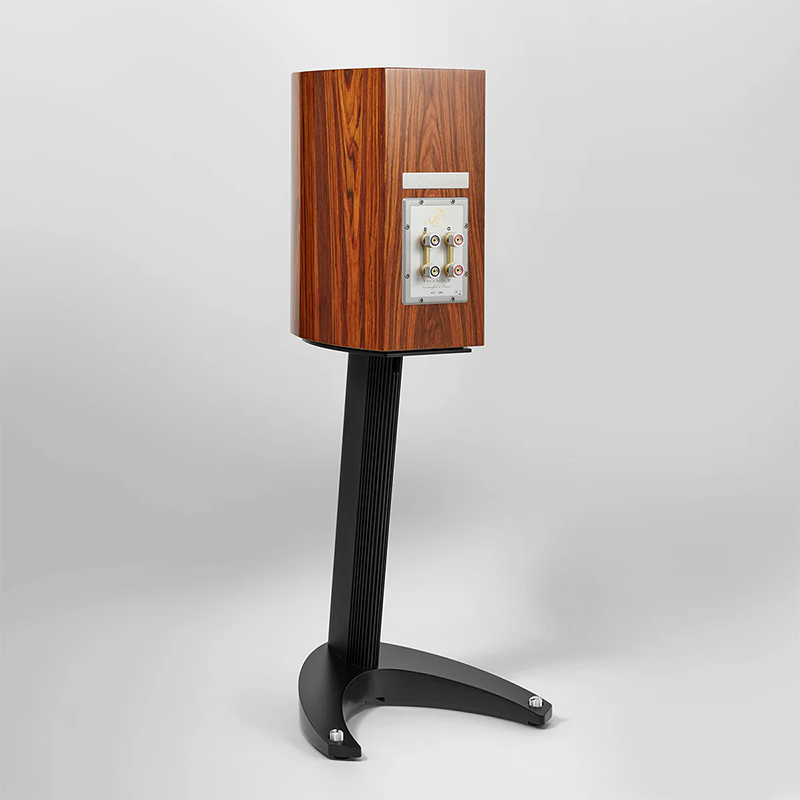

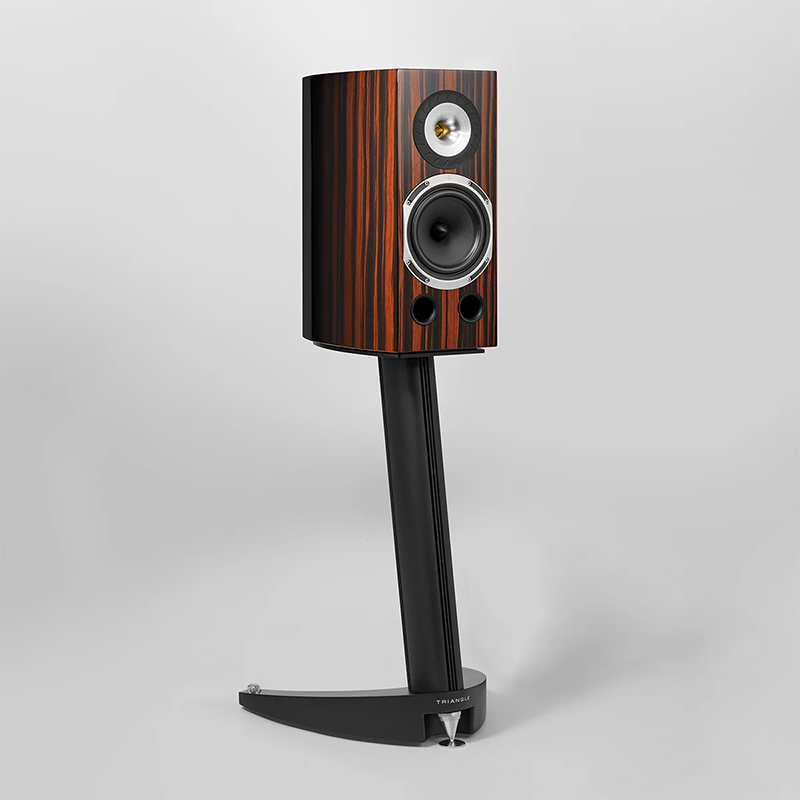

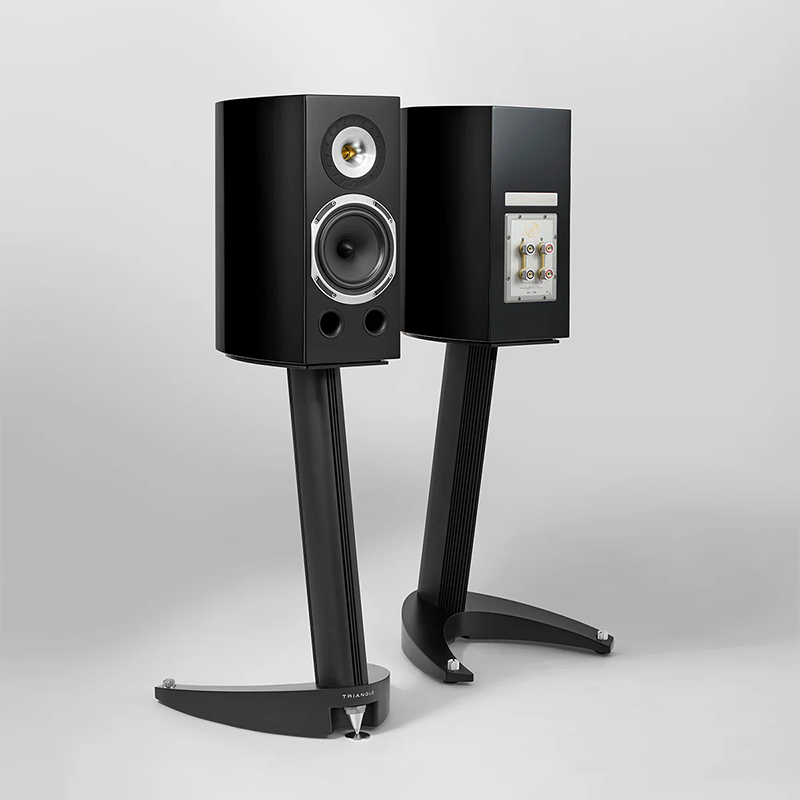

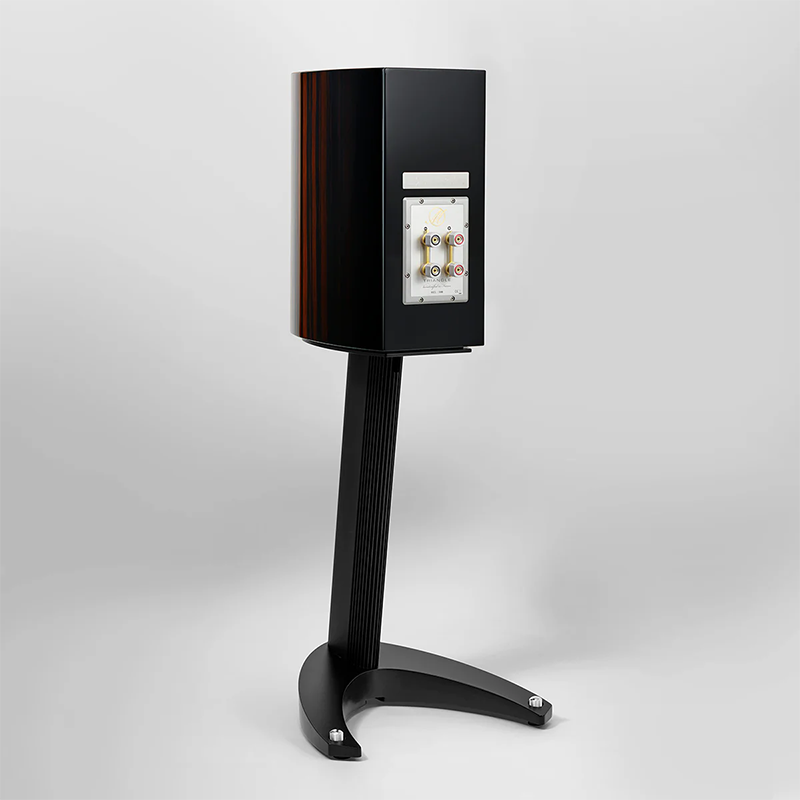

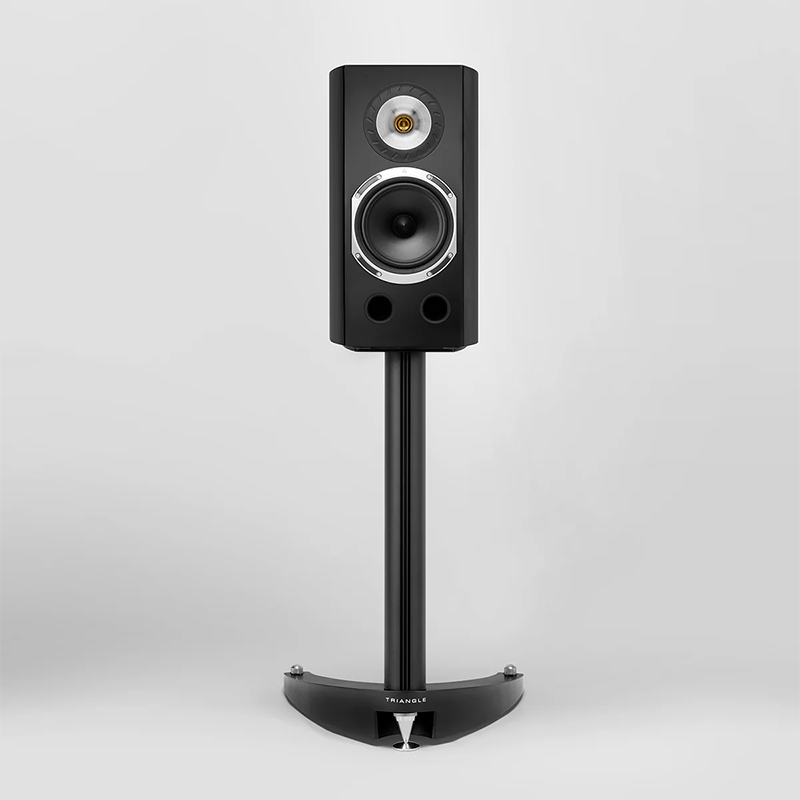

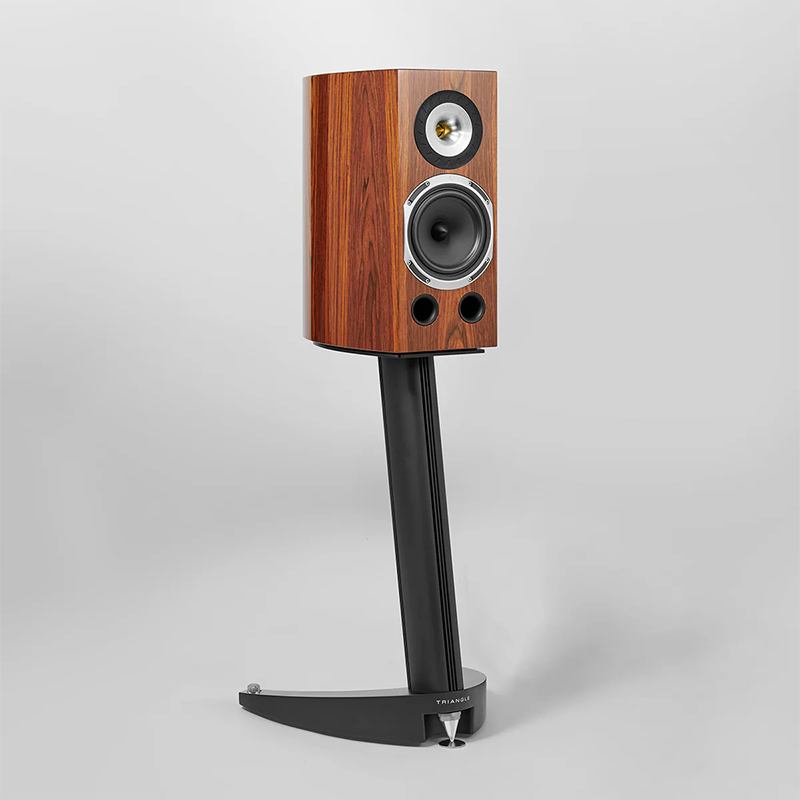

This compact speaker fits perfectly in rooms of less than 30m2, a technological achievement for a speaker consisting of only two drivers, The Duetto is supplied with an accessory box for an adapted decoupling. The S08 speaker stand, designed specifically for this model, is available as an option.

TZ2900PM-MG tweeter with a magnesium alloy dome

A major innovation of this 40th anniversary edition, the TZ2900PM tweeter is equipped with a next generation dome in magnesium alloy providing a significant improvement in terms of linearity and consistency.

Its horn is shaped to limit directivity, i.e., off-axis drop in high frequency level. Together with the phase plug, this pairing allows the frequency response to be linearized.
We also added a counter-cap to the motor to reduce rear waves reflections, limit distortion and control the upper end of the sound spectrum. The TZ2900PM-MG tweeter provides an exceptionally smooth and fluid musical quality whilst ensuring accurate sound reproduction.

Midrange/bass driver with a paper diaphragm

With a cellulose pulp diaphragm and its “progressive” suspension, the midrange/bass driver has that rich, natural sound the brand is known for. Thanks to its suspension, there is no clear separation at the cone attachment, resulting in a seamless mid-range. The diaphragm houses an ultra-light anti-vortex polypropylene cone covered with a latex damping material to limit end of band irregularities.
Featuring a powerful motor and a perfectly matched voice coil, this driver is capable of reproducing firm and dynamic low frequencies while maintaining remarkable clarity and finesse in the vocal register.


Technical specifications

Number of drivers 2
Number of ways 2
Tweeter TZ2900PM-MG
Midrange T16GM-MT10-GC1-V2
Sensitivity 88 dB/W/m
Frequency range 38 Hz – 30 Khz (+/- 3 dB)
Amplifier Power output (W) 30-150 W
Repetitive peak power 160 W
Treble Cutoff Frequency 3.1 (24dB/Oct)
Nominal impedance 8 Ω
Minimum impedance 4.6 Ω
High frequency roll-off 2800 (24dB/Oct)
Dimensions W x D x H 9.9 x 13.7 x 18.1 inch
Dimensions (spikes) W x D x H 9.9 x 13.7 x 18.9 inch
Weight 37 lbs
Stand S08
