Audio Research Corporation

Audio Research S-200 Power Amplifier

Audio Research S-200 Power Amplifier

Regular price $12,950.00 USD
Regular price Sale price $12,950.00 USD
Sale Sold out
Shipping calculated at checkout.
This product cannot be sold online.
Please call our store to purchase:
904-642-6677

View full details
S-200 Power Amplifier

S-200

Stereo Power Amplifier

S-200 Power Amplifier

The S-100 and S-200 amplifiers represent our latest and most advanced entries into solid-state amplifier design. S-200 is a pure Class A/B design, with muscular linear power supplies. Inside you’ll find a truly dual mono platform. Beyond the AC input are dual toroidal transformers feeding fully balanced stereo circuits.

Bipolar transistors were chosen over MOSFETs for their purity, transparency, and better dynamics.

D-80 POWER AMPLIFIER
shown with the LS-3 preamplifier, the new S-200 power amplifier showcases the innovative work of our team of solid-state engineers.

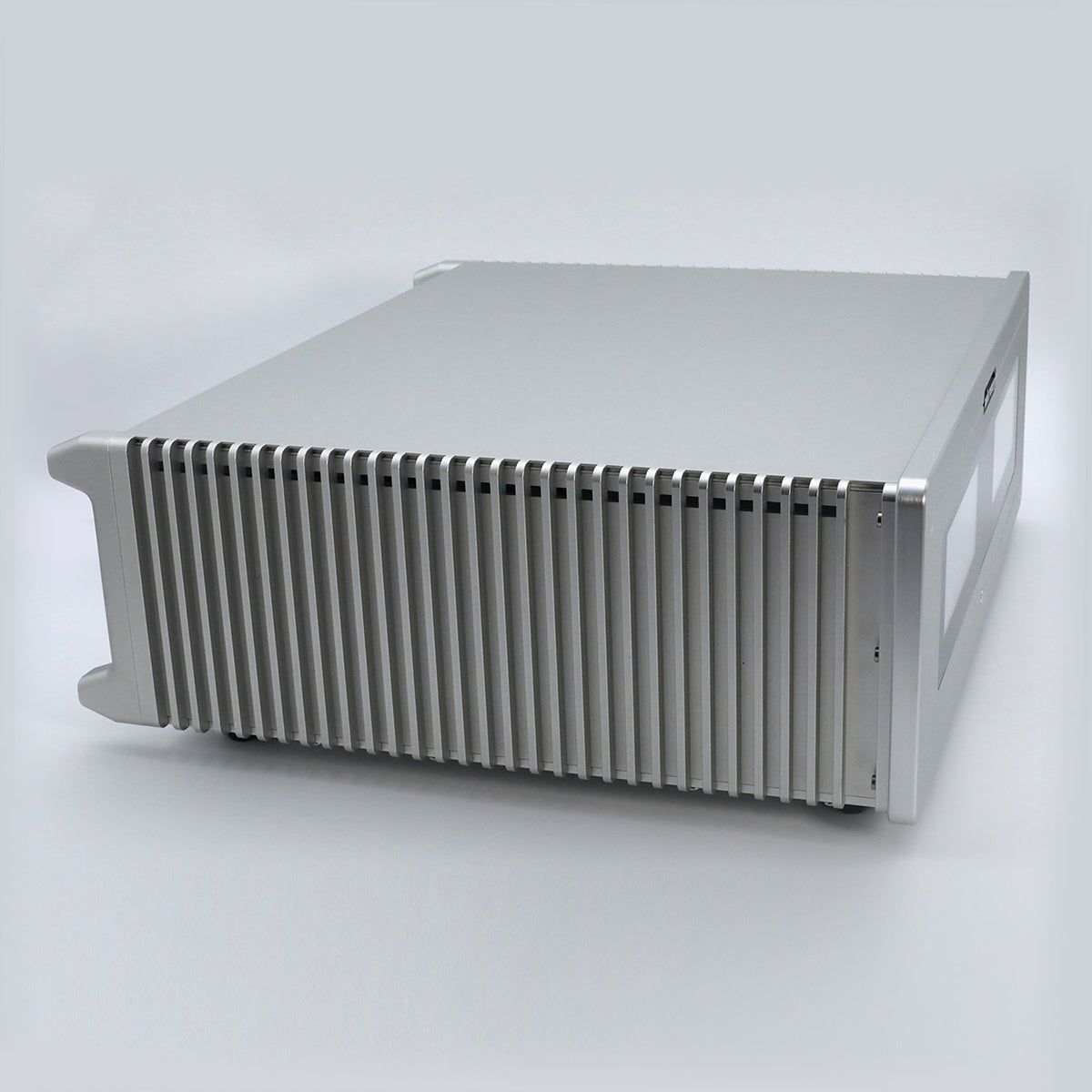

Beginning with a beautifully machined aluminum chassis in either black or silver anodized finish, S-series amplifiers nod to the classic Audio Research design character, but from a sleeker and more modern angle, with custom machined heat sinks and no visible fasteners from the front or top.

S-200 Power Amplifier
S-200 Power Amplifier

After all the measurements and bench testing, every product is proofed by ear, as it has been for decades. All of our S Series amplifiers are produced in our Minnesota facility alongside our Reference Tube Amplifiers.

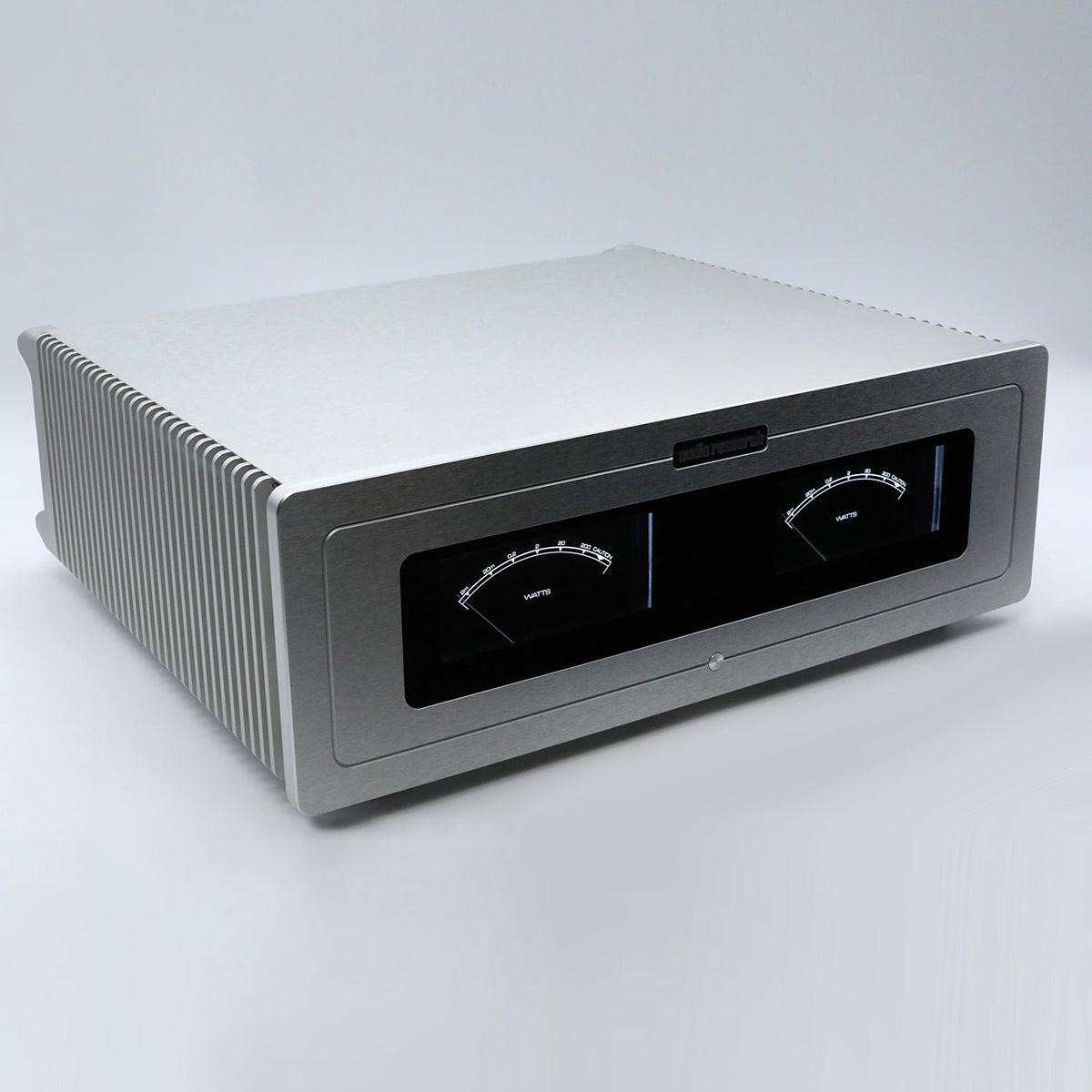

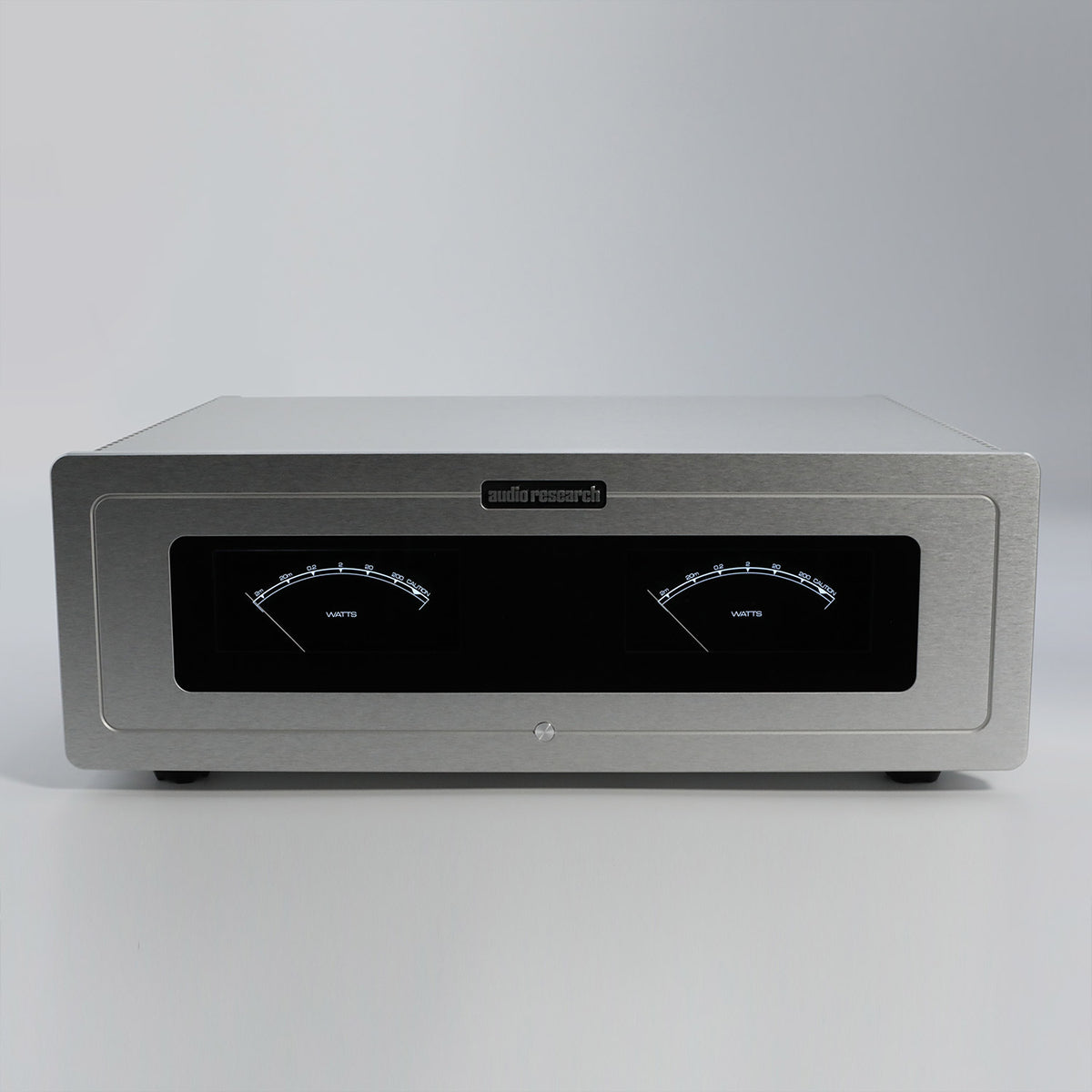

The S-200 sports power output meters in the style of ARC’s modern meter designs, albeit on a solid black background rather than the transparency of the Reference amplifiers’ Ghost Meters®.

S-200 Power Amplifier
S-200 Power Amplifier
S-200 Power Amplifier

TECHNICAL SPECIFICATIONS

Power Output 200 Watts channel into 8 ohms
400 Watts channel into 4 ohms
THD <.1% from 0.25W to rated output into 8 ohms @ 1Khz
Input Sensitiviy 1.8V RMS for rated output
Input Impedance 100kΩ Balanced or Single-Ended
Gain Non-inverting. Balanced input pin 2+ (IEC-268)
Input Sensitivity 1.8VRMS for rated output
Noise 100dB
Frequency Response +/- 0.1db from 20Hz to 20KHz
Damping Factor 300 from 20Hz to 1KHz
Power Requirements @120VAC
Standby: 0.25W. On, idle: 48W
Rated output: 475W
Dimensions Width 19" (48.26 cm)
Height 7” (17.78 cm)
Depth 17.5” (44.45 cm)
Weight: 41lbs (19kg) Net, 63lbs (28.5kg) Shipping
