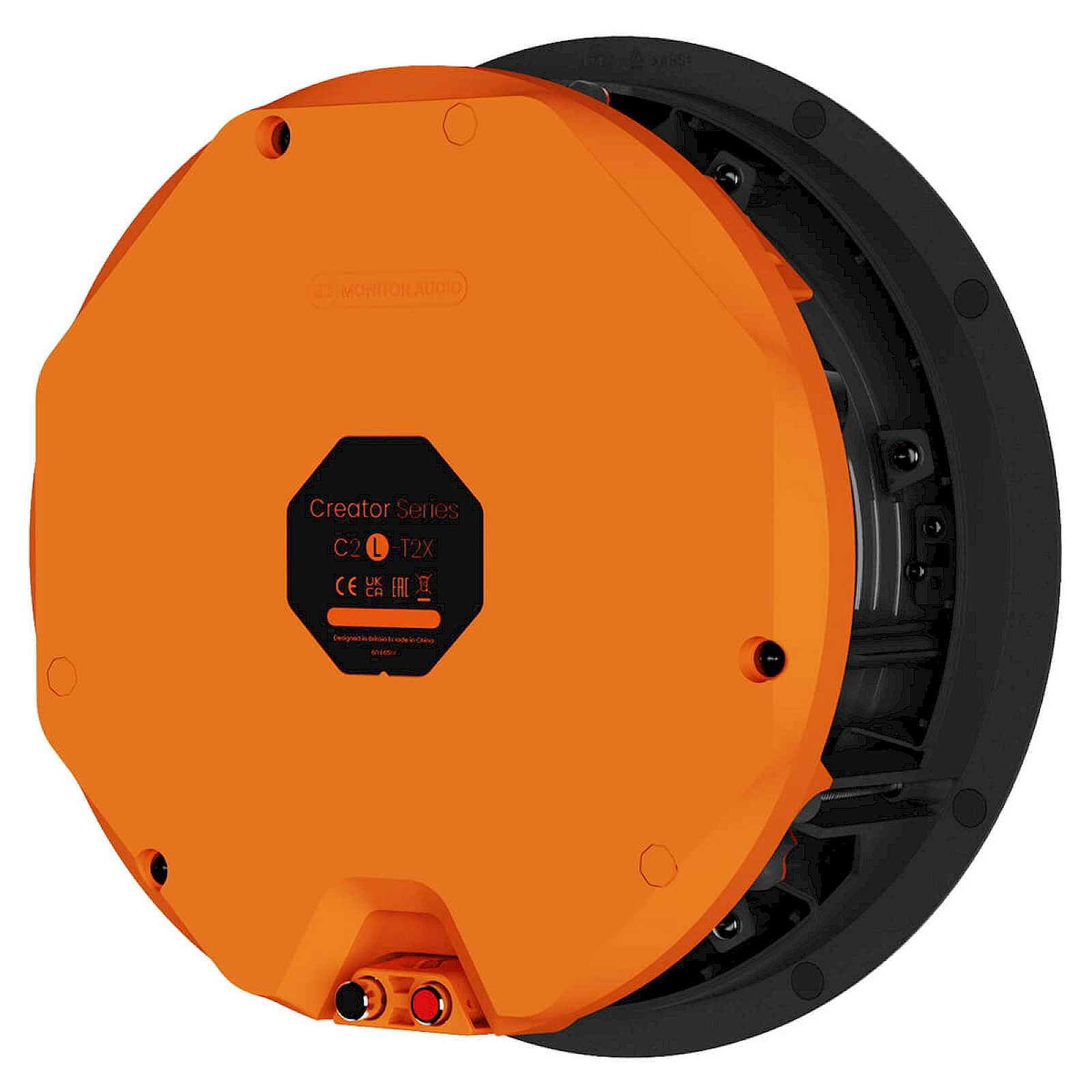

This large Tier 2 in-ceiling loudspeaker can be used as both a single stereo speaker for music or as a di-pole or bi-pole surround sound speaker for exhilarating movie sound. It has a cut-out dimension of 248 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
Key Features:
- Ideal for installations where pristine acoustic performance is required
- Switchable design for three modes
- Two-way design
- 2 x 1.25" C-CAM tweeter with UD Waveguide
- 1 x 9" RST II mid-bass driver
- Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
"Some of the best sound I’ve heard from in-ceiling speakers, with crystalline detail".
- Ecoustics
British High-Fidelity Architectural Sound Redefined

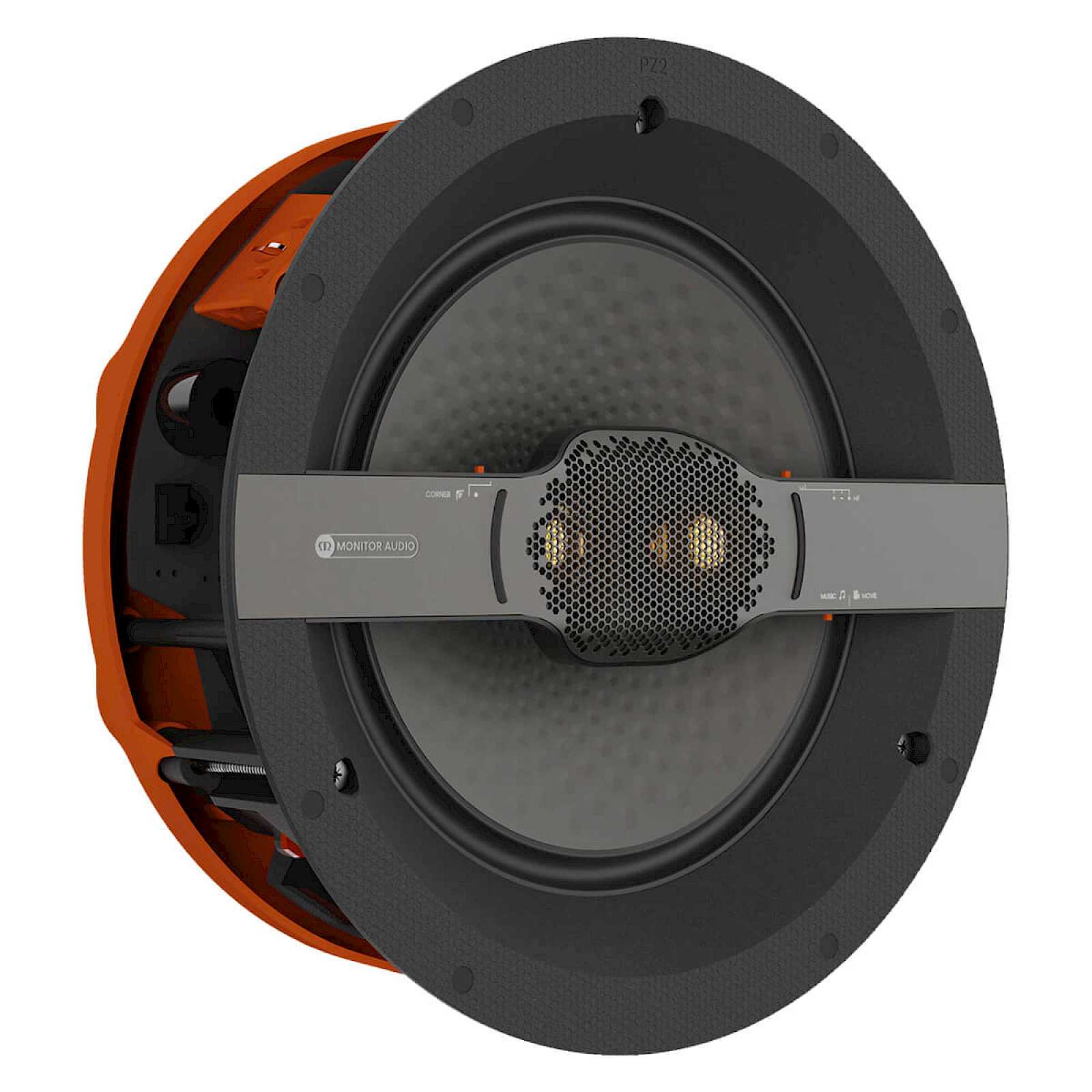

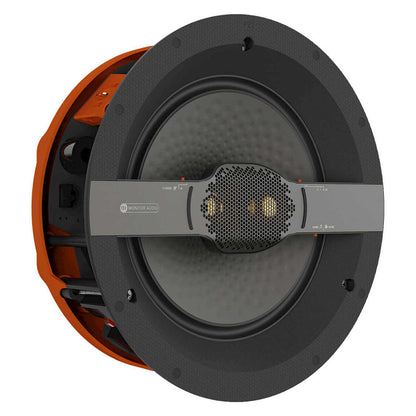

Ideal for both music and movies, the large in-ceiling C2L-T2X allows the user to switch between Music mode for wide dispersion and Movie mode for spatial effects. It is a two-way model featuring an RST II dual-coil bass driver and two C-CAM tweeters.

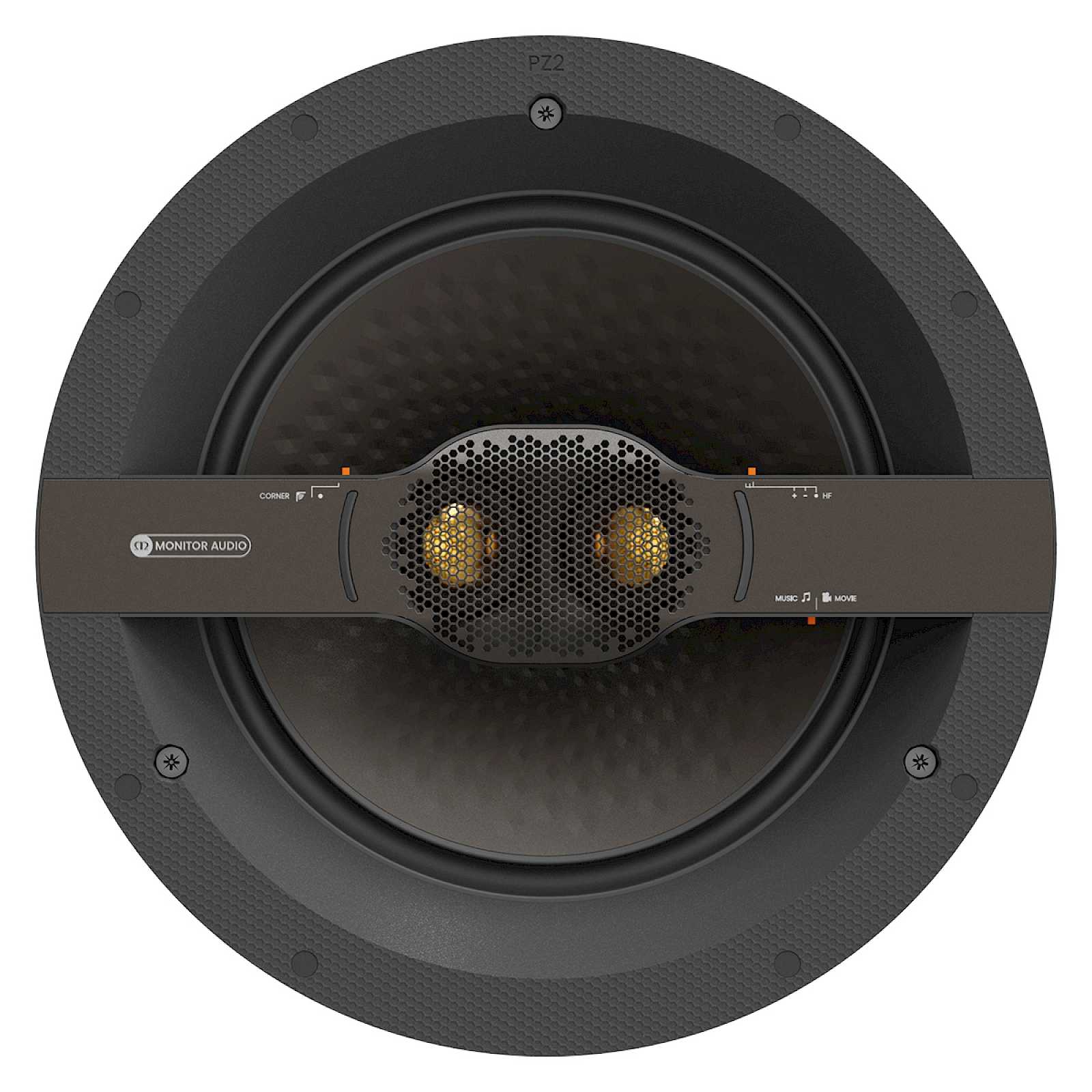

C2L-T2X has three modes:
- Cinema Mono FX (Di-pole, tweeters out of phase)
- Mono Wide Dispersion (Bi-Pole, tweeters in phase)

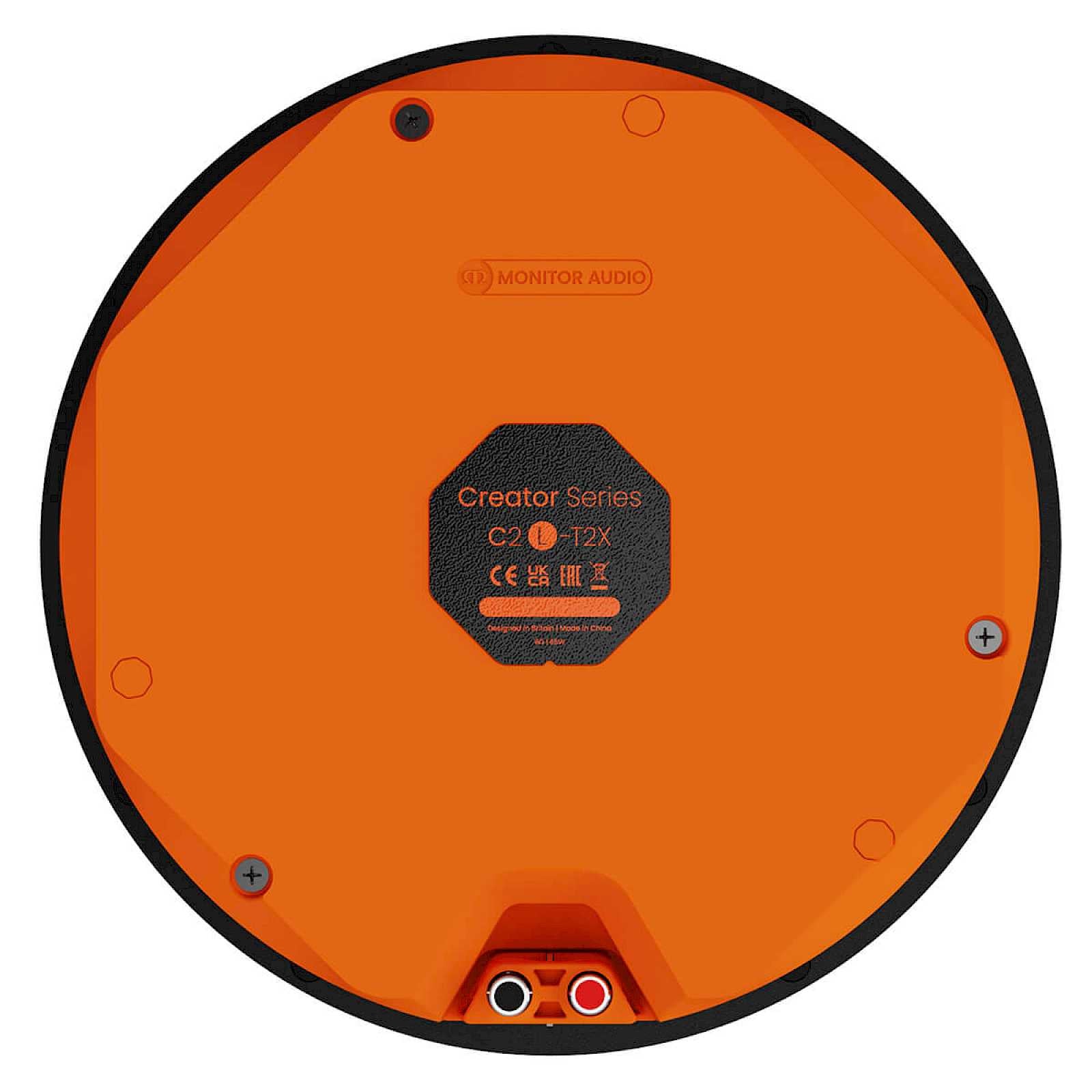

- Single Speaker Stereo (two binding posts accepting connection to two separate amplifier channels)
C2L-T2X is ideal used as rear surround channels, within corridors or large areas where maximum coverage is required, and in compact areas where there isn’t space to fit two speakers.
Optional square grille can be used with this model.
A Choice of Grilles offering Timeless Style
All Creator Series in-ceiling speakers come, as standard, with white grilles.
For those that want to ‘hide’ or ‘blend’ their integrated speakers with darker décor, black grilles are also available as an optional accessory in round and square designs.
Specifications
Category |
Details |
|---|---|
| System Format | 2–Way |
| Channels |
1 (Mono) 2 (Stereo) |
| Frequency Response, Installed (-6dB) | 30 Hz – 30 kHz |
| Nominal Impedance |
4 Ohm (Mono) 8 Ohm (Stereo) |
| Minimum Impedance (20 Hz – 20 kHz) |
3.2 Ohm @ 15 kHz (Mono) 6.4 Ohm @ 15 kHz (Stereo) |
| Sensitivity (2.83 Vrms @ 1m, Installed) | 88 dB |
| Maximum Peak SPL (single speaker @ 1m Z-Weighted)* | (Mono) 117dB |
| Continuous Power Handling (RMS, Pink Noise, 6 dB Crest Factor) |
240 W (Mono) 2 x 30 – 120 W (Stereo) |
| Recommended Amplifier Power (RMS into 8 Ohm, Music Signal) |
60 – 240 W (Mono) 2 x 60 – 240 W (Stereo) |
| Drive Unit Complement |
1 x 9" (229 mm) RST II dual-coil bass driver 2 x 1.25" (32 mm) C-CAM tweeter |
| Crossover Frequency | LF/HF: 2 kHz |
| Mounting Depth | 99 mm (37/8") |
| Cut-Out Hole Diameter | 248 mm (93/4") |
| External Dimensions (Including Grille, H x W x D) | 278 x 278 x 103 mm (1015/16 x 1015/16 x 44/16") |
| Weight (each) | 2.7 kg (6 lb) |
| Pre-Construction Bracket | CL-B |
| Cabinet Finish | Matte black & Orange & Bronze |
| Sold As | Single Unit with CL-Round Grille (white) |
| Corner Switch | On/Off |
| HF Switch | - / 0 / + |
| Music/Movie Switch | Music / Movie |
| Mono/Stereo Switch | Mono / Stereo |
| Warranty | Lifetime |
Transparent Design Philosophy
-

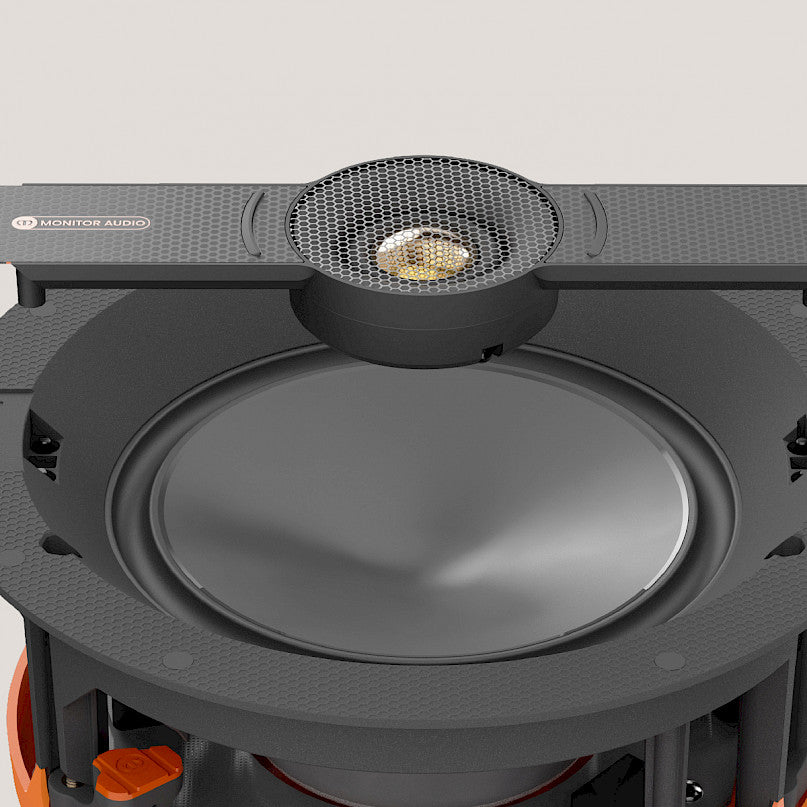

Tier 1
A comprehensive range of speakers designed for cost-effective installations where product simplicity and solid acoustic performance is required.
Features
- C-CAM mid-bass drivers
- C-CAM gold dome Tweeters with UD Waveguide I
- Tri-Grip II legs
- Quik-Link
-

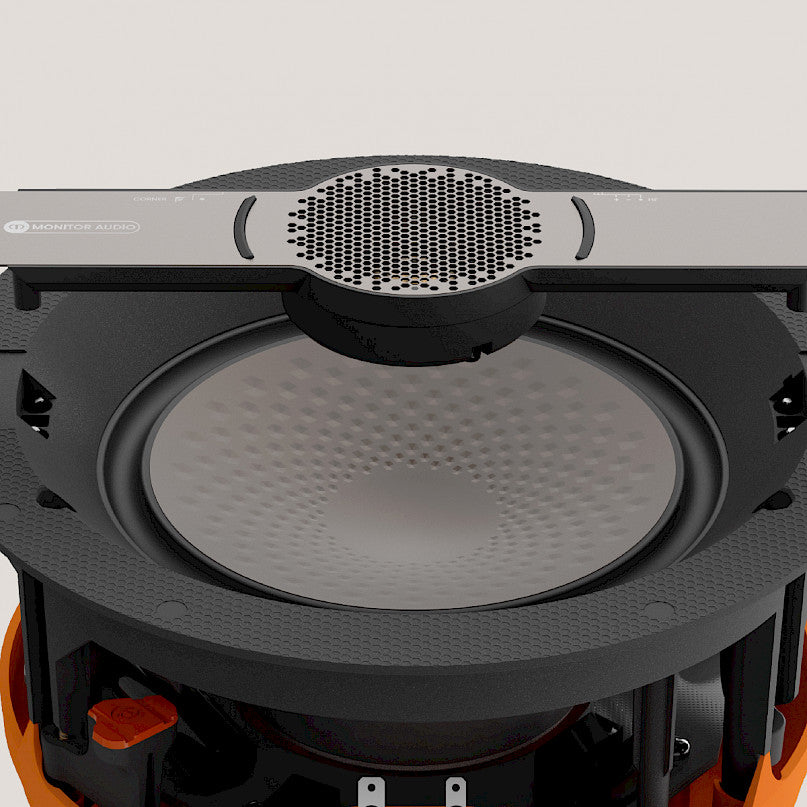

Tier 2
Where enhanced performance is required, Tier 2 models offer a significant step up over Tier 1 models, both in terms of acoustics and features.
Features
- Boundary correction, mid/high frequency & cut/boost
- C-CAM RST II mid-bass drivers
- C-CAM gold dome Tweeters with UD Waveguide II
- RST II bass drivers
- Tri-Grip II legs
- Quik-Link
- Rotating mid-pod
-

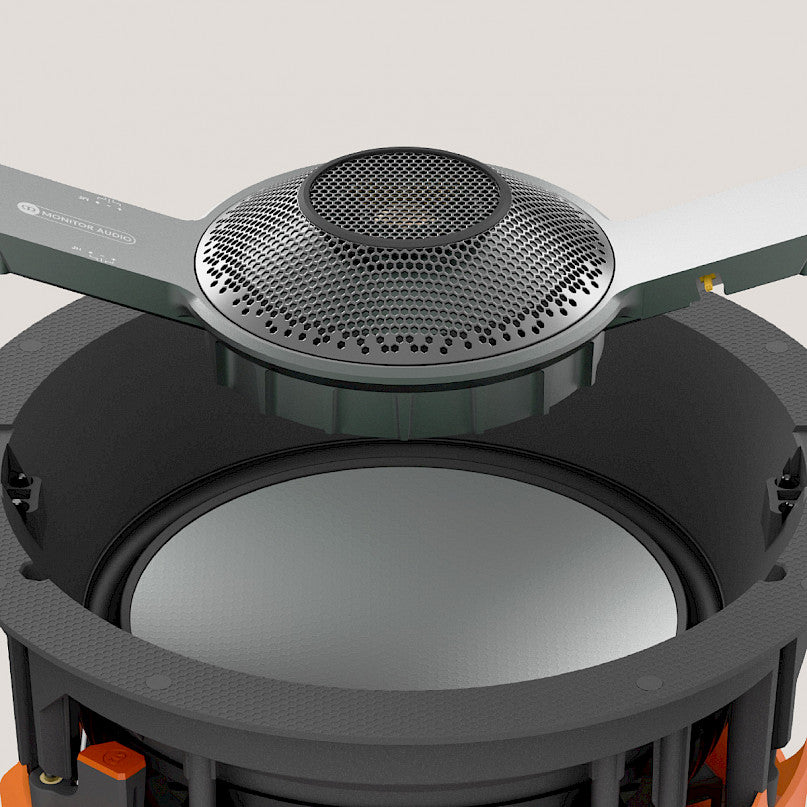

Tier 3
Tier 3 offers discreet, premium high-fidelity sound, coupled with technological innovations that offer enhanced flexibility of speaker placement.
Features
- Boundary correction, mid/high frequency & cut/boost
- IDC II coaxial mid/tweeter drivers
- RDT III bass drivers
- MPD II transducer
- Tri-Grip II legs
- Quik-Link
- Rotating mid-pod

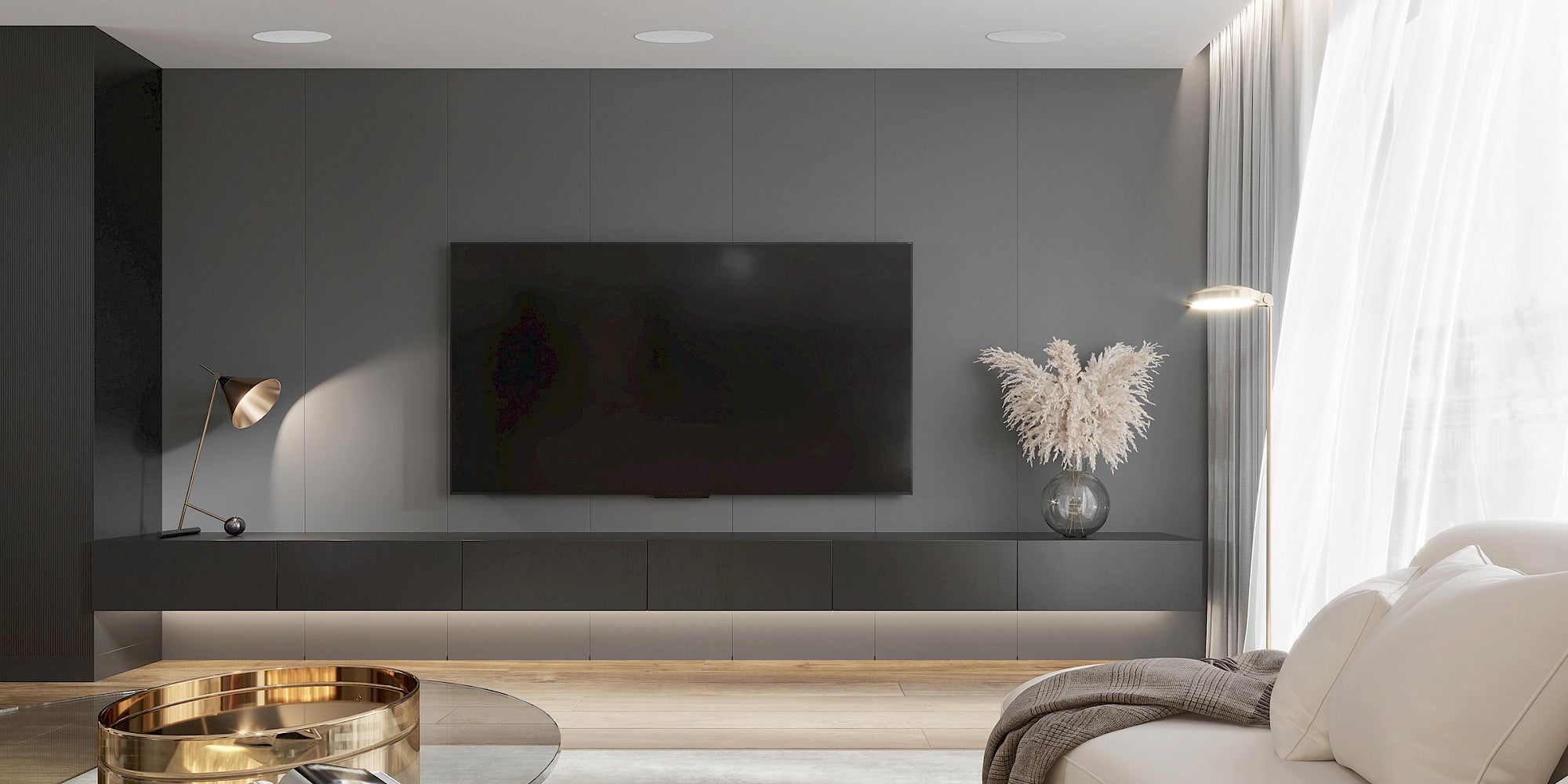

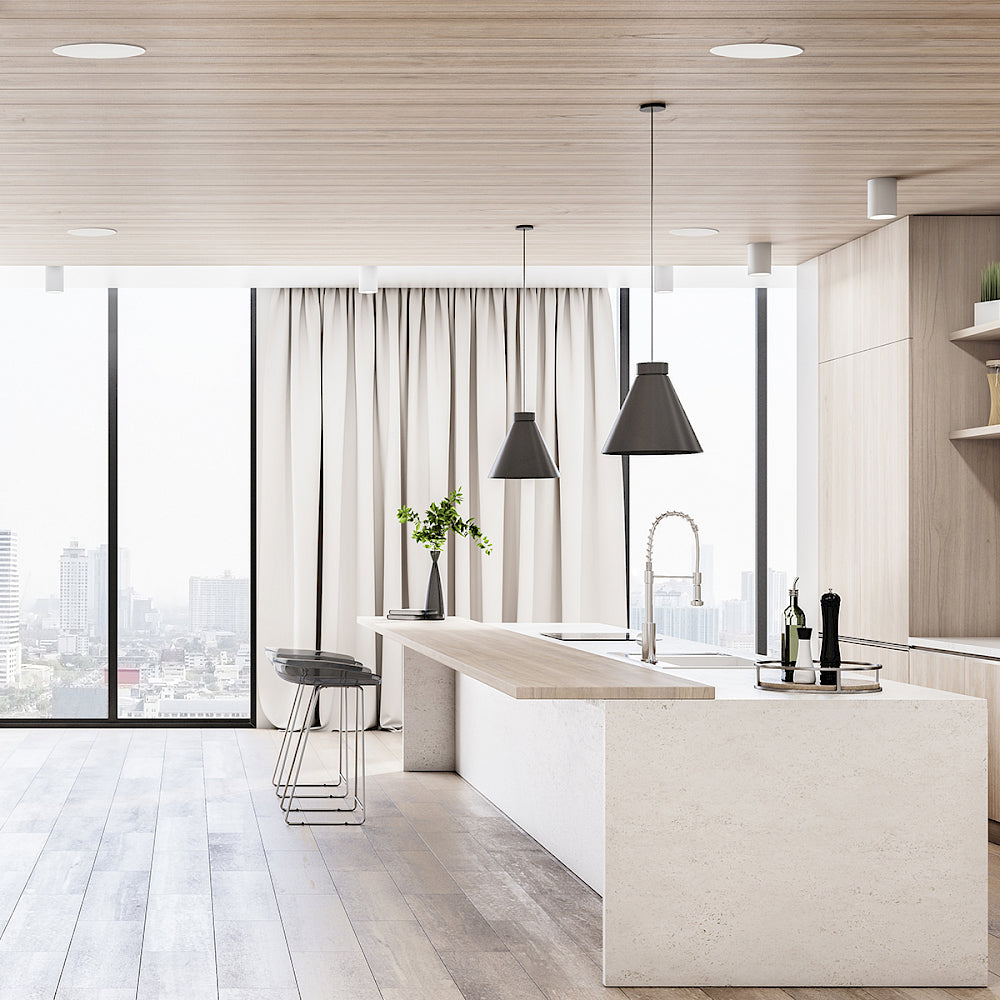

Creator Series - In-Ceiling models

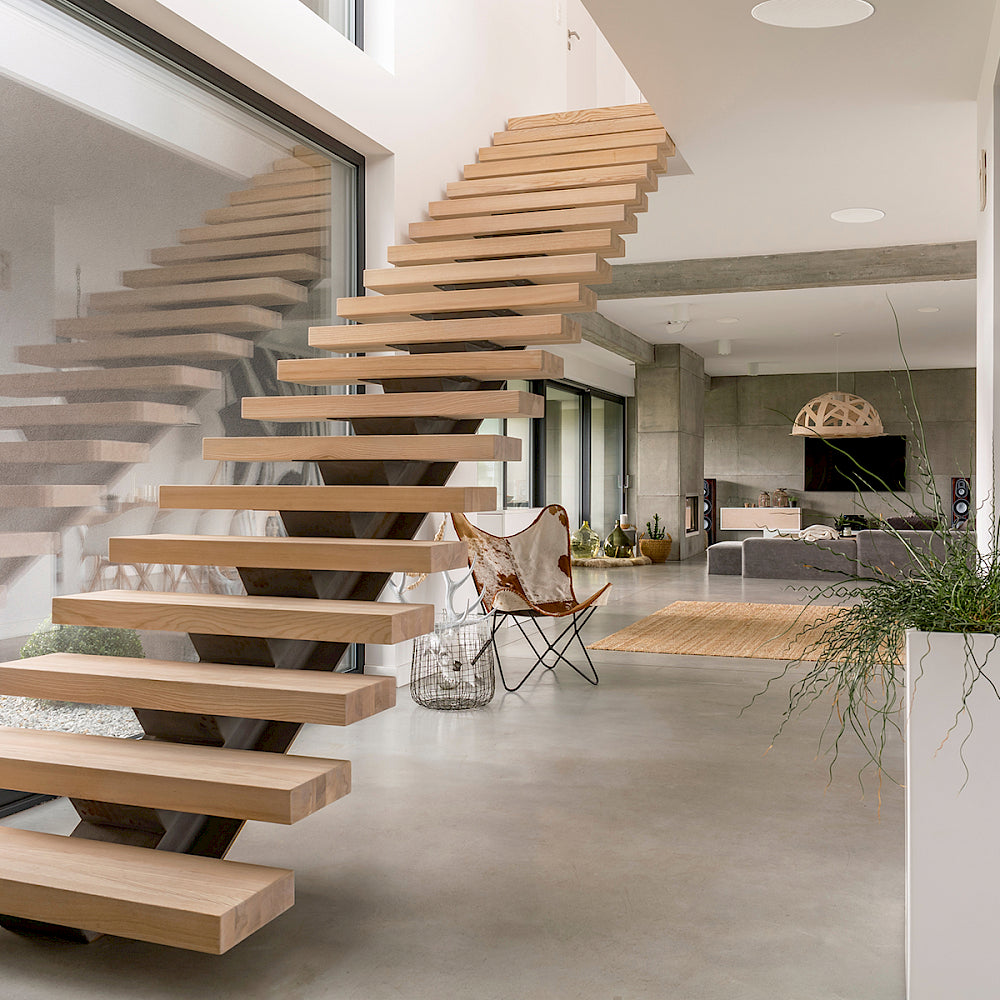

The in-ceiling loudspeaker sits at the heart of architectural sound; its ability to fill a room with wonderful sound while remaining virtually invisible delivers on the primary dream of a custom installation audio system. The Creator Series features small, medium and large in-ceiling models, allowing you to select the perfect array of speakers for your space.

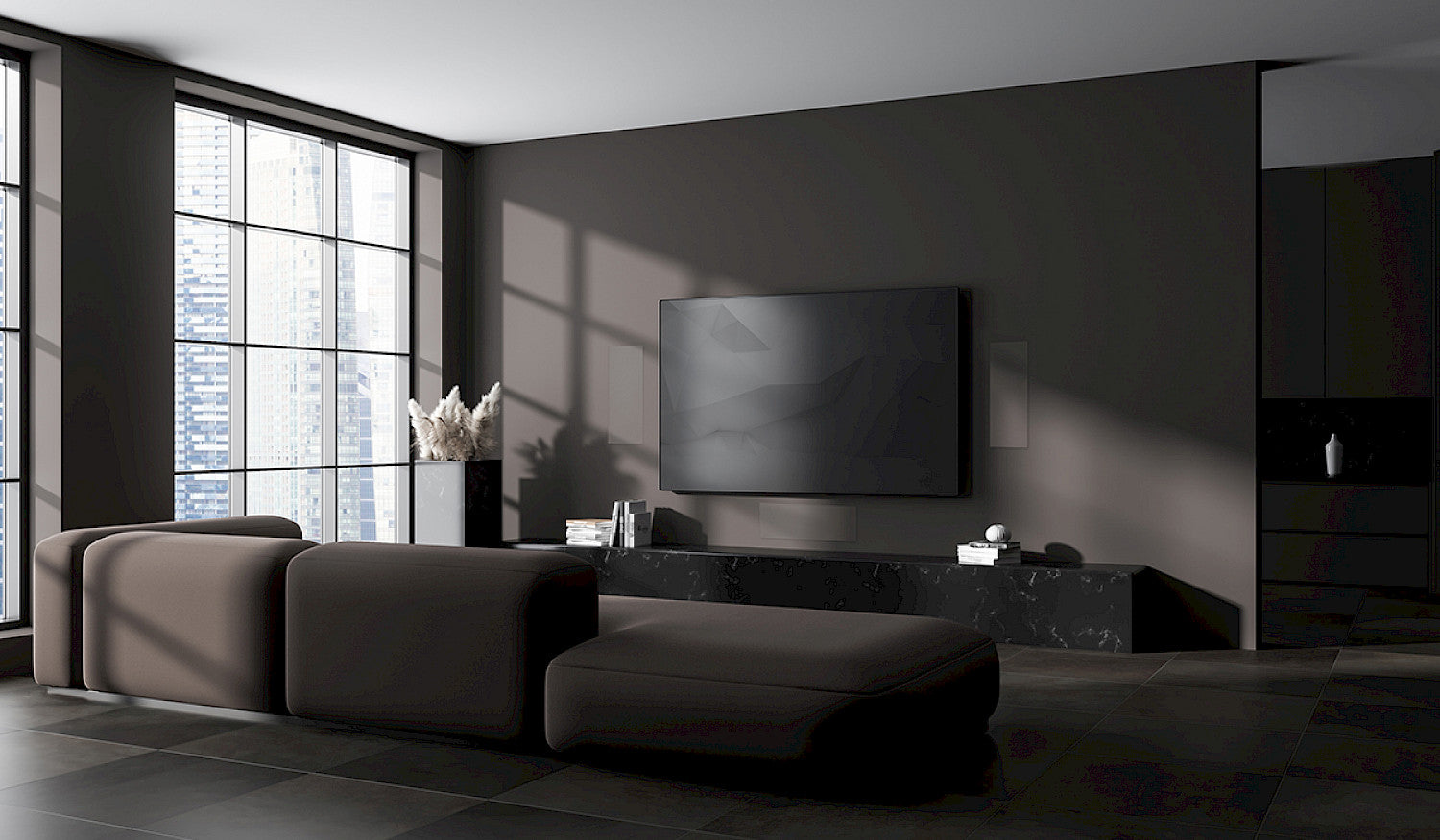

Creator Series - In-Wall models

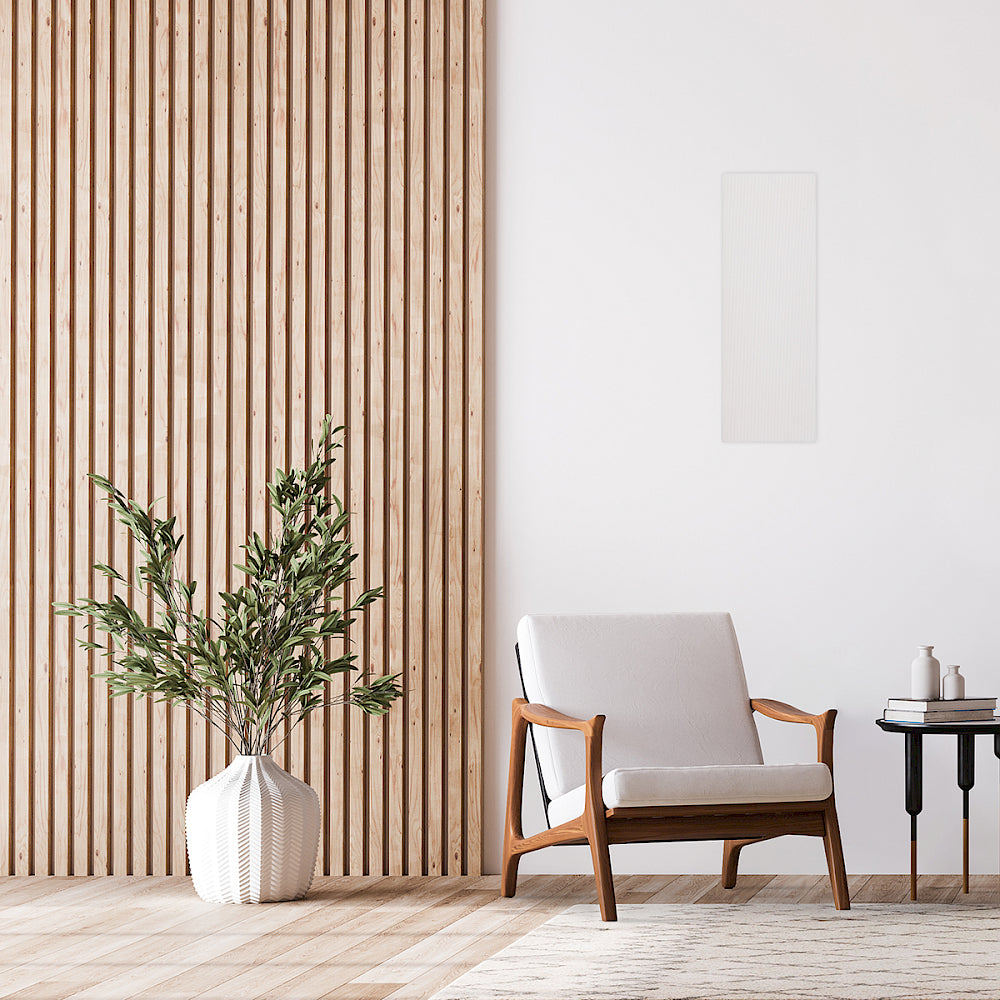

The in-wall loudspeaker is a versatile, high-performance tool that can add localised quality to any custom installation. The Creator Series in-wall models allow you to create areas of high-performance sound, most usually in a dedicated home cinema space, that rival that of stand-alone loudspeakers, while remaining virtually invisible.

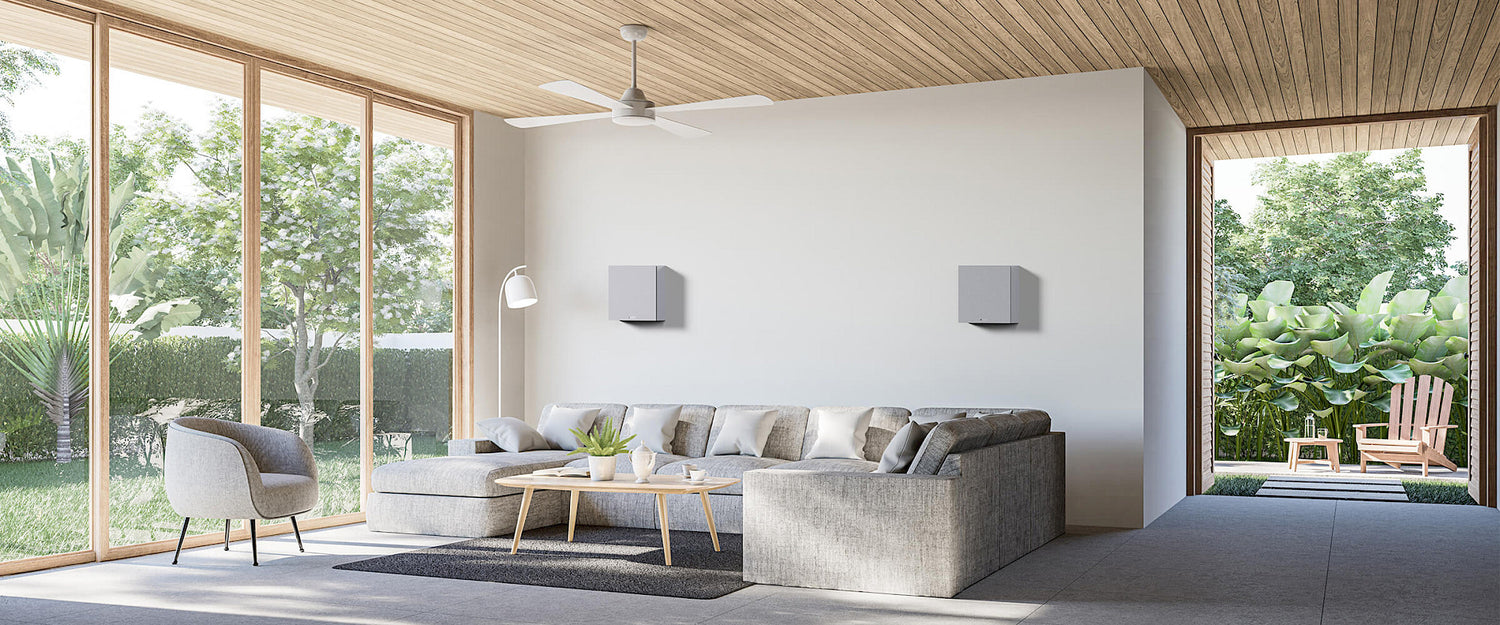

Mount Boxes
The On-Ceiling and On-Wall Creator Series Mount Boxes allow simple delivery of audio in spaces where fully integrated, built-in solutions aren’t an option—delivering high-fidelity sound without restrictions.
Quik-Link
Our new innovative Quik-Link terminal revolutionises speed of installation. With Quik-Link you can make cable connections up the ladder at pre-installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It’s that easy.
Tri Grip II
Tri-Grip II is a new dog-leg mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.

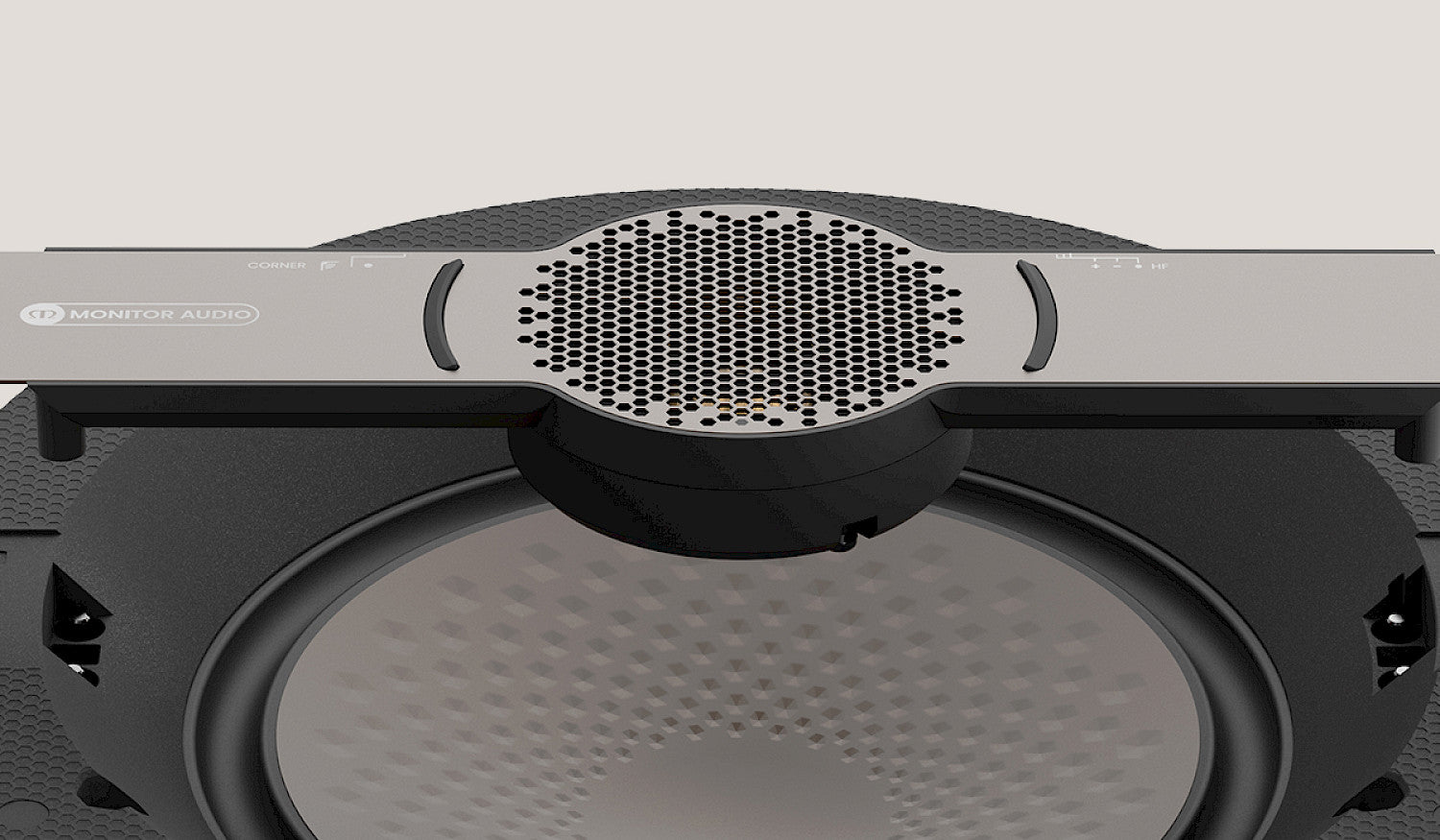

RDT III
Rigid Diaphragm Technology III (RDT III) is a composite ‘sandwich’ structure made from ultra-thin low-mass skins, bonded to a honeycomb Nomex® core material. It is very light and very strong, meaning that it can respond with great speed without bending - just like a perfect piston.
MPD II
Tier 3 In-Wall speakers feature an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion.

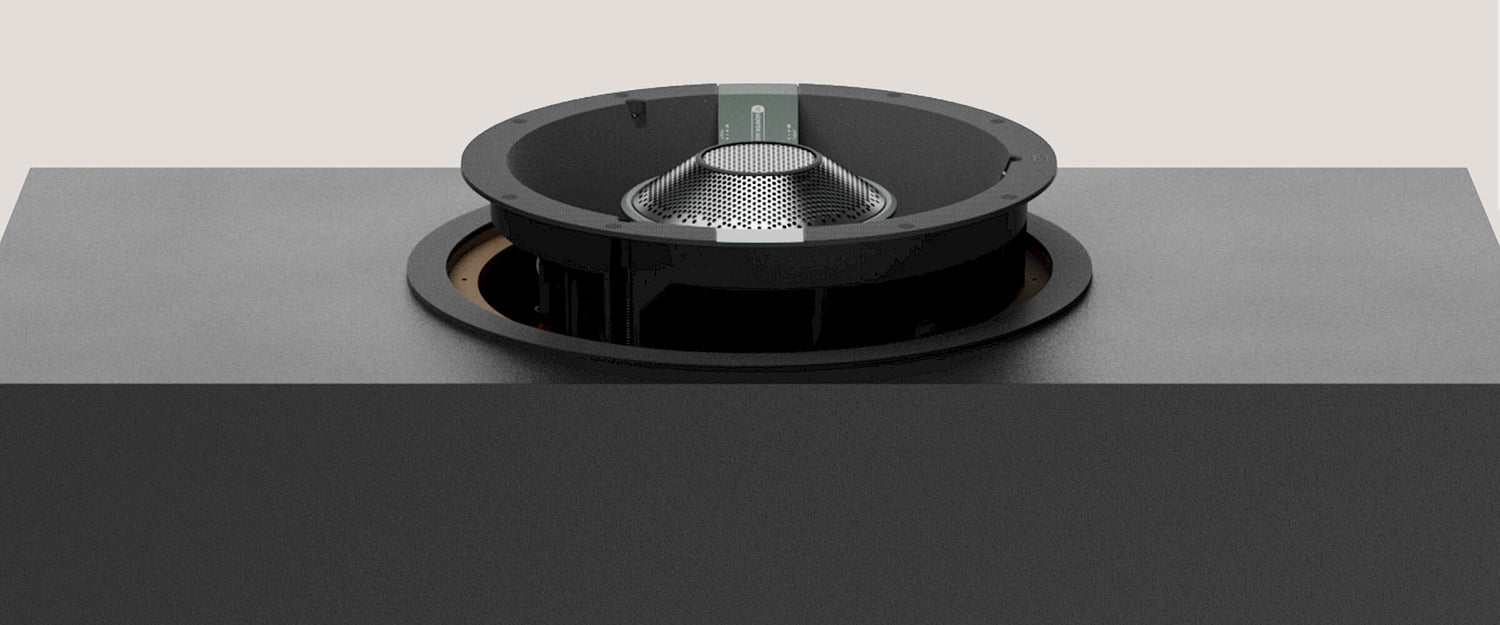

Accessories
From installation to finishing touches, you’ll find everything you need to accessorise your Monitor Audio listening experience with our selection of Pre-Construction Brackets, Speaker Back Boxes and Speaker Grilles.
