VPI Industries

VPI Industries Ads (Analog Drive System)

Regular price $1,265.00 USD
Regular price Sale price $1,265.00 USD
Sale Sold out
Shipping calculated at checkout.

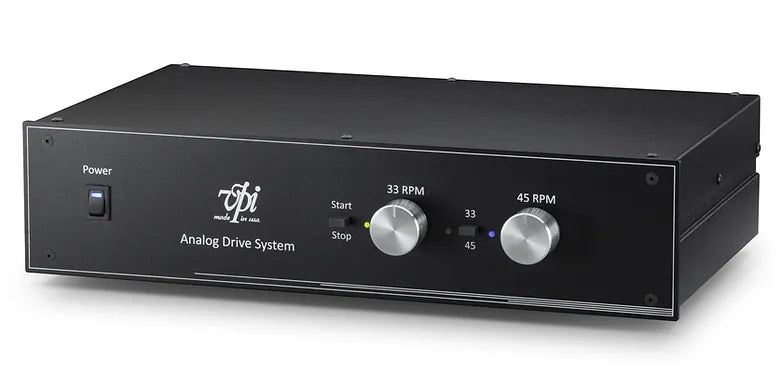

VPI Ads (Analog Drive System)

"...a shockingly big deal — the ADS is killer."   - Scot Hull

The ADS design includes two pure analog frequency generators featuring low distortion and noise; a high current Class-A/B amplifier that is transformer-coupled to the turntable output; analog control logic for low noise operation; 33/45 RPM analog speed adjustment controls with center detente positions that are factory calibrated.











VPI Cliffwood Tonearm

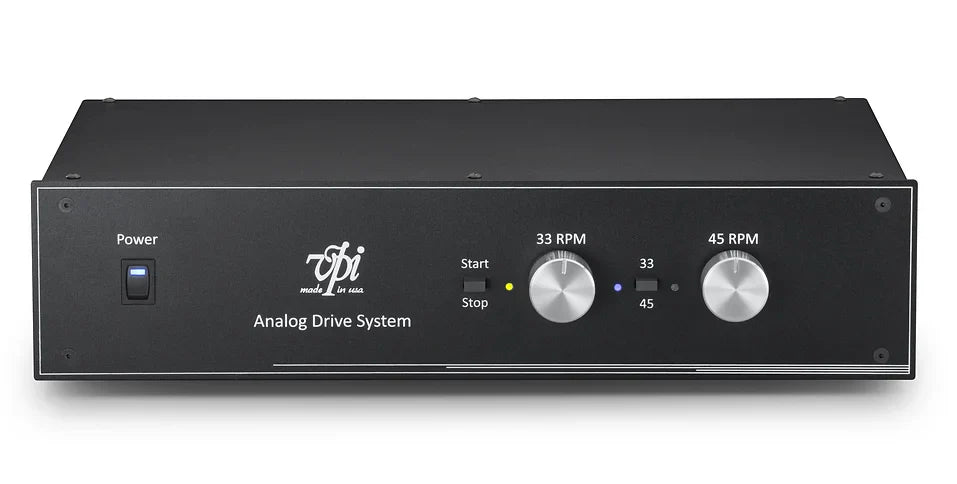

  • The platter is started and stopped by the front panel Run/Stop momentary push button switch.
  • The front panel contains a two-position push button switch for selecting either 33 RPM or 45 RPM operation.
  • There are separate speed adjustment controls for 33 and 45 RPM.
  • The controls have a detented center position that is factory-calibrated for 60 Hz (33 RPM) and 81 Hz (45 RPM).
  • The speed is  continuously adjustable +/- 3 Hz
  • Blue LED indicators adjacent to the controls indicate which speed is set at a glance.





SPECIFICATIONS

Line Voltage 115/230 VAC Factory set
Line Frequency 50/60Hz
Line Fuse 1 amp (Slo-Blo)
Output voltage 115/230 VAC Factory set
Start Voltage 120/240 VAC
Run Voltage 90/180 VAC
Output Frequency 50Hz/60Hz Factory Set
Output Frequency Range 60 Hz Center Detent: 60Hz @33 RPM & 81Hz@ 45 RPM
50 Hz Center Detent  50Hz @33 RPM & 68Hz@ 45 RPM
Control Range +/- 3Hz
Output Power 15W
Dimensions 16” X 4” X 12” (W X H X D)
Weight 10 lbs
